1. Access suspension leg
Lay the washing machine on its side to access the underneath. Asking for help if needed.
2. Remove old suspension leg

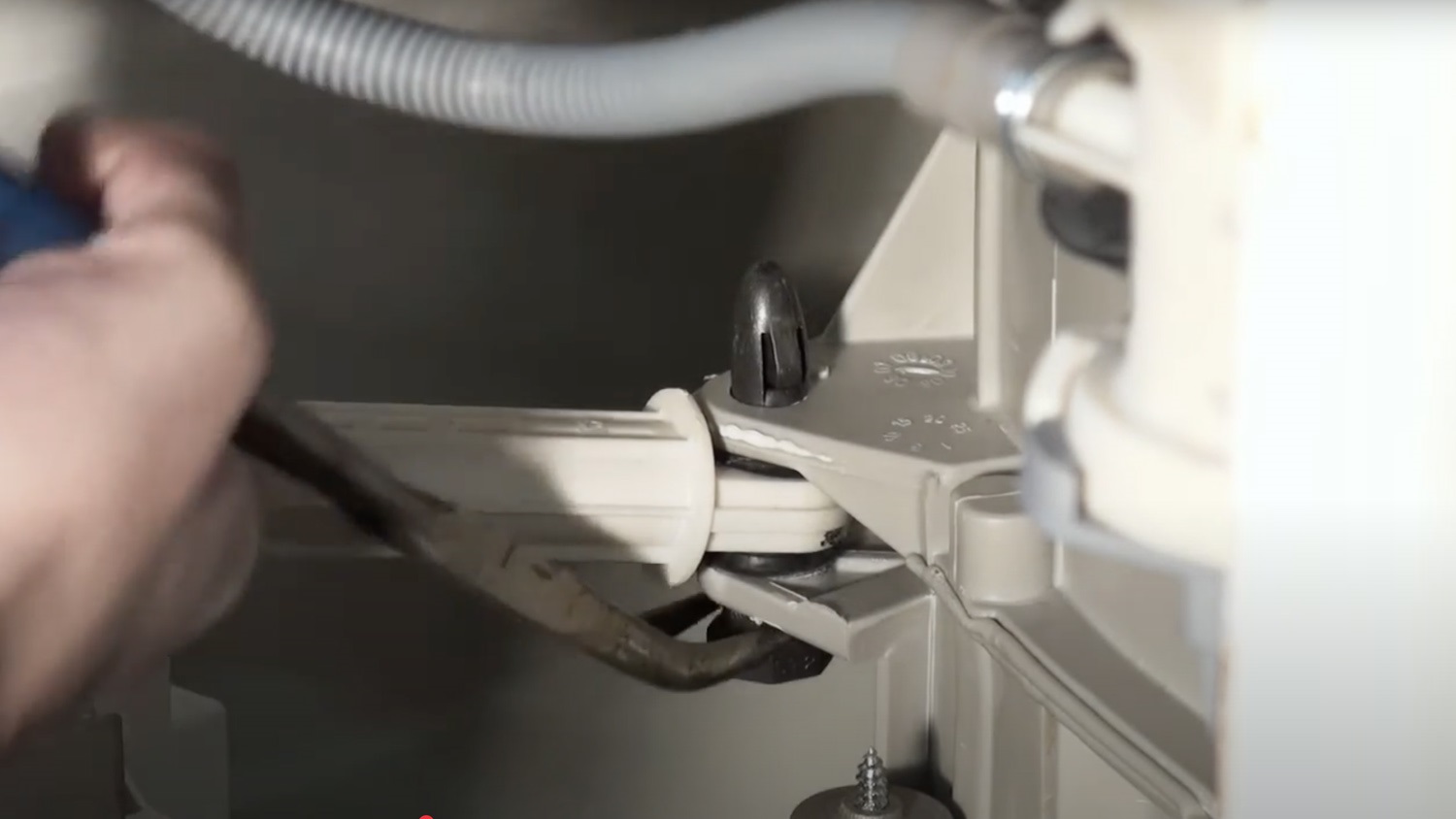

Using your pliers, remove the pin holding the suspension leg to the drum.
The pin will need to be pressed in at the top to fully remove.

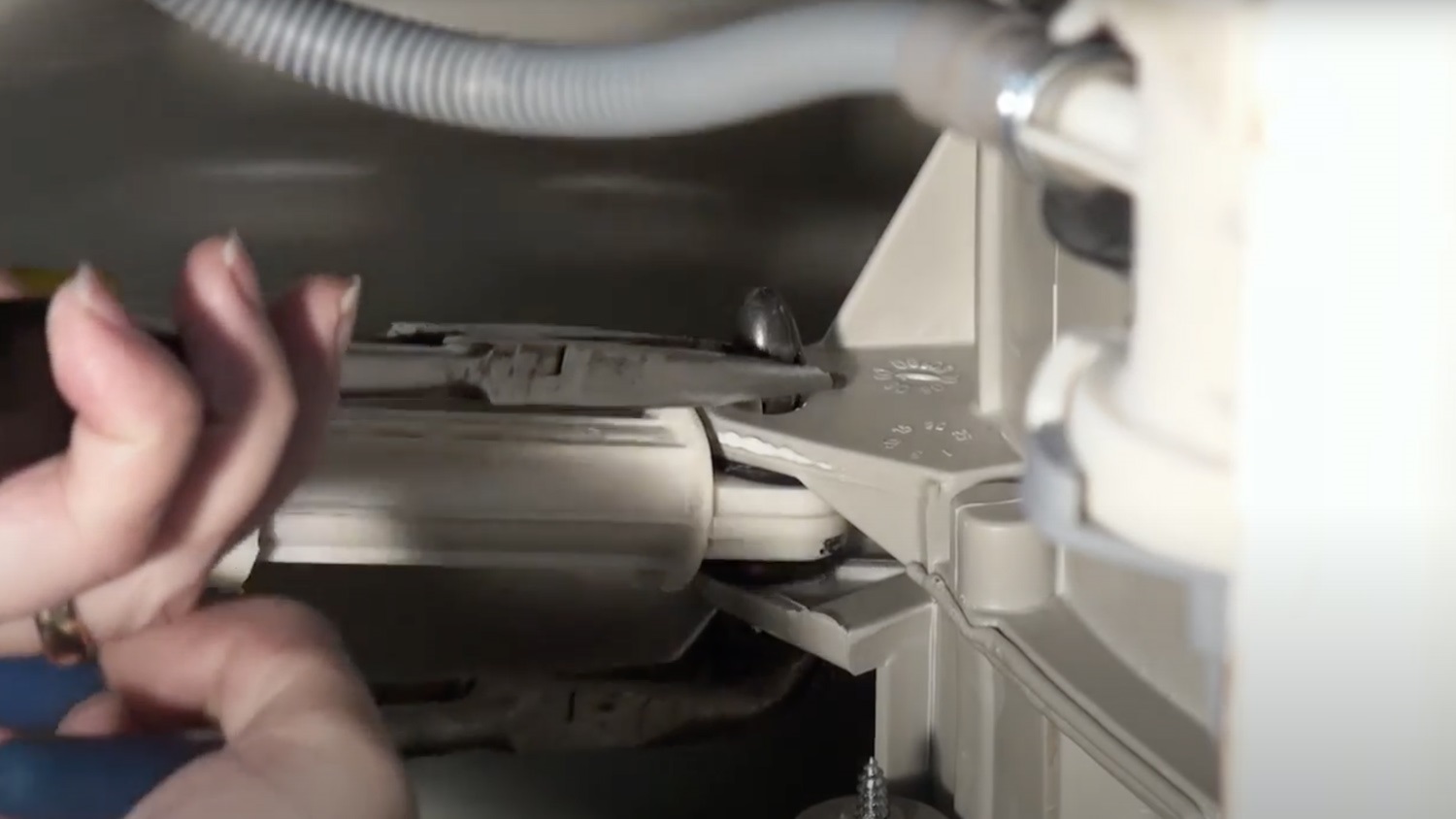

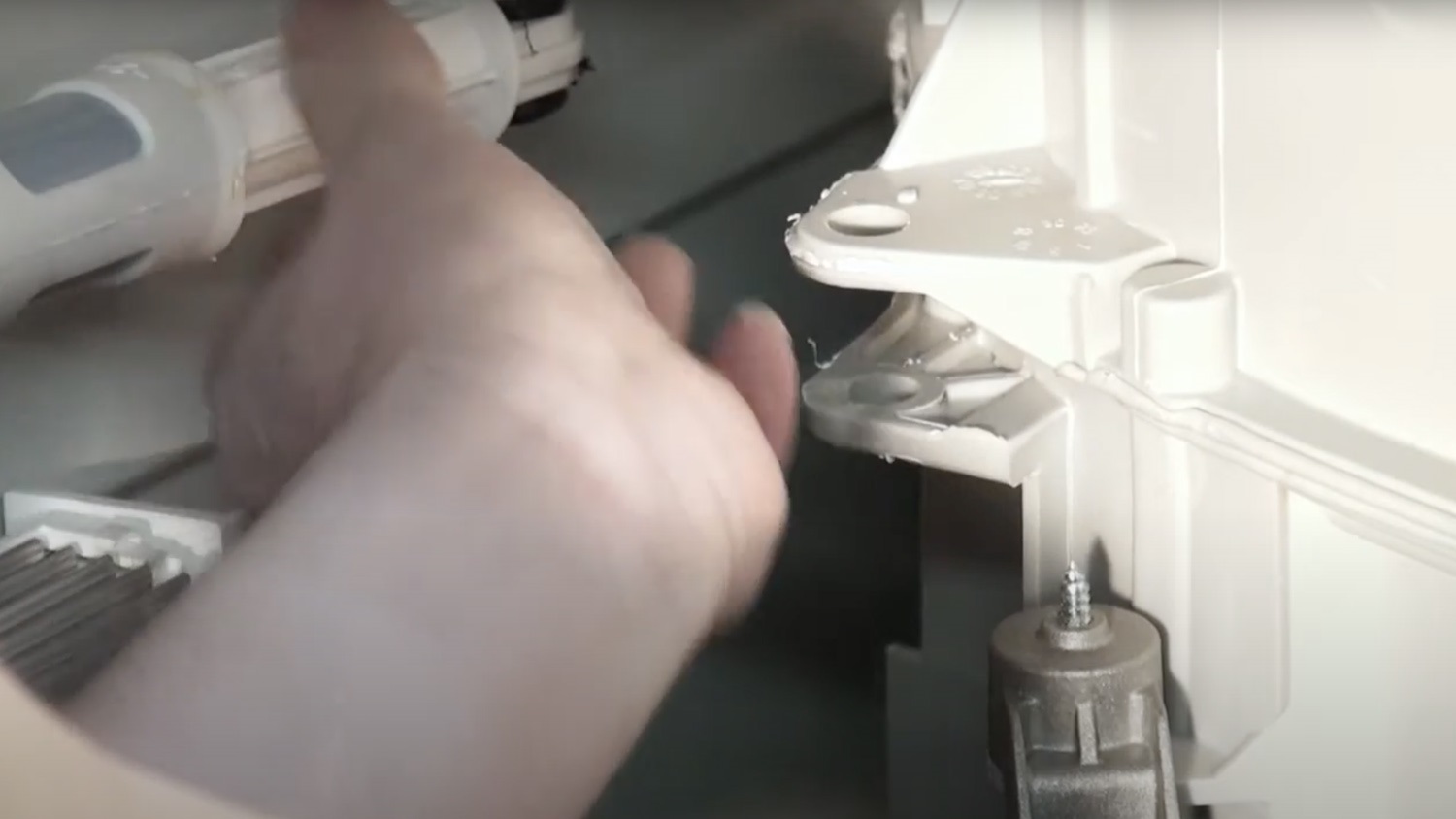

Slide the suspension leg to one side.

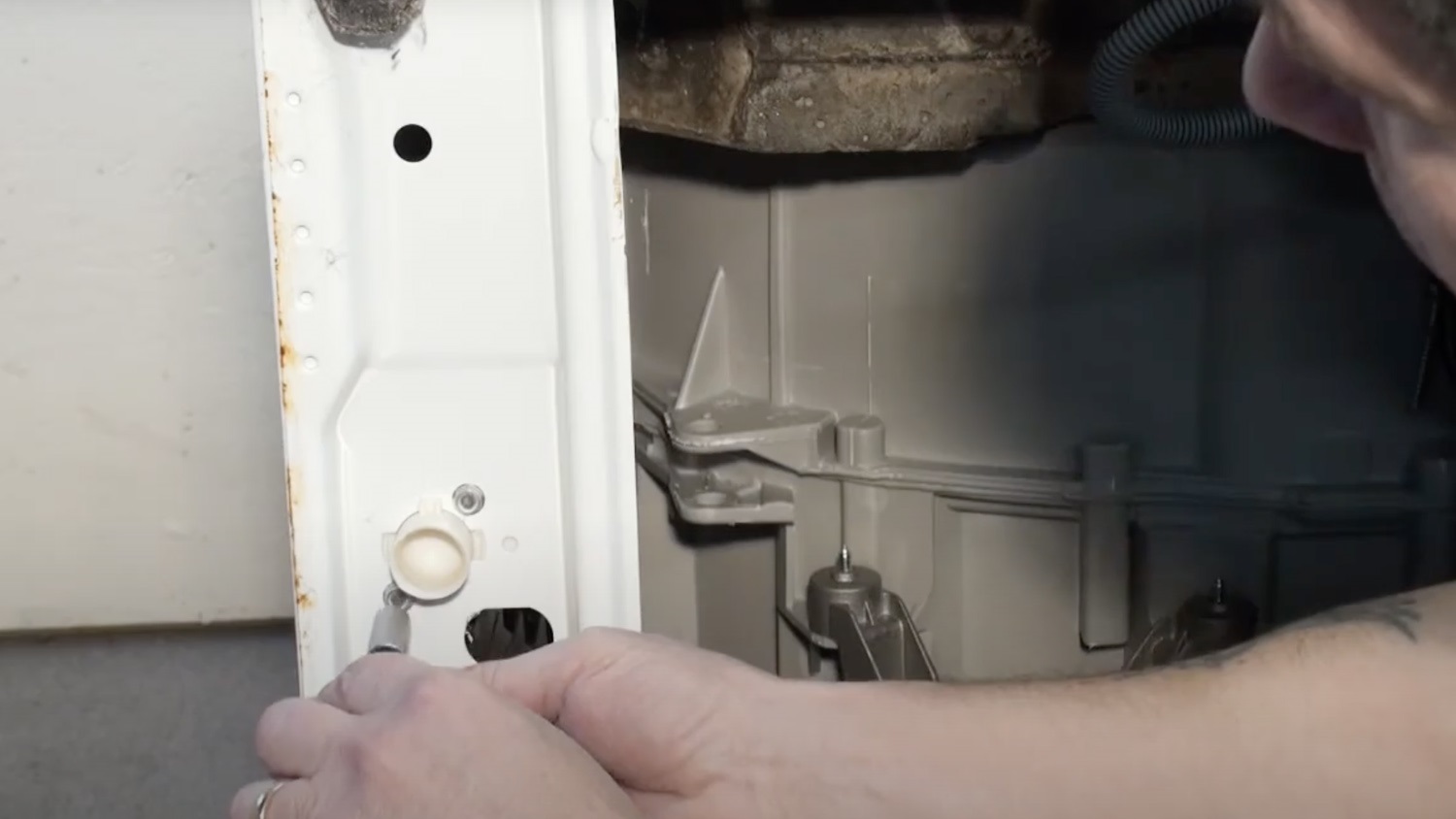

Remove the 8mm screws holding the suspension leg in place.

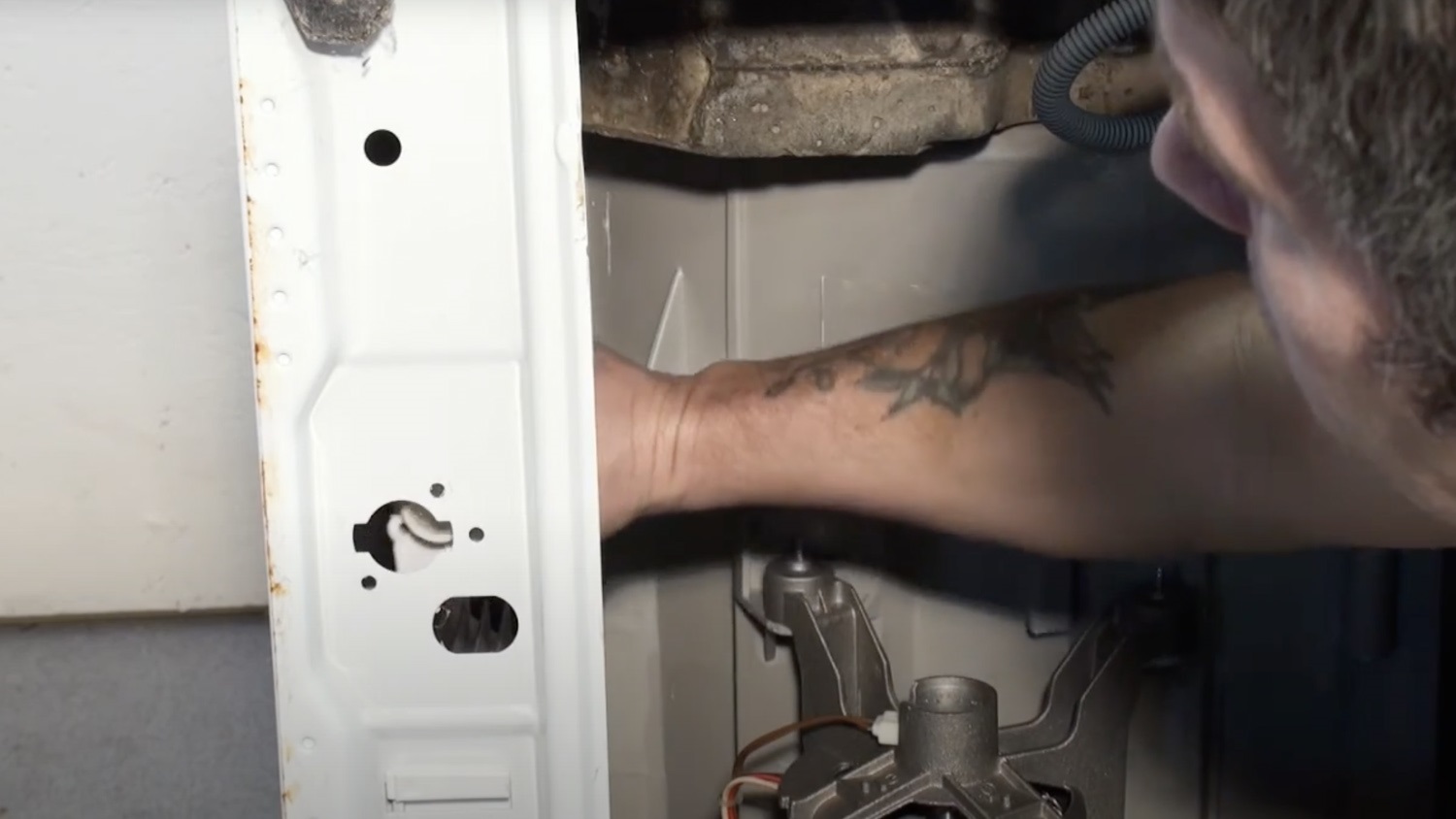

Turn the suspension leg and remove it from the washing machine.

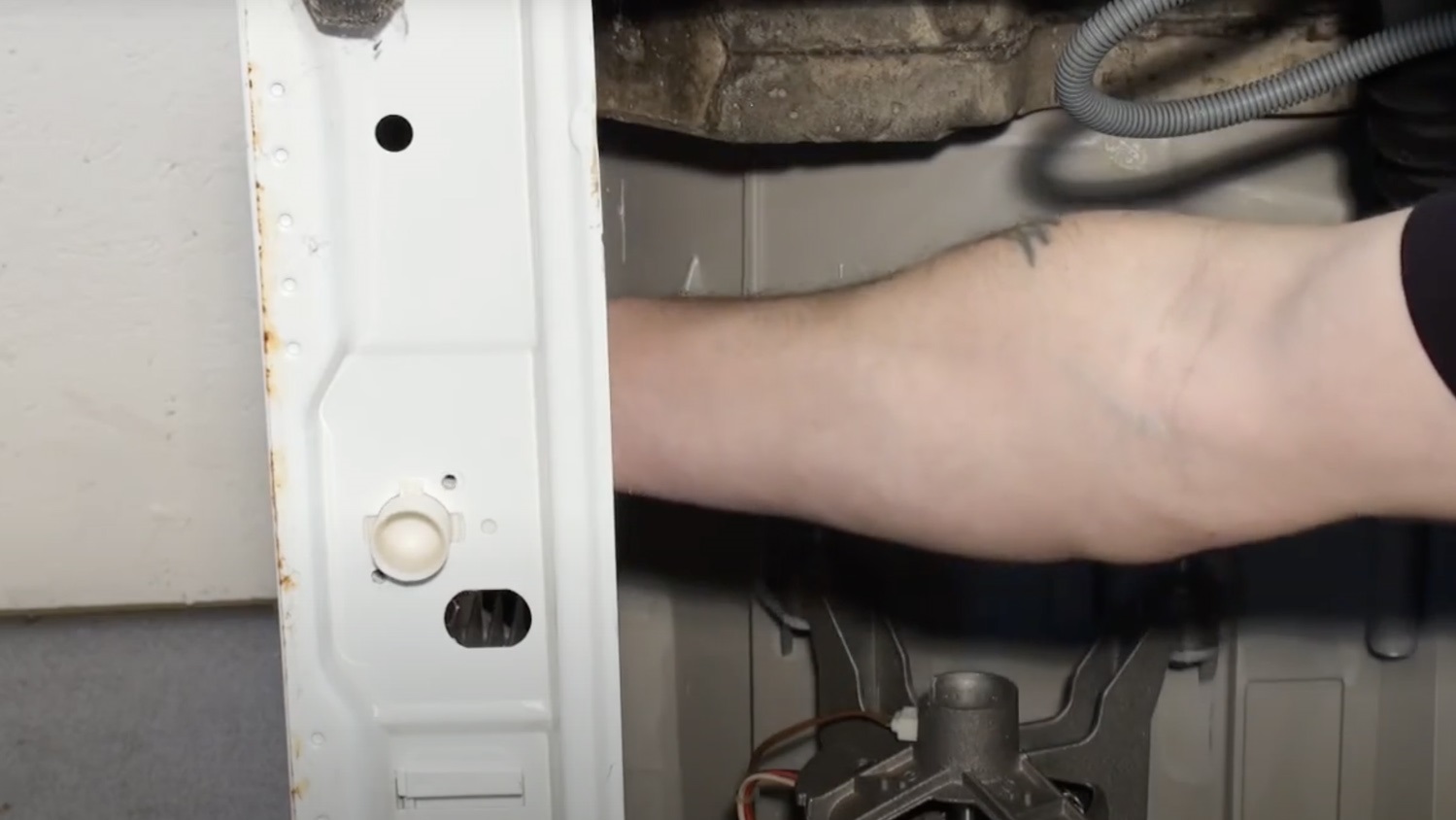

3. Attach new suspension leg
Slot the suspension leg into the holes and twist anticlockwise 90 degrees.

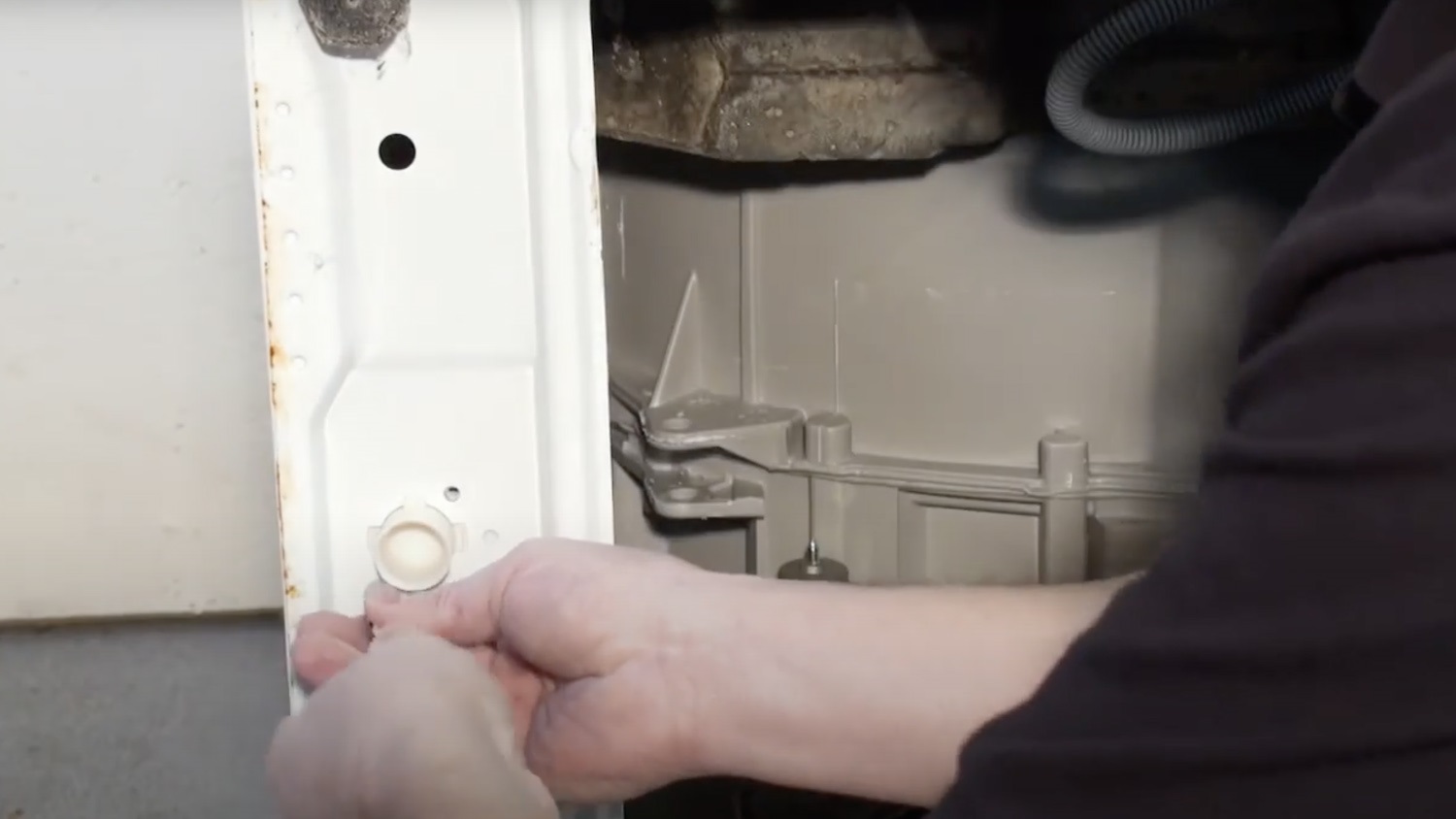

Re-screw the 8mm screws back in place.

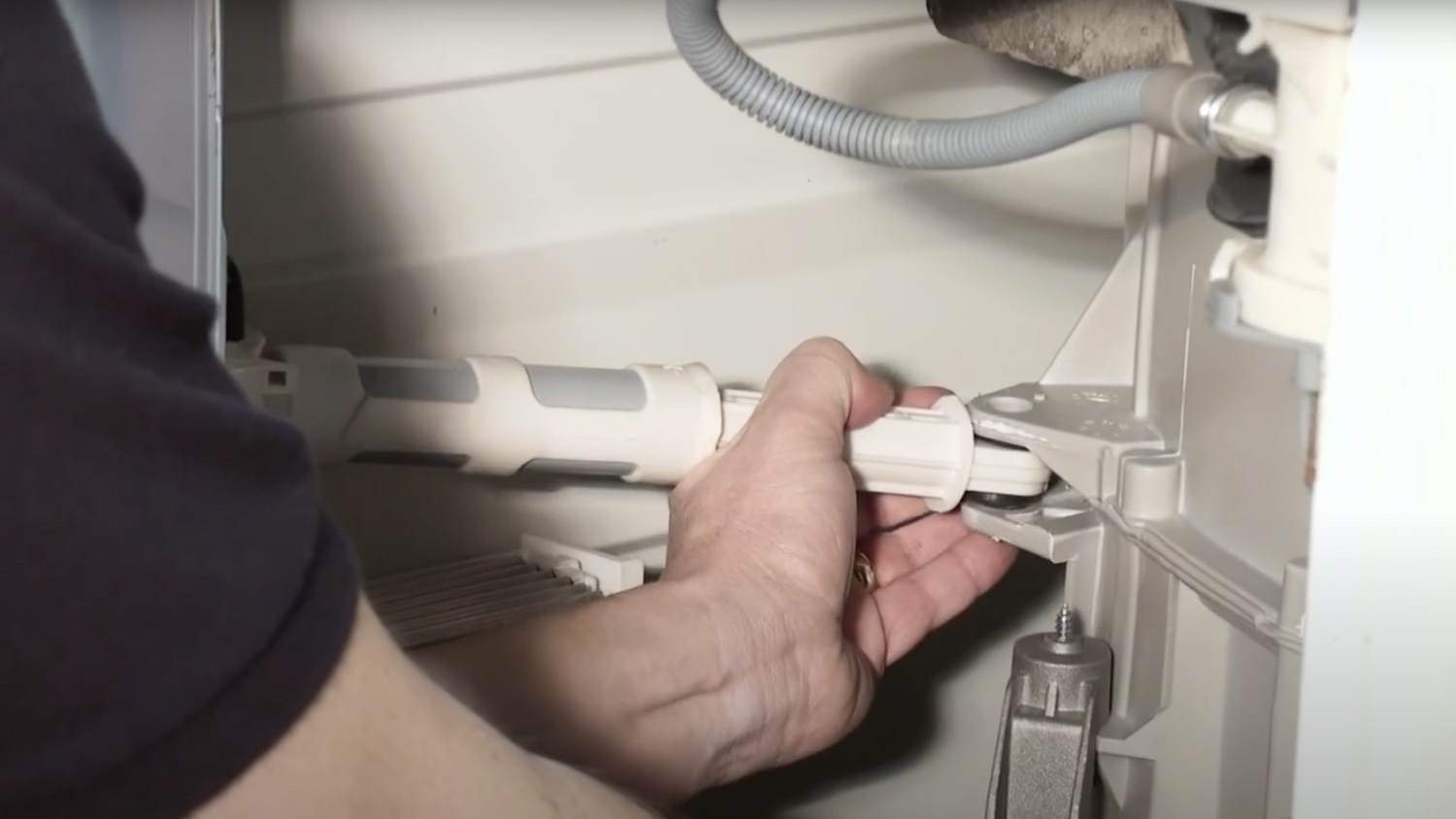

Slide the suspension leg into place on the drum.

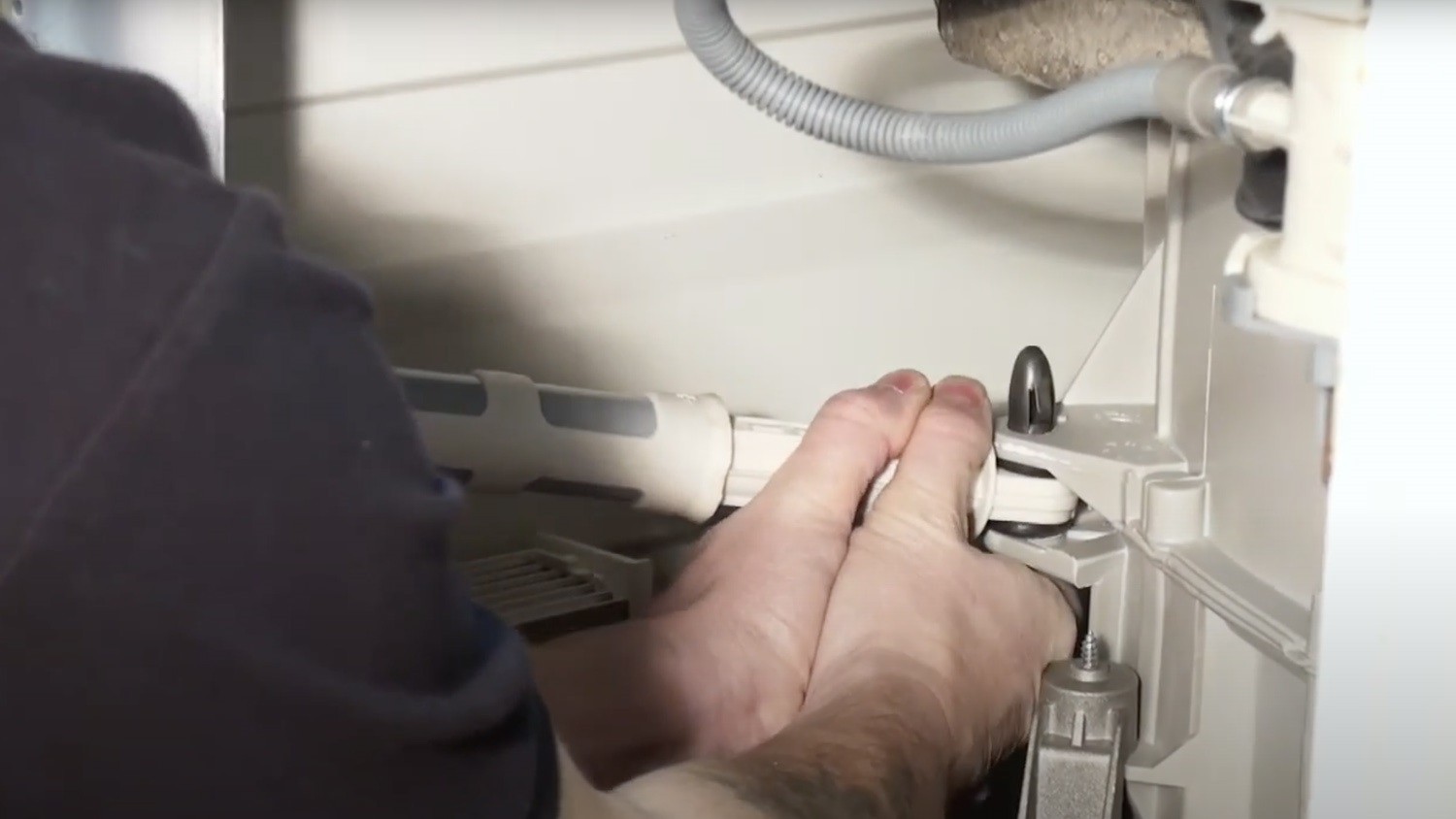

From below, push the pin up. Making sure it's connected properly.
And that's it, your new suspension leg is all set to go!
