1. Remove washing machine lid

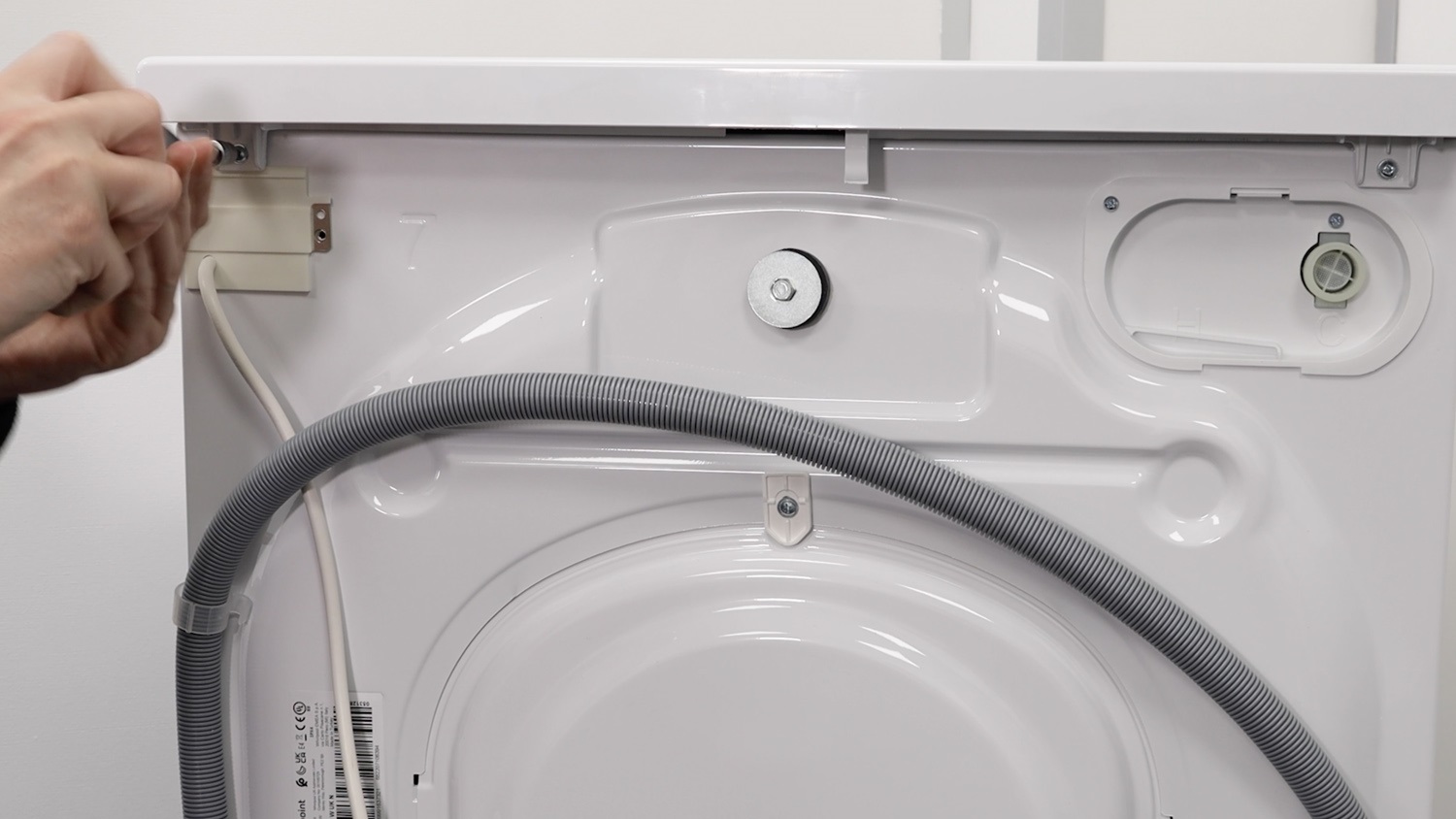

Remove screws holding the lid in place.

Remove screws

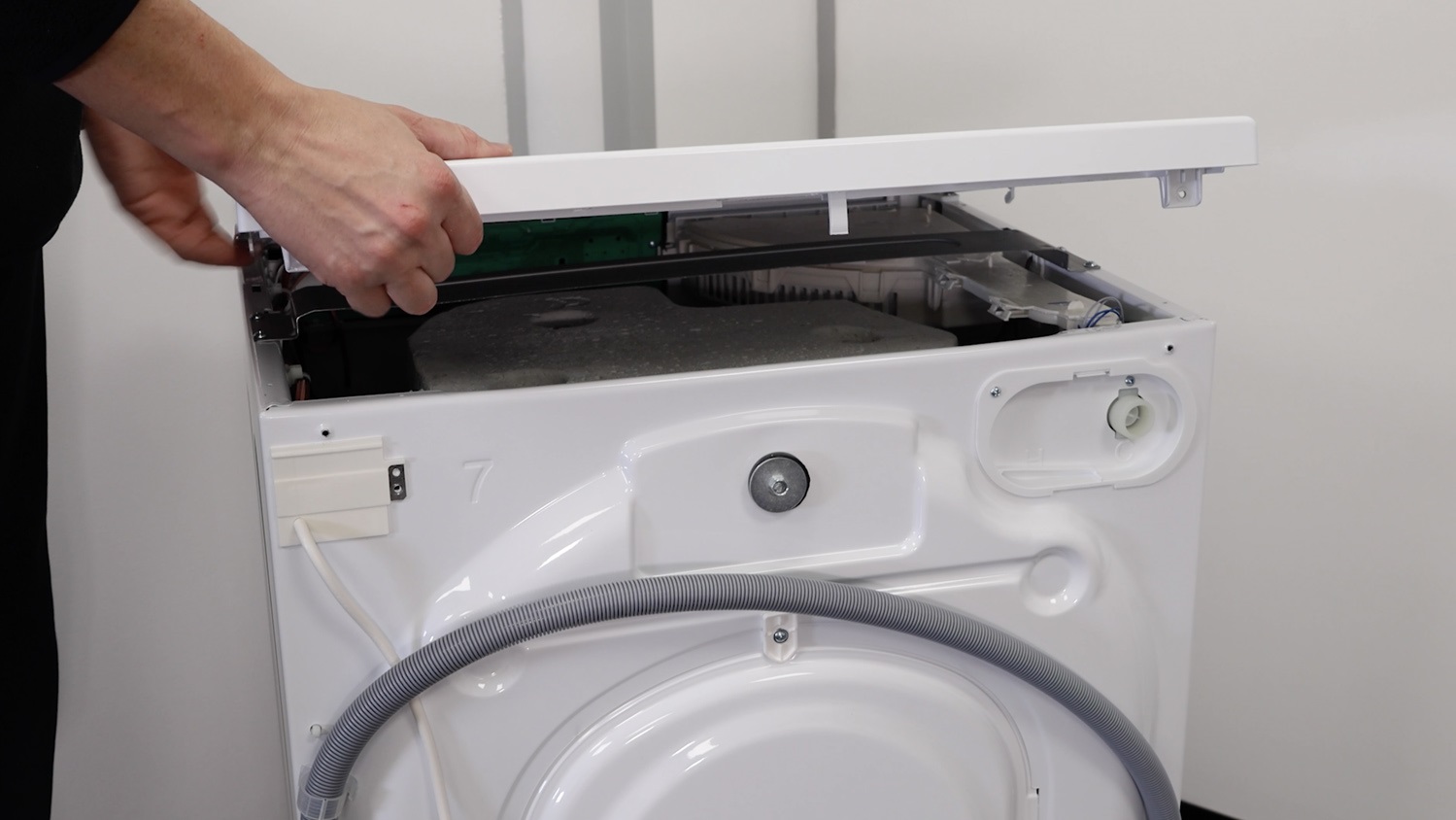

Remove lid.

Remove lid

2. Remove old pressure switch

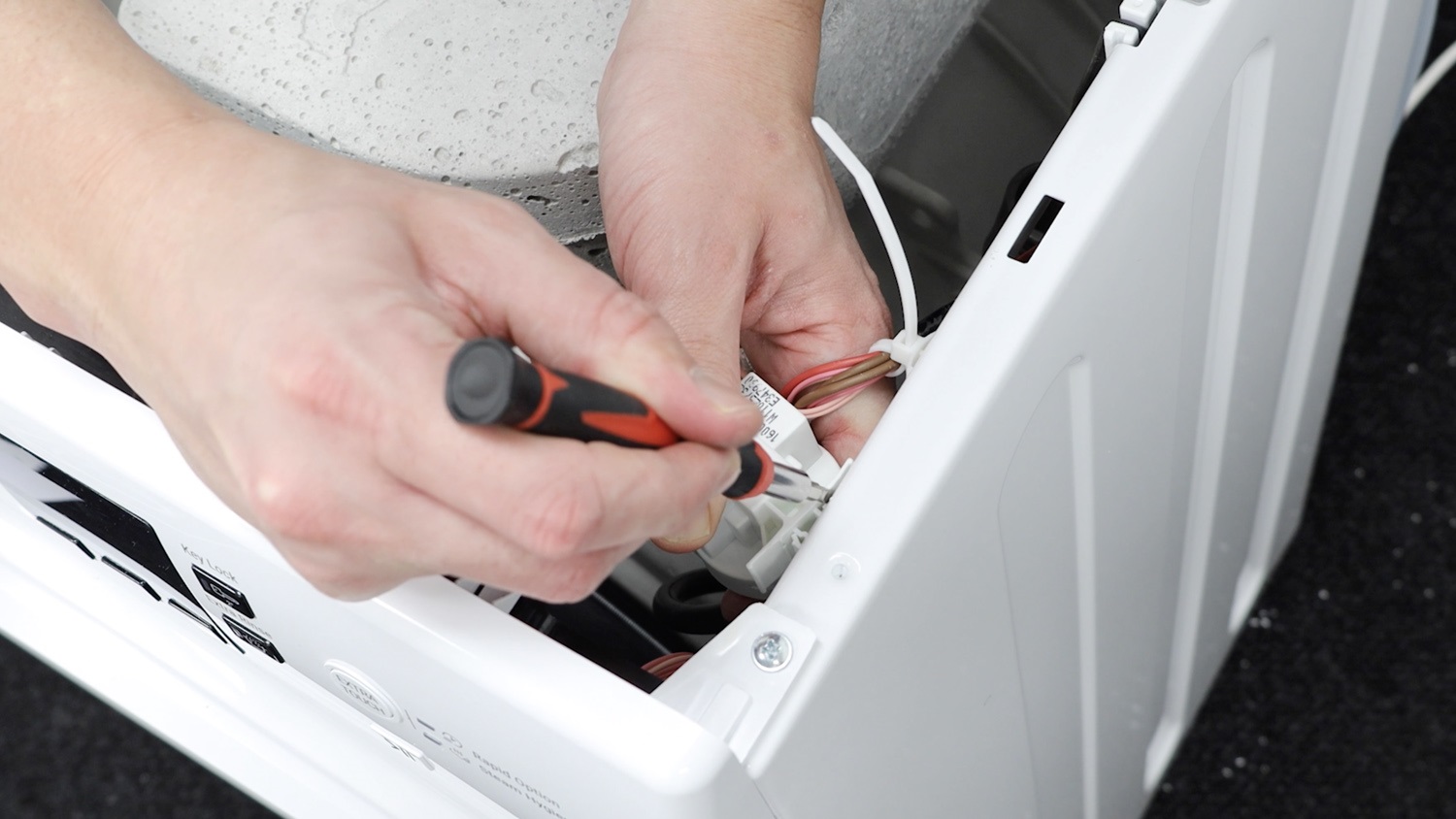

To remove the pressure switch, gently unclip from the washing machine (you may need something flat if the clip is tight).

Remove old pressure switch

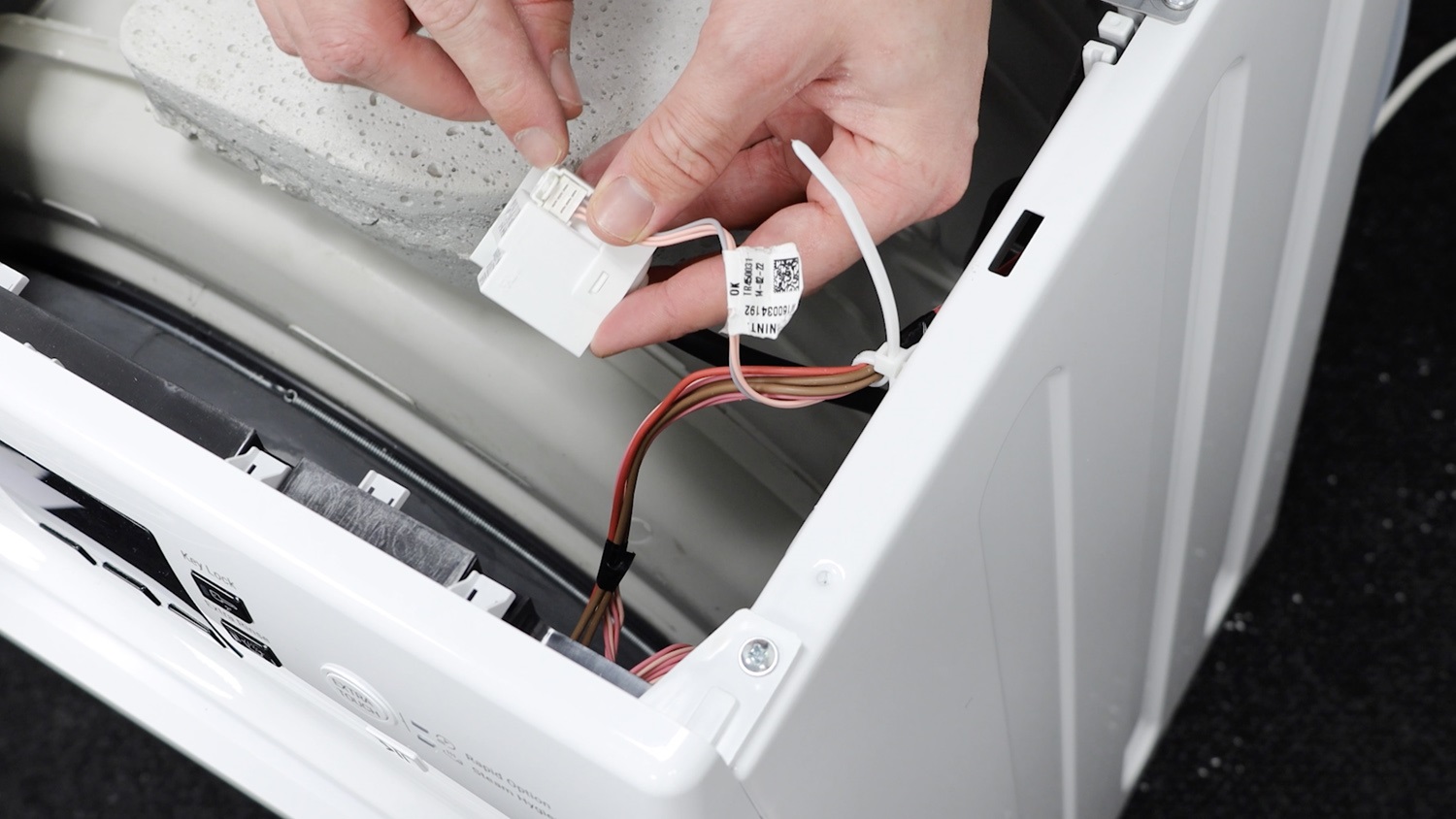

Unclip the electrical connector by lifting the plastic tab up and pulling away.

Unclip electrical connectors

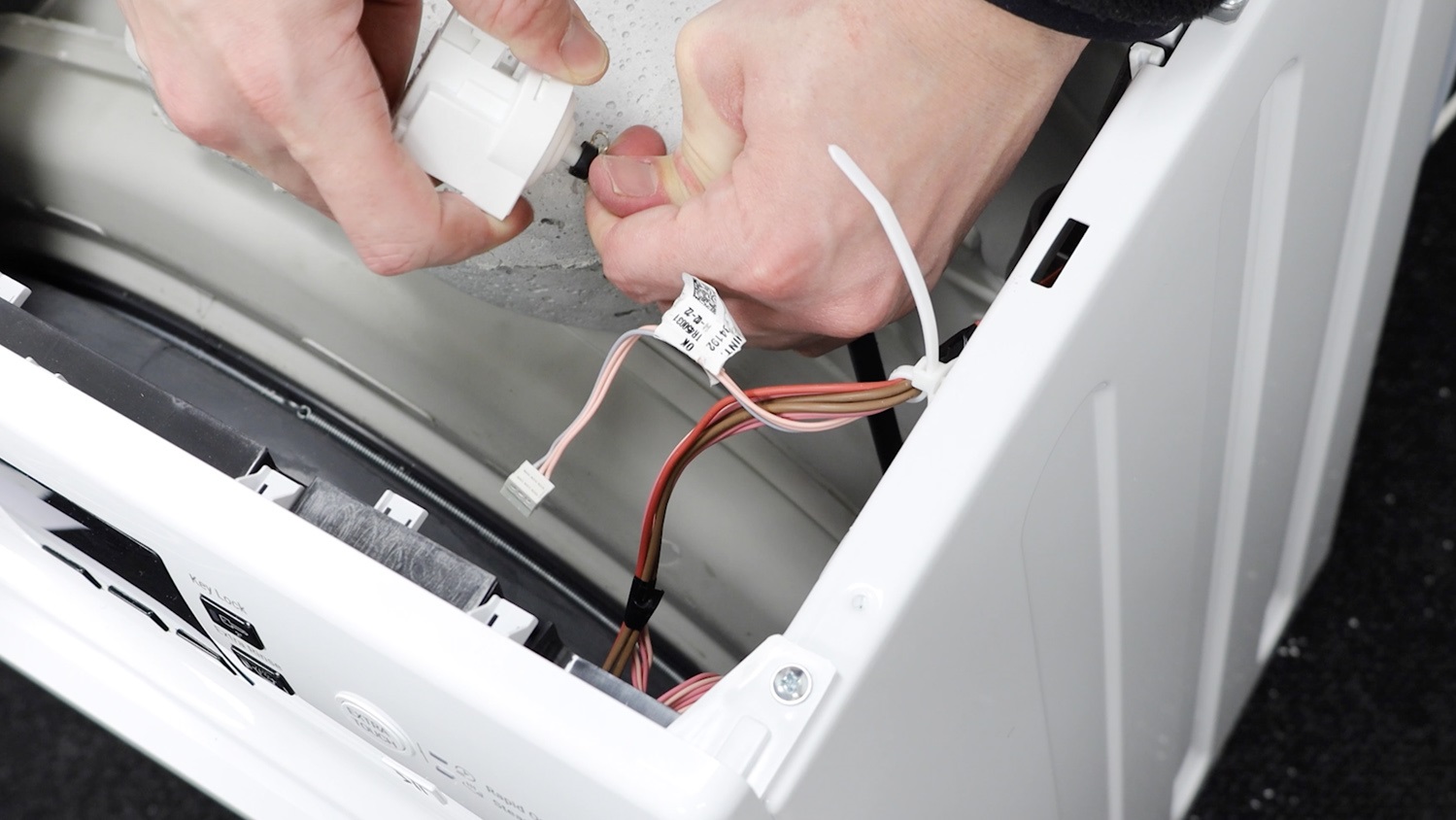

Then remove the hose.

Remove hose

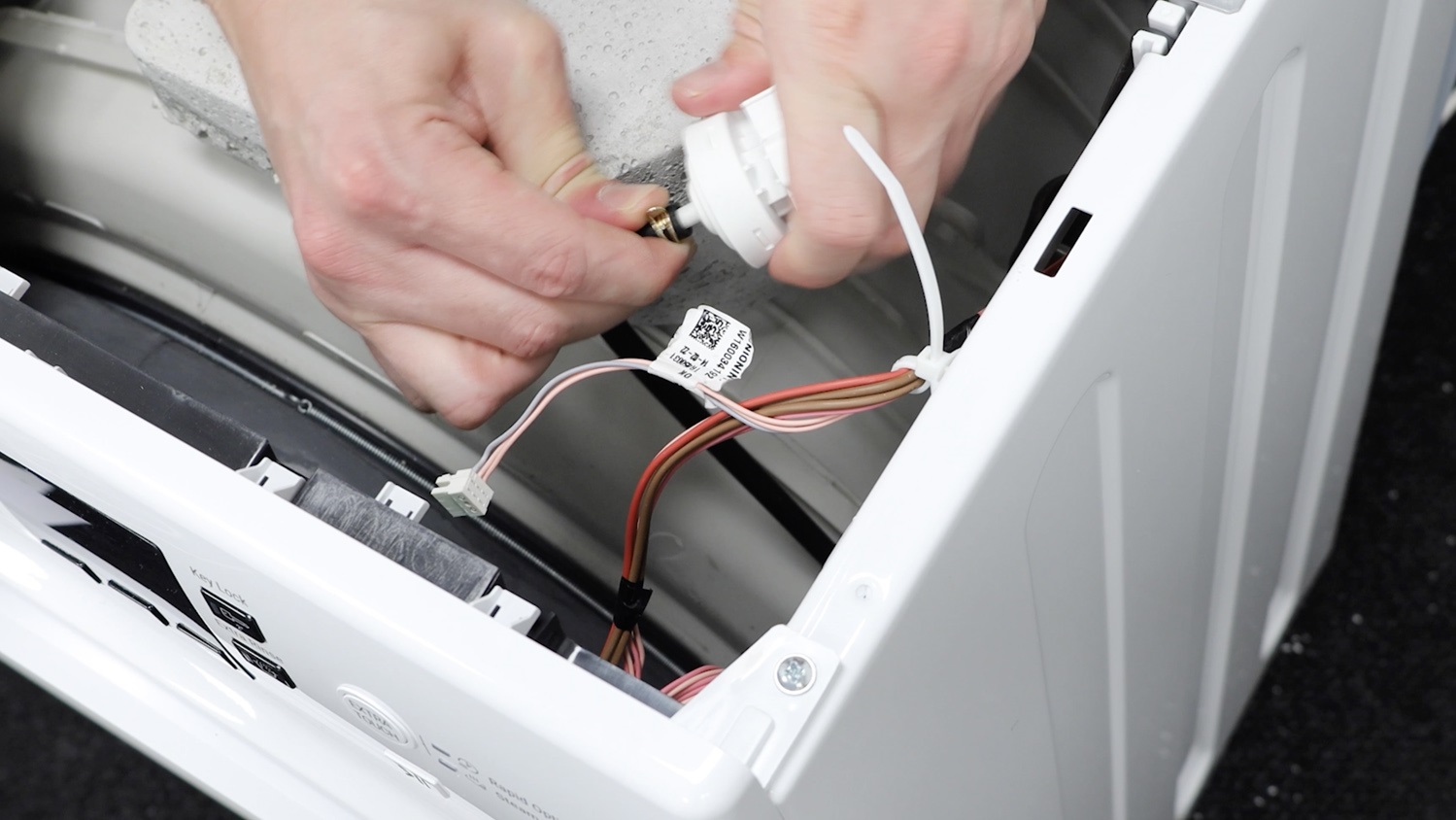

With your new pressure switch, attach the hose at the bottom.

Attach hose

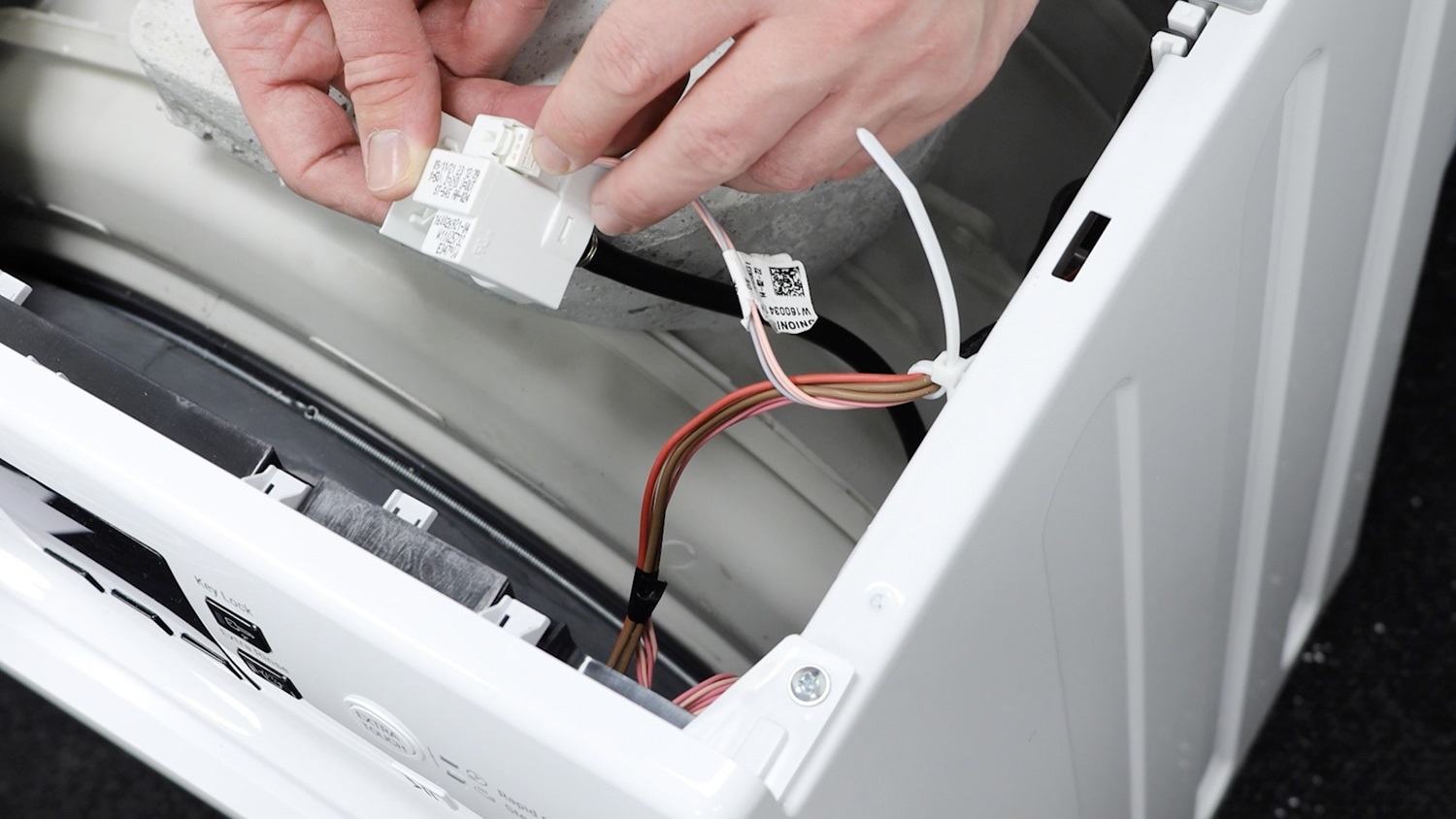

Re-connect the electrical connectors.

Re-connect electrical connector

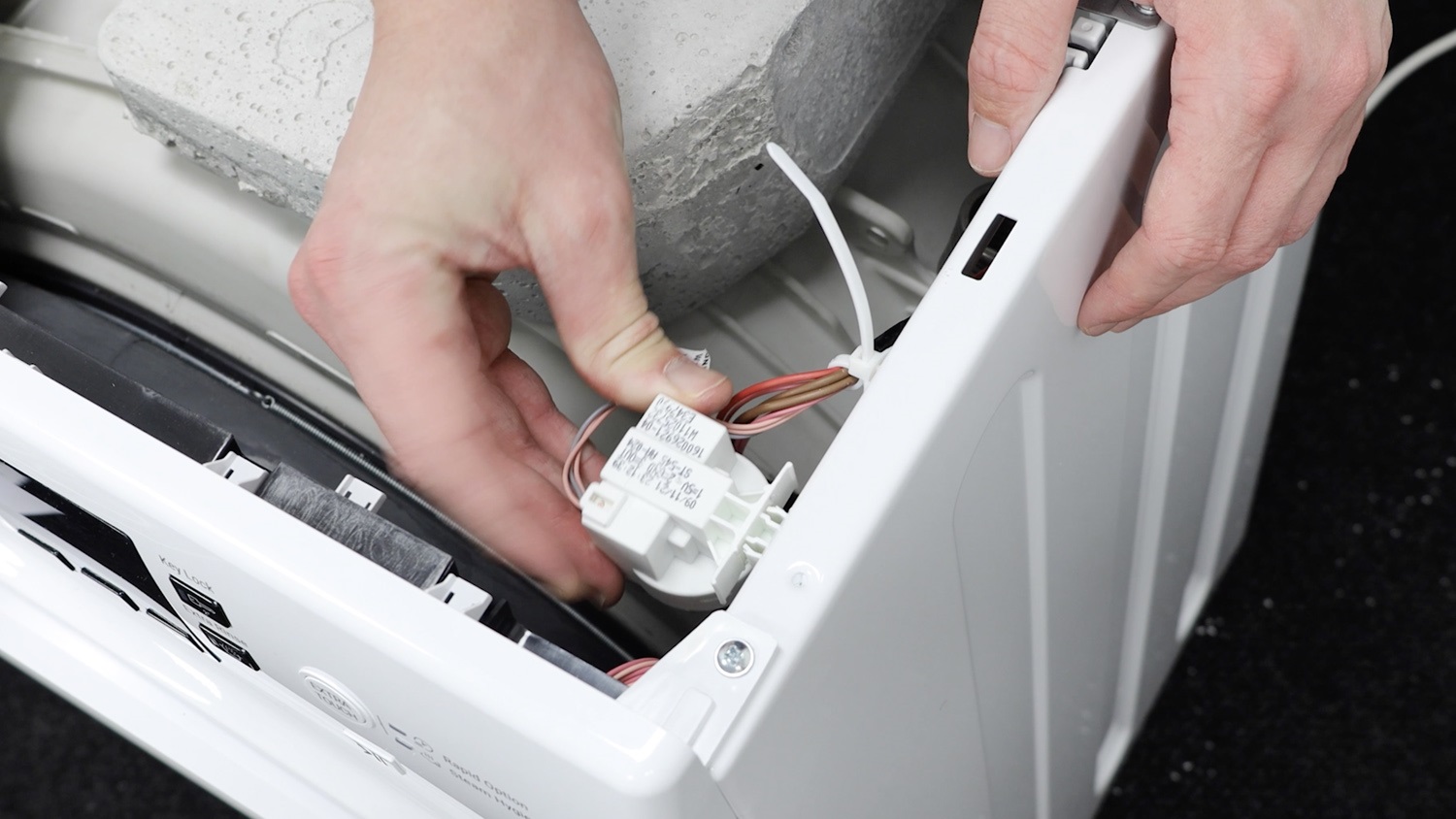

Clip the new pressure switch back to the side of the washing machine.

Clip back to side of washing machine

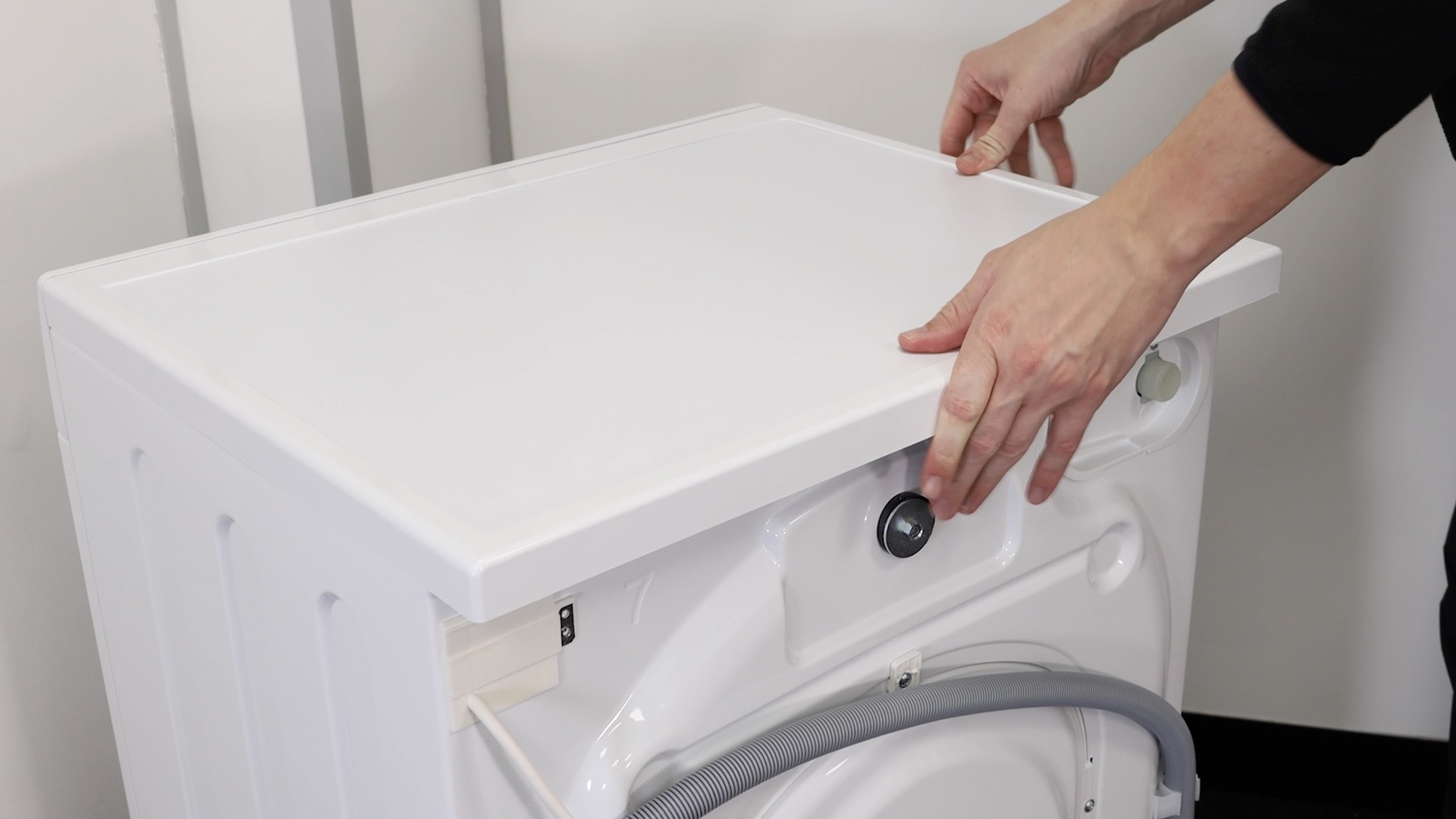

Place the lid back on the washing machine.

Place lid on washing machine

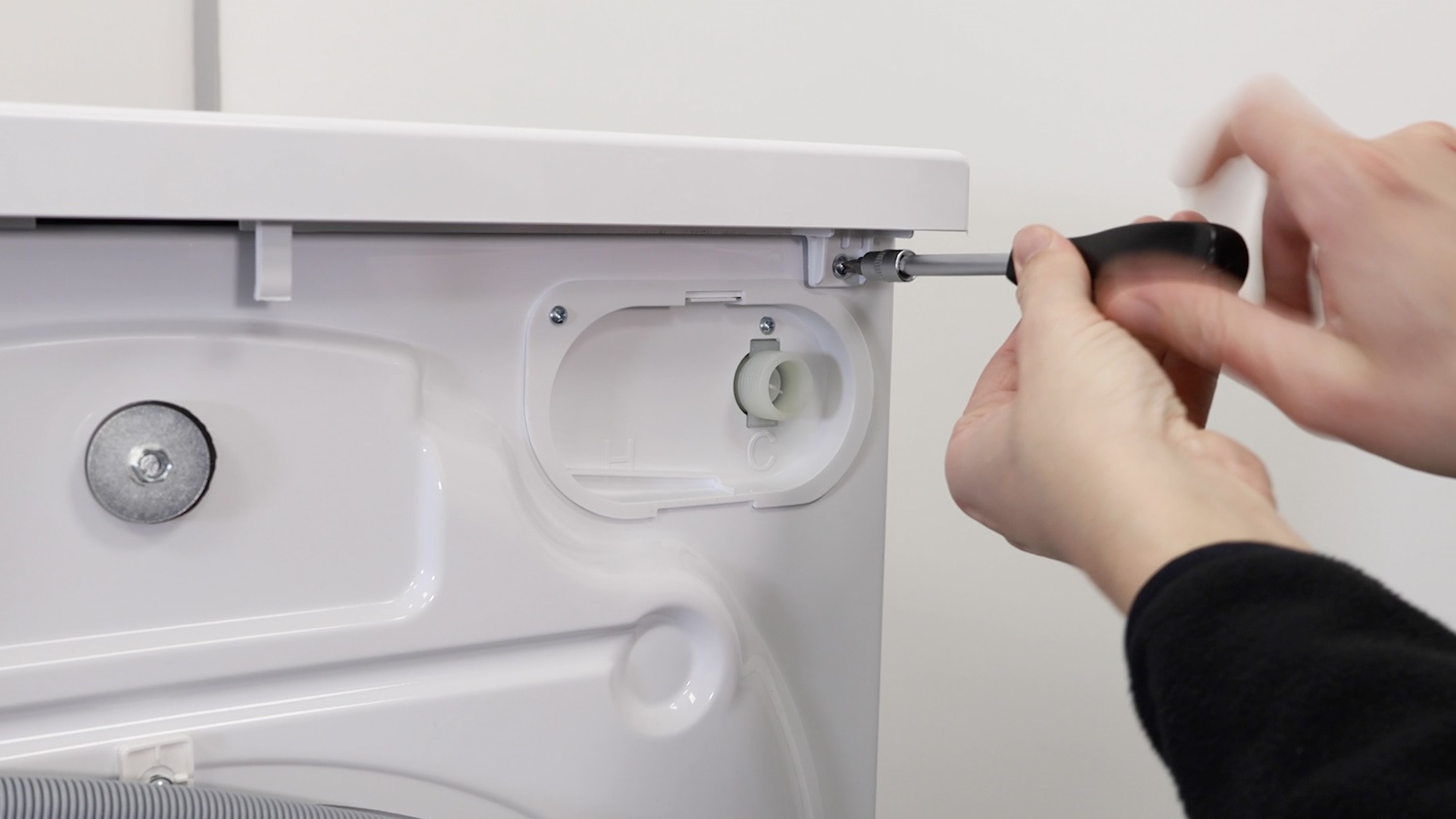

Re-screw the screws back in.

Re-screw screws in

And that’s it, your new pressure switch is all set to go!
