Make and Model of Washing Machine Used in This Video
Hotpoint NSWM743UWUK (769991581901)
Hotpoint NSWM743UWUK (869991581900)
Hotpoint NSWM743UWUKN (769991637831)
Part Used in This Video
Washing Machine Cold Fill Hose 1.5M
1. Turn water flow off

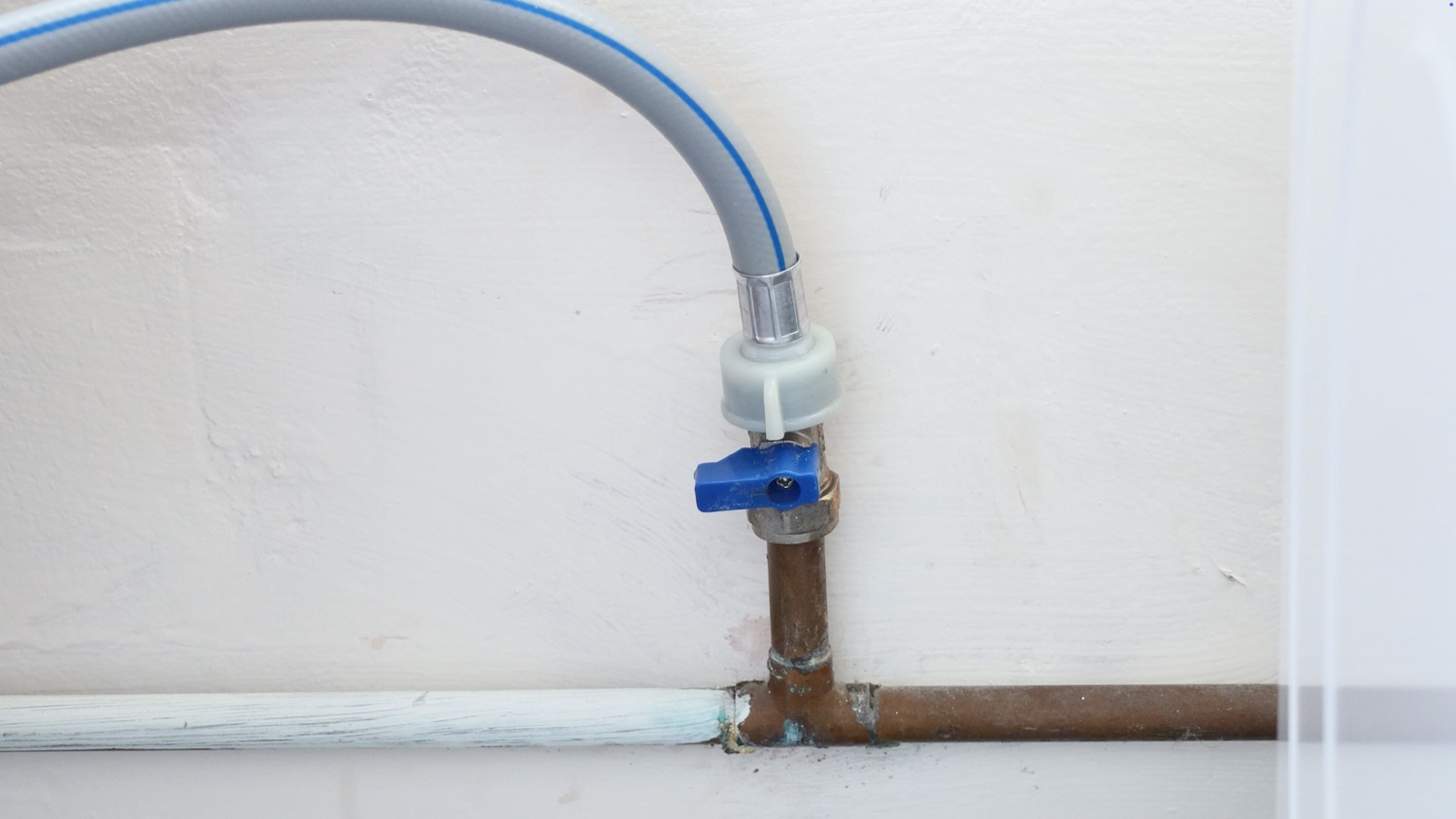

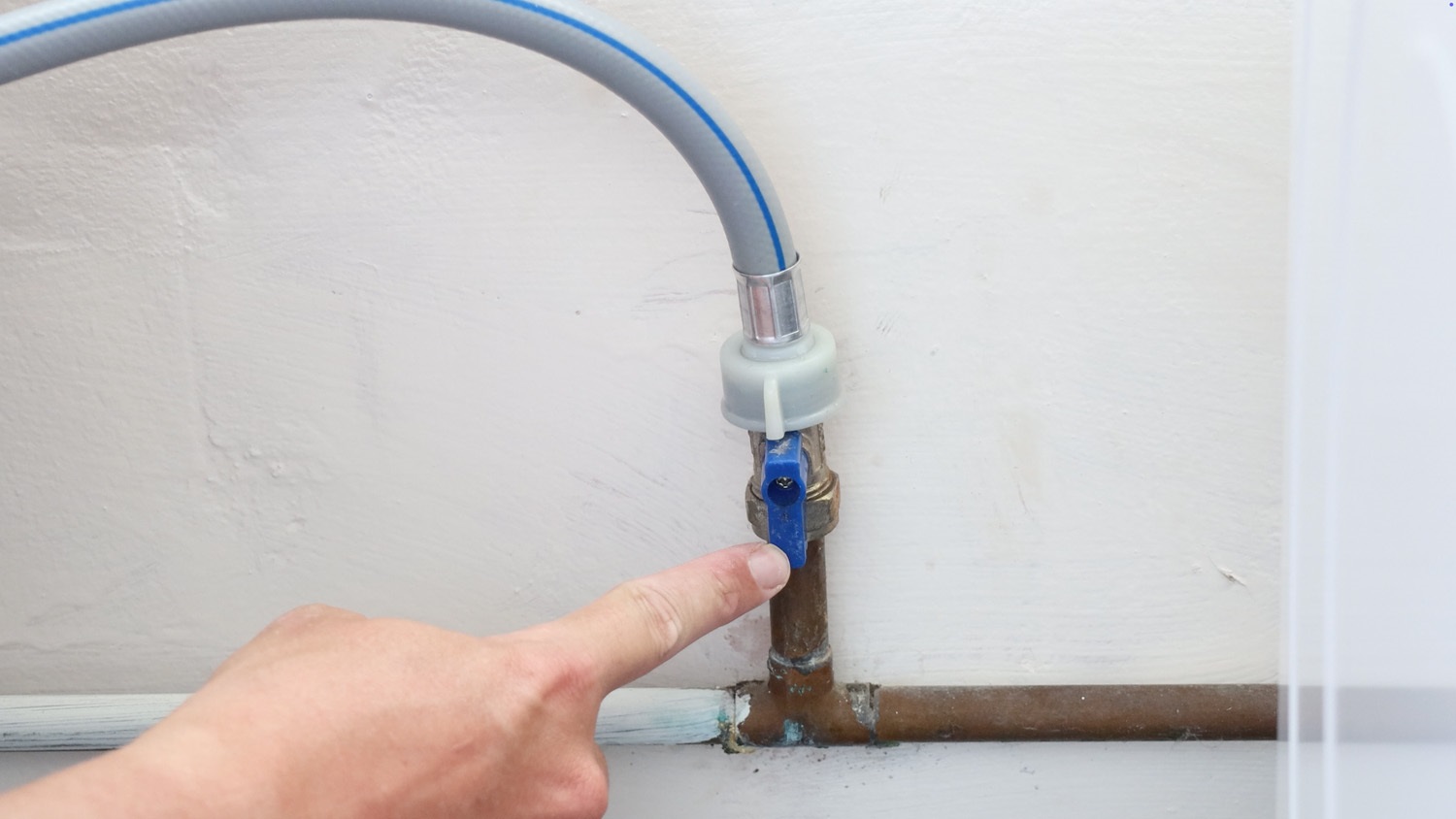

Turn off the valve to stop the water flow. A little tip, if the valve shut off is running the same way as the pipe, it means the water is flowing.
If it’s turned and it runs sideways, it means the water has been stopped.
2. Remove fill hose from wall valve

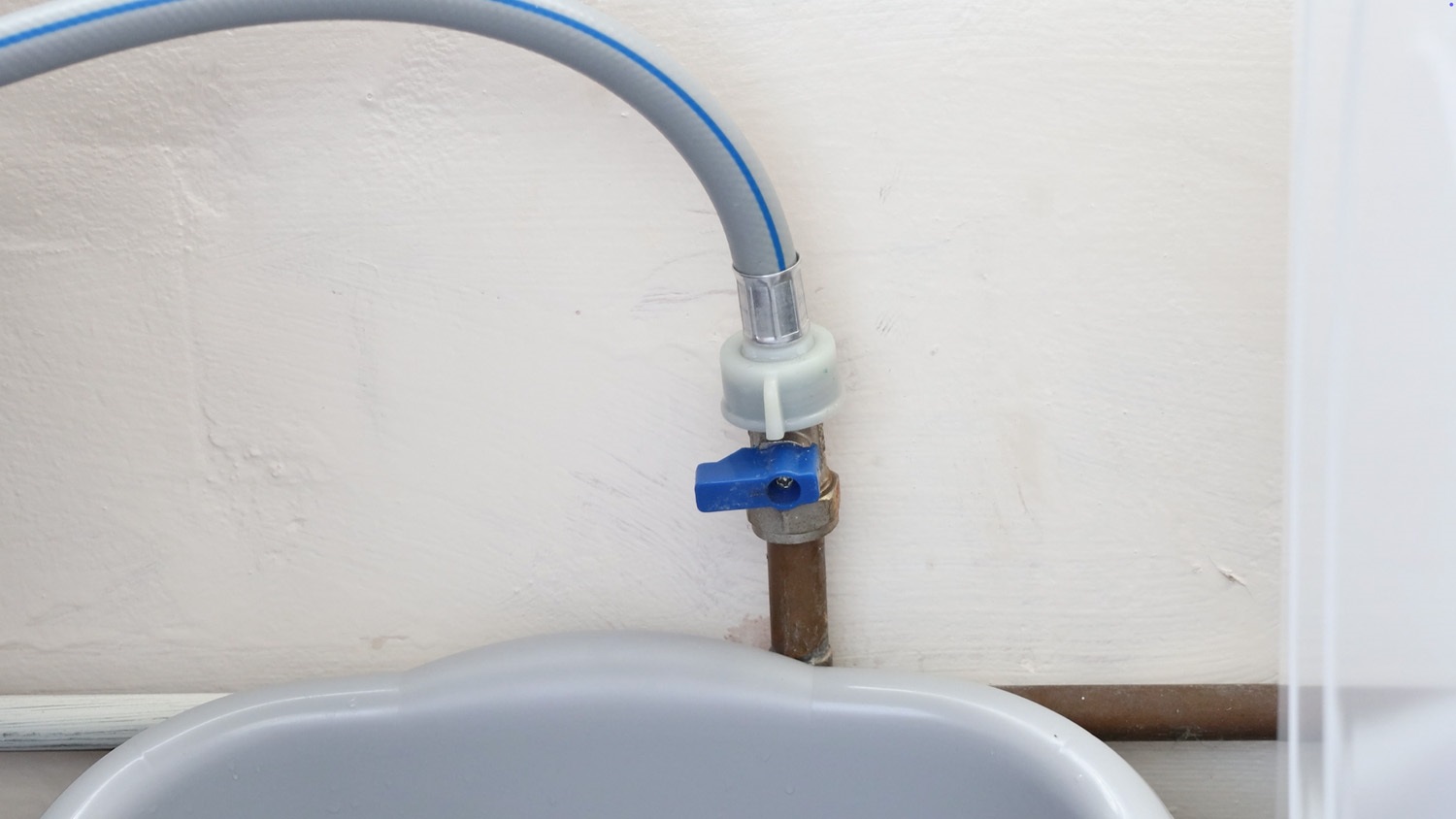

Place a tub under the pipe to catch any water.

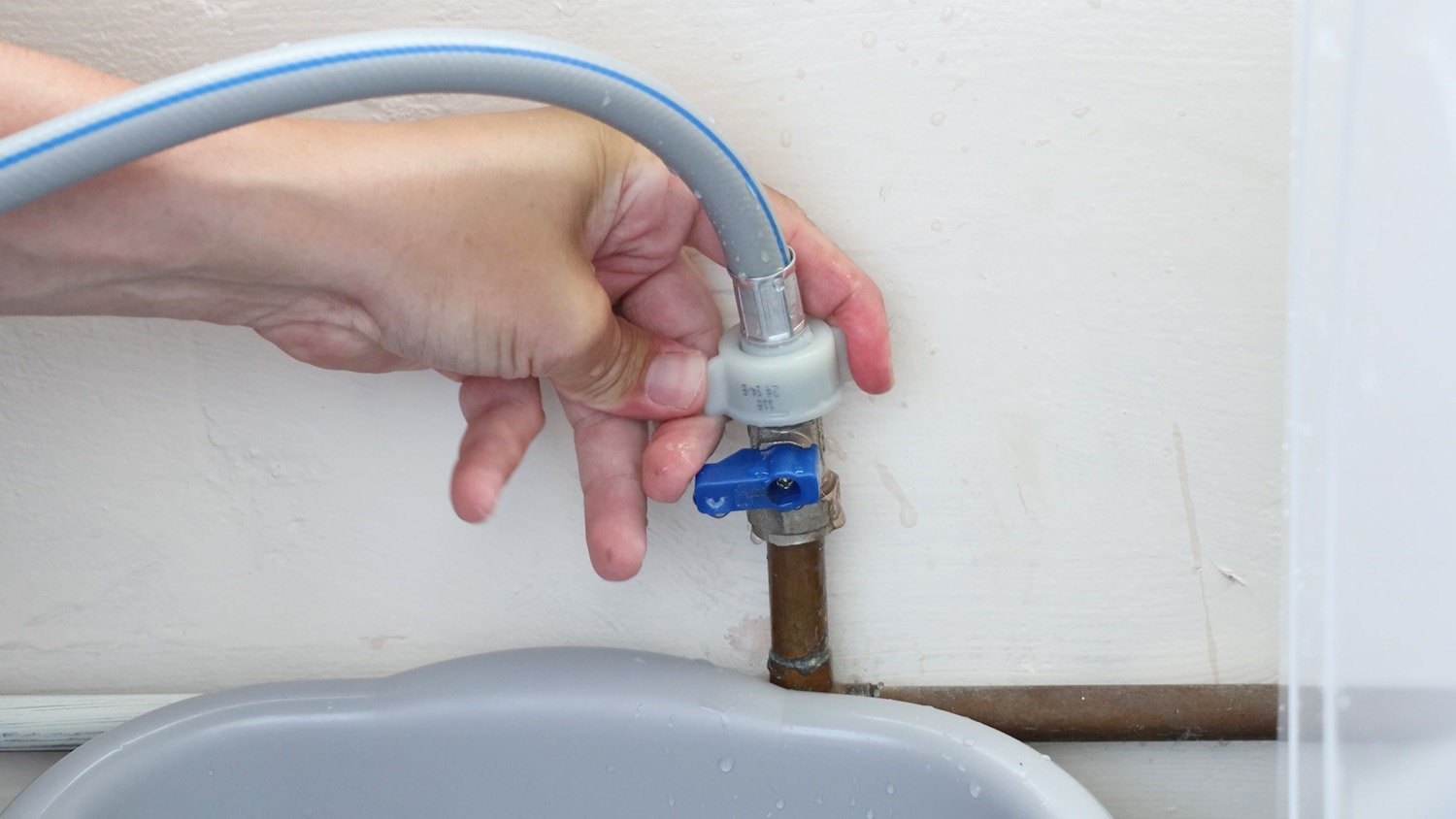

To remove the fill hose connected to the valve at the wall, simply unscrew it.

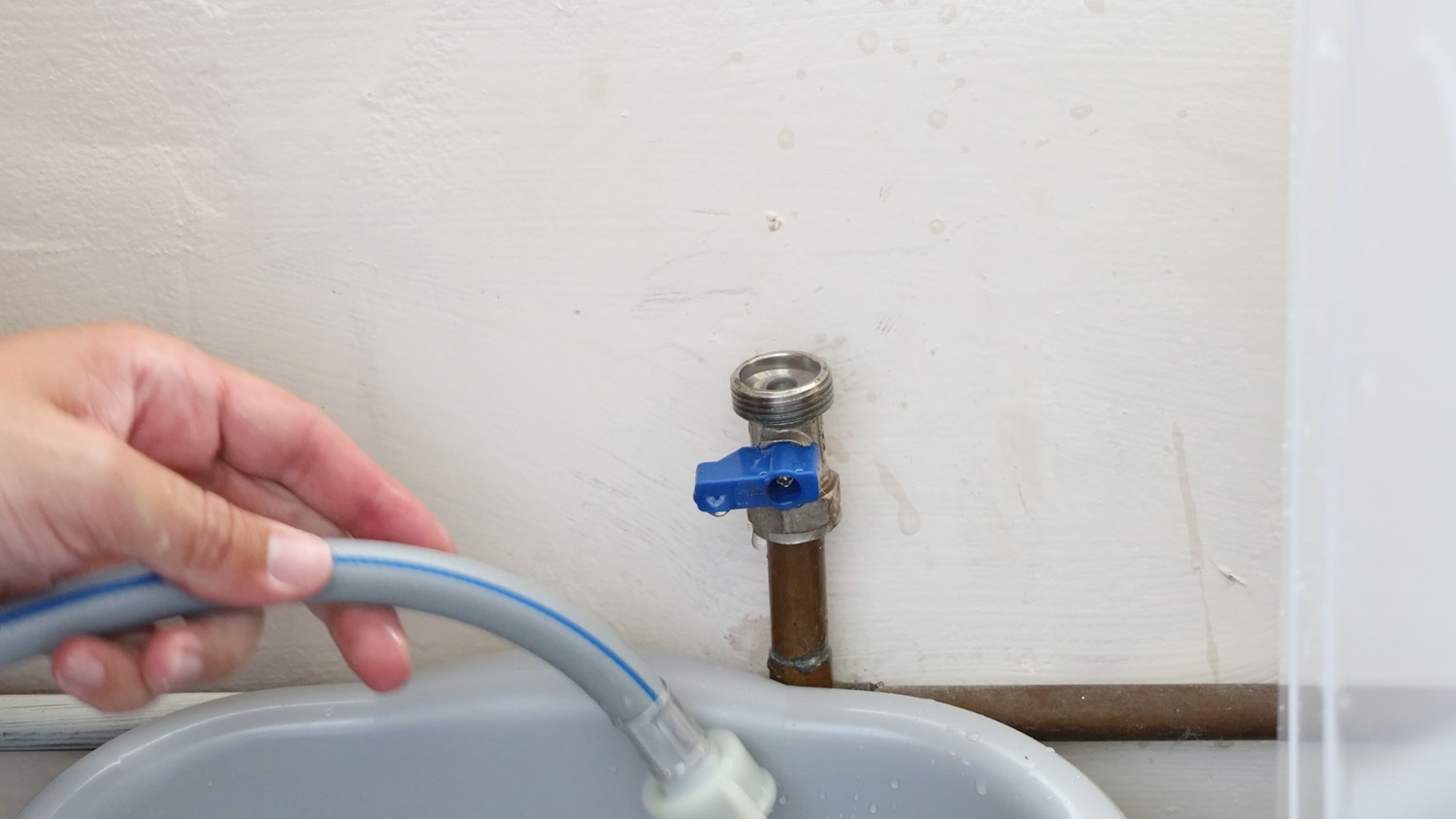

Let the water drain into the washing up tub.
3. Remove fill hose from rear of washing machine

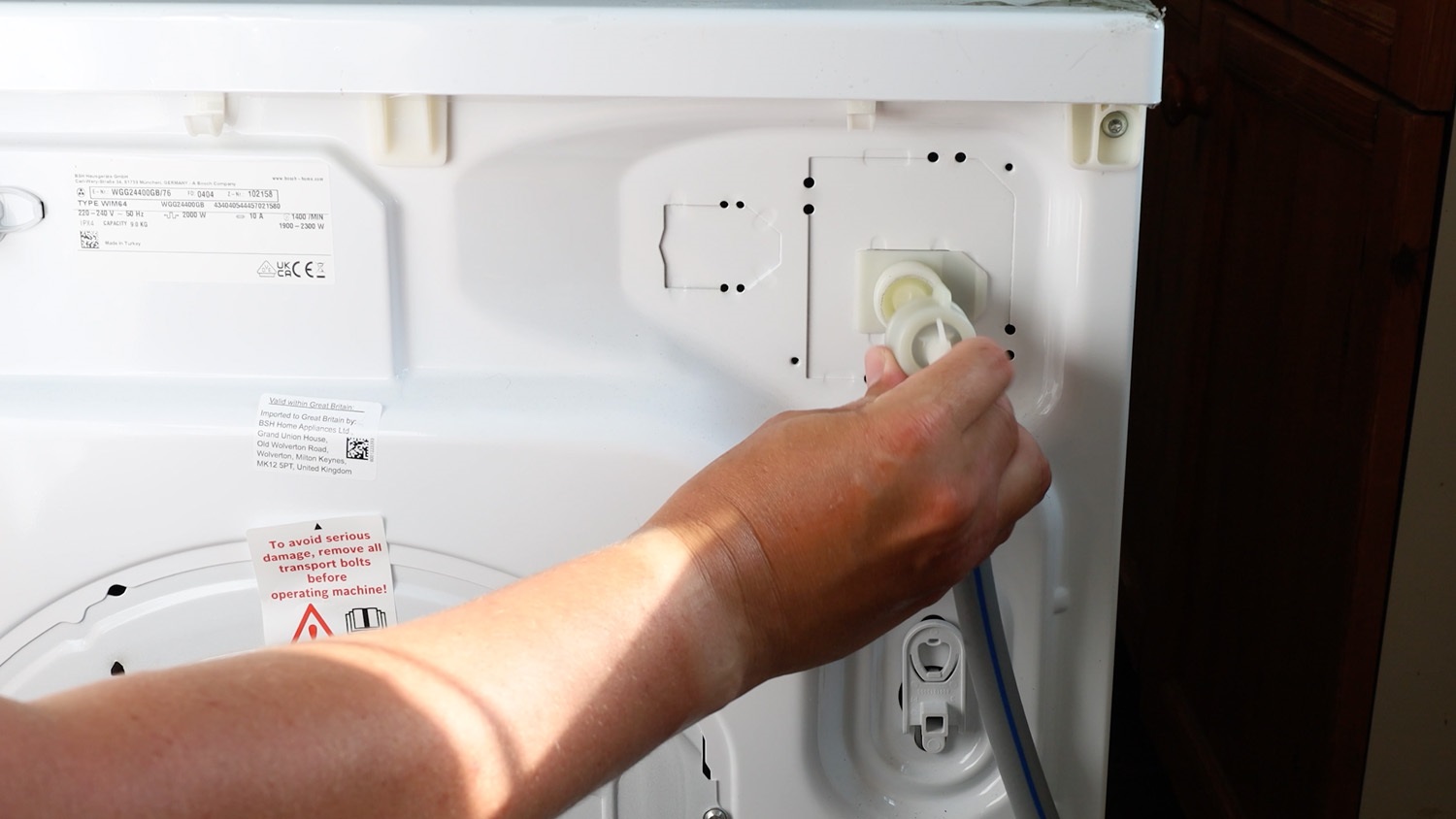

Then remove the hose that’s attached to the inlet valve. There shouldn’t be much water as everything should have drained down when we removed the connection at the bottom, but have a tub ready just in case.
4. Attach new fill hose to wall valve

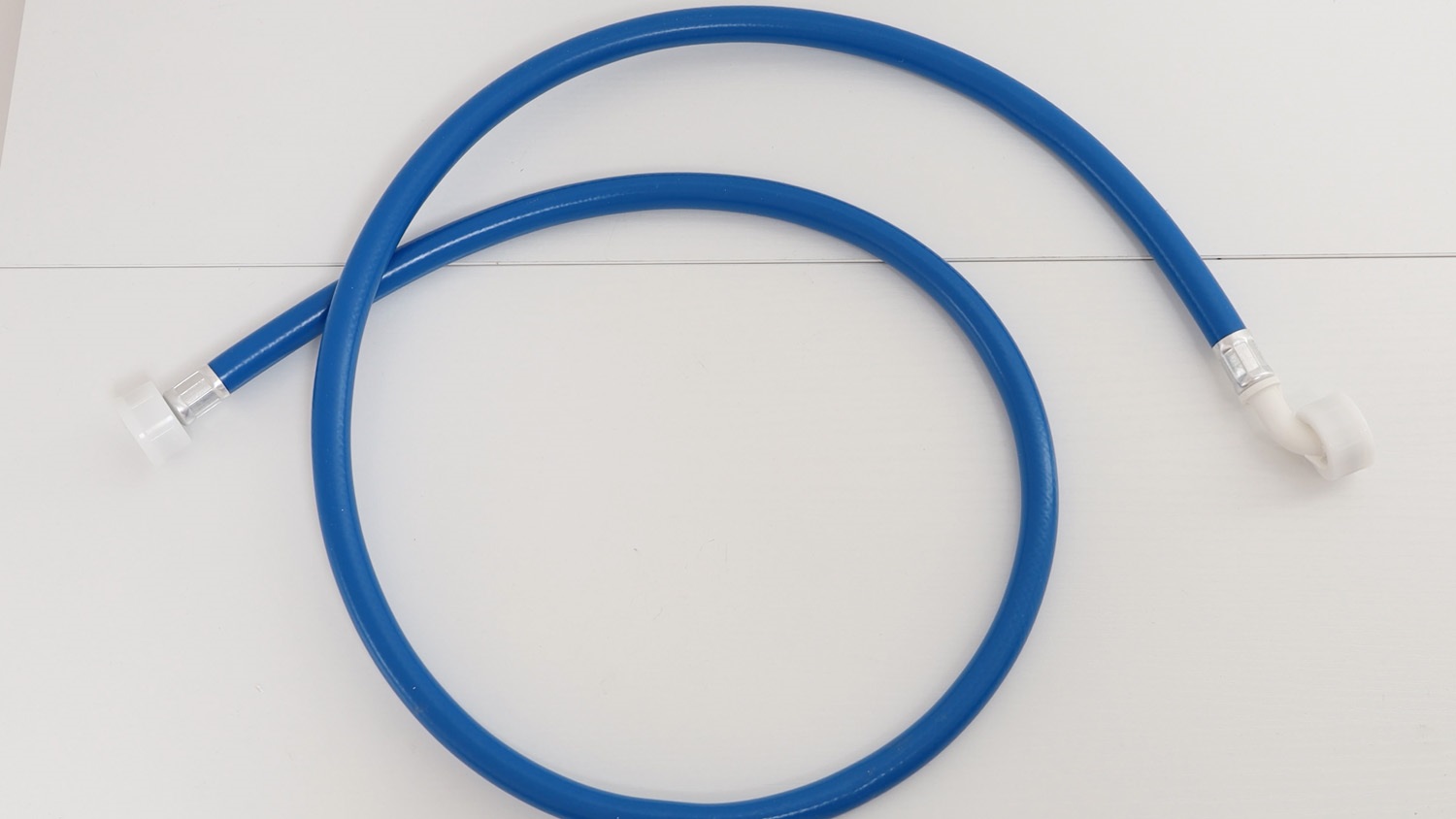

Unpackage your new water inlet fill hose 1.5m long.

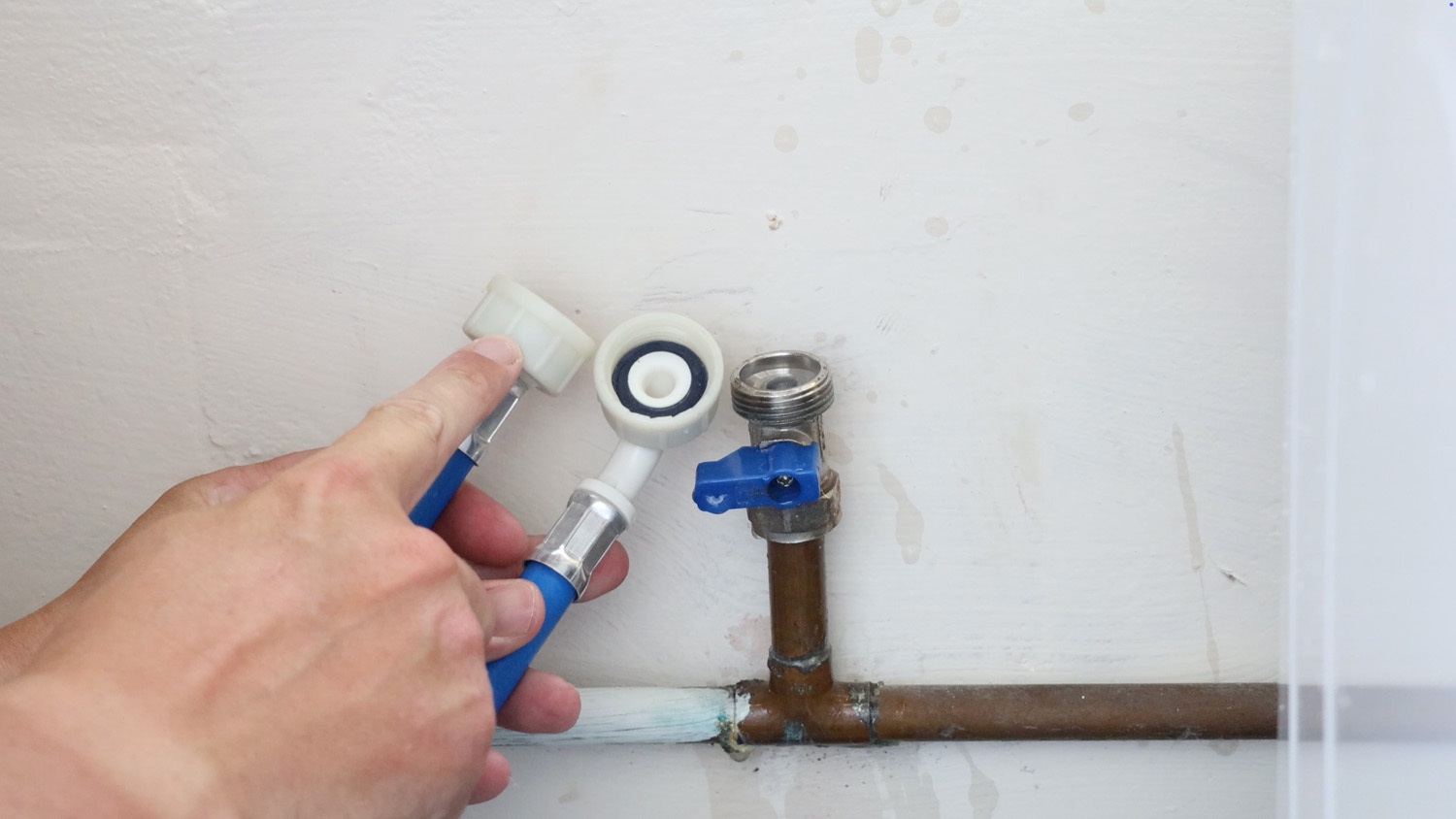

The straight connector is the end that connects to the washing machine valve at the wall.

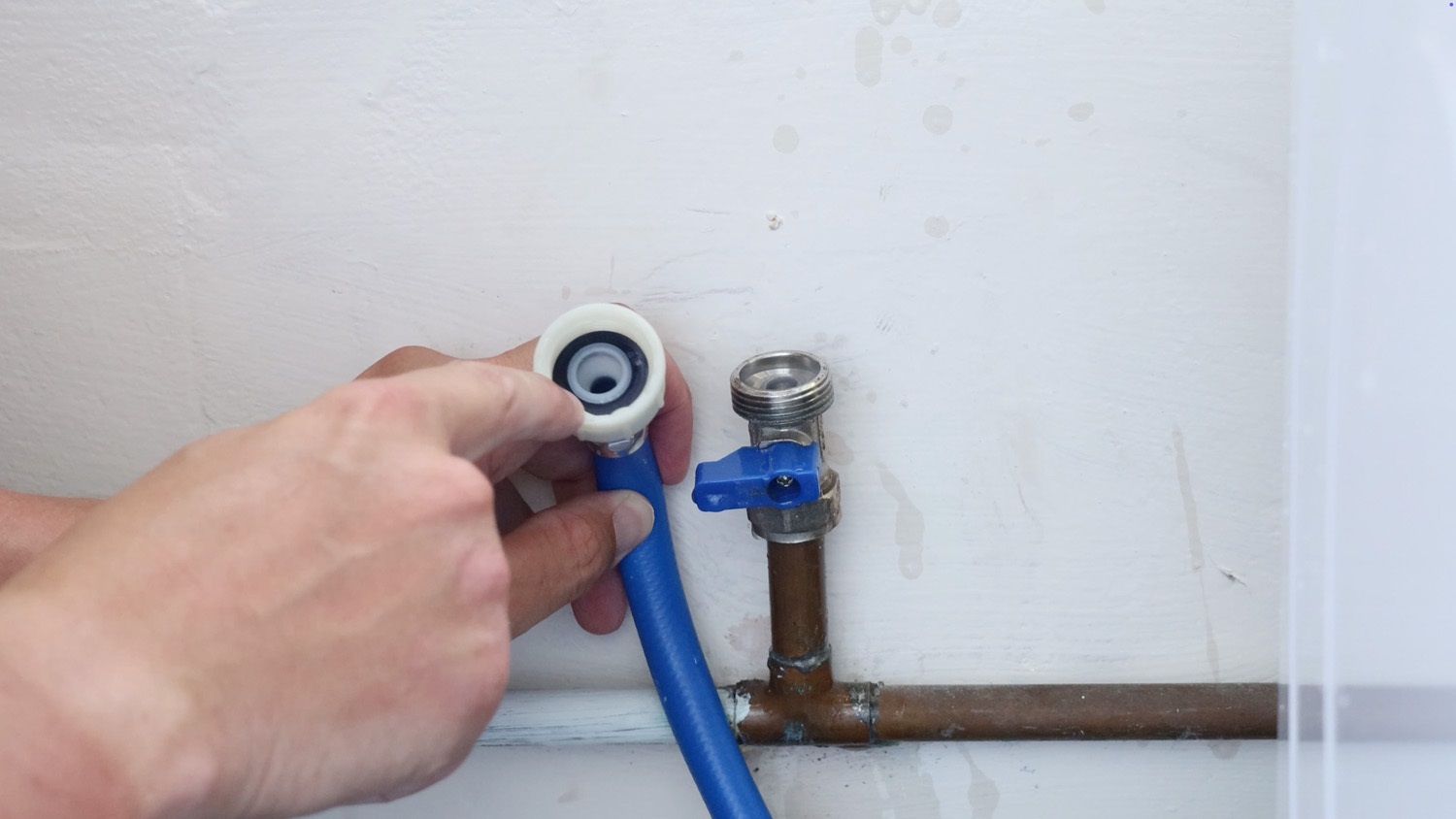

Make sure the rubber o-ring is inside the connector, as this forms the seal.

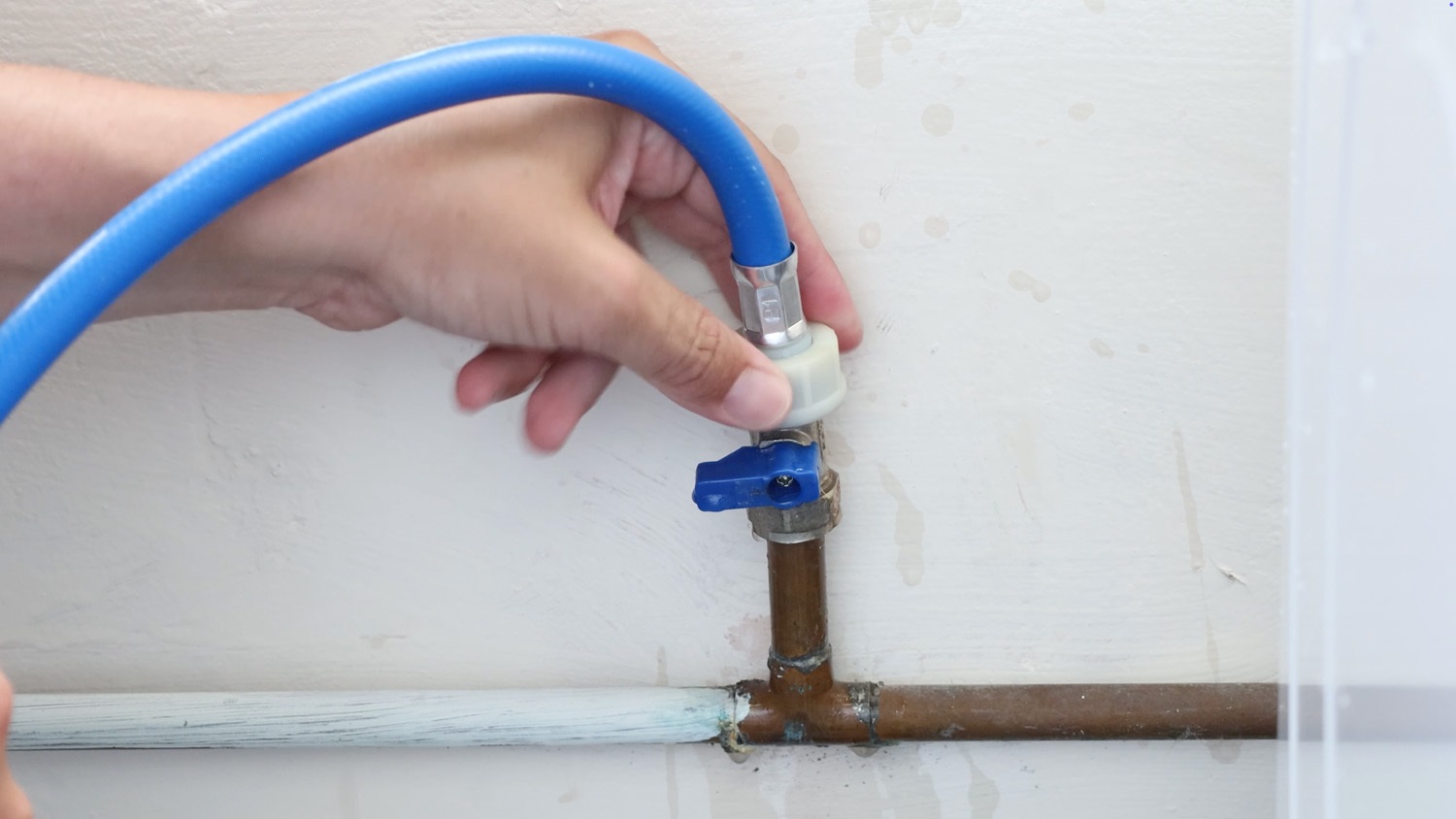

Simply twist it on hand-tight.
5. Attach new fill hose to rear of washing machine

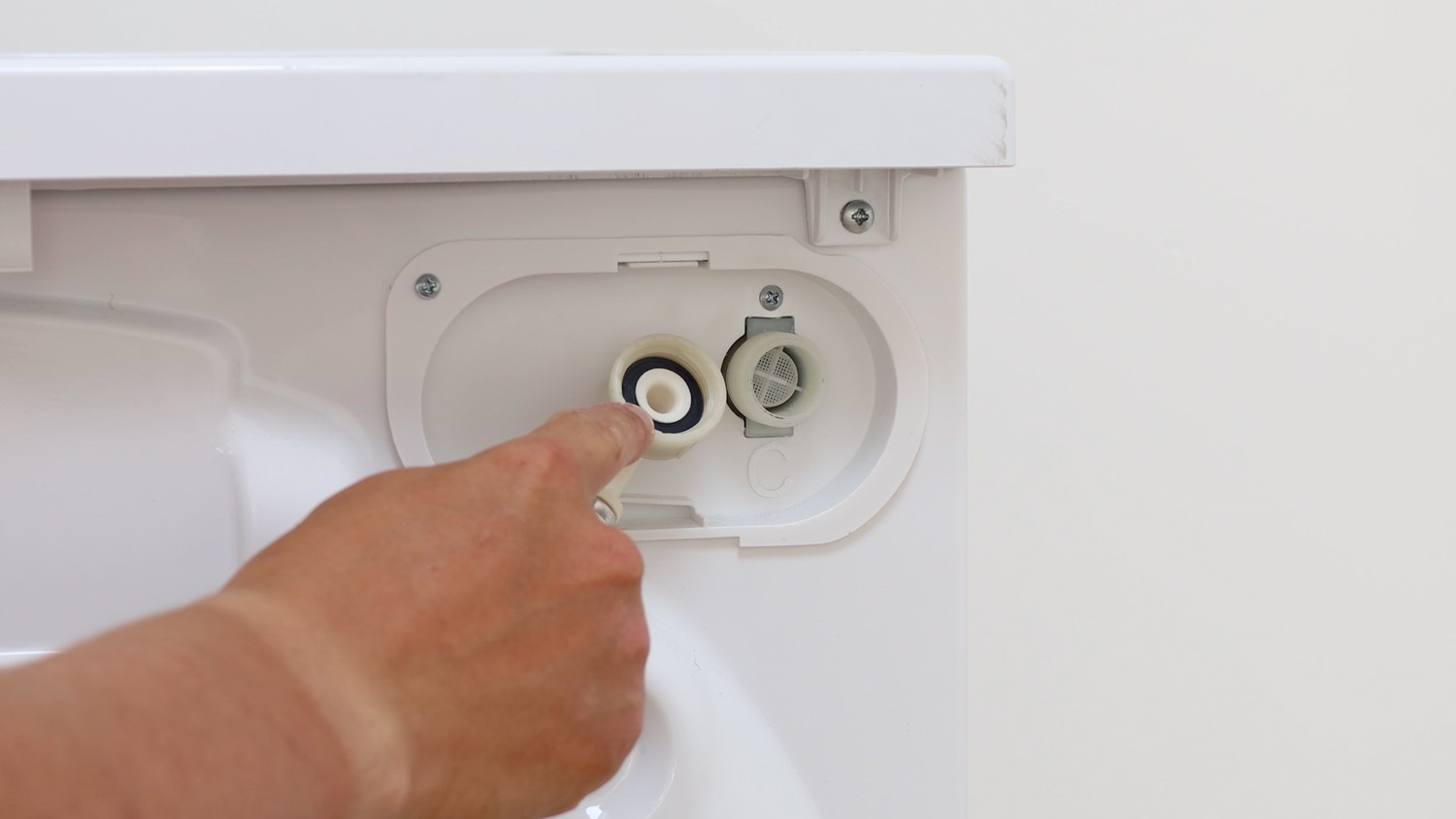

The 90-degree end is the one that connects to your washing machine inlet valve. Again, make sure that the rubber o-ring is inside the connector.

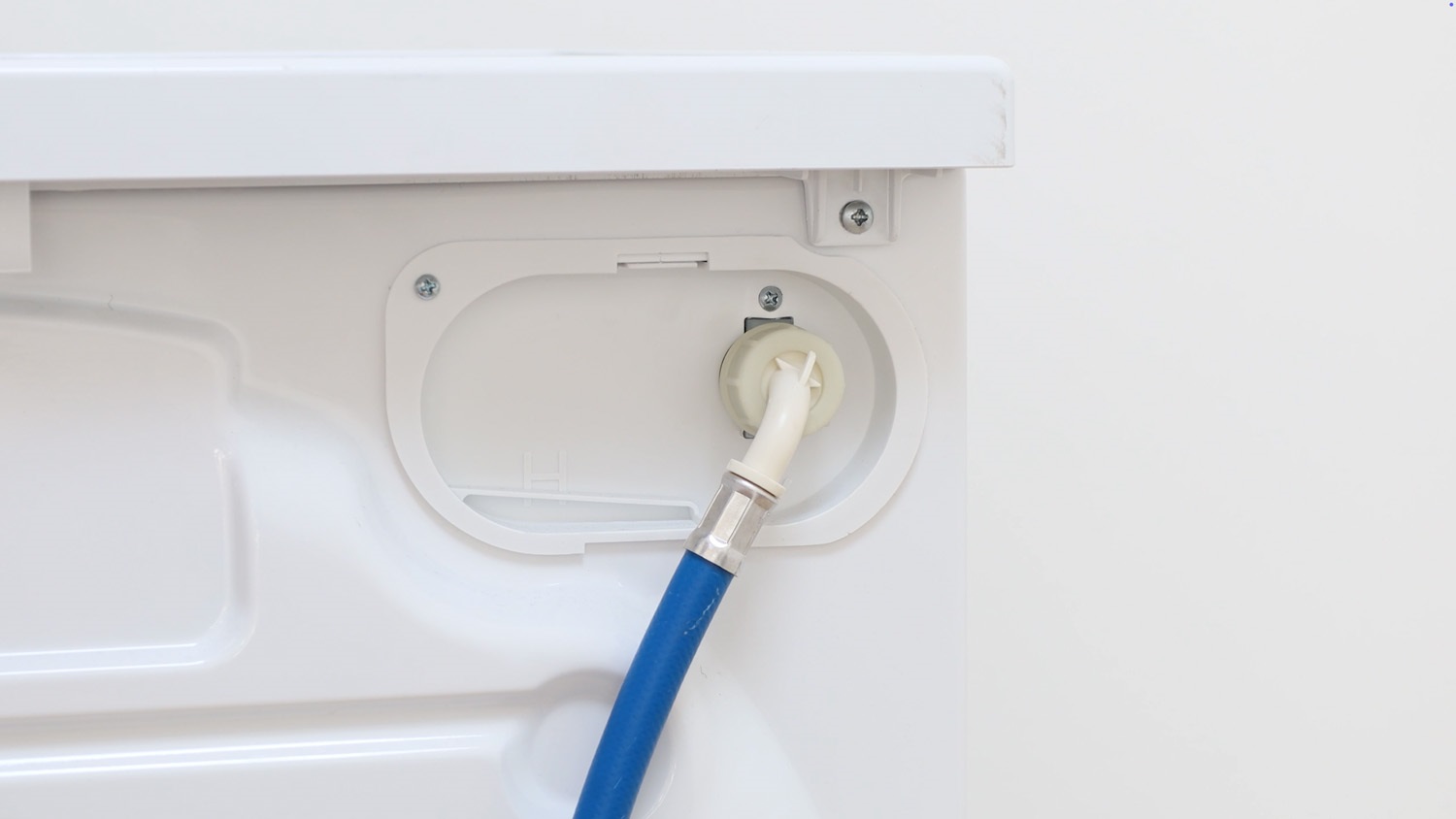

Again, twist it on hand tight.
6. Turn water flow back on

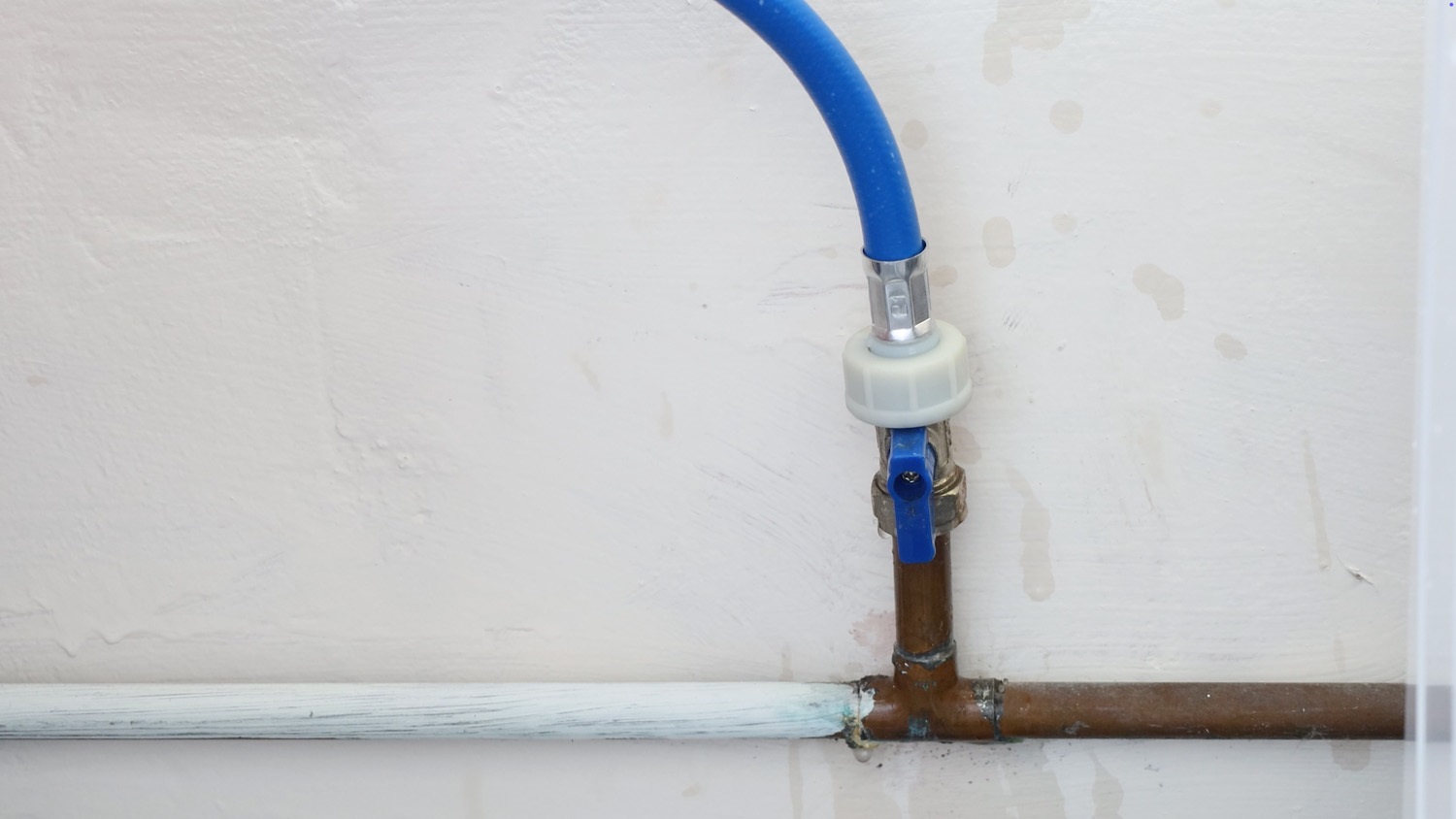

Turn the valve so it’s running in the same direction as the pipe. You’ll then have cold water flowing to the washing machine.
And that’s it, your new water inlet fill hose is all set to go!
