Part one - lower door seal
1. Disassemble dishwasher and access lower seal

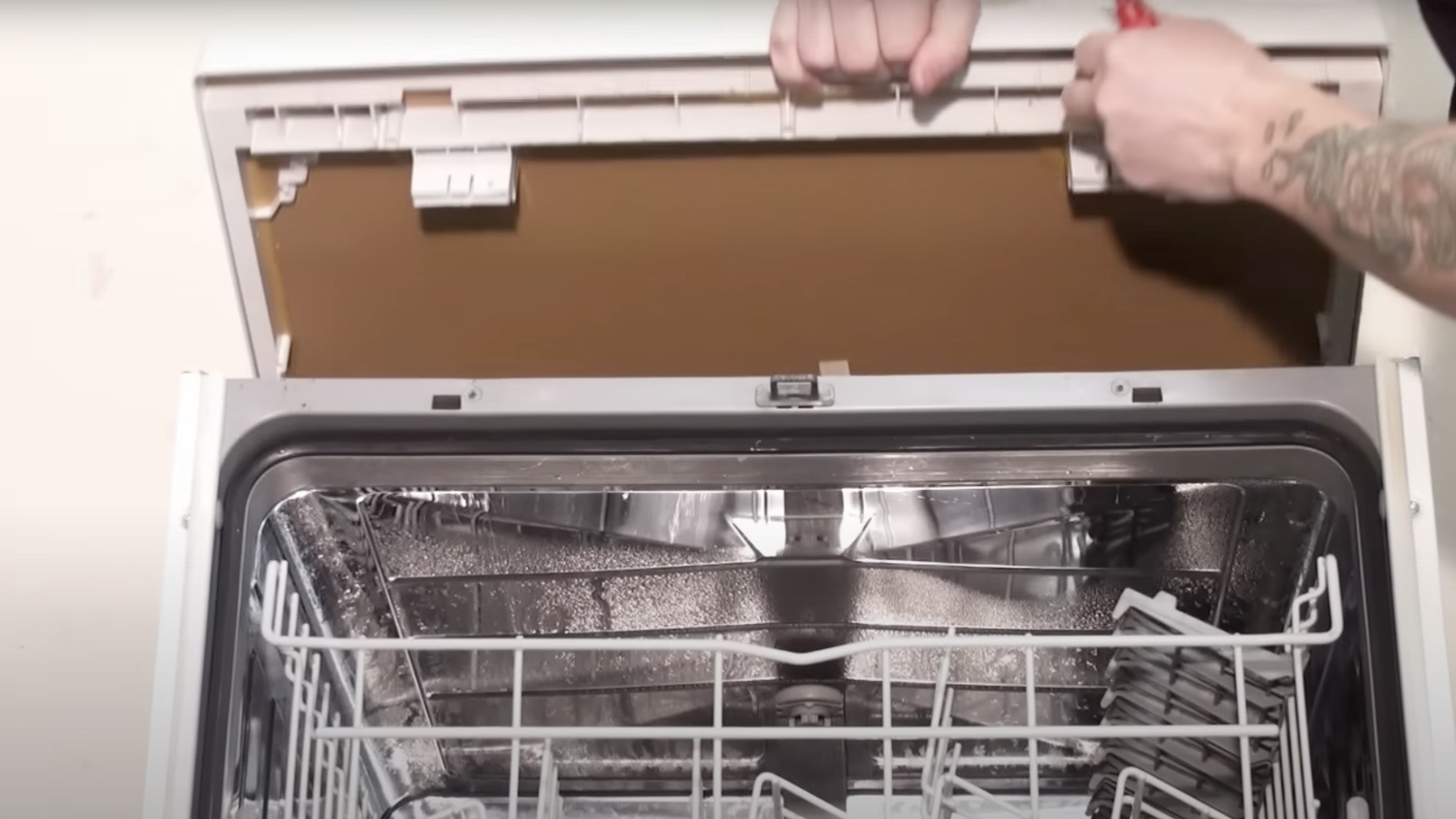

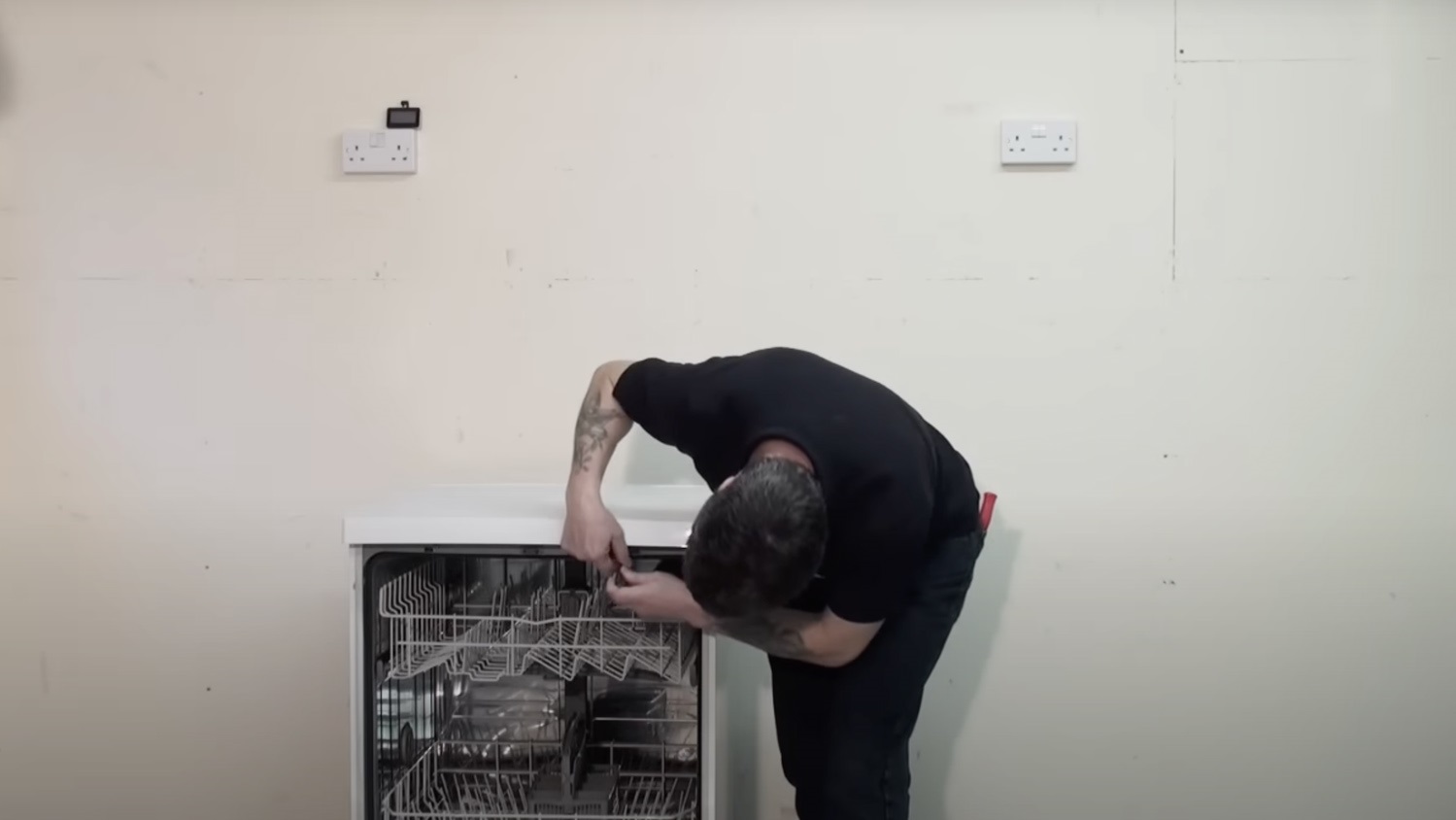

To remove the lid, unscrew the two screws found at the front and rear.

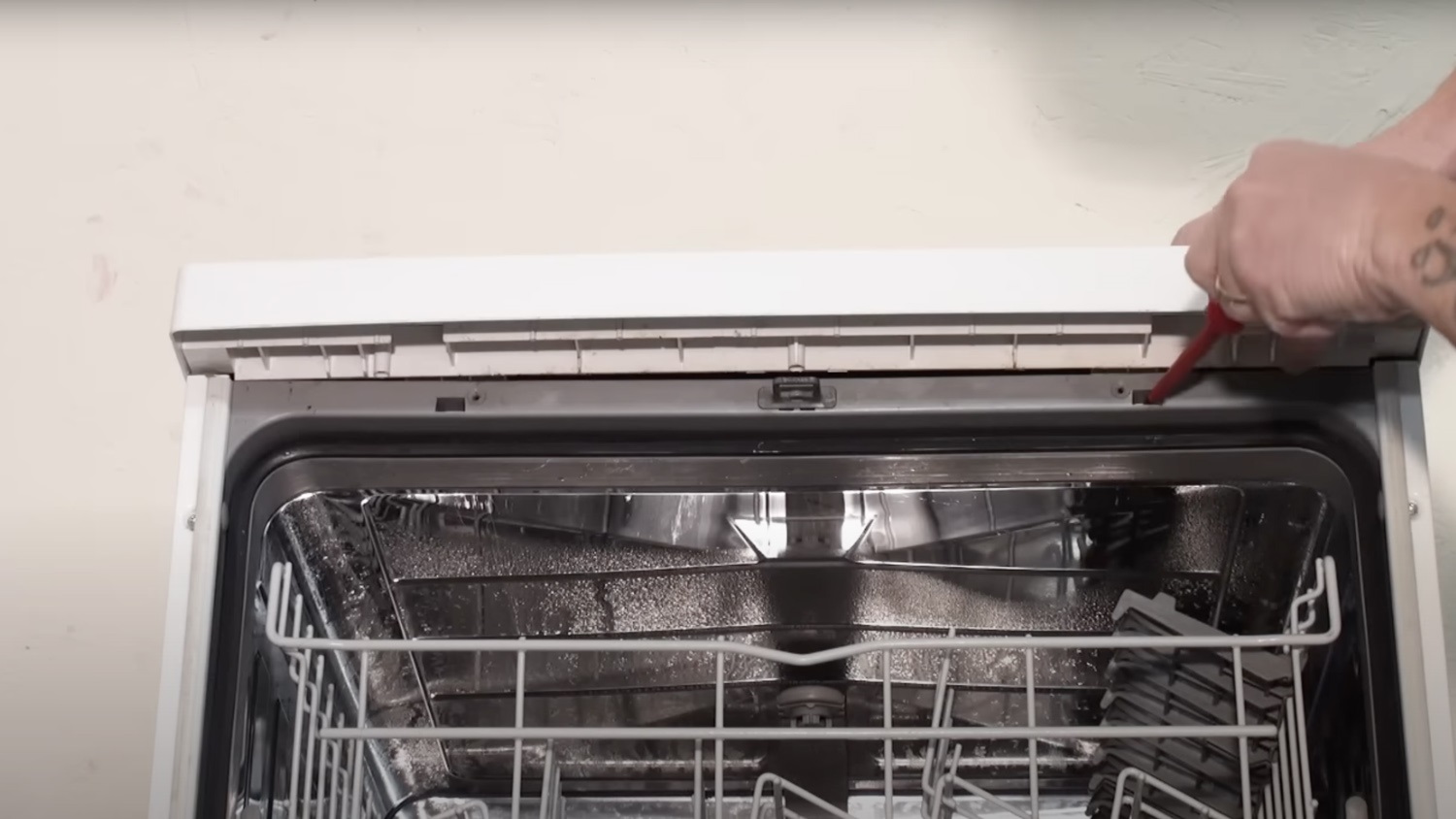

Then, unclip the lip from the two slots at the front.
Remove the lid and place to one side.

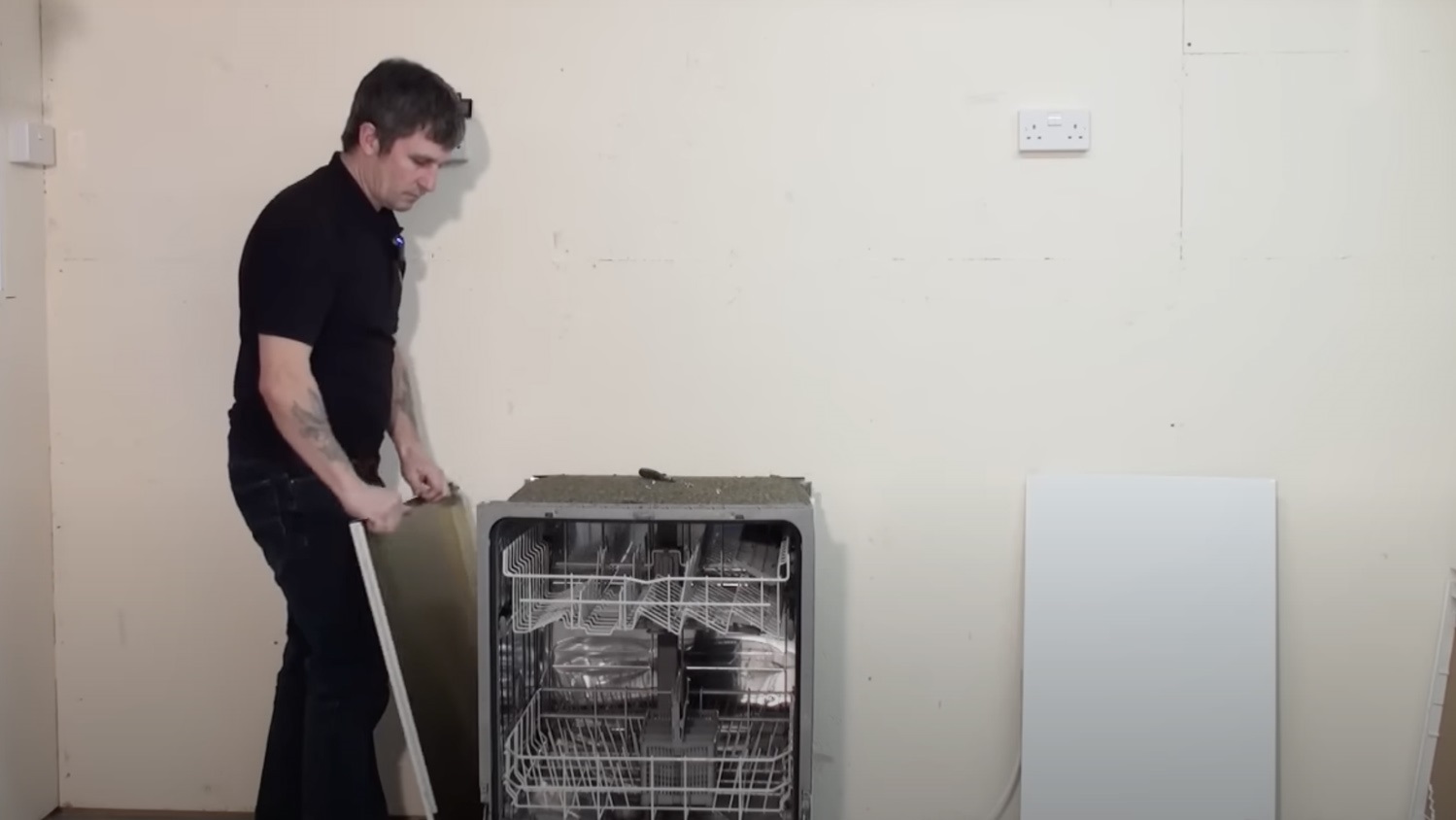

Now remove the two screws on the front and one on the rear holding the side panel in place. Repeat this step for the other side panel and place both panels to one side.

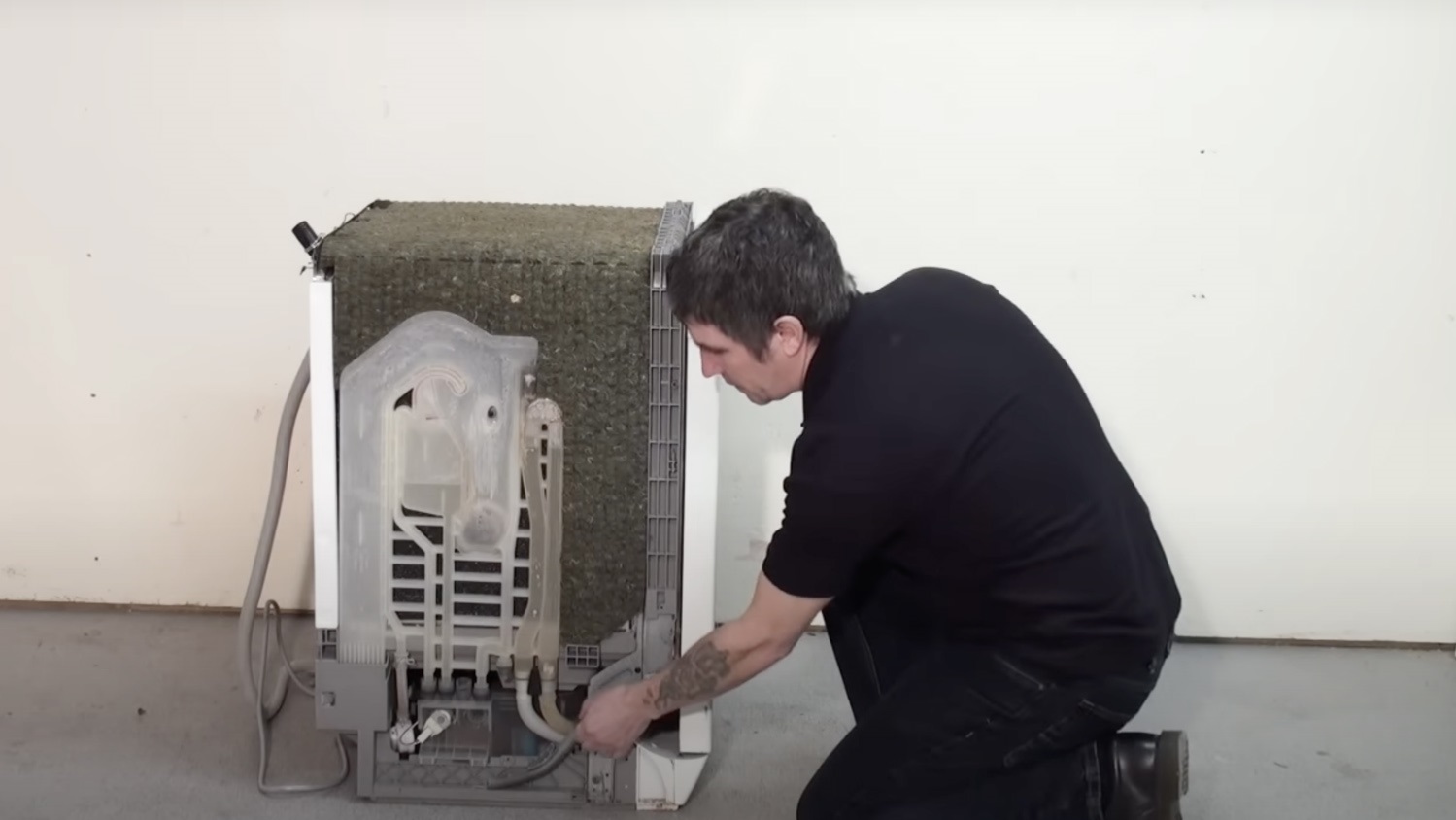

Close the dishwasher door to release the tension on the door hinge spring. Then unclip the door hinge spring.

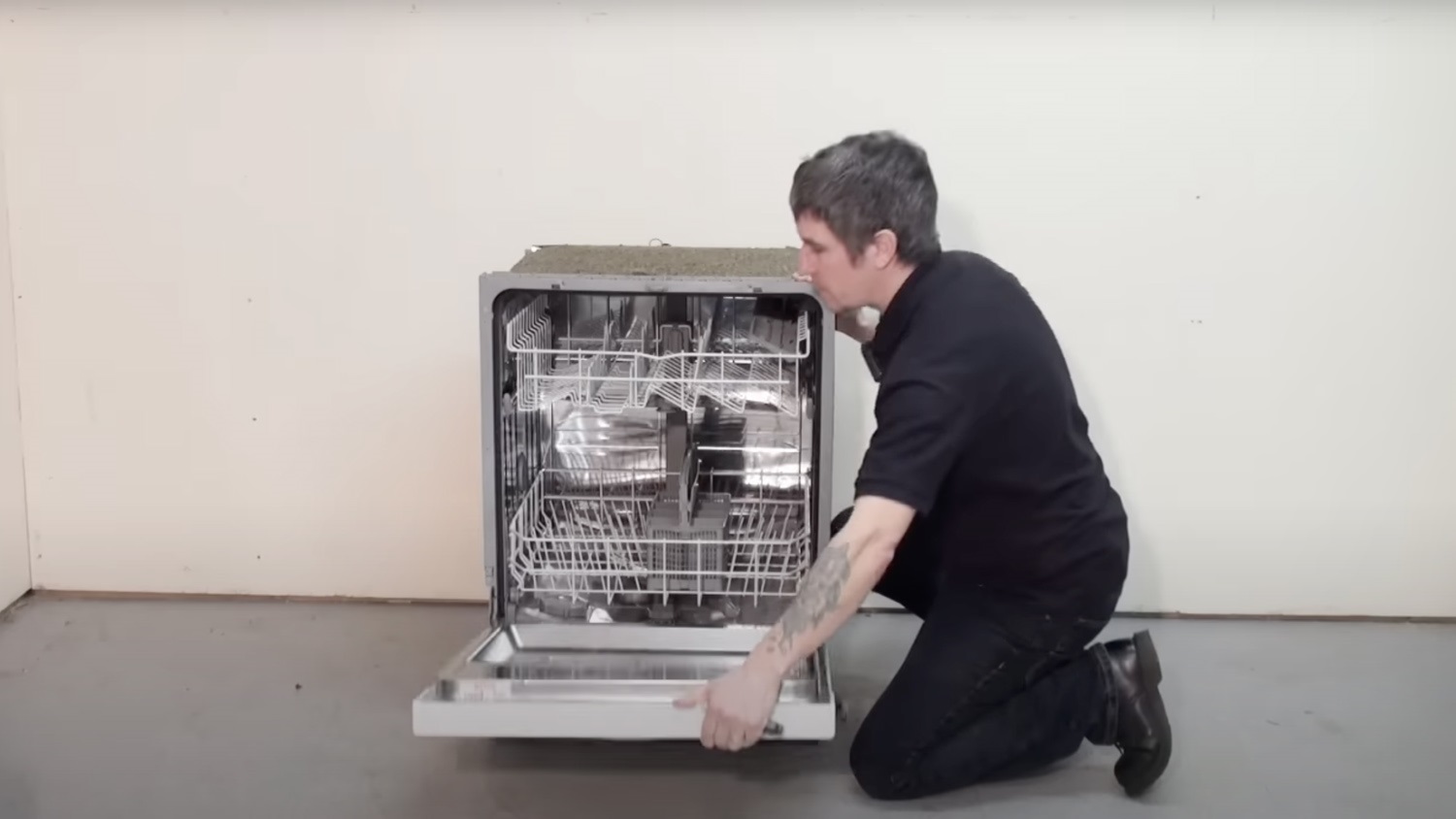

To remove the front door panel, first, lower the door, being careful of the heavier weight due to the door hinge spring being removed.

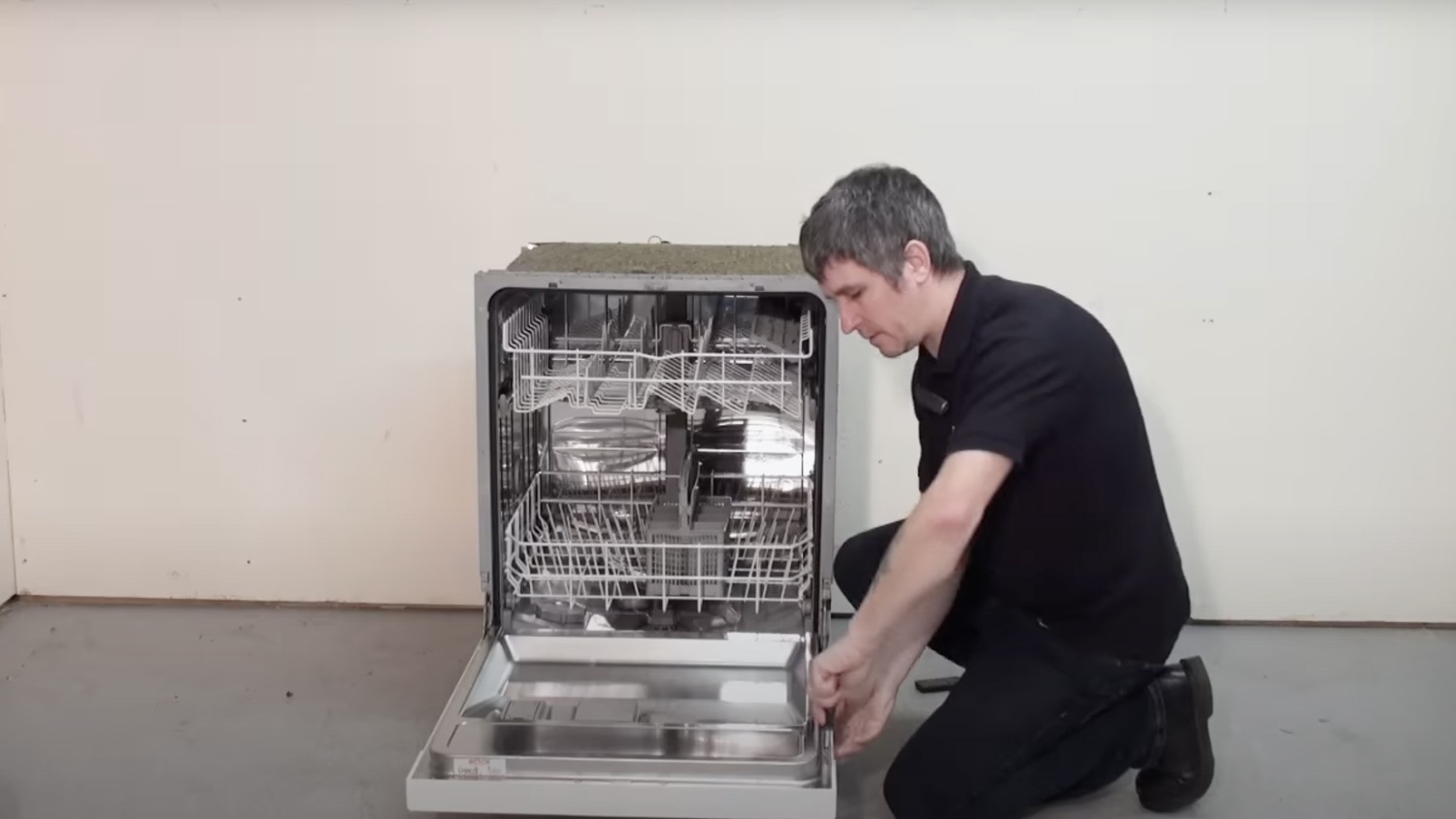

Then remove the screws on each side of the panel.

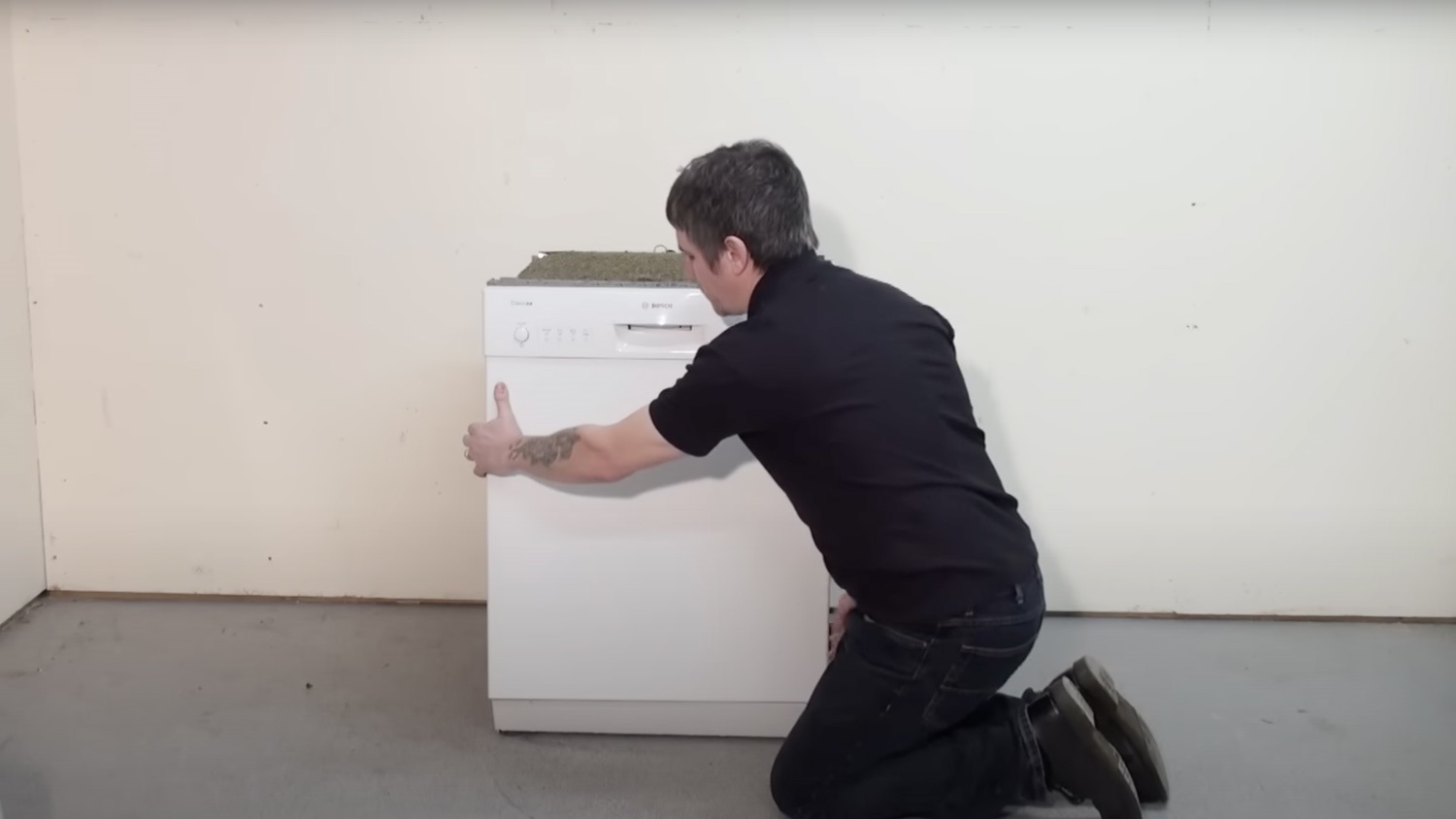

Close the door, being mindful of the increased weight from the door hinge spring being removed.

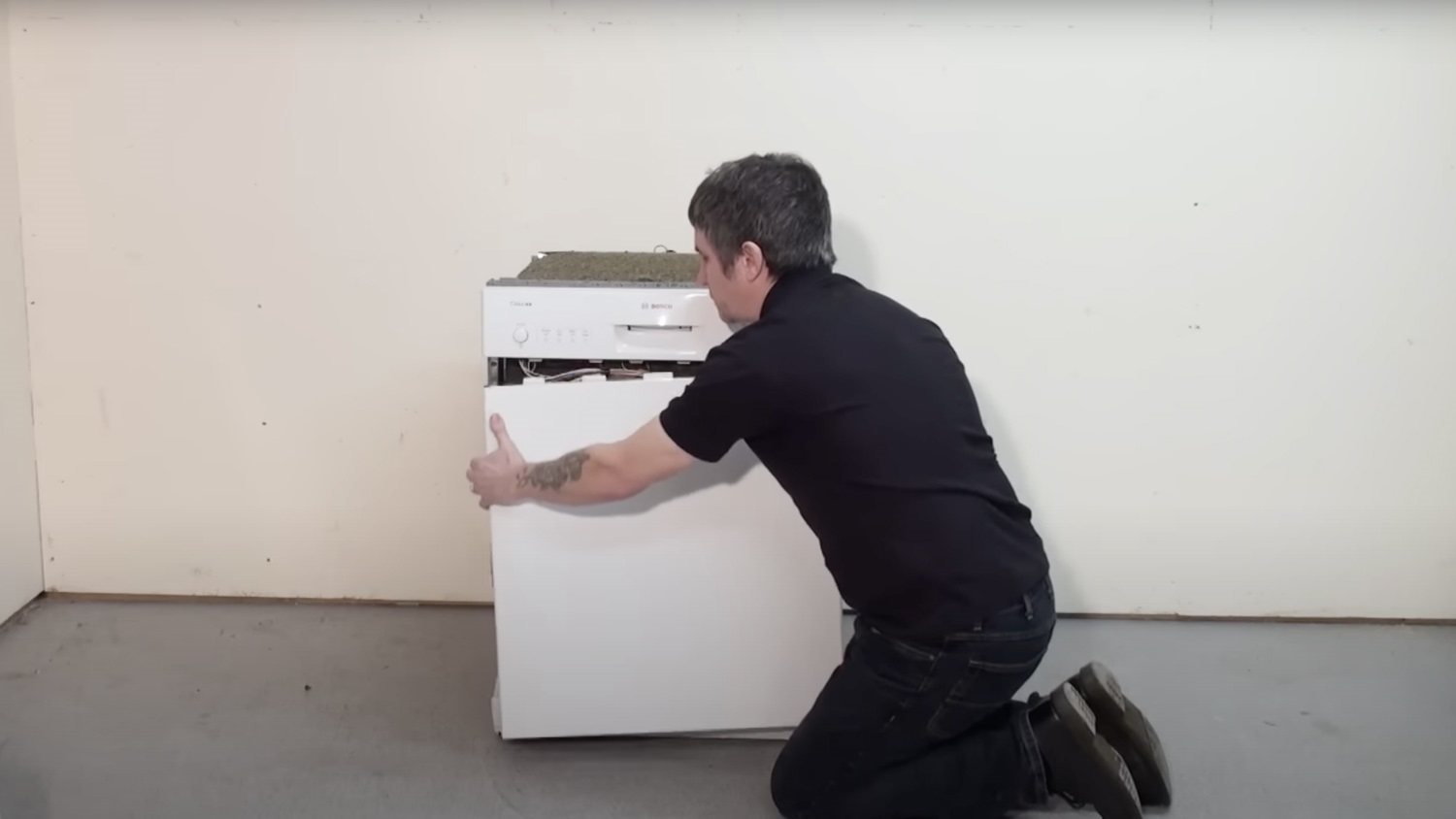

Then unclip the front panel and place to one side.

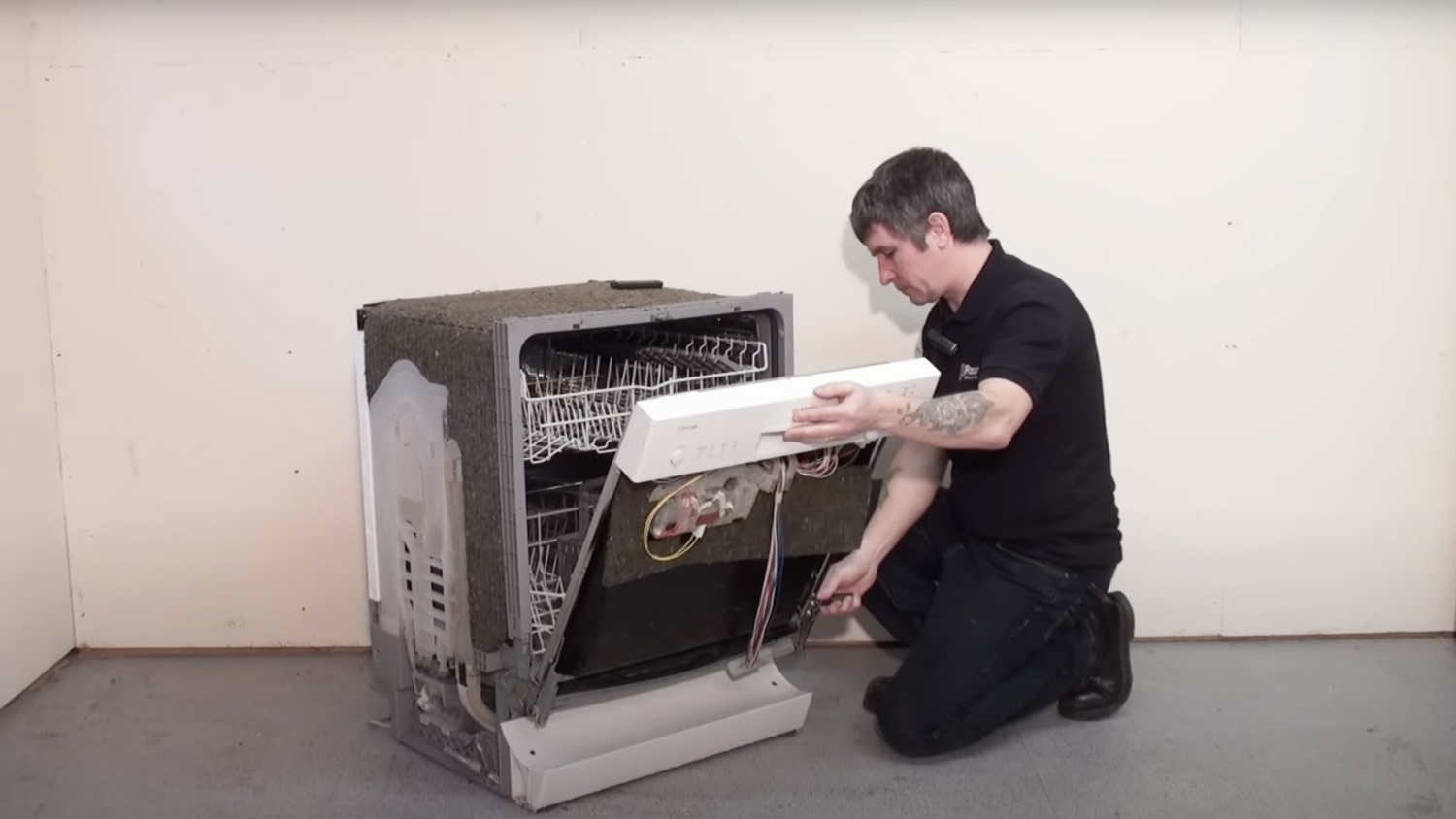

Open the door slightly and unscrew the door hinge screws.

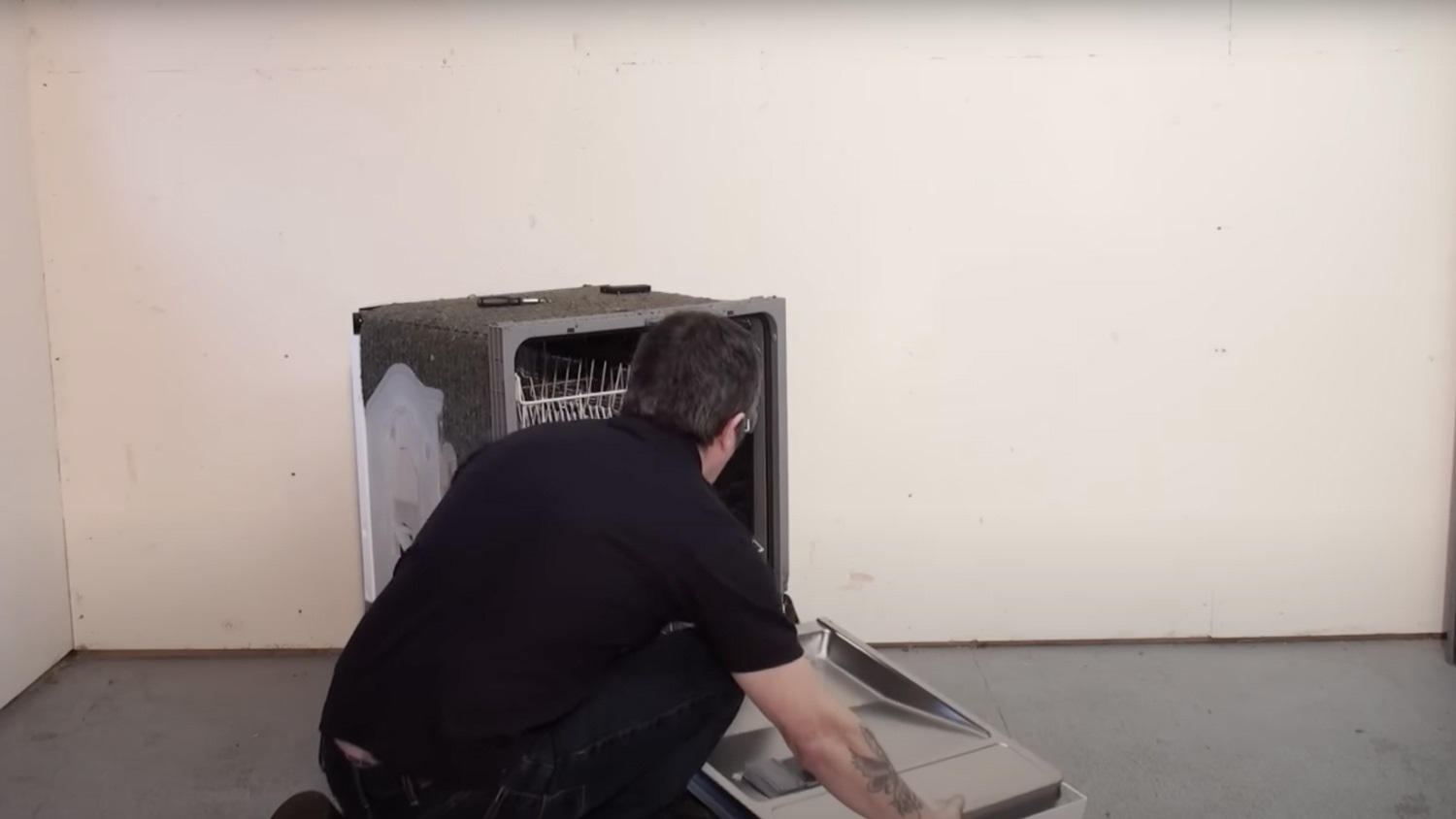

The door can then be laid on the floor. Place a towel or blanket down to avoid any scratches.

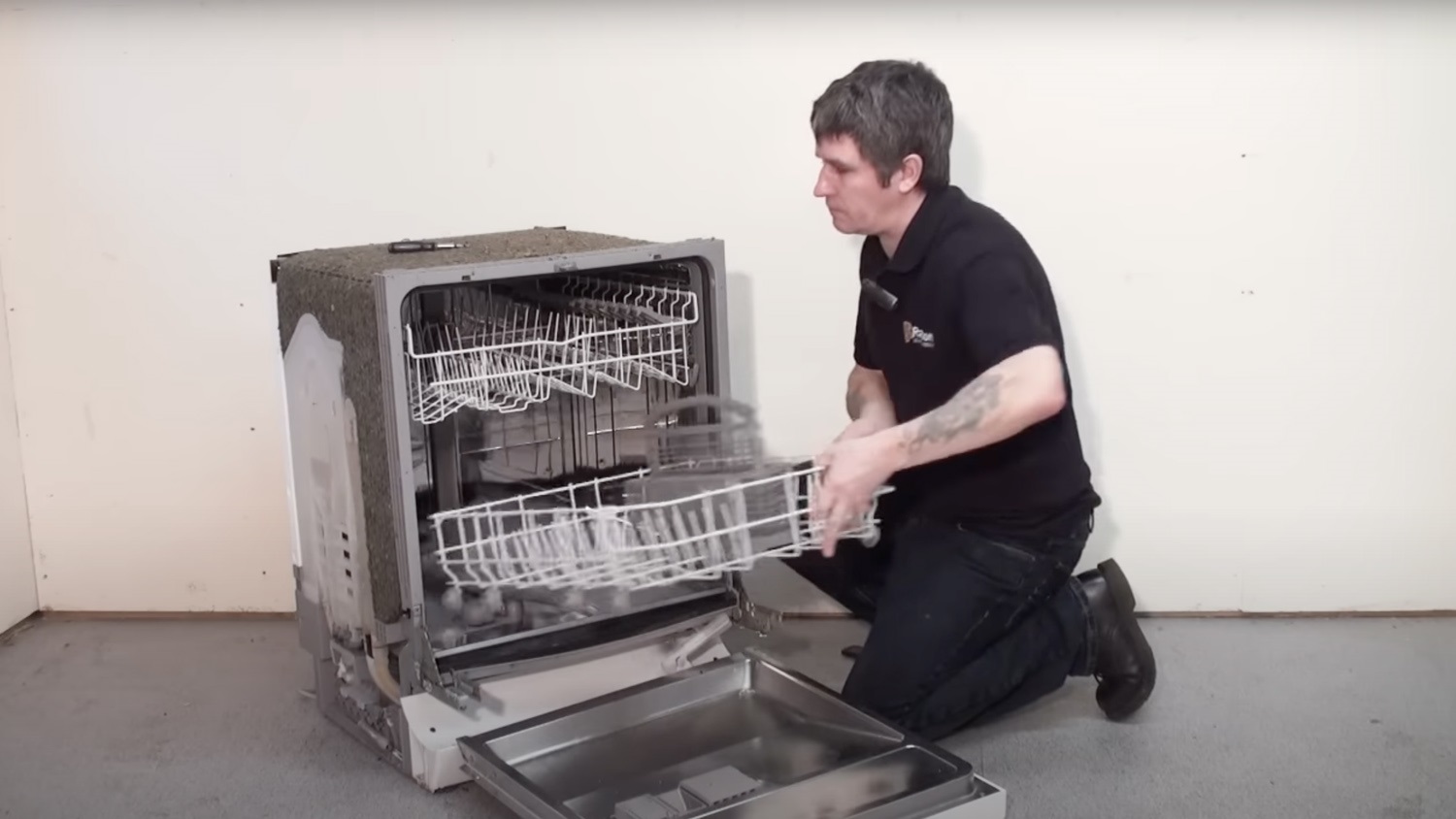

Remove the bottom basket assembly.
2. Remove old lower door seal

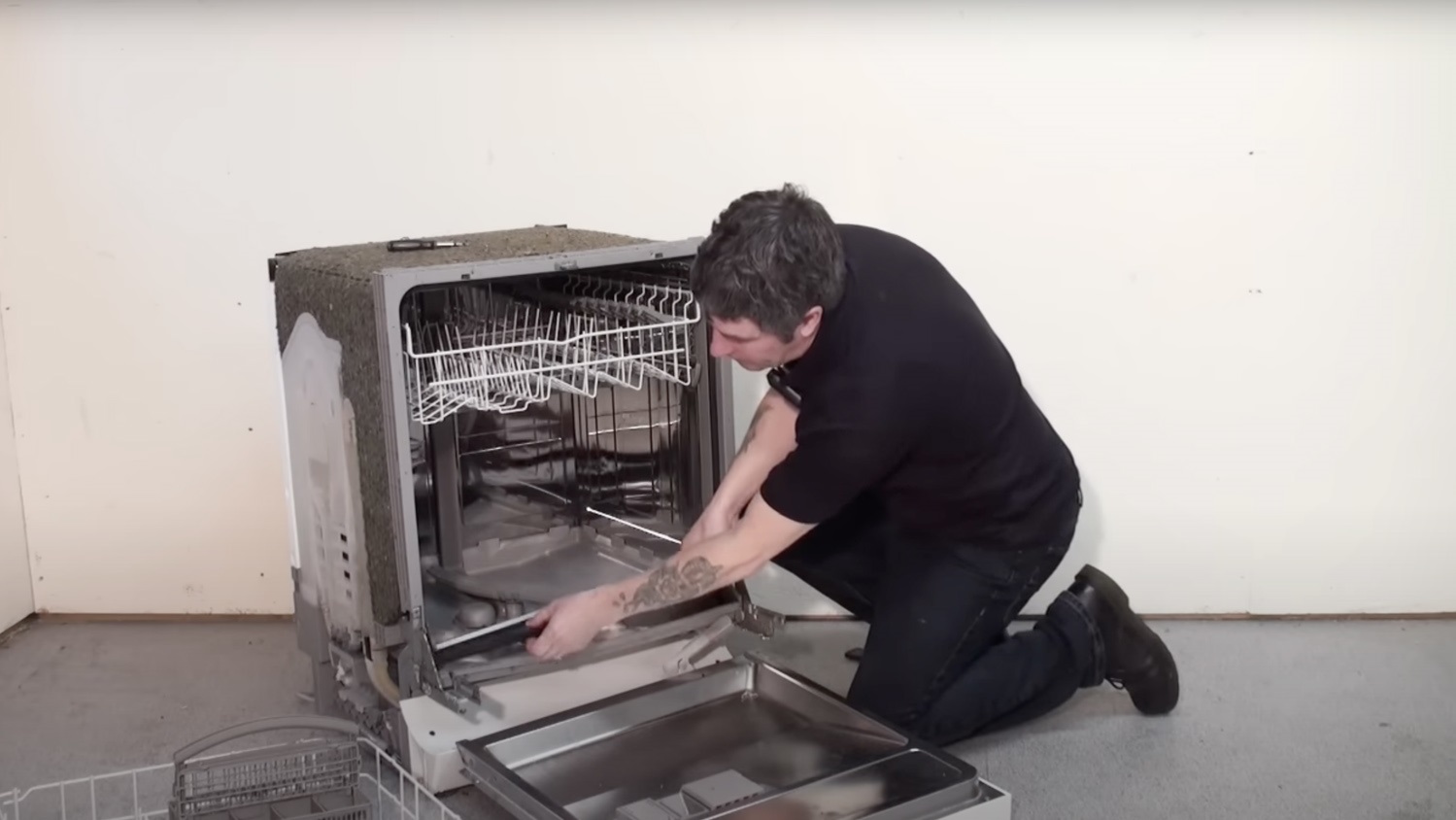

Now lift and remove the old lower door seal.
Before attaching the new seal, thoroughly clean the area.

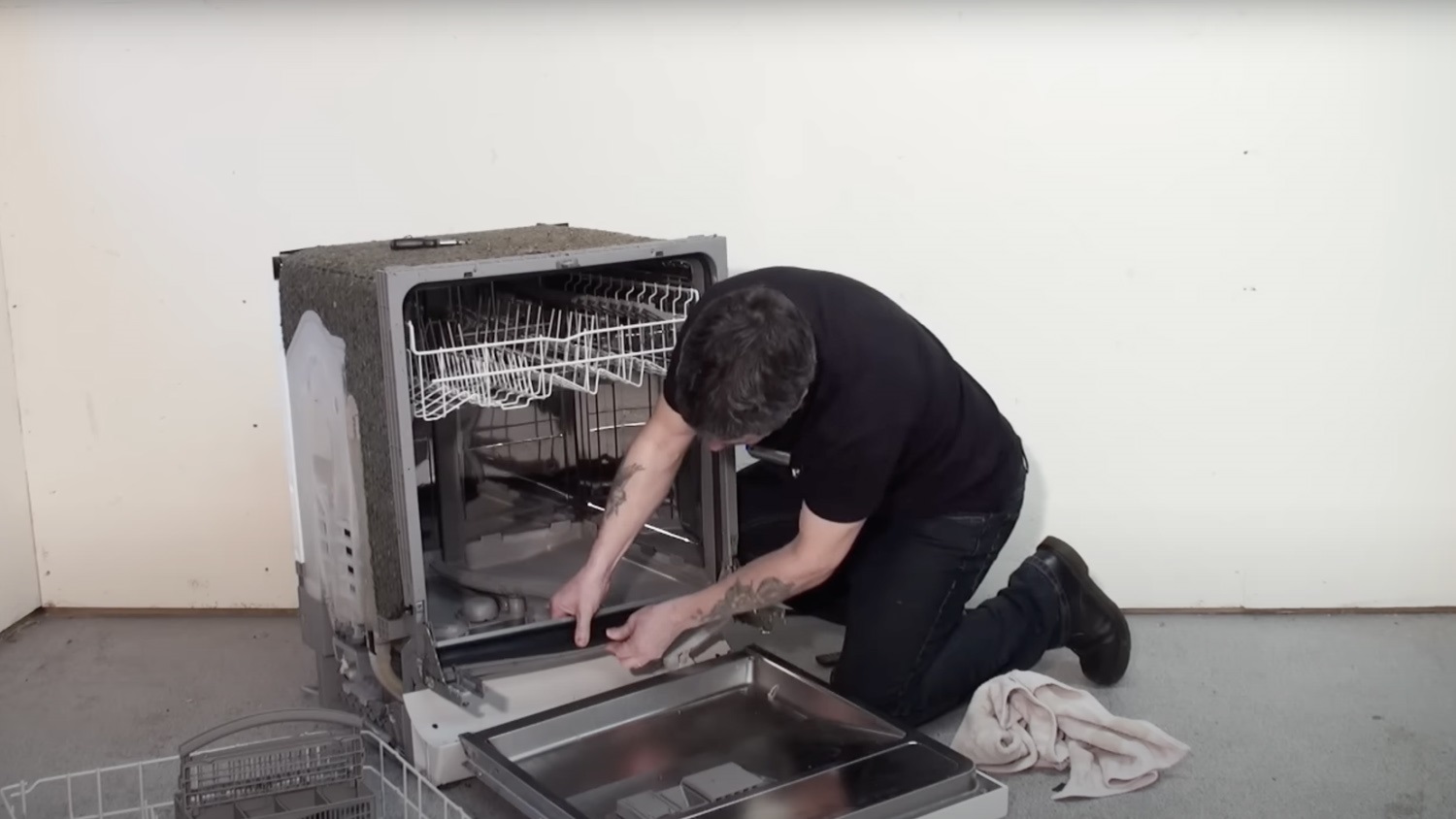

3. Attach new lower door seal
Attach the lip of the new seal to the washing machine. Press down all the way along.
4. Re-assemble washing machine

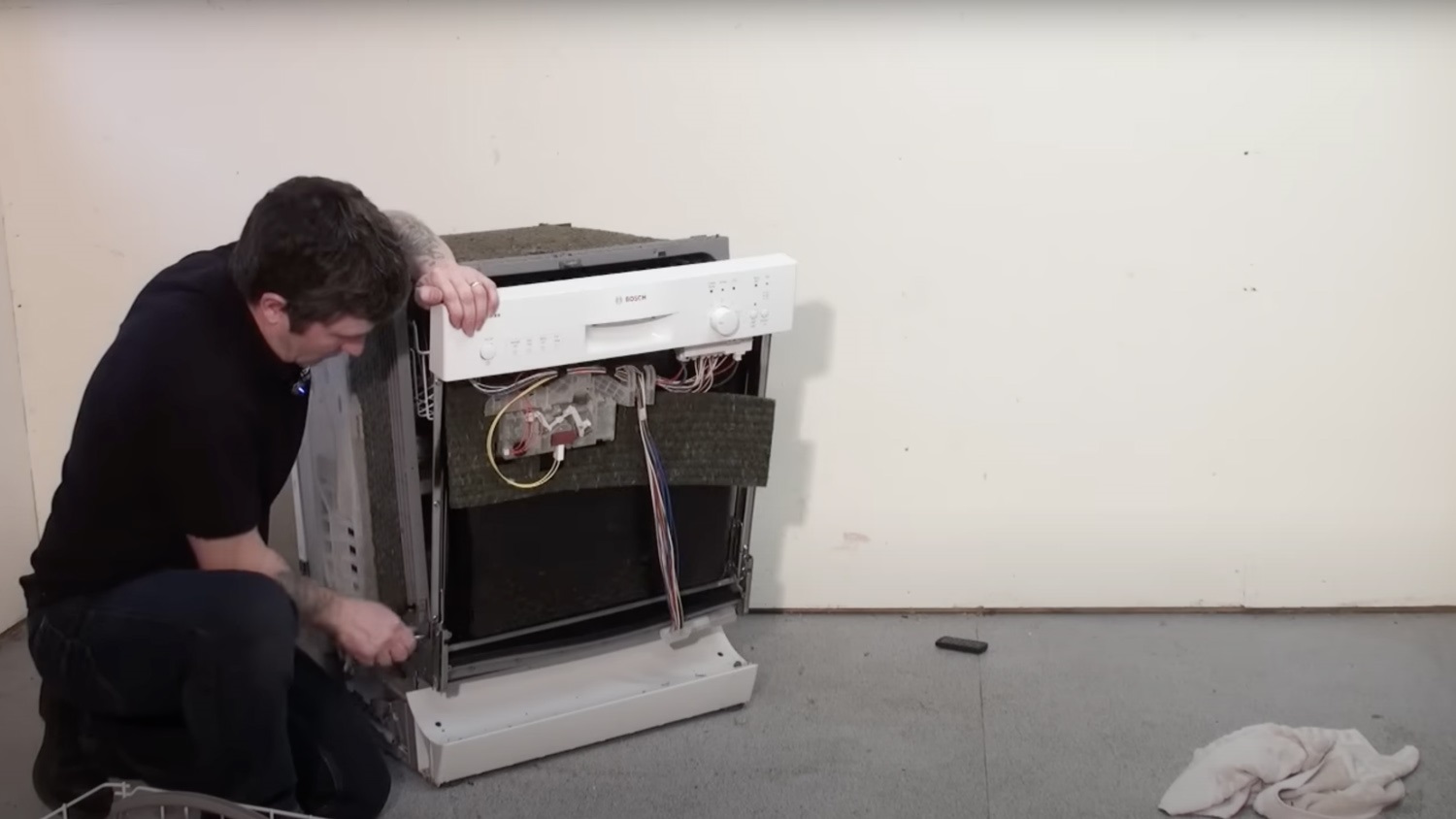

Re-attach the door to the hinges and re-screw the screws.

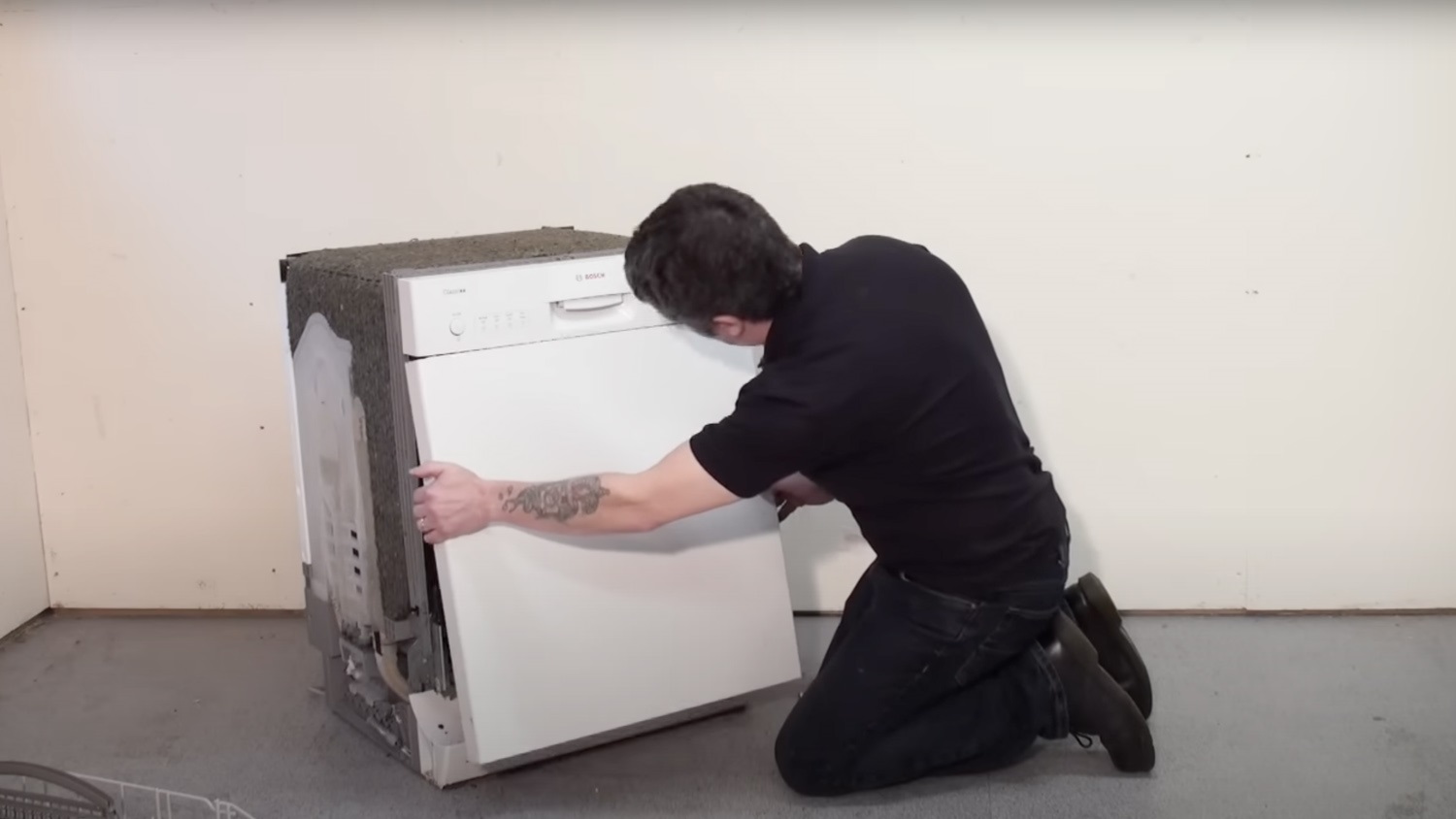

Re-attach the front panel to the door.

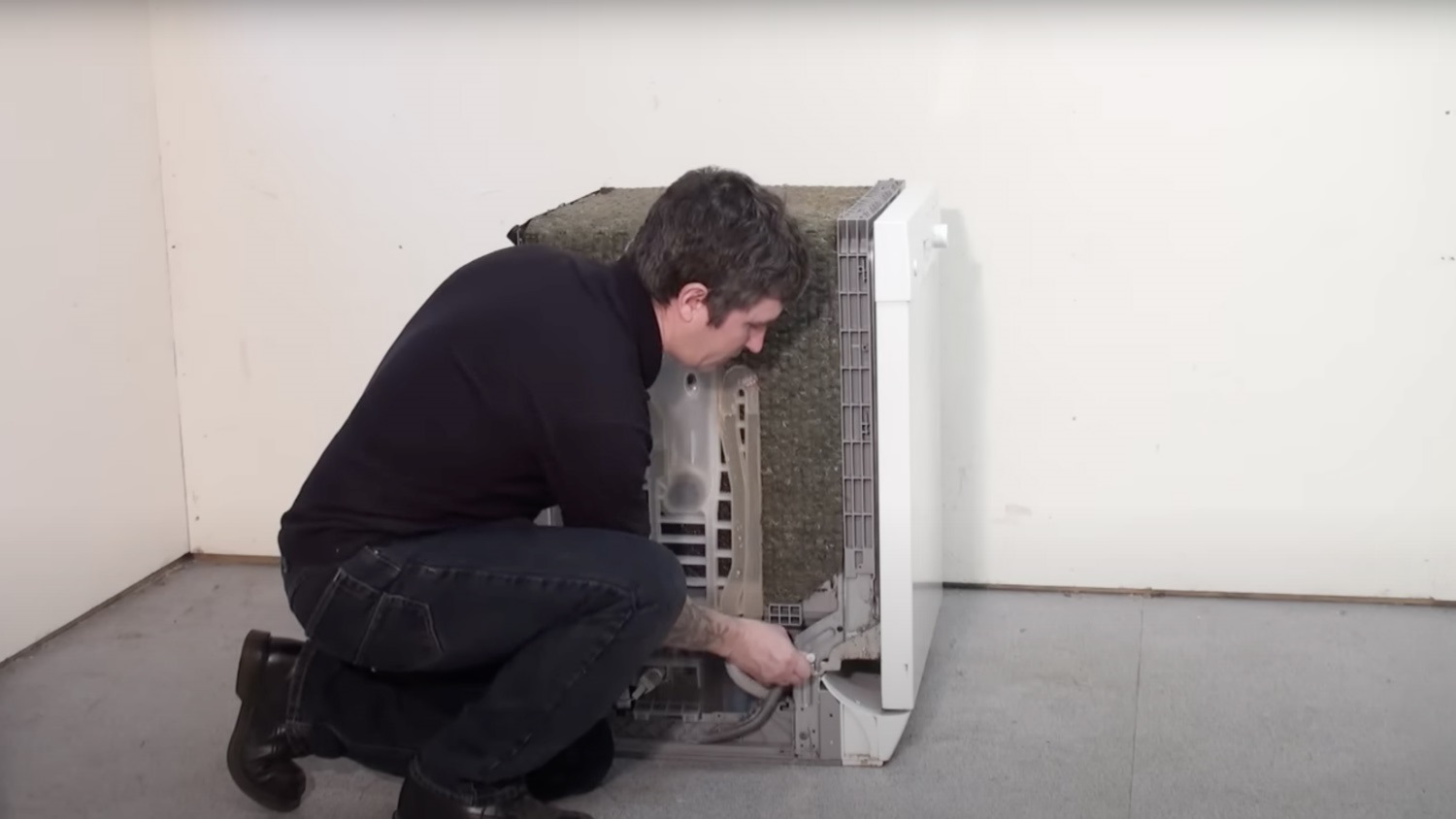

Re-attach the door hinge spring

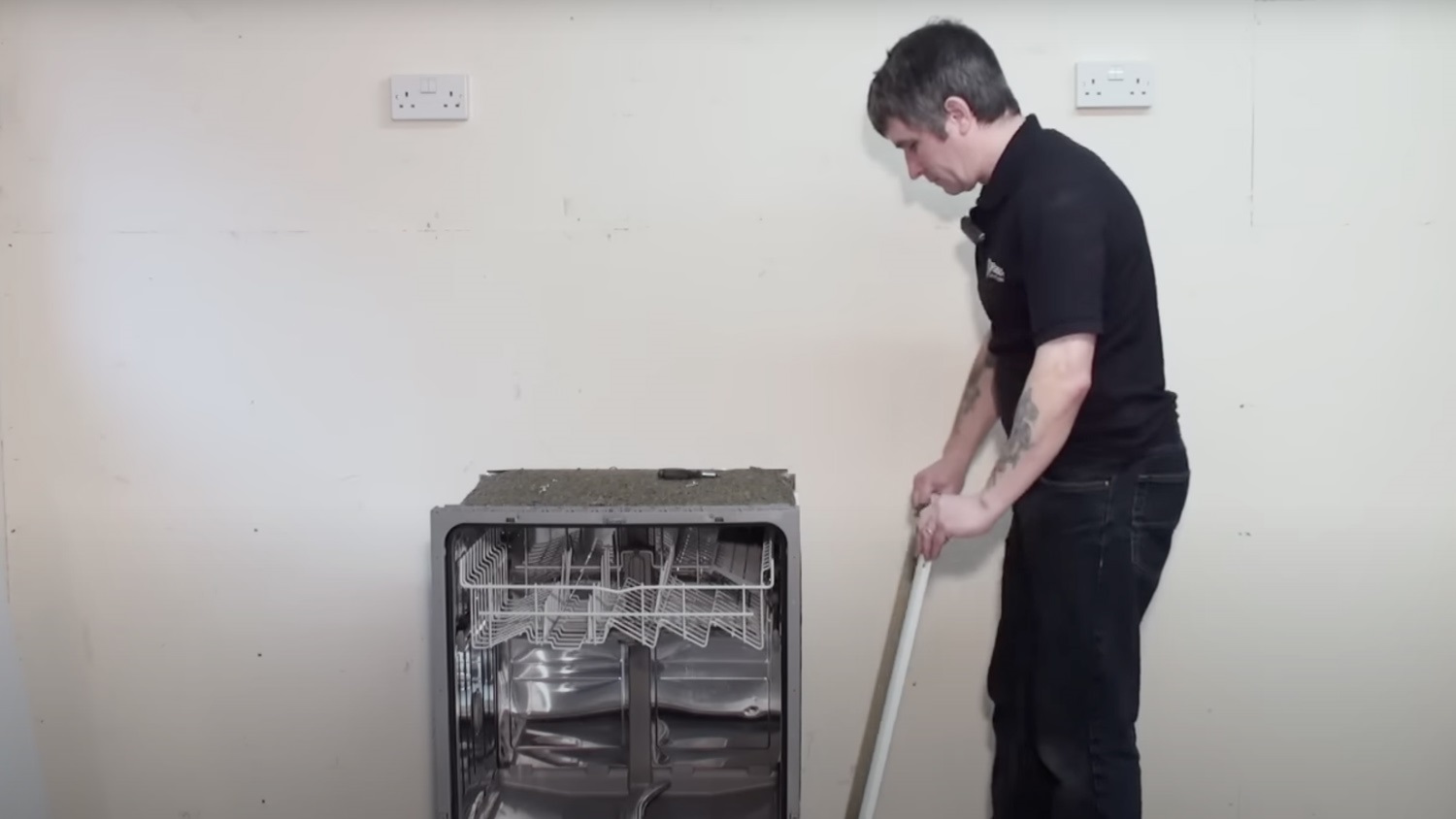

Re-attach the side panels and re-screw the screws back in place.

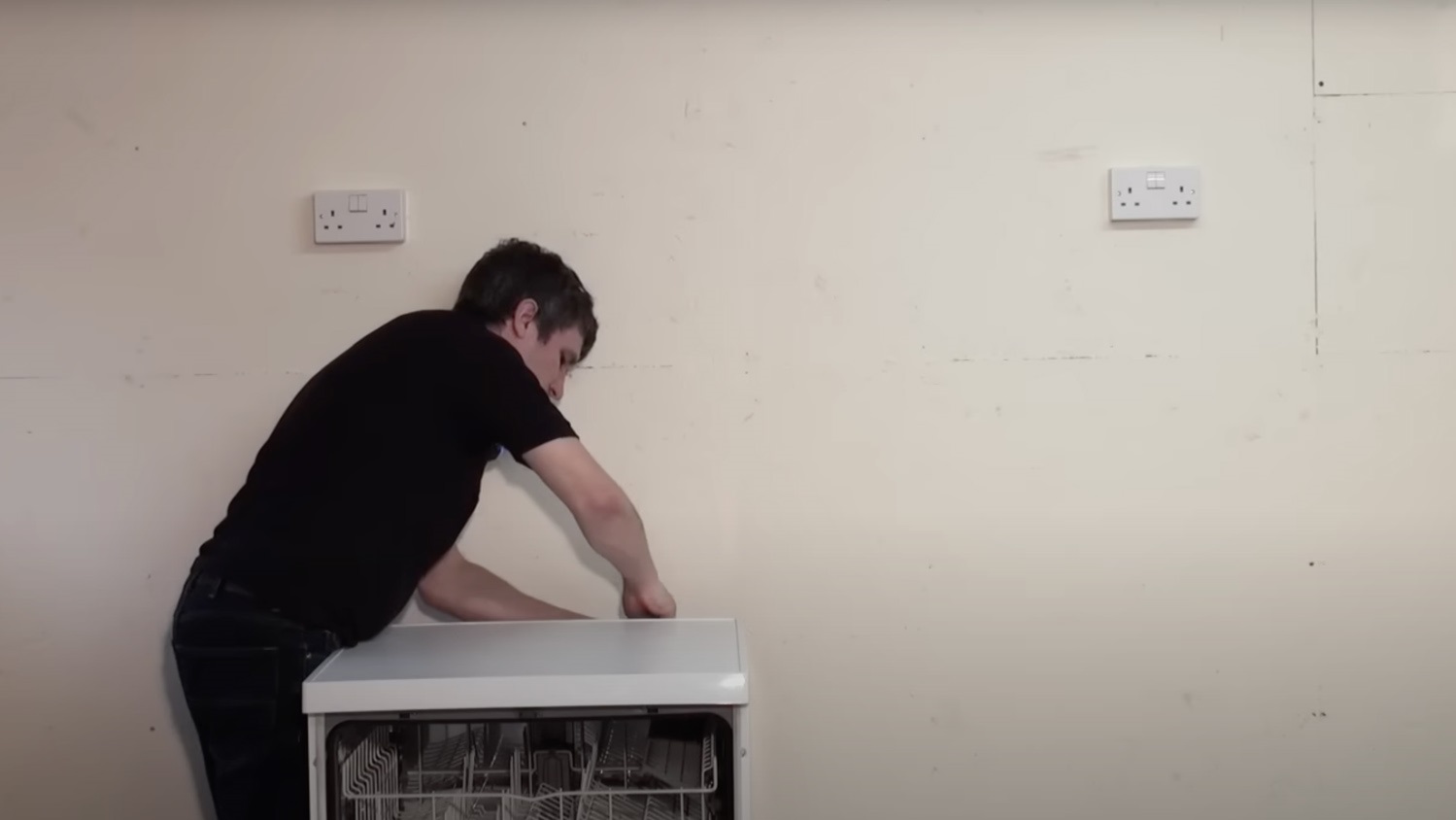

Re-attach the lid and re-screw the screws back in place.

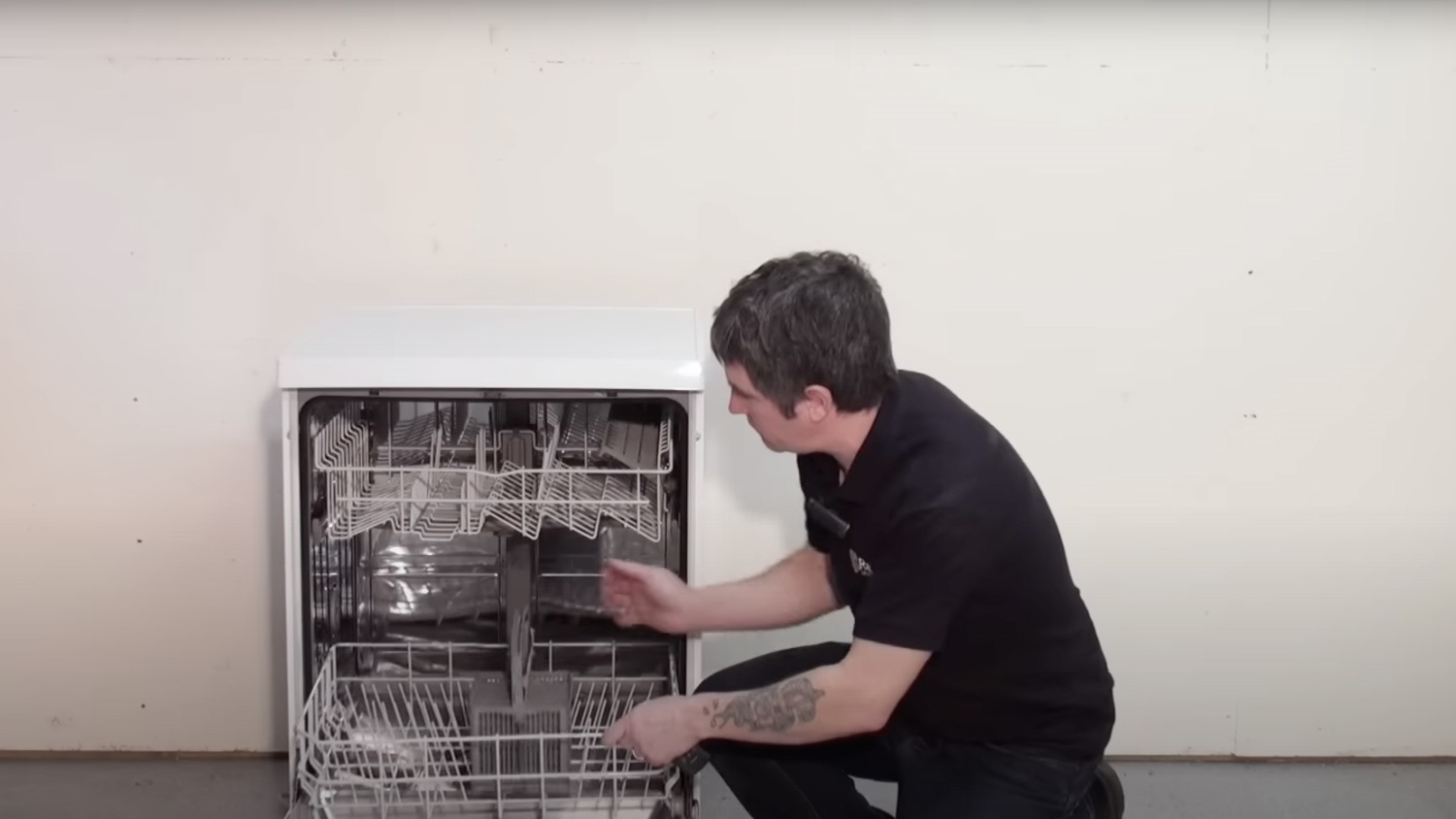

Re-insert the bottom basket assembly.
And that's it, your new lower door seal is all set to go!
View all Dishwasher seal spares
Part two - upper door seal
1. Remove old upper door seal

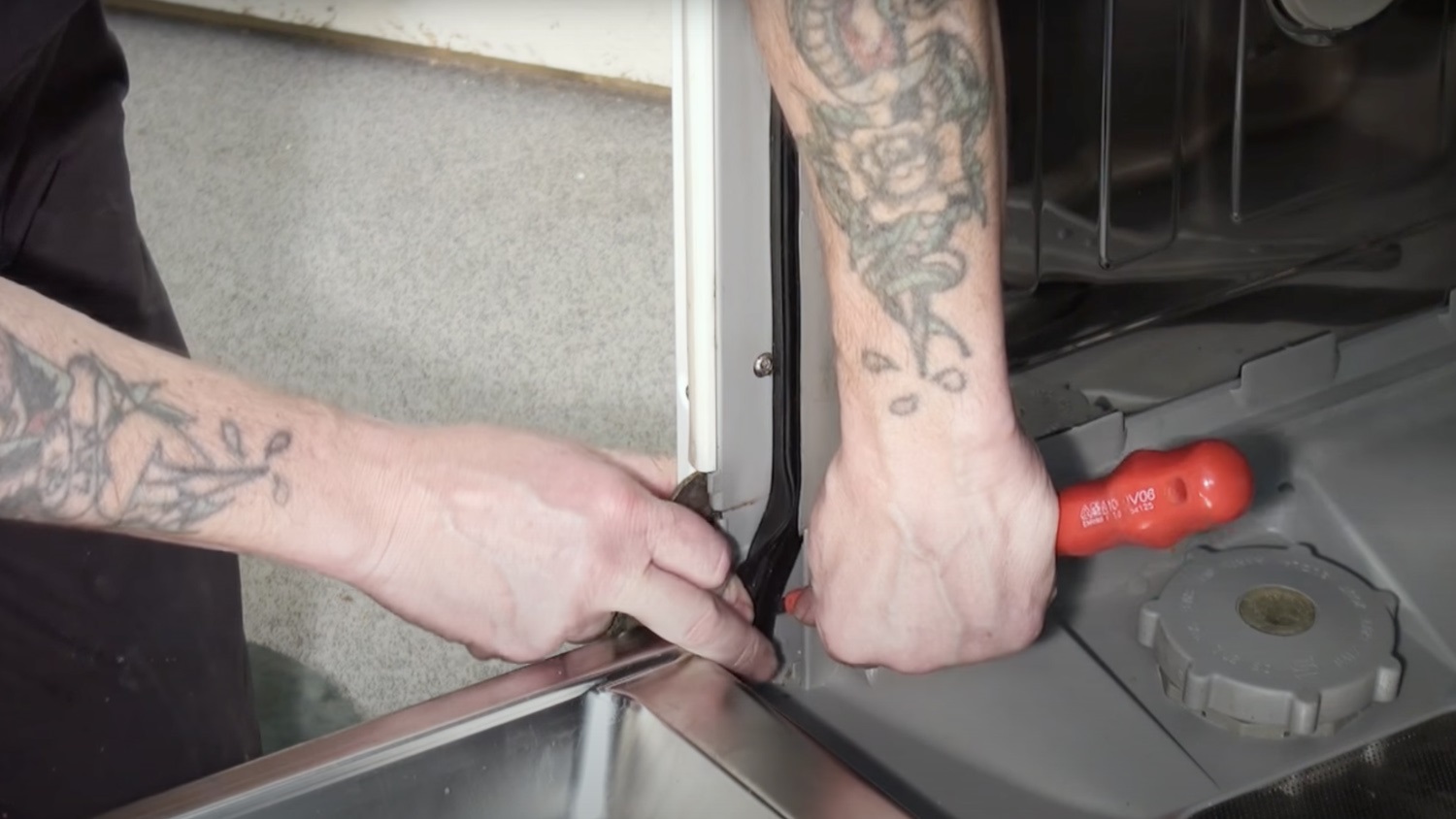

With a flathead screwdriver, prise the seal away from the channel in the dishwasher.

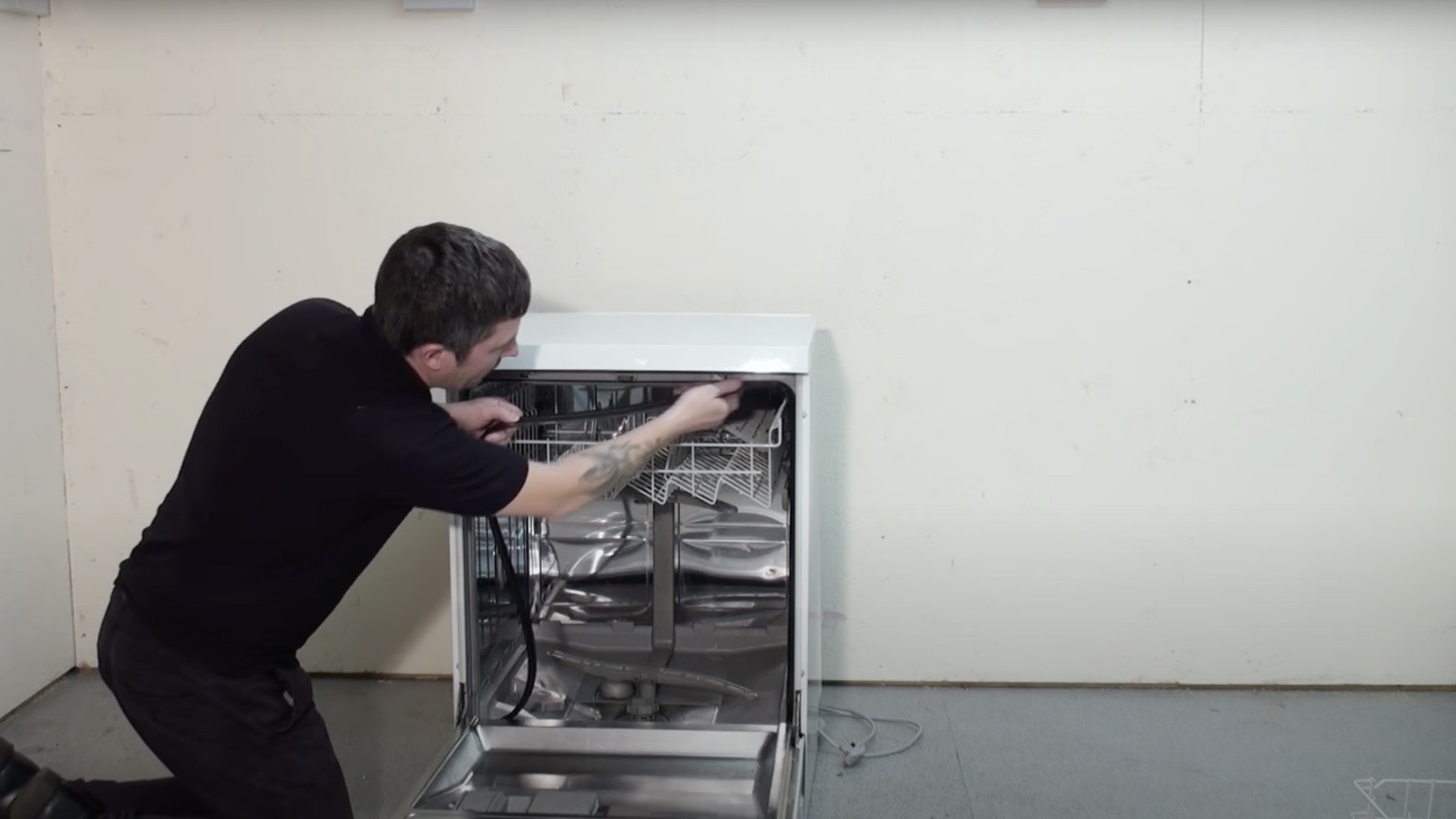

Then fully remove the seal.

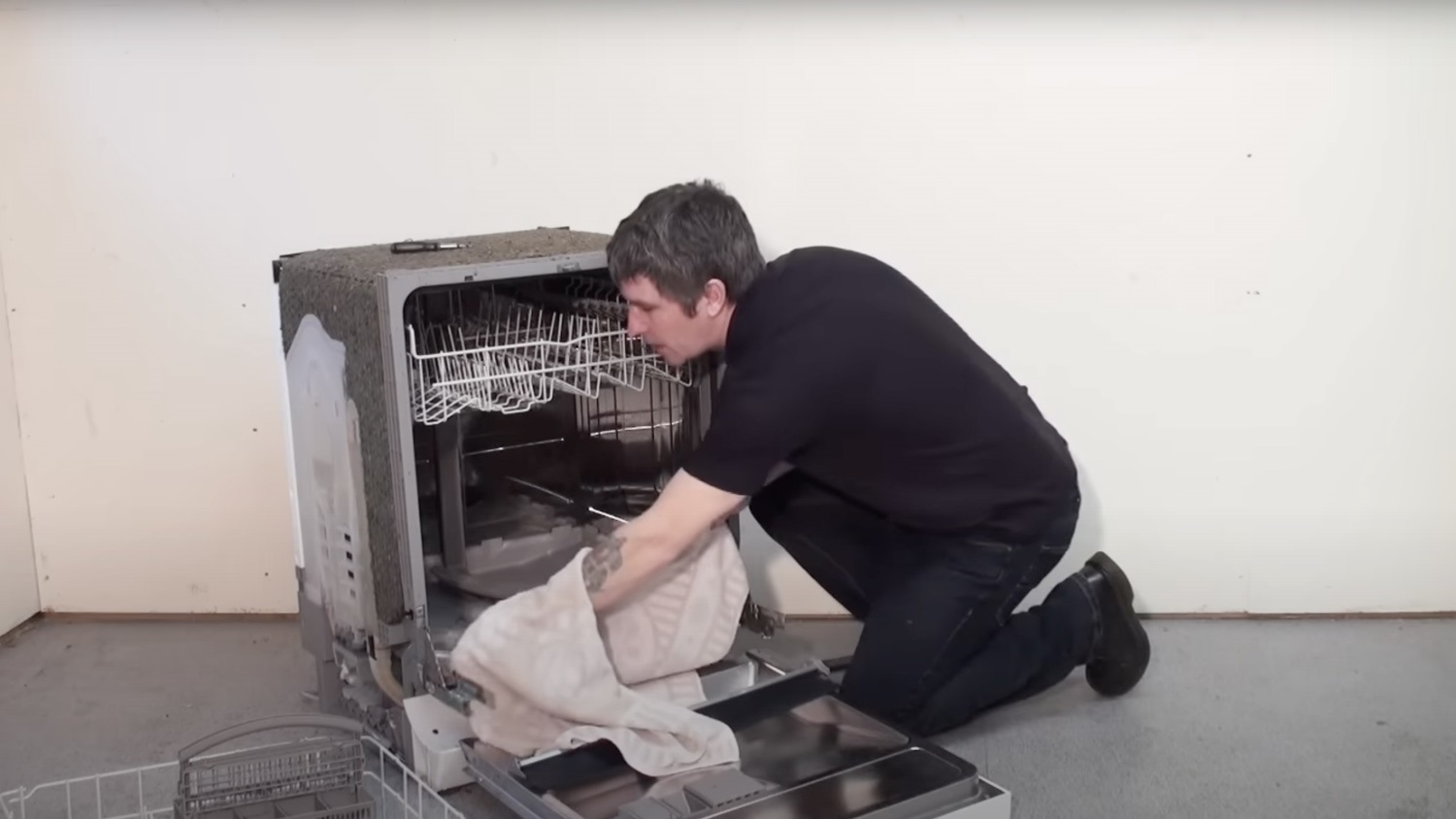

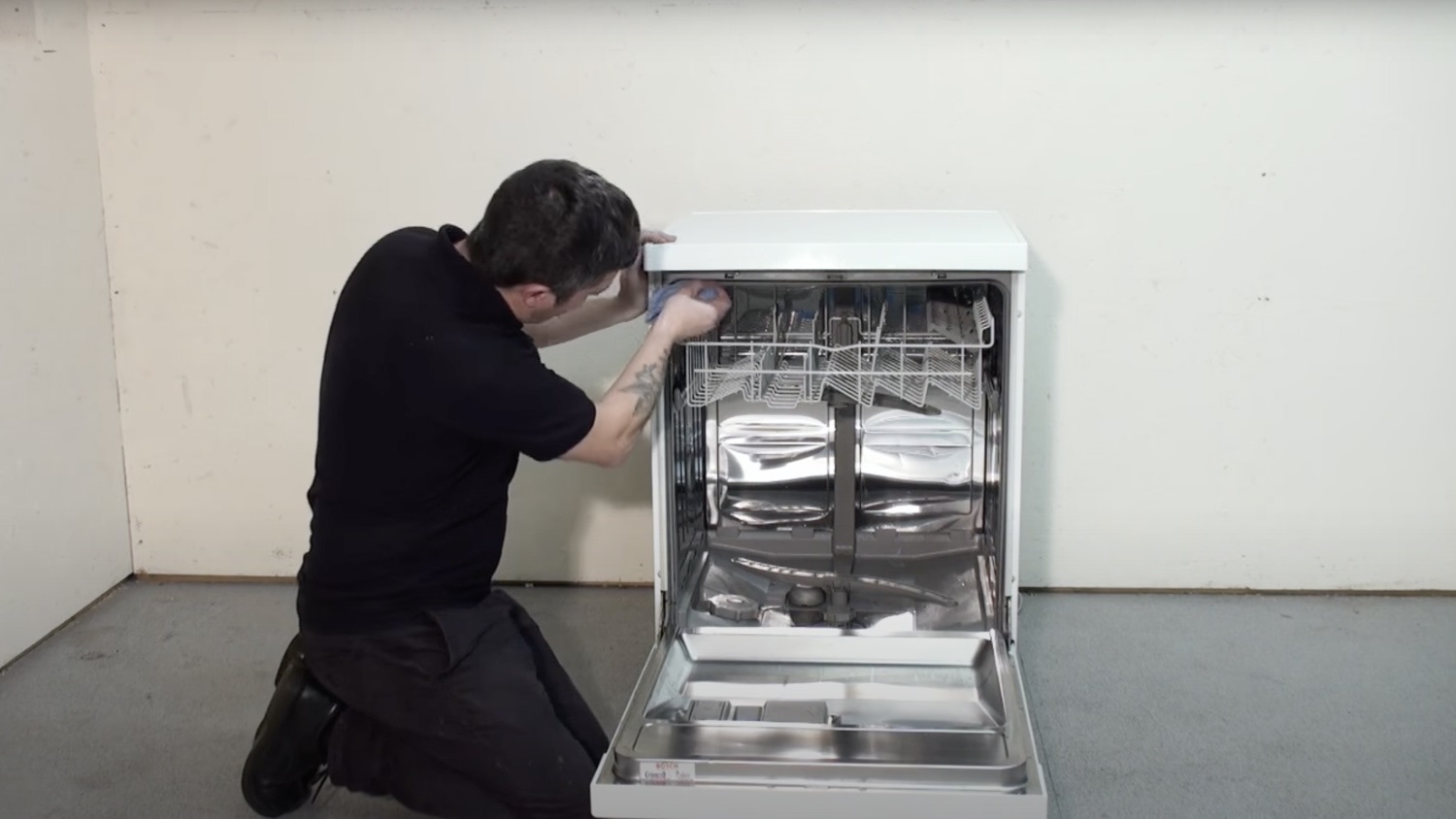

Give the dishwasher a clean.
2. Install new upper door seal

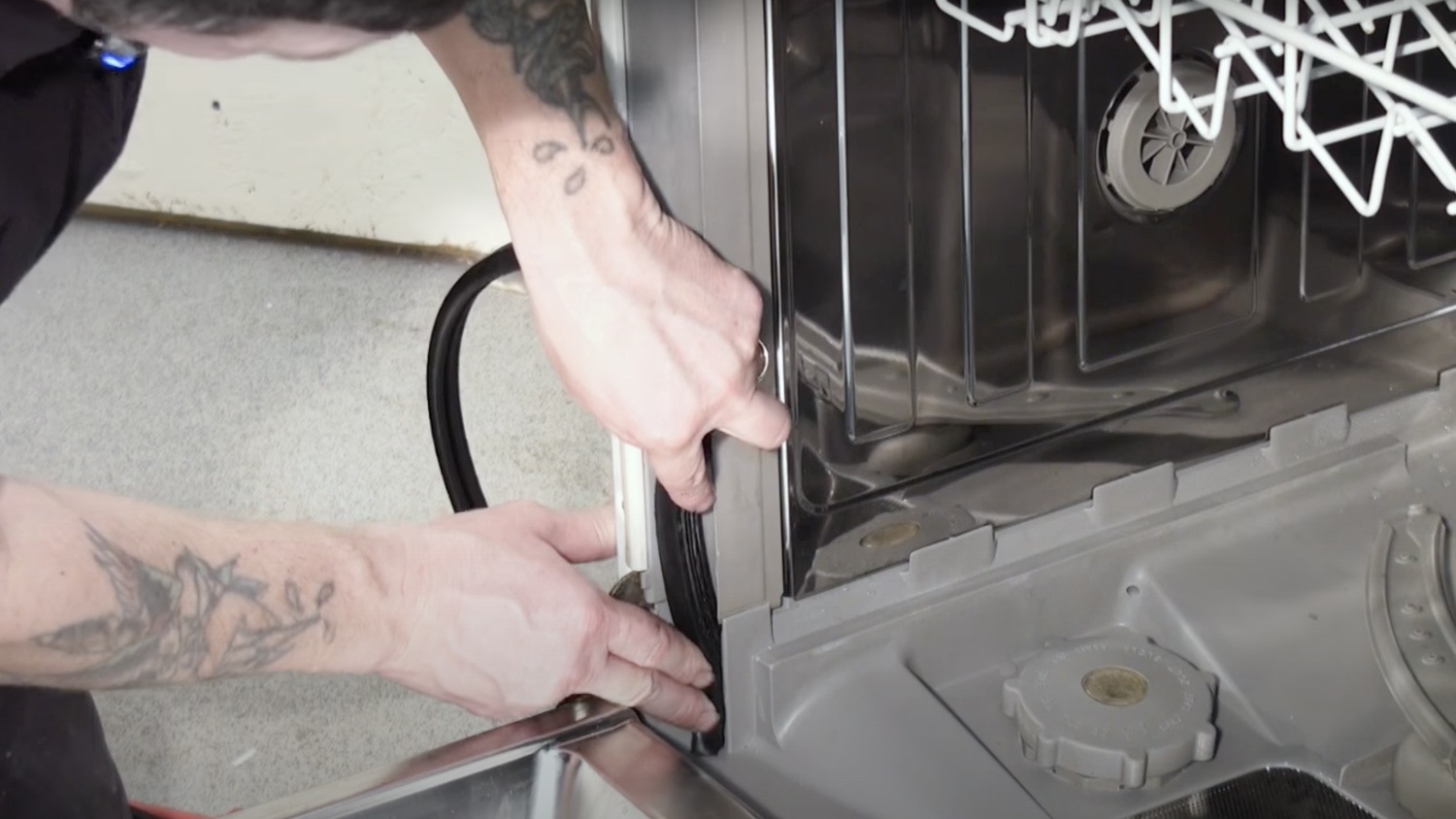

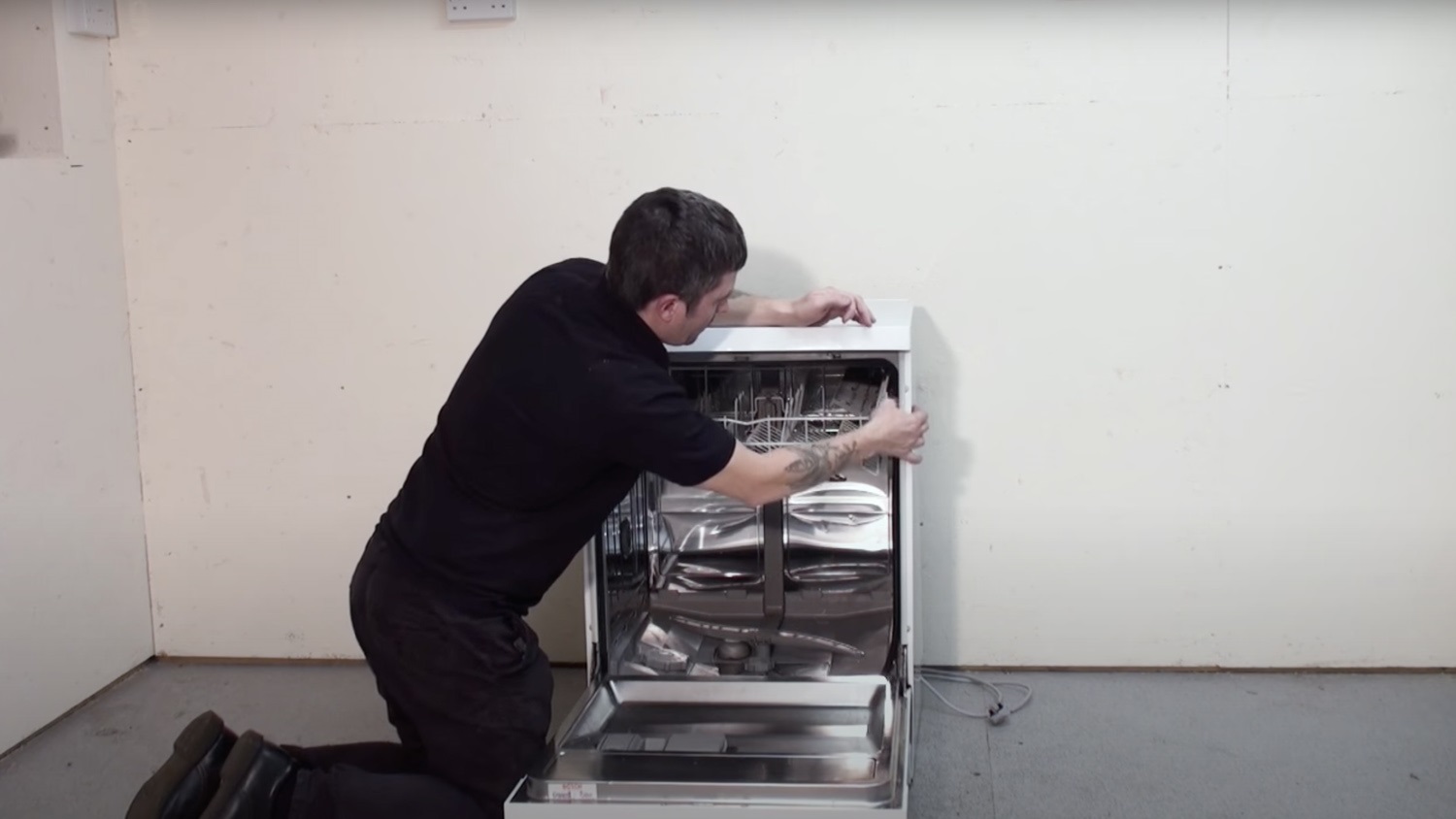

With your new upper door seal, start off in one of the bottom corners and feed it up the side.
Then feed along the top and down the other side. Making sure it's in securely.

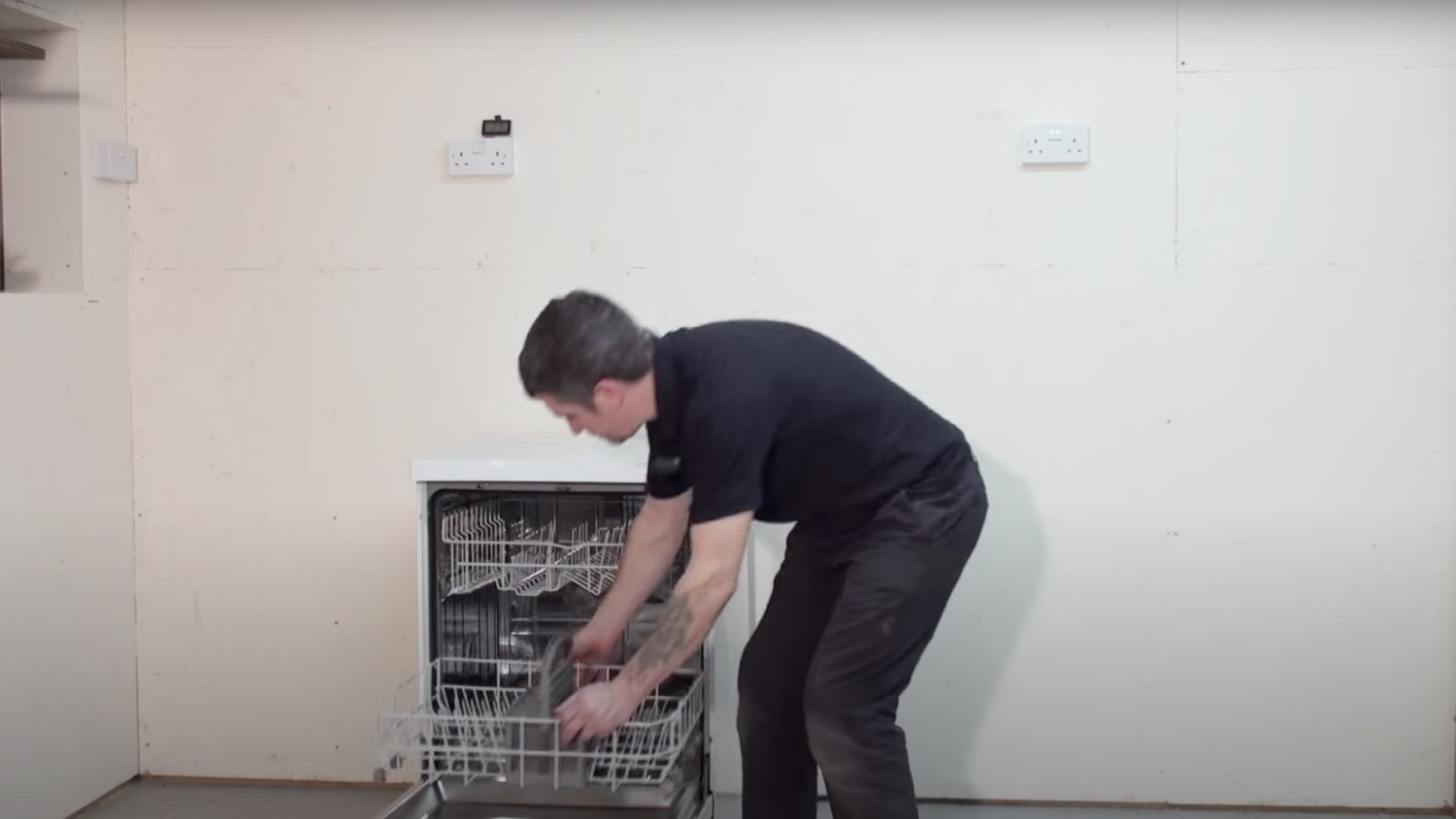

Re-insert the lower basket assembly.
And that's it, your new upper door seal is all set to go!
