Make and Model of Dishwasher Used in This Video
Part Used in This Video
Bosch Dishwasher Drain Micro Filter
1. Locating drain micro filter

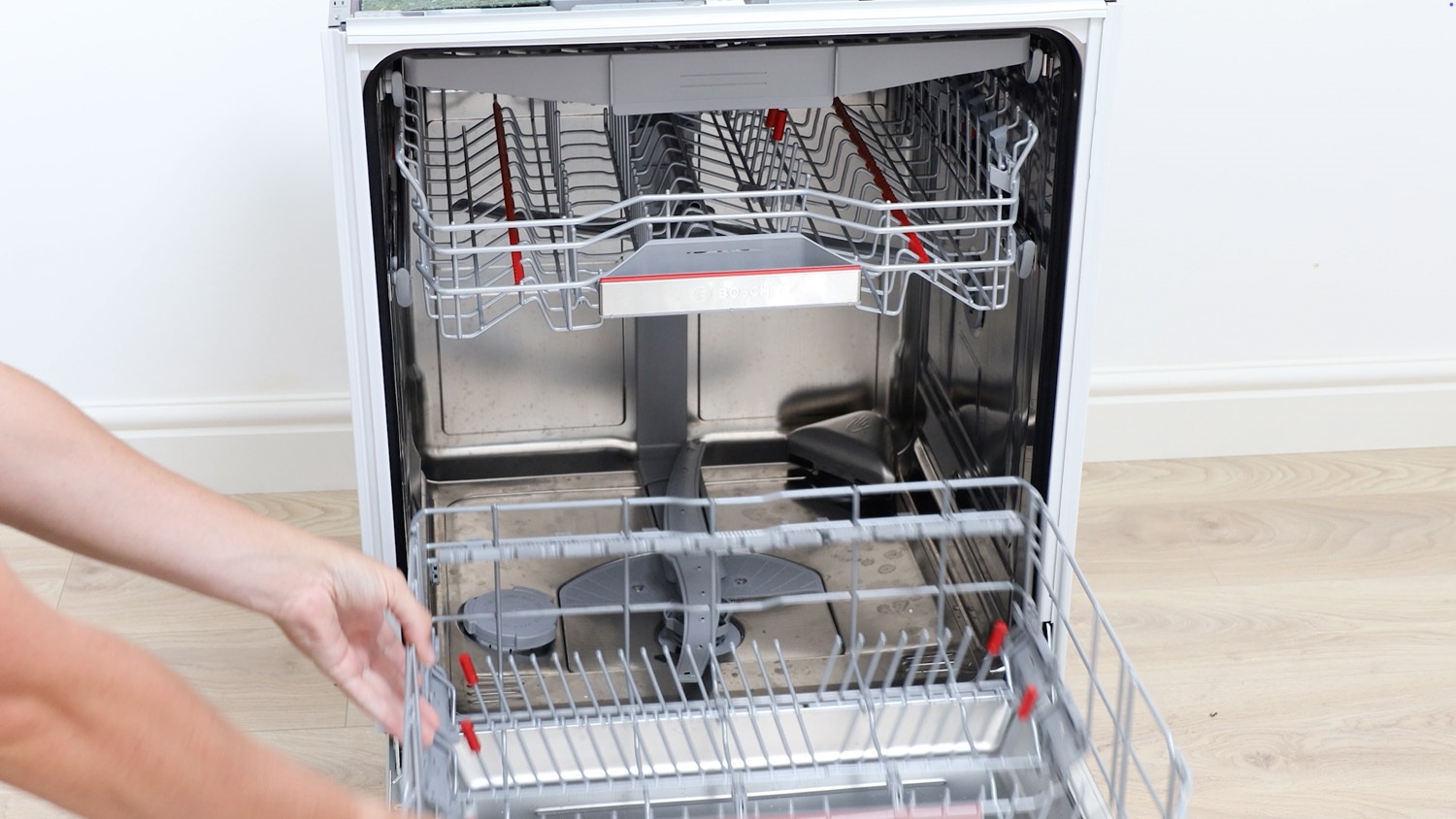

Begin by removing the lower basket.

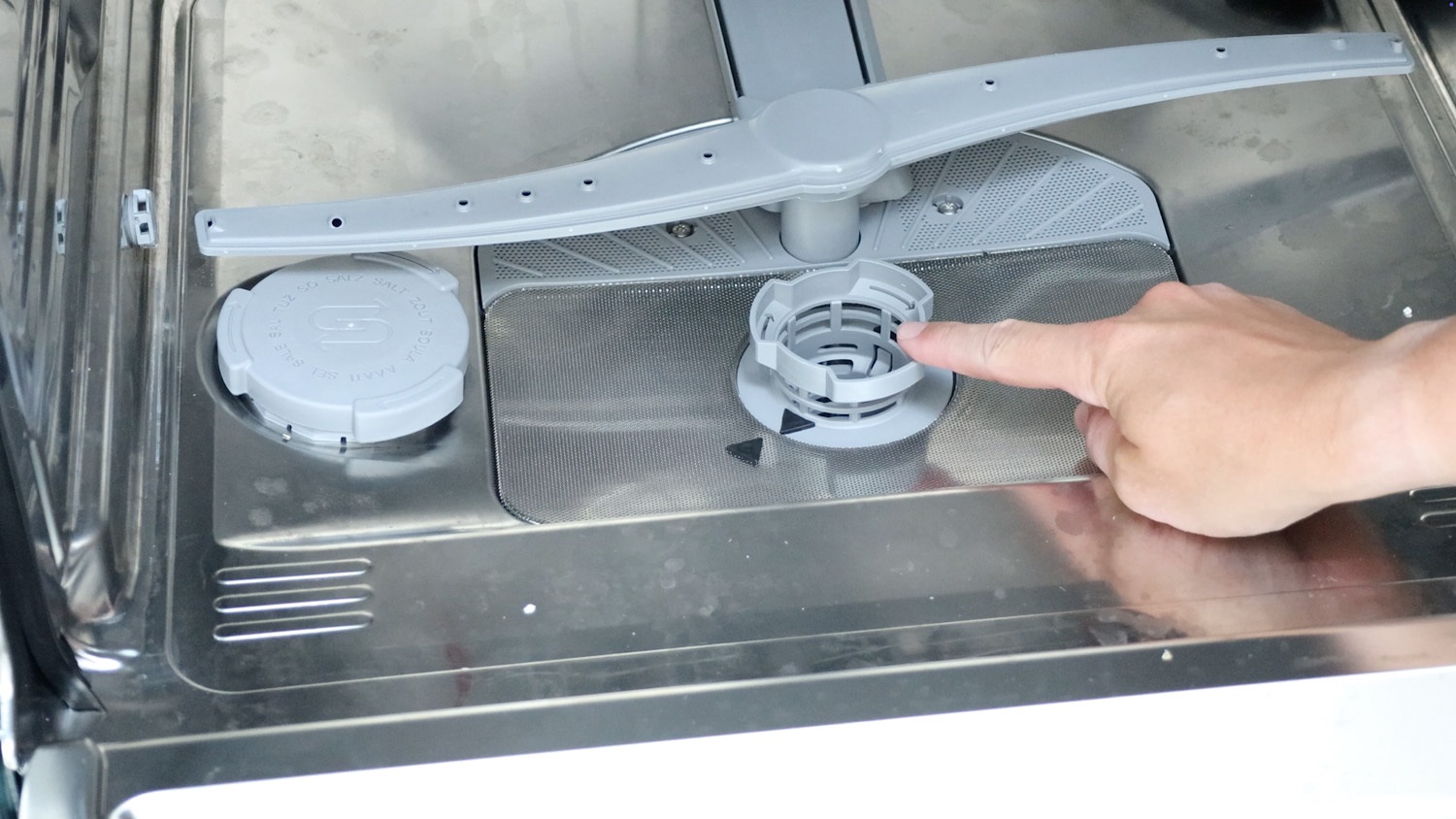

The drain micro filter is found here on this Bosch model.
2. Remove drain micro filter and filter plate

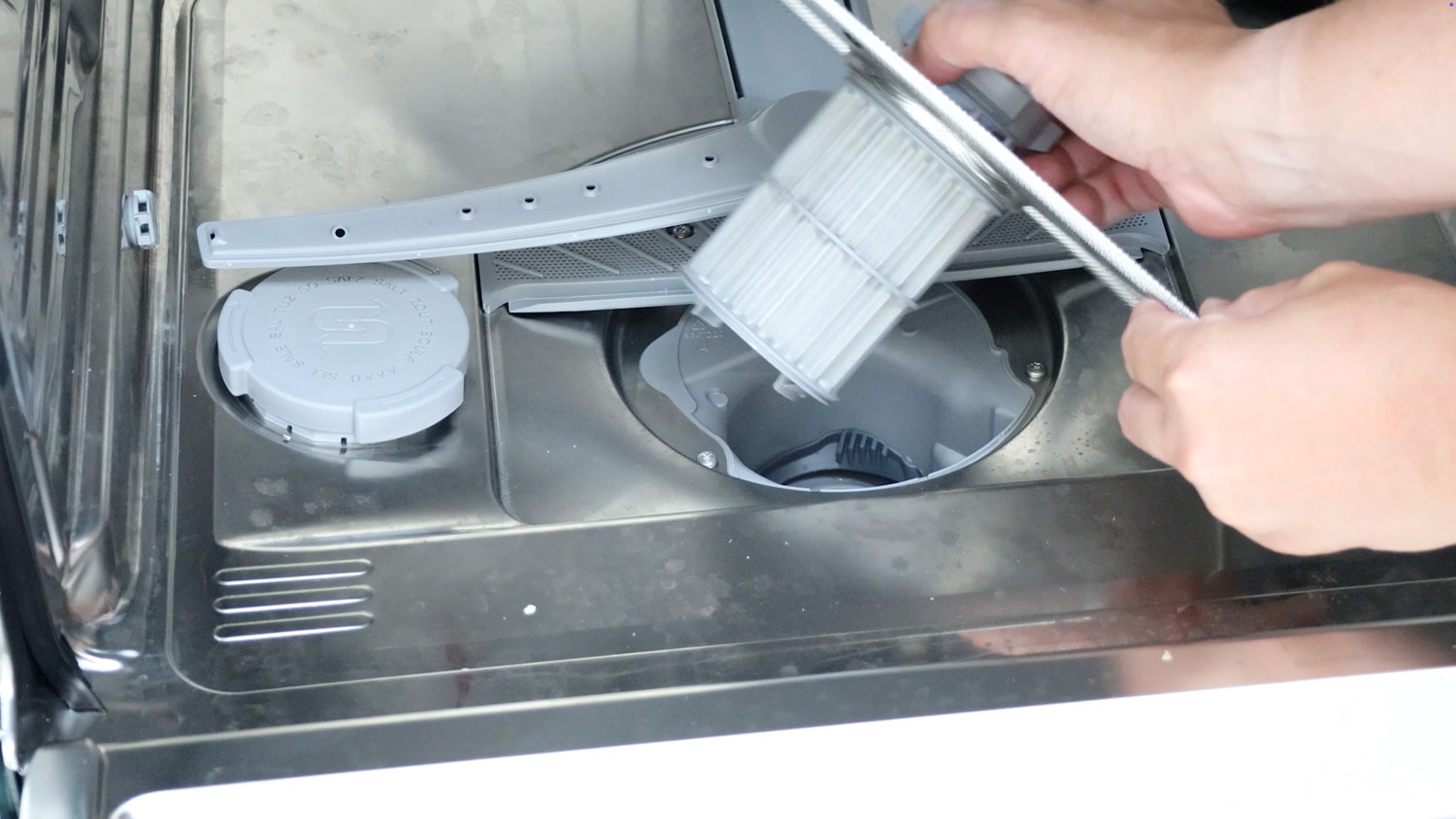

To remove, twist anti-clockwise and lift out.
3. Detach old drain micro filter from filter plate

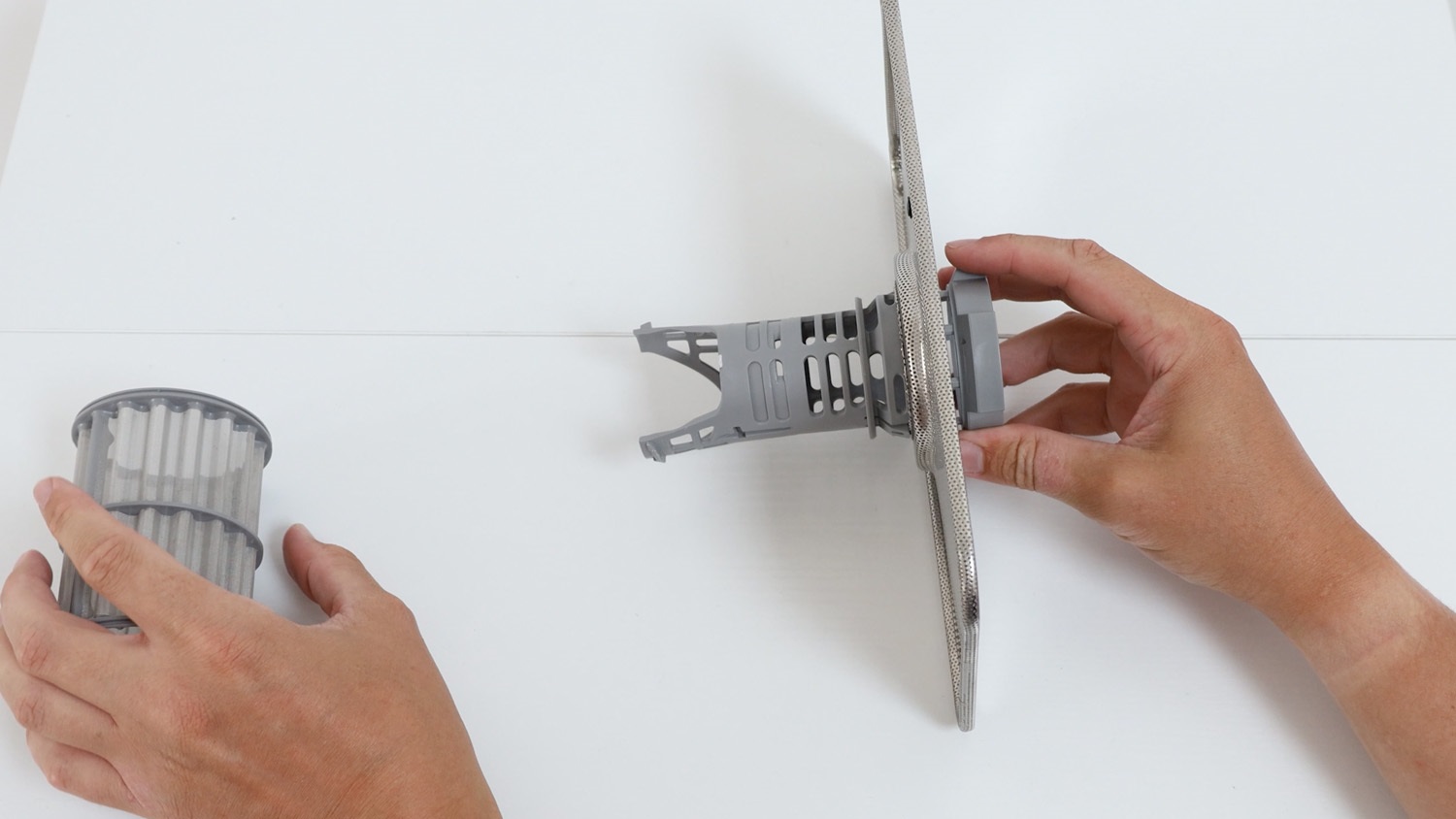

To detach the old drain micro filter from the bottom filter plate, pull the mesh filter away.

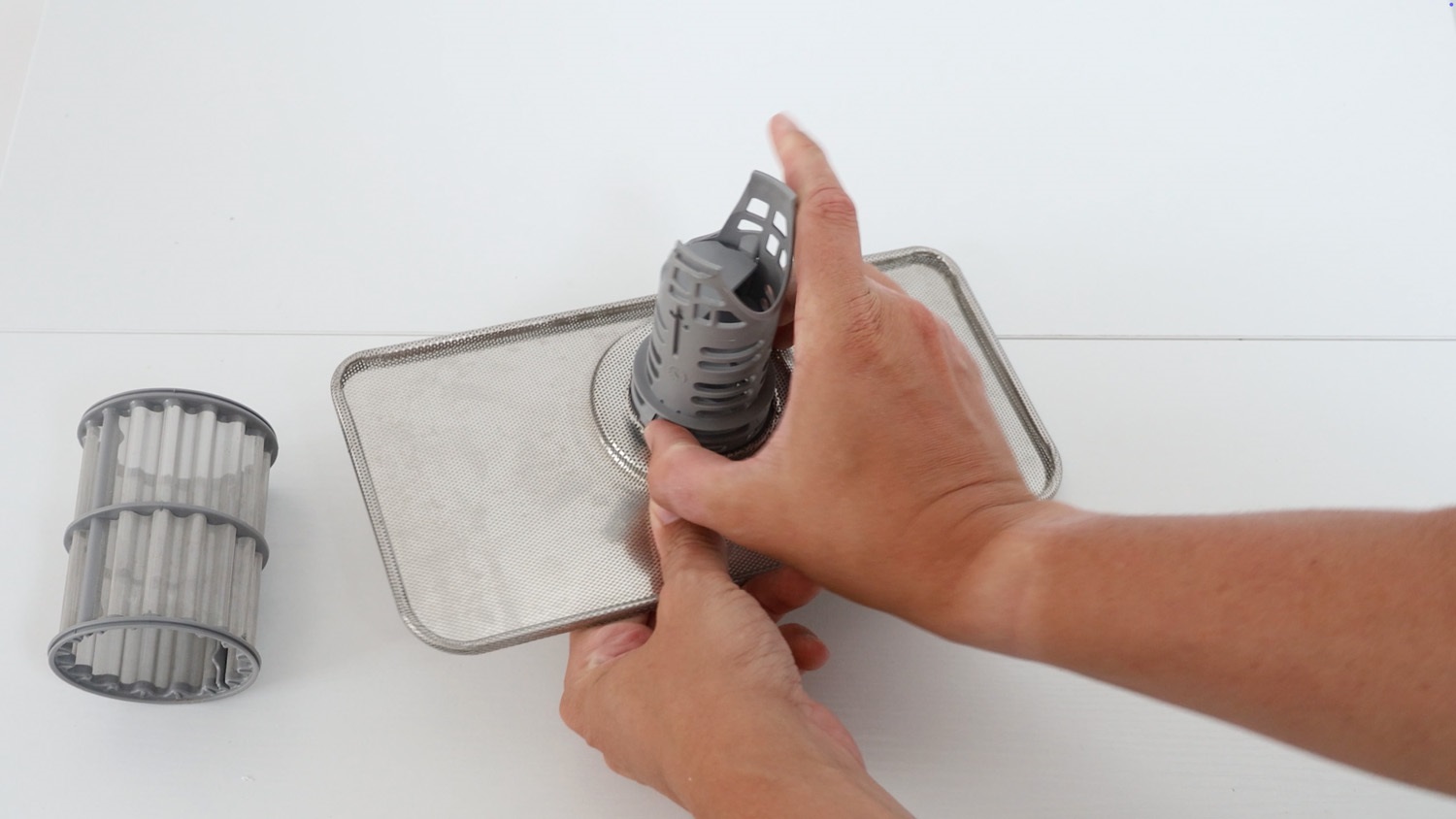

The plastic part of the filter is held in place by a tab on either side. Press these in to remove the filter.
4. Install new drain micro filter

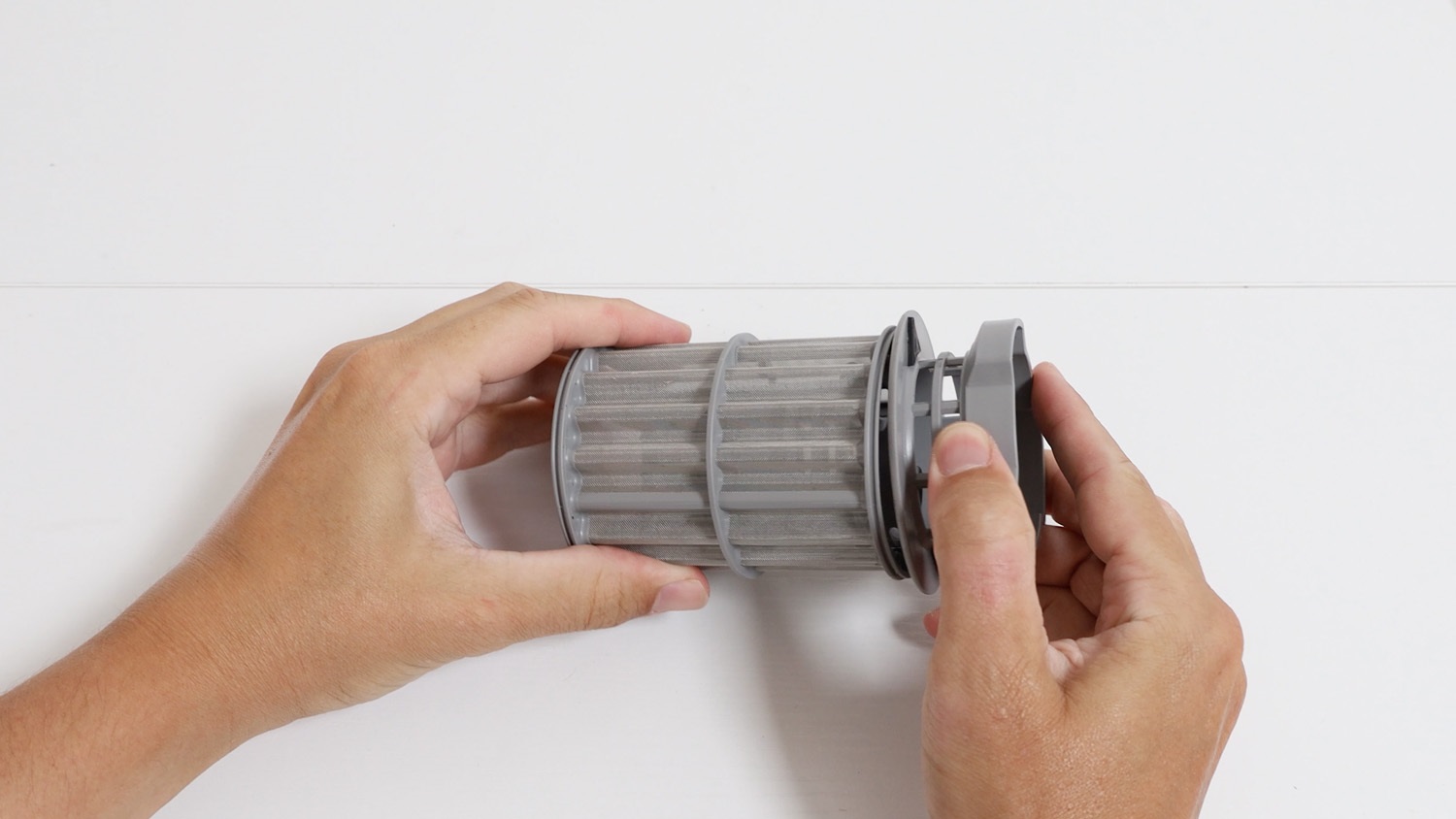

Unpackage your new drain micro filter.

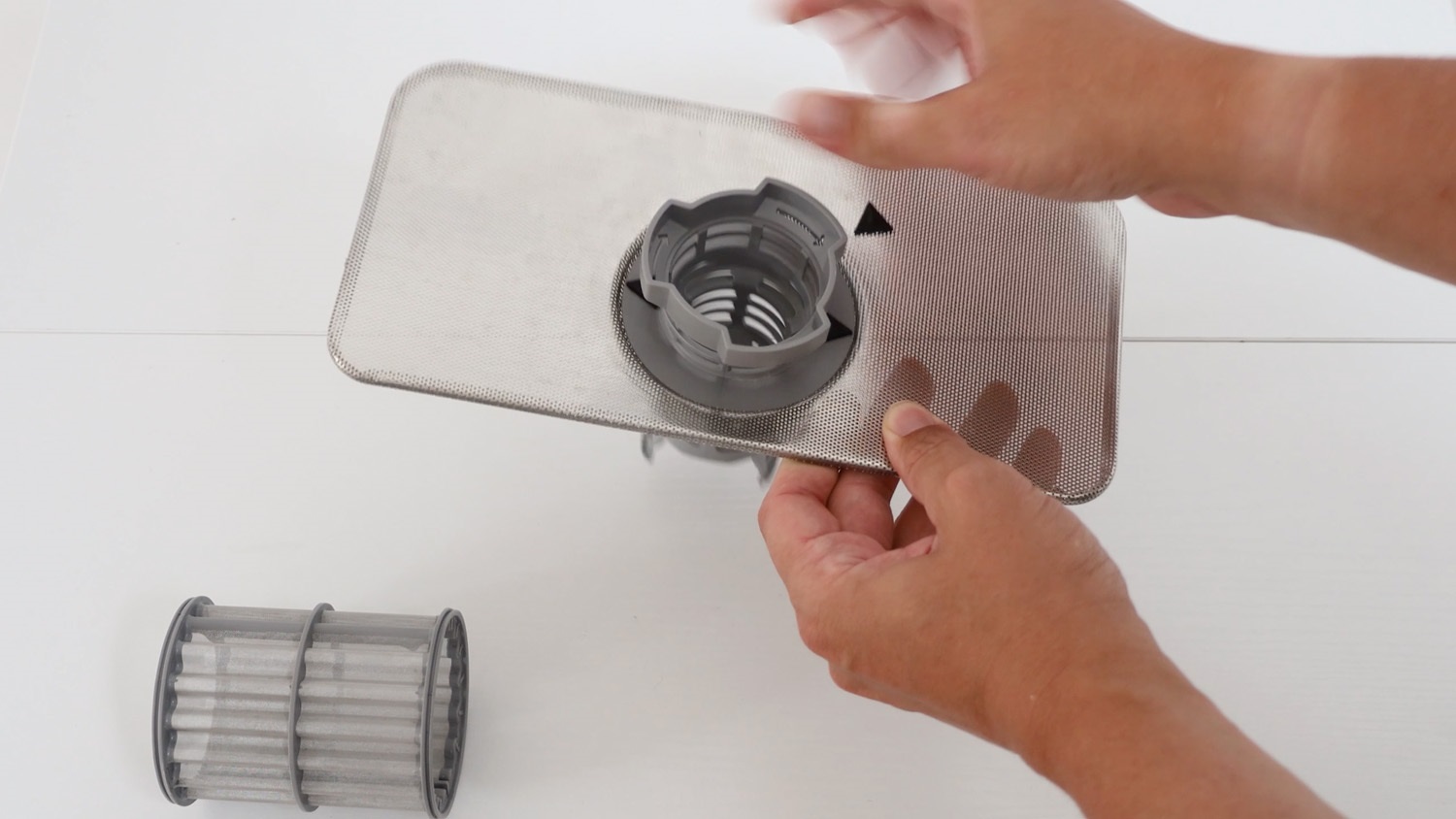

Make sure the plate has the arrow on the top and then feed the plastic part of the filter through the top of the filter plate, clicking the two side tabs in place.

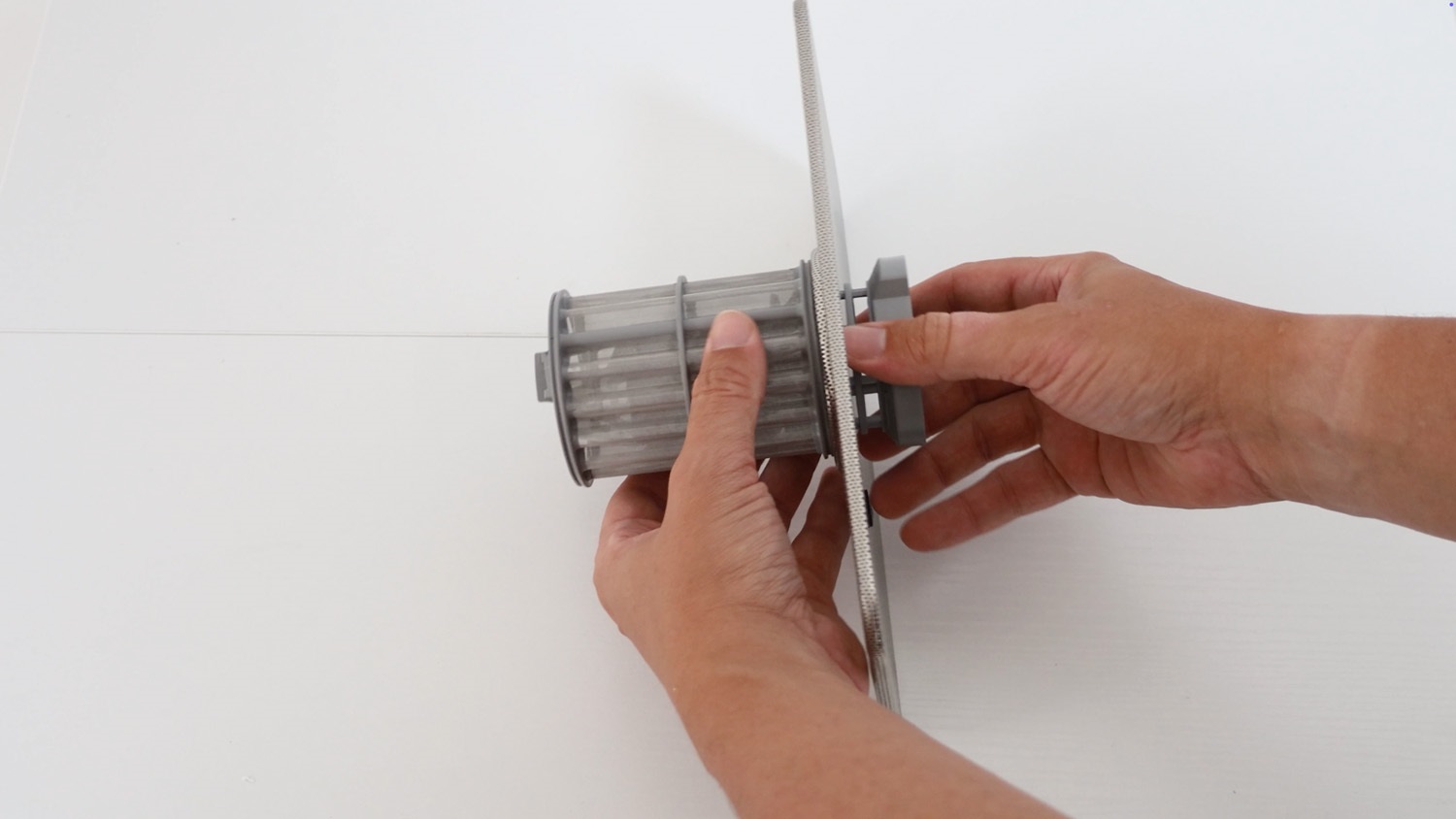

Then, attach the mesh part of the filter.

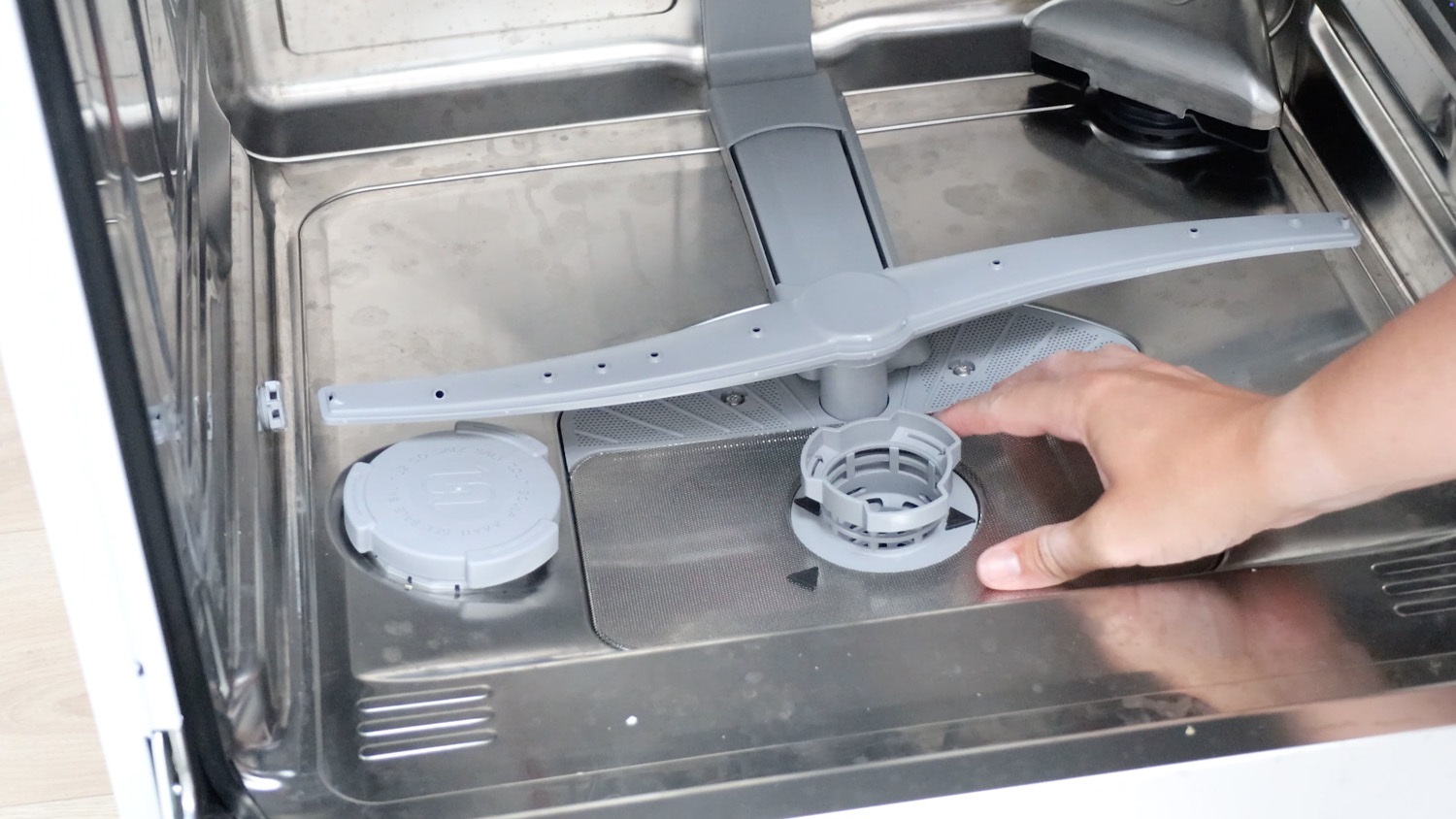

Making sure the arrow is in the bottom left corner of the filter plate, insert it into the dishwasher.

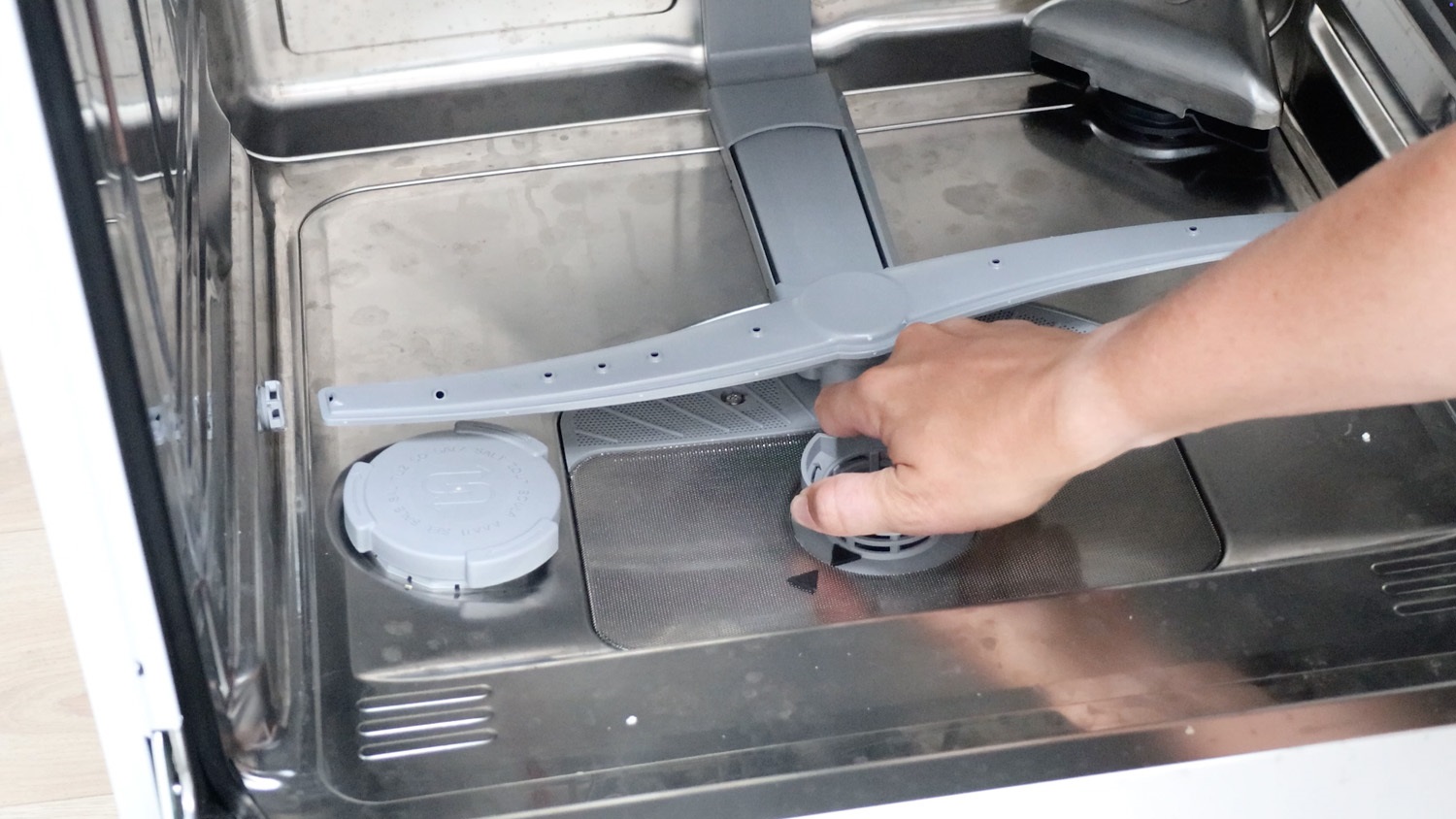

Rotate the new filter clockwise until the arrows line up and you can’t rotate any further.

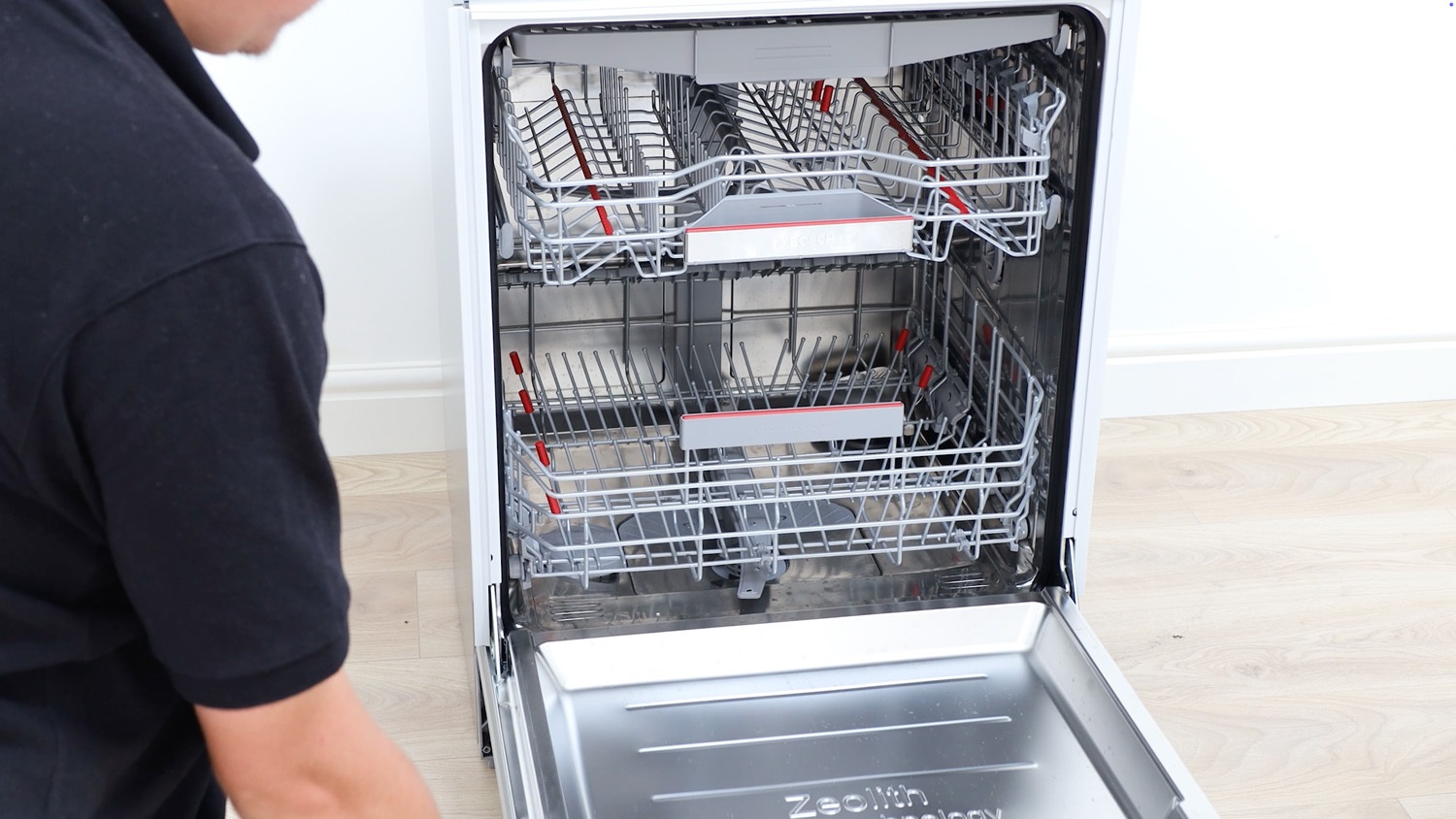

Re-insert your lower basket.
And that’s it, your new dishwasher drain micro filter is all set to go.
