1. Accessing old door hinge

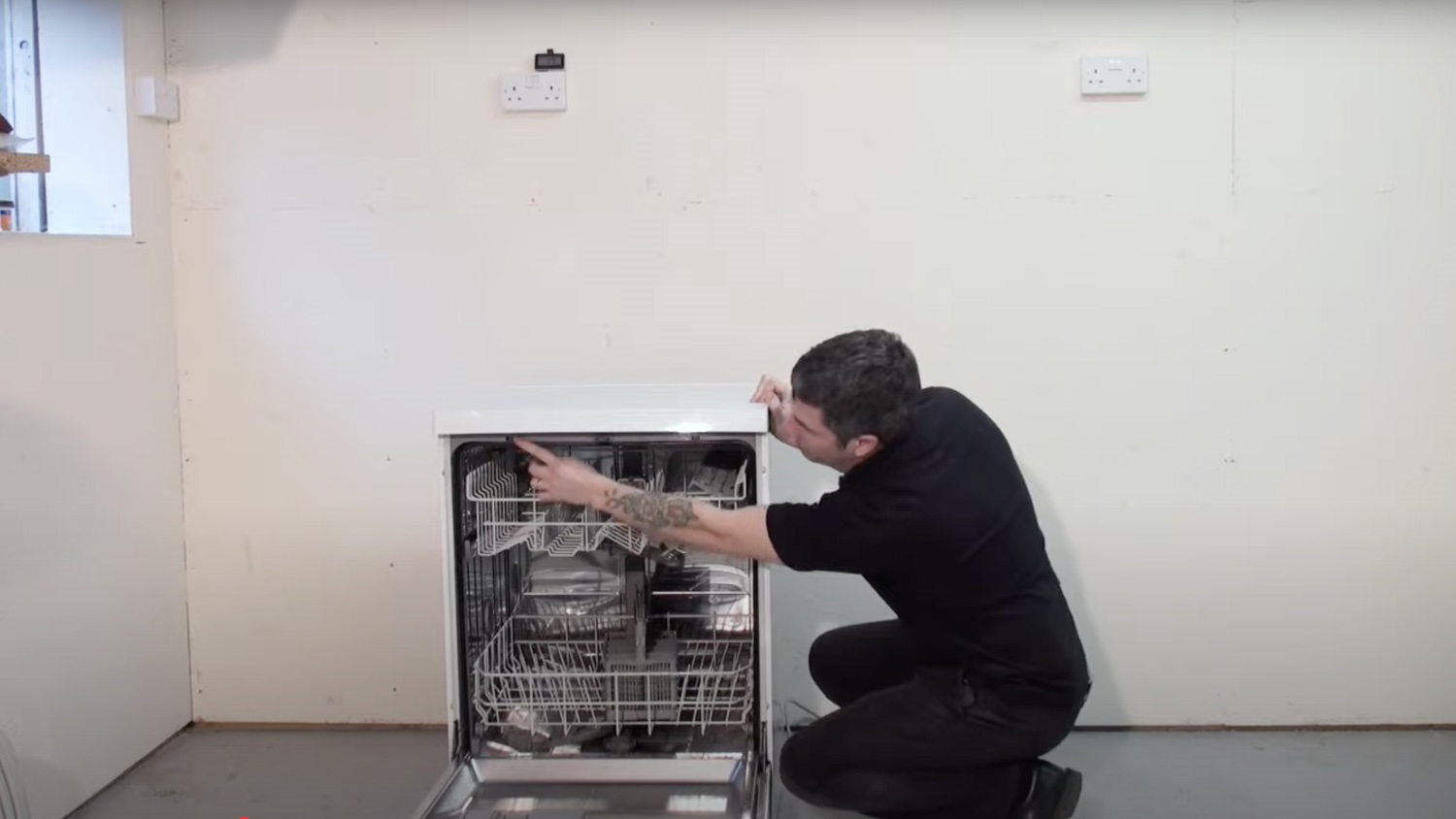

To remove the lid, remove the front screws.

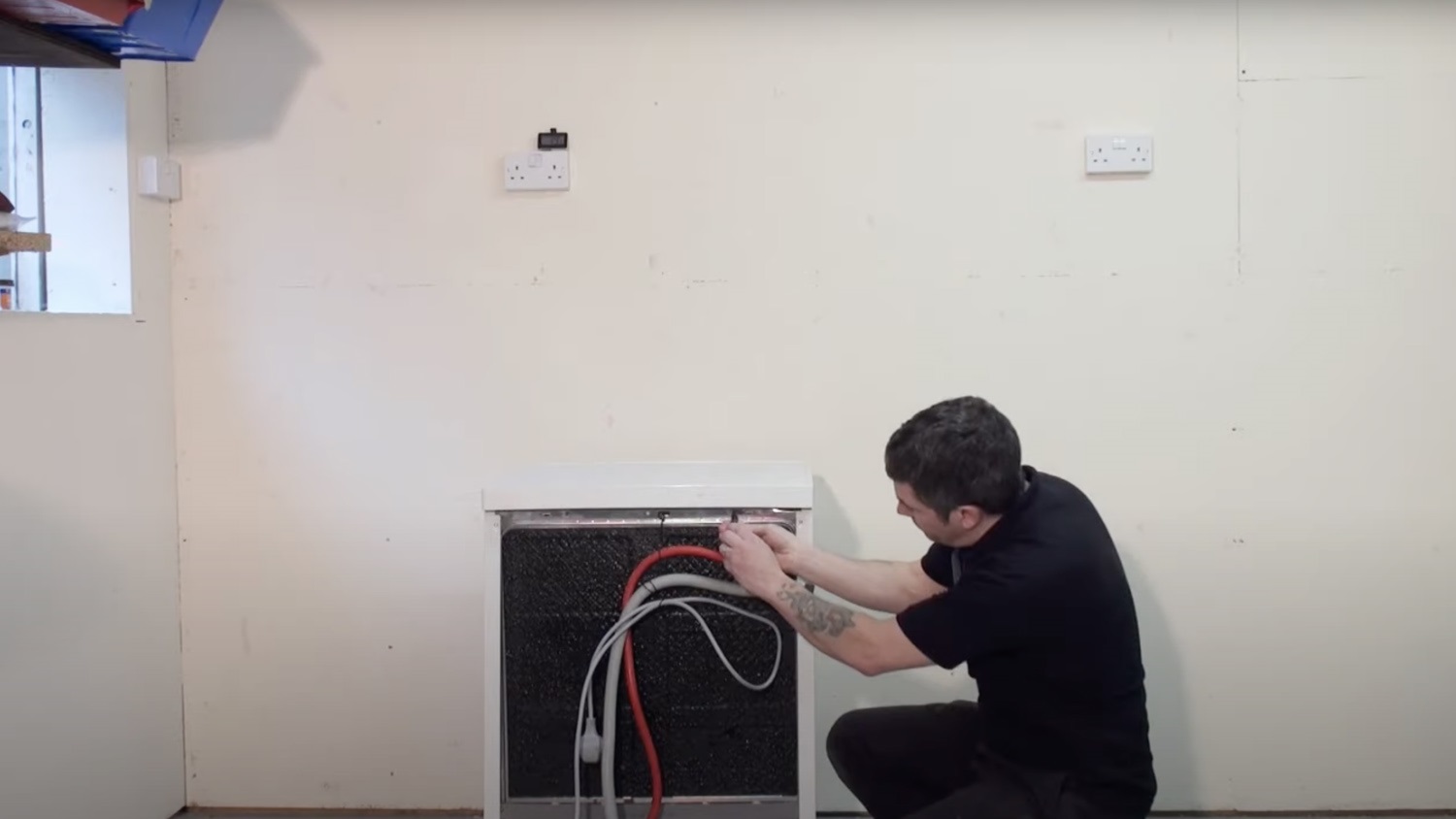

Then, remove the rear screws.

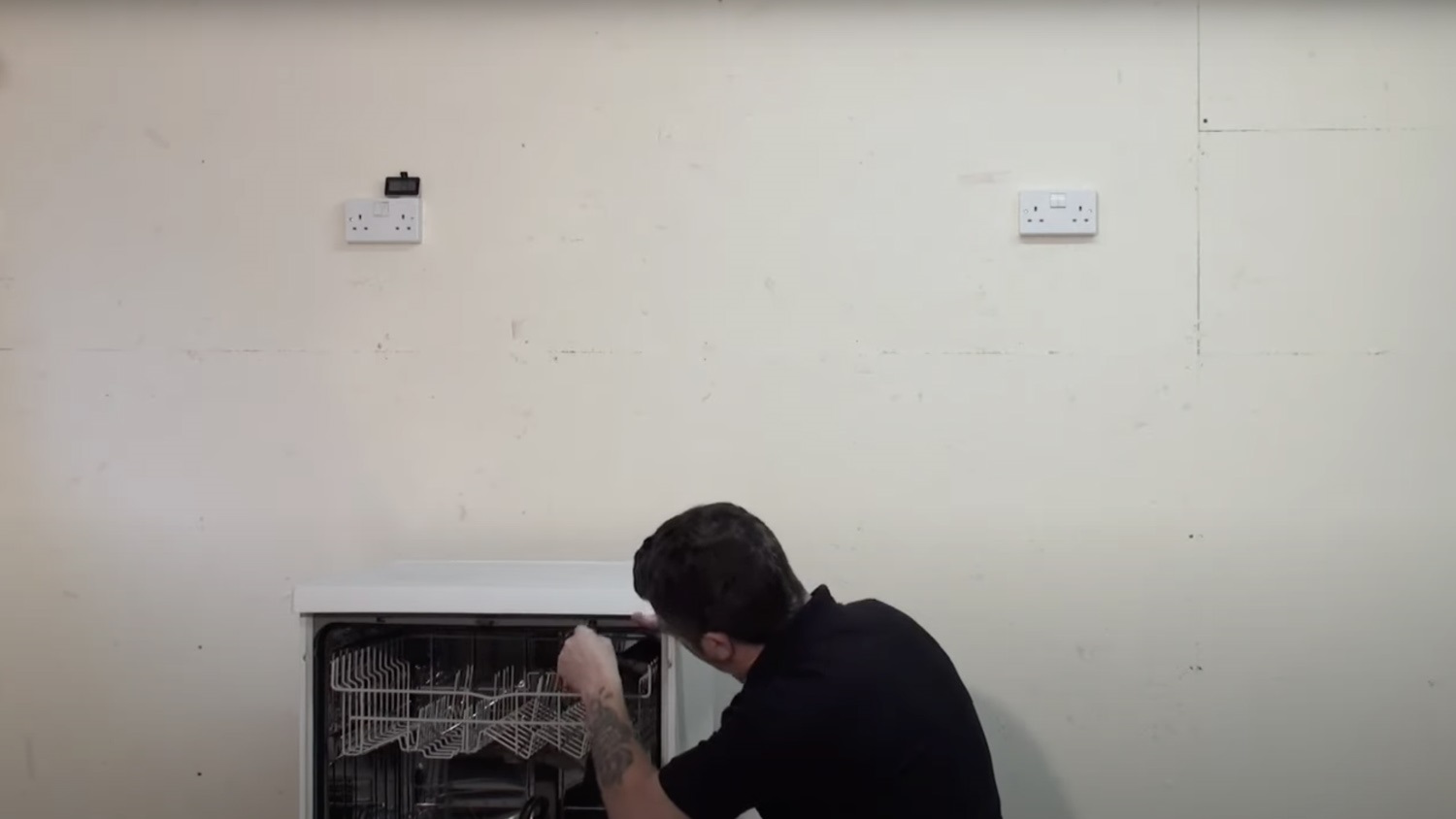

With a flathead screwdriver, unclip the lid.

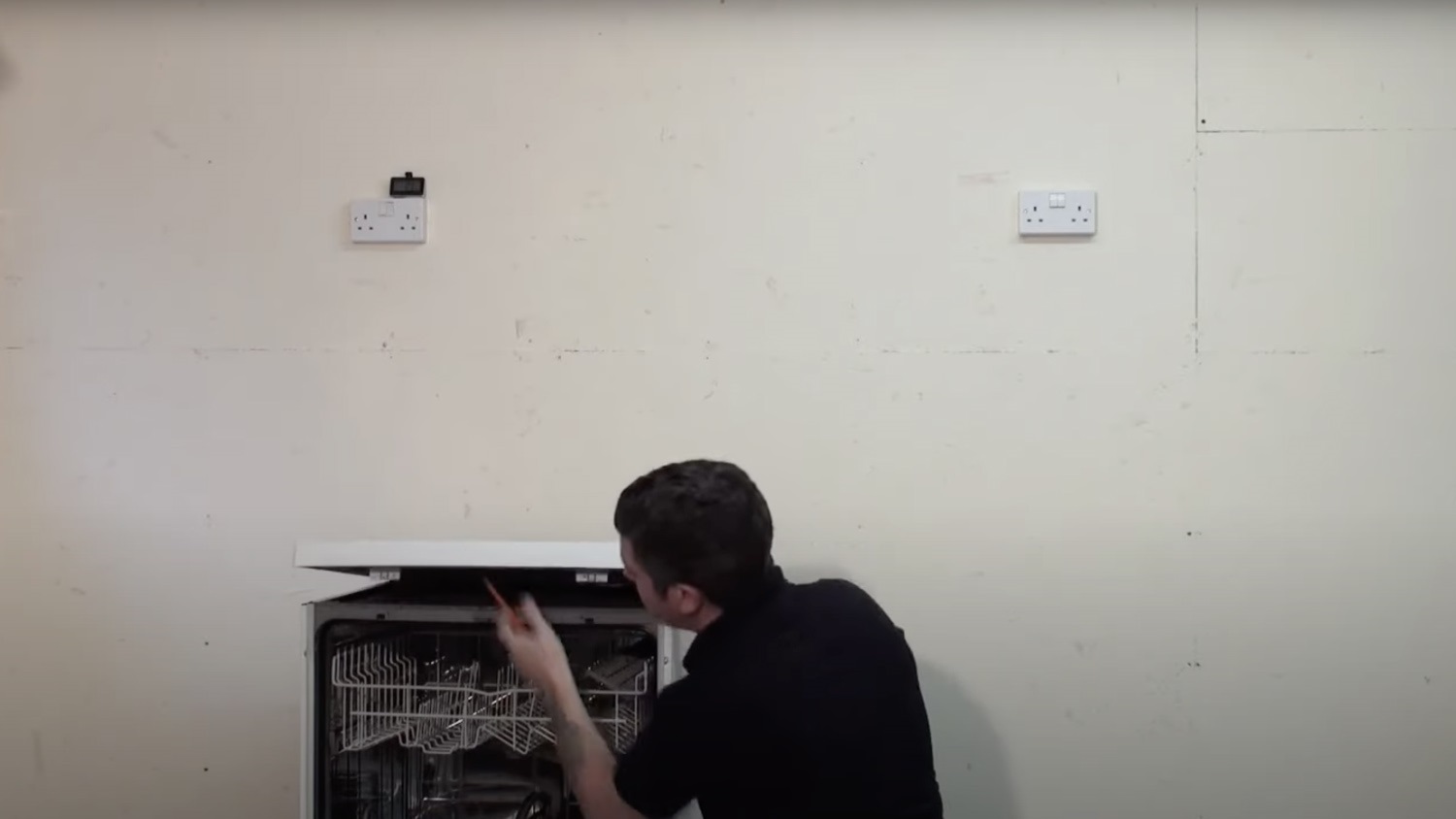

The lid can then be lifted away from the dishwasher and placed to one side.

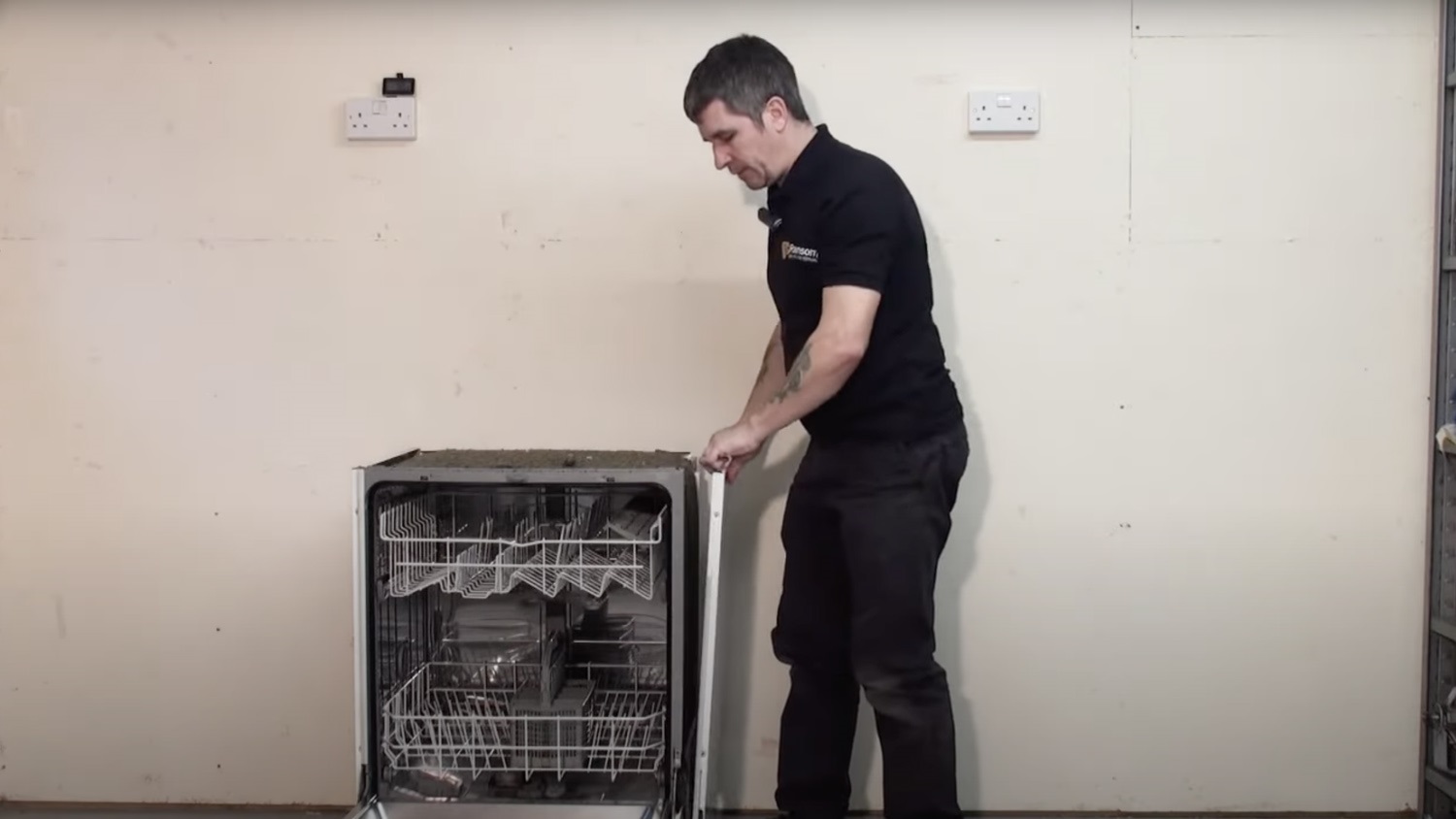

On the side that the hinge needs replacing, remove the front screws and rear screws holding the side panel in place. This can then be removed and placed to one side.

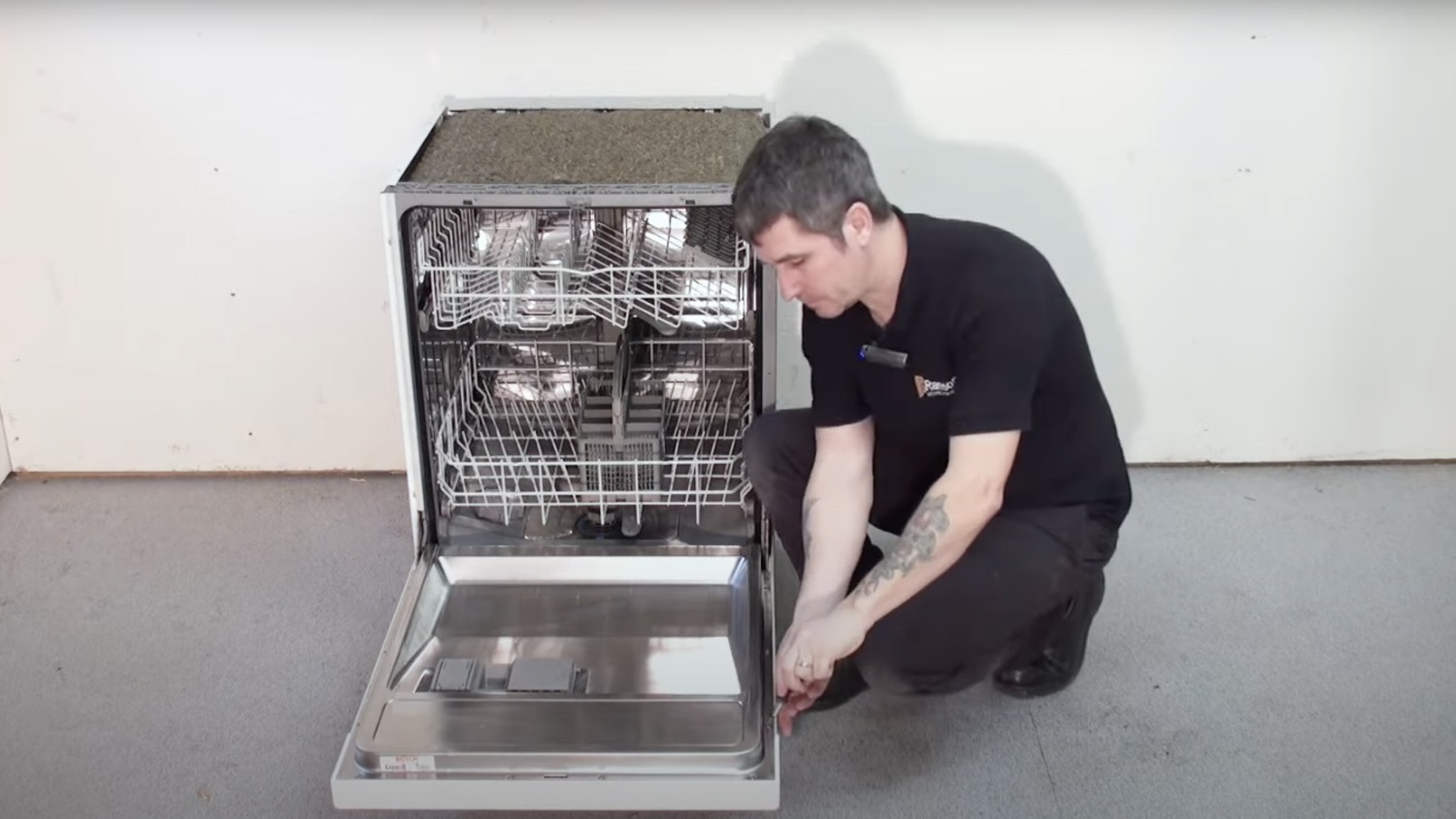

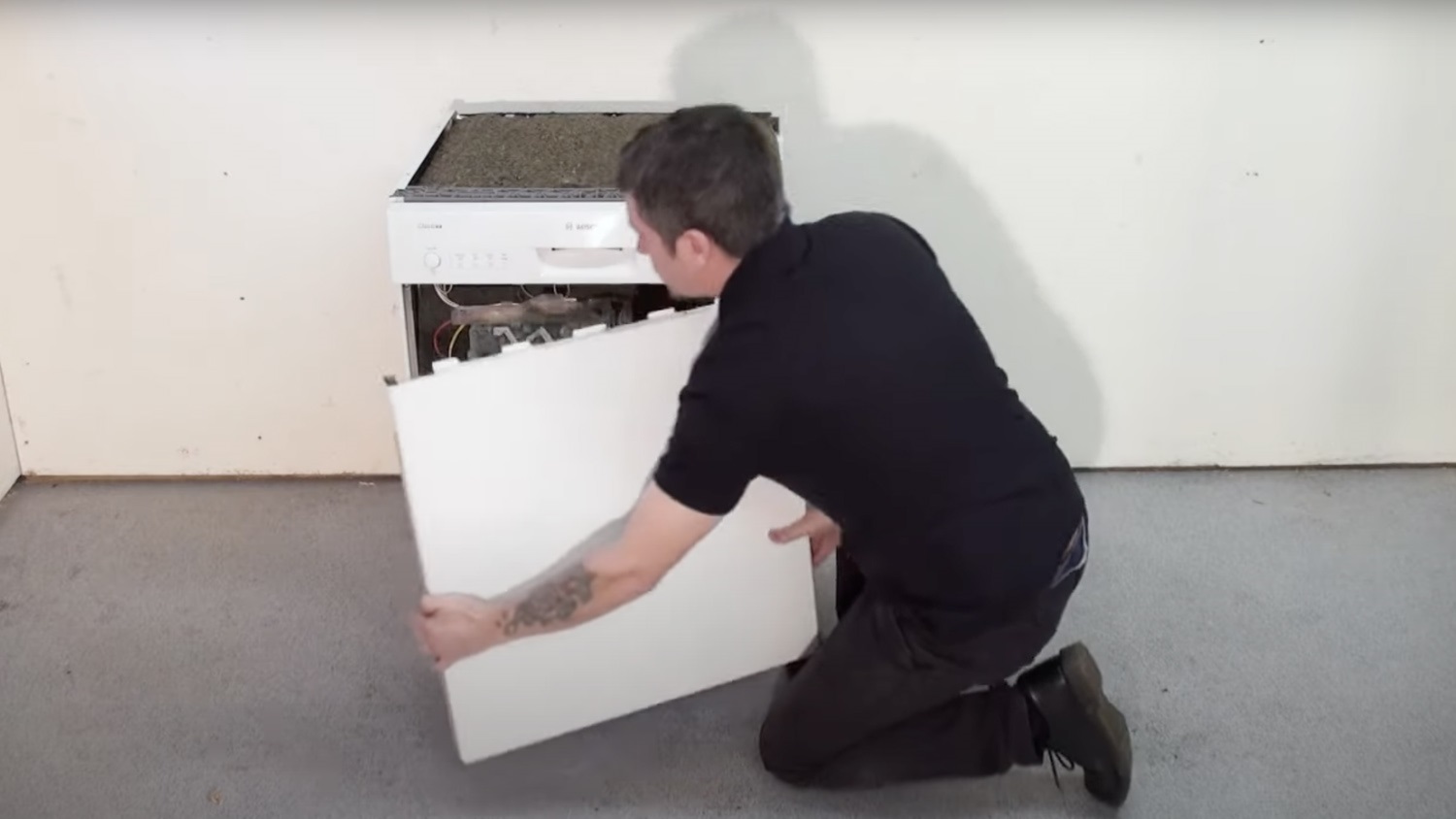

To remove the front panel, unscrew the screws on the either side.
Then, remove and place the front panel to one side.

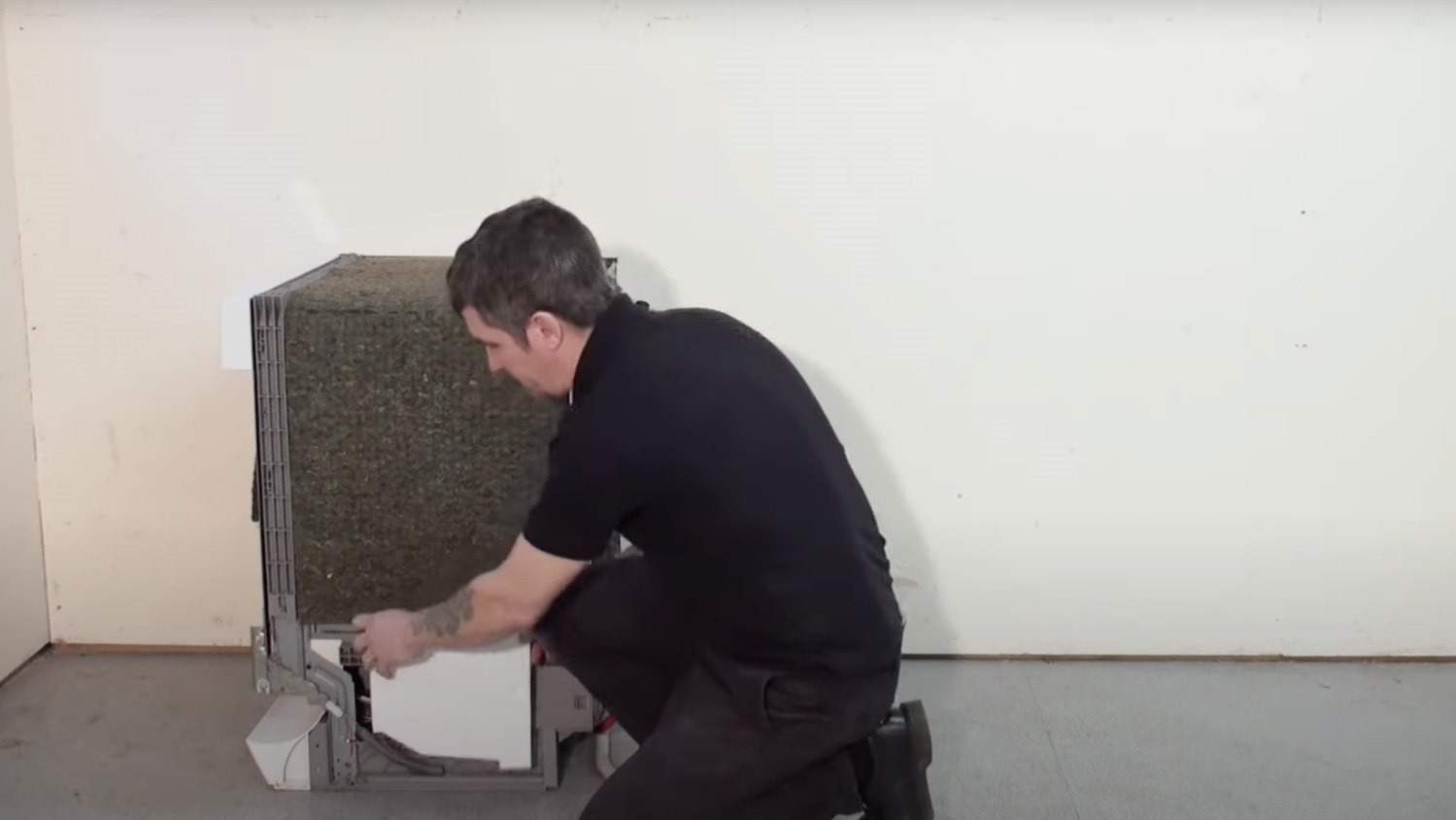

Remove any insulation covering the door hinge parts.

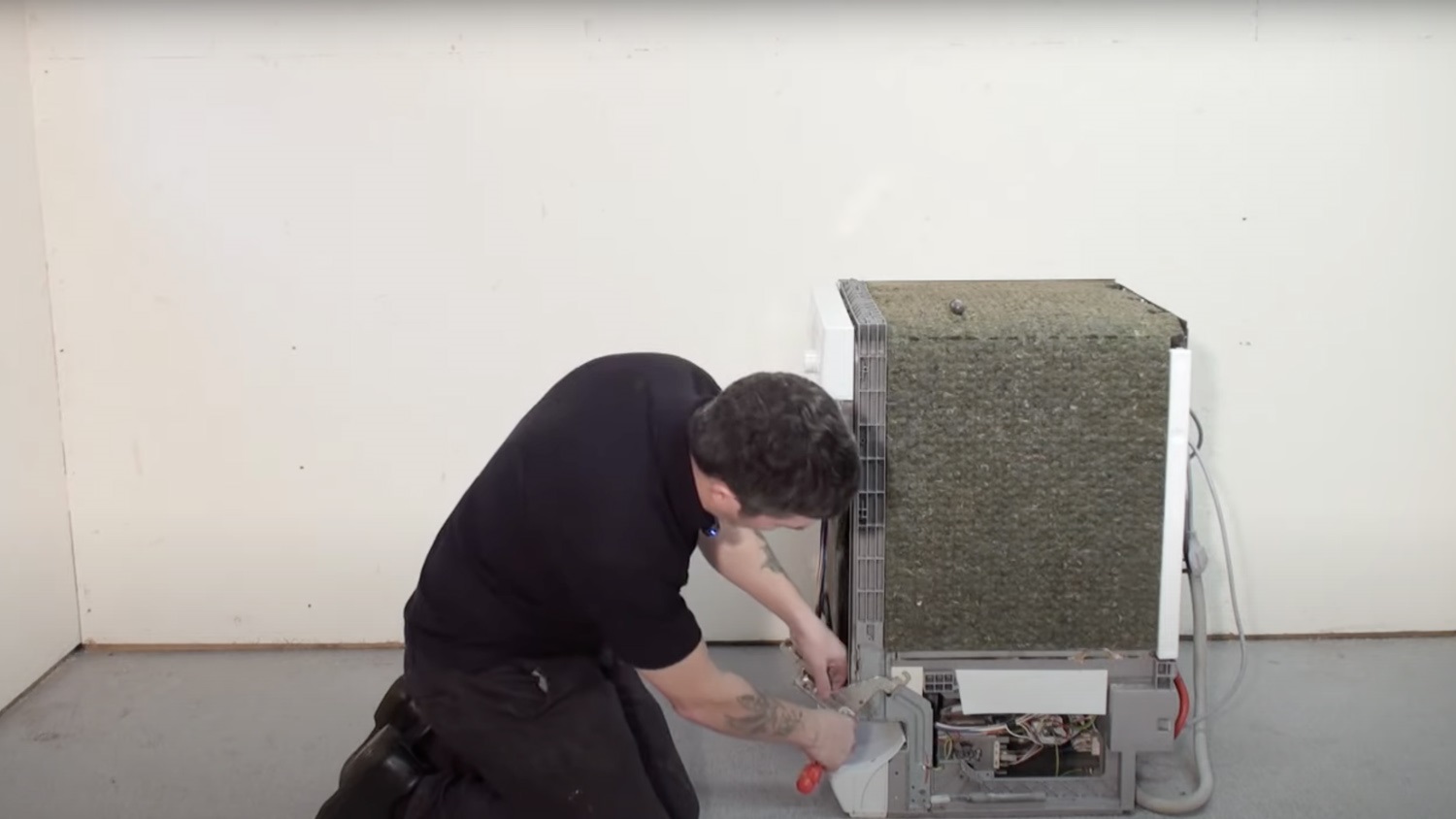

2. Remove old door hinge

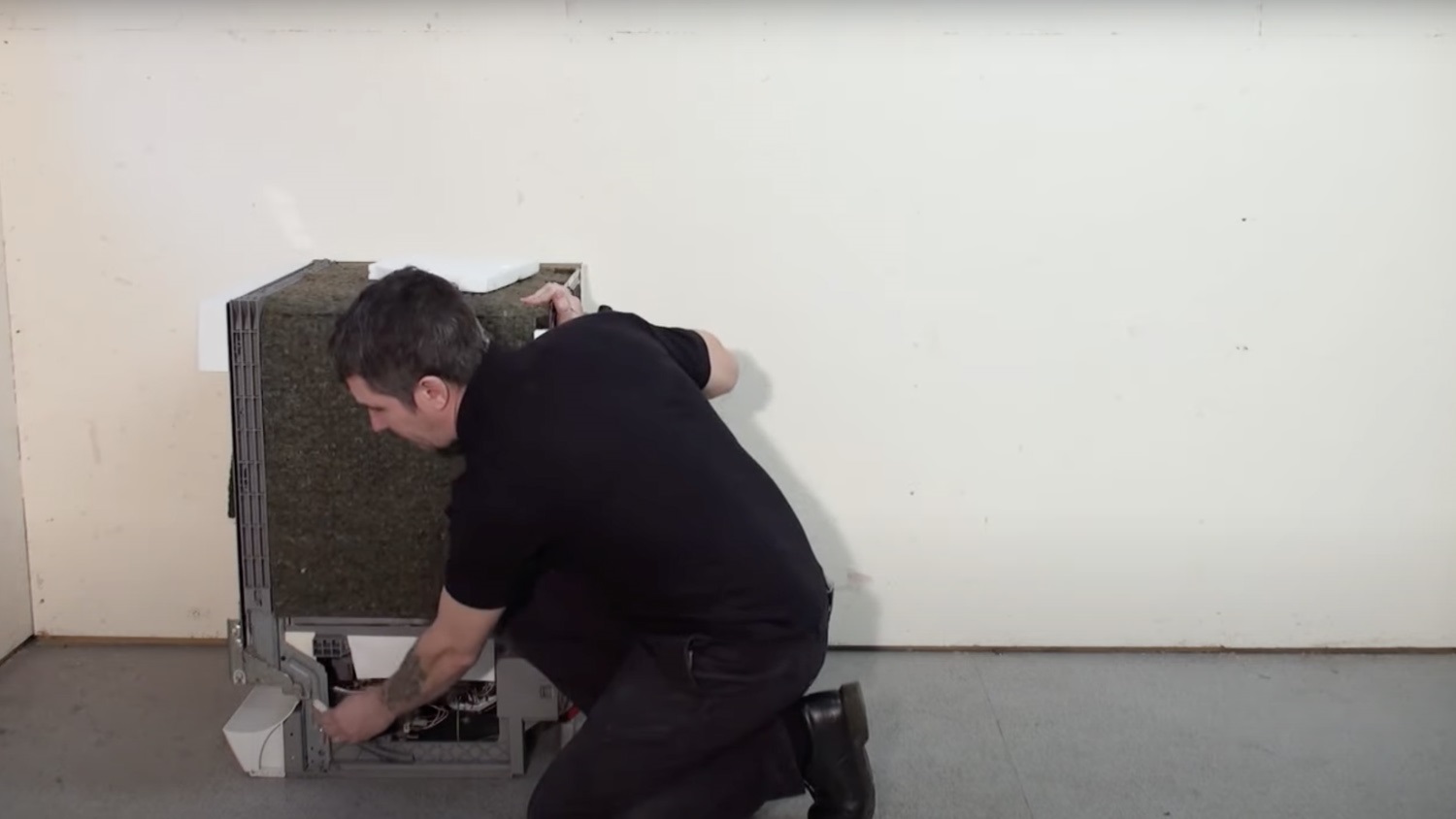

Unclip the spring.

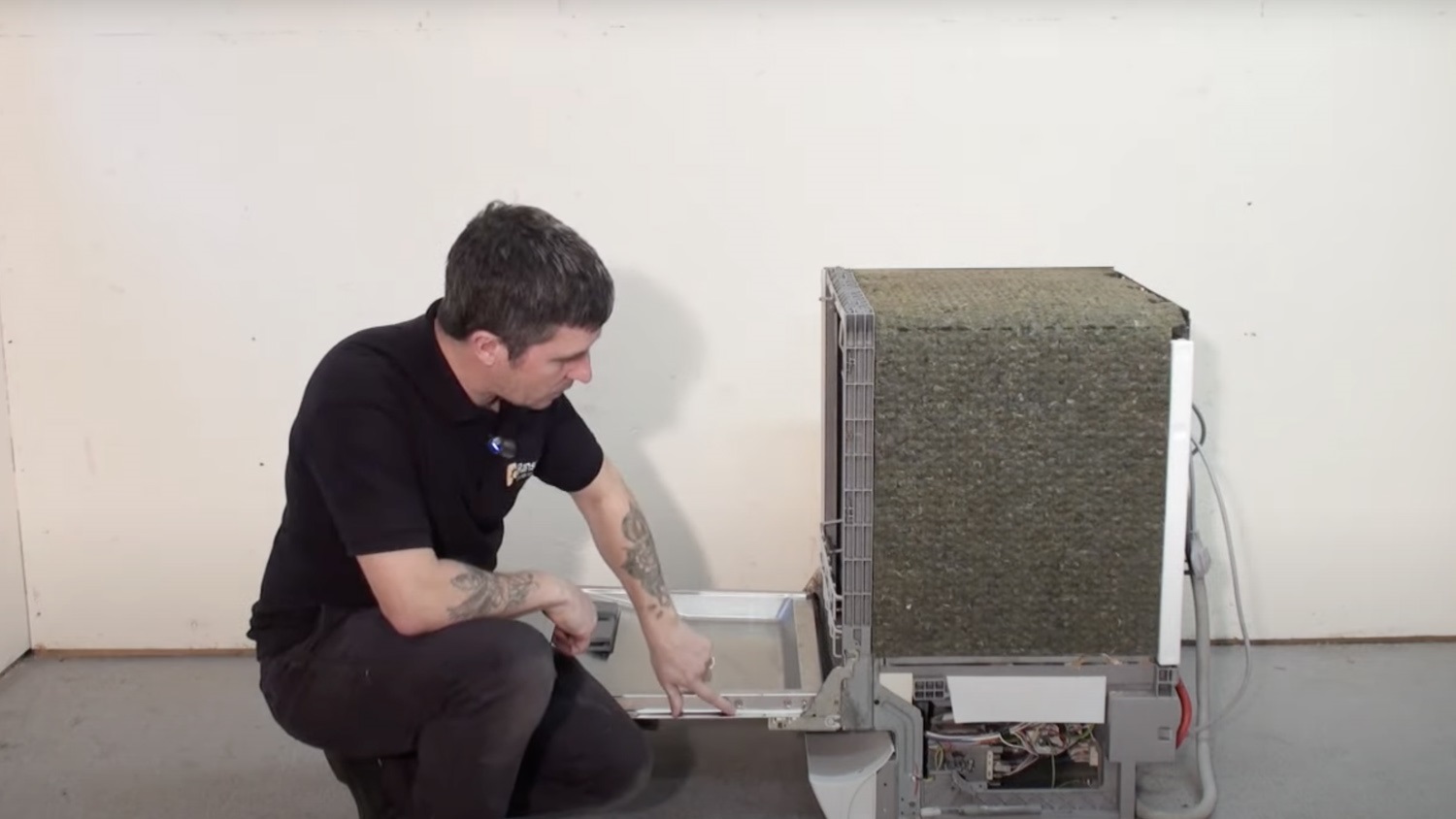

Remove the torx screws securing the hinge to the door.

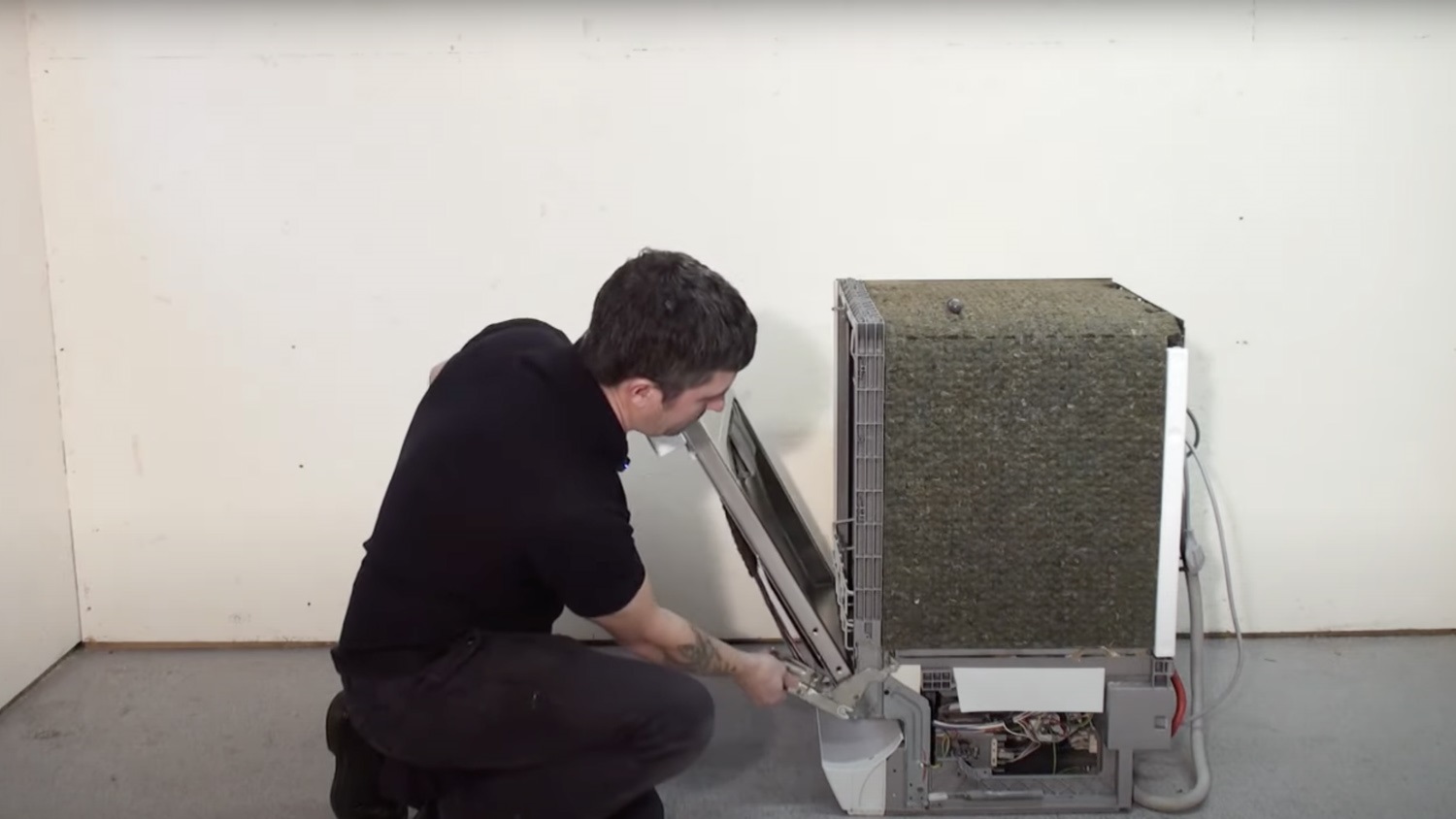

Whilst holding the hinge, close the dishwasher door.
To remove the hinge from the clip, use a flathead screwdriver.
3. Install new door hinge

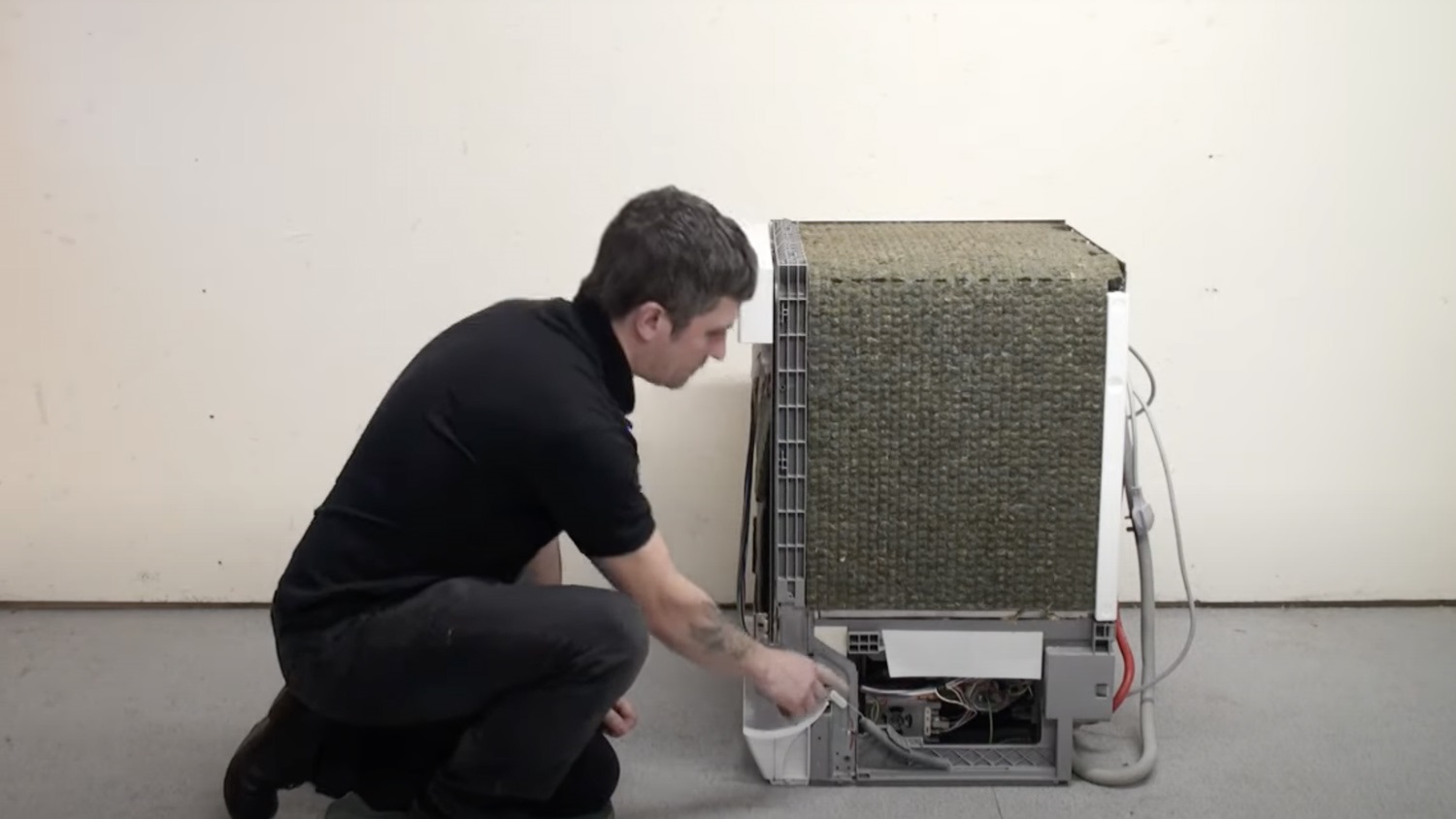

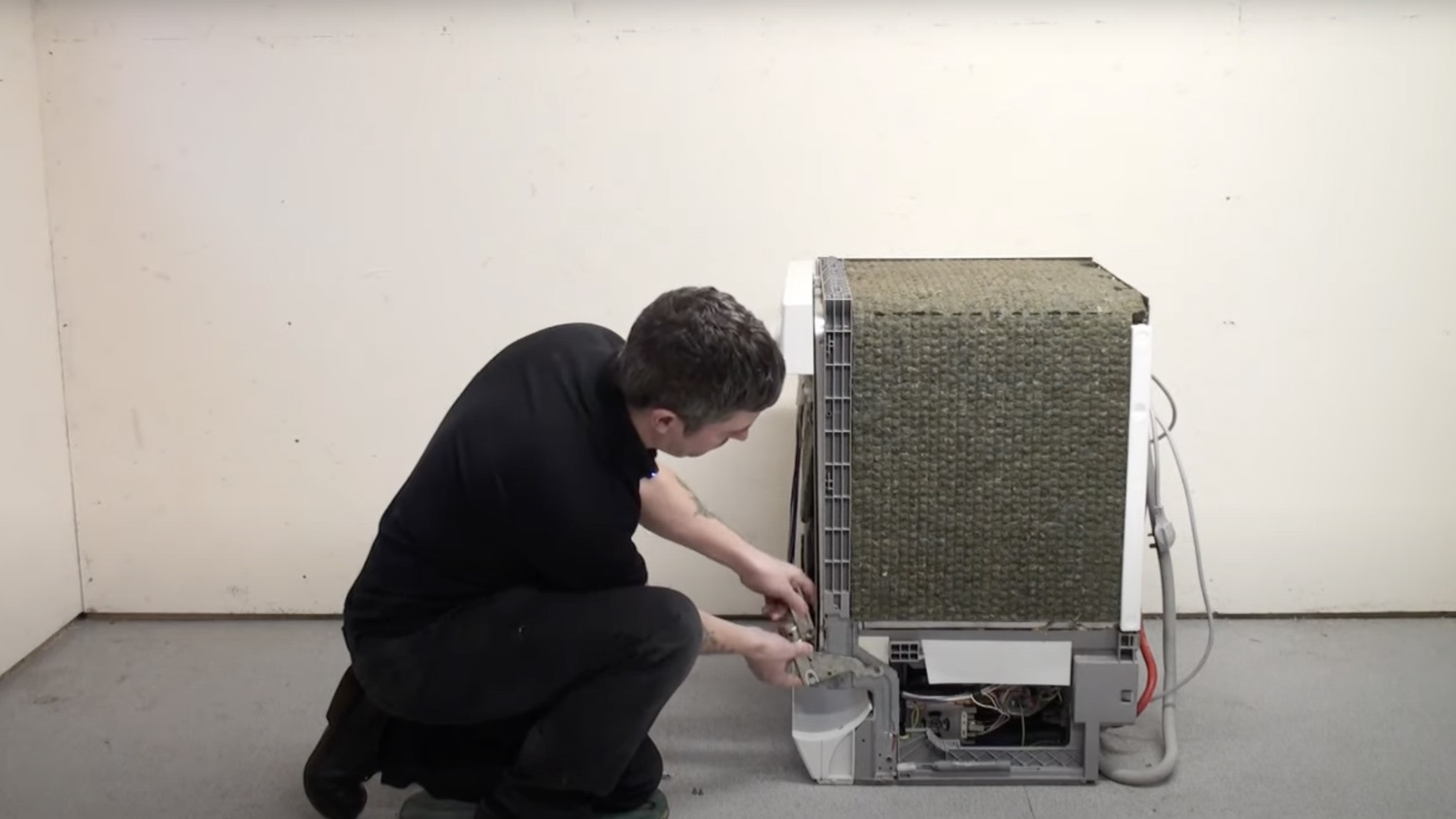

Clip your new door hinge to the side of the dishwasher.
4. Re-assemble dishwasher

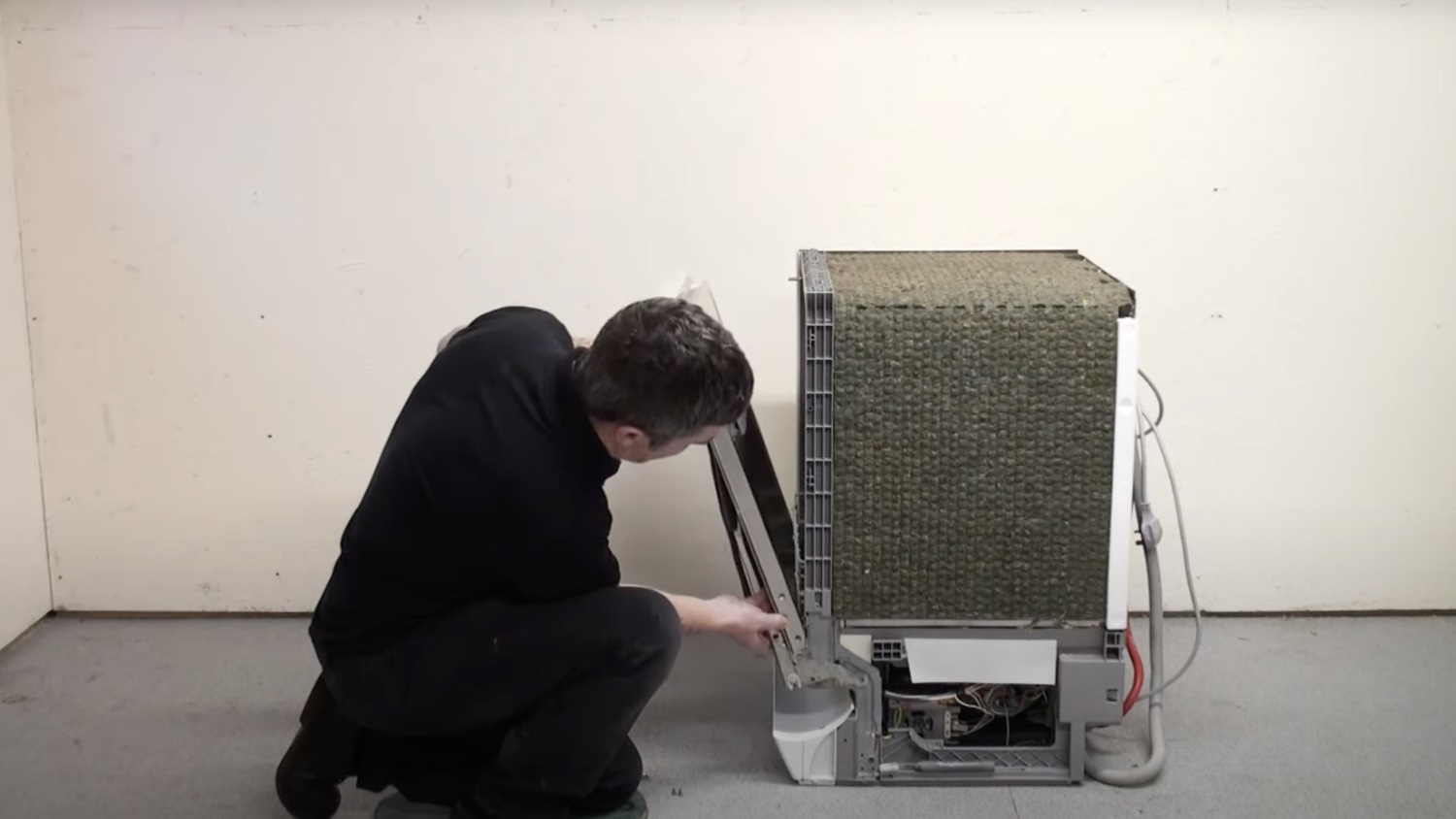

Line up the holes from the door and new hinge. Then, re-screw the screws back in place.
Attach the spring to the new door hinge.

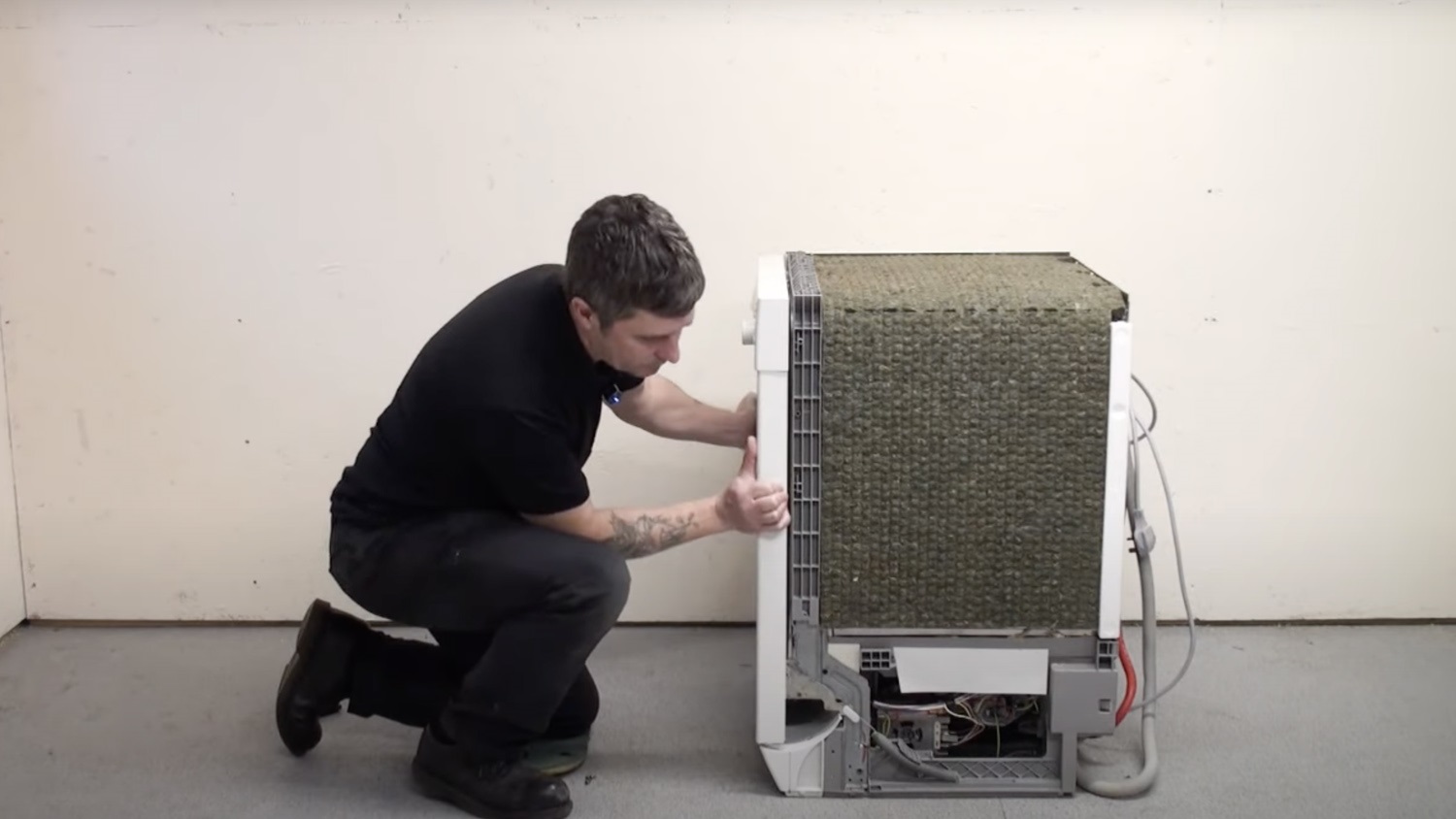

Re-attach the front panel.

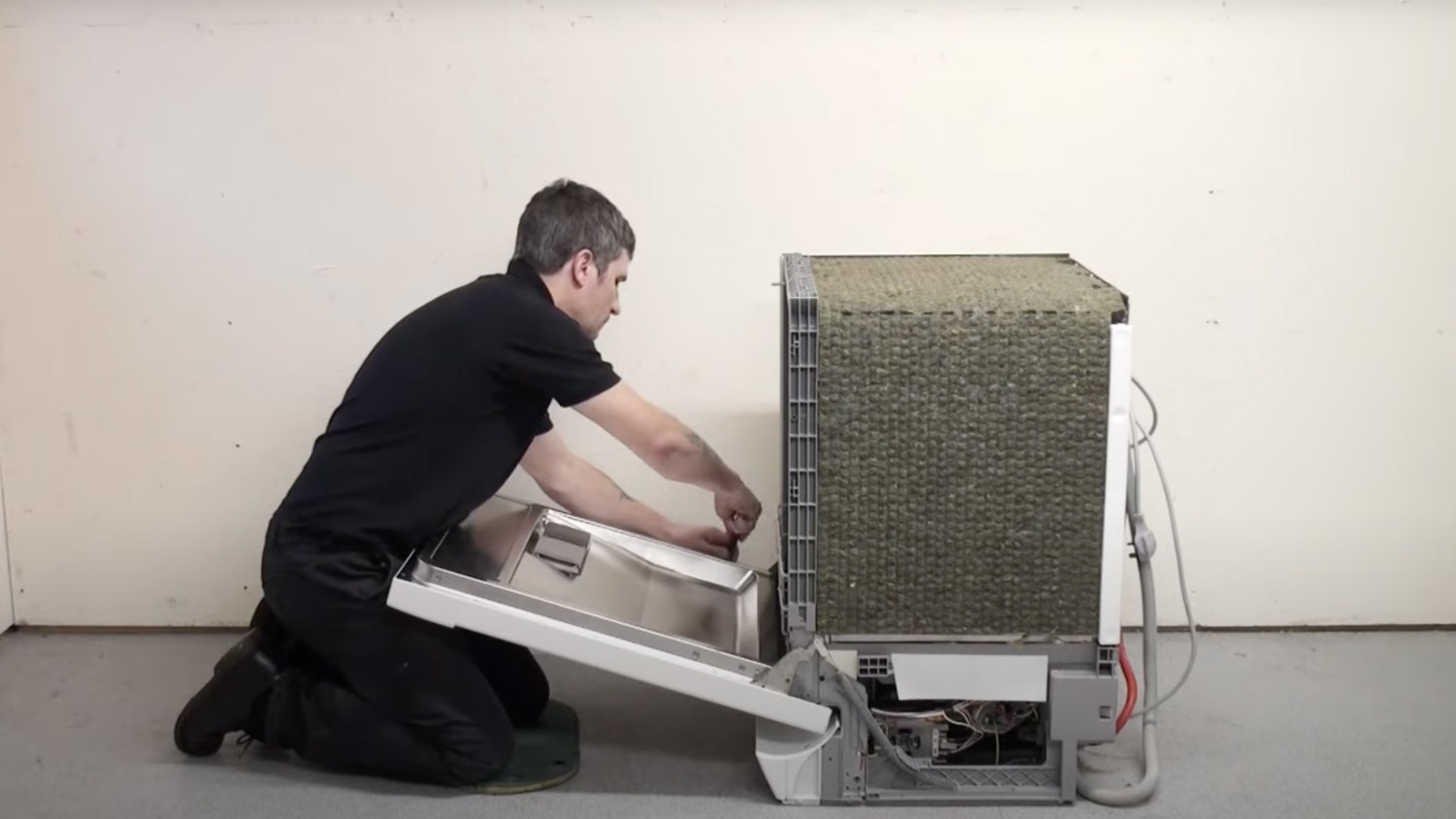

Re-screw the screws to hold the front panel in place.
Re-attach the insulation removed earlier.

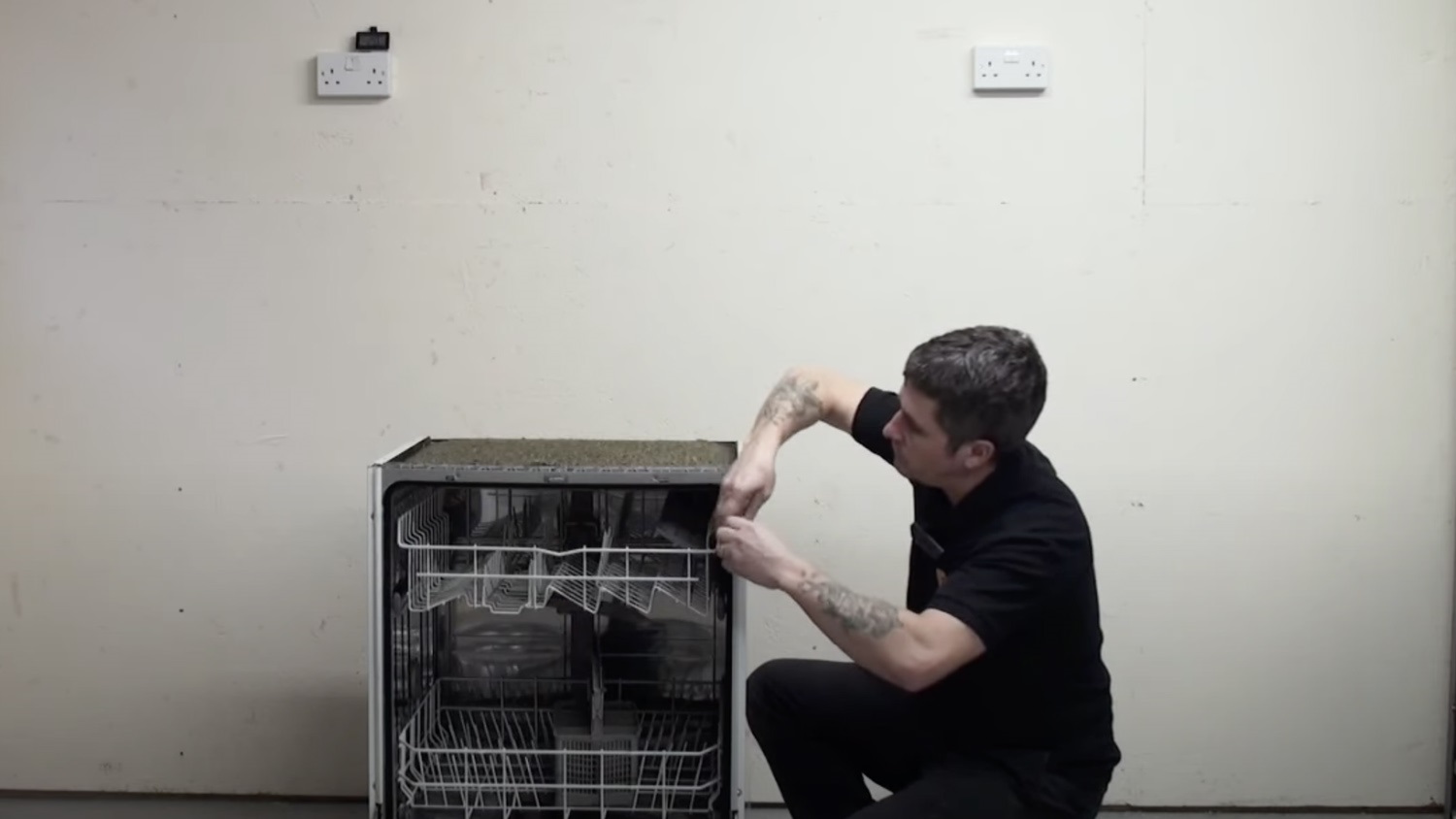

Re-attach the side panel and re-screw the screws in place.

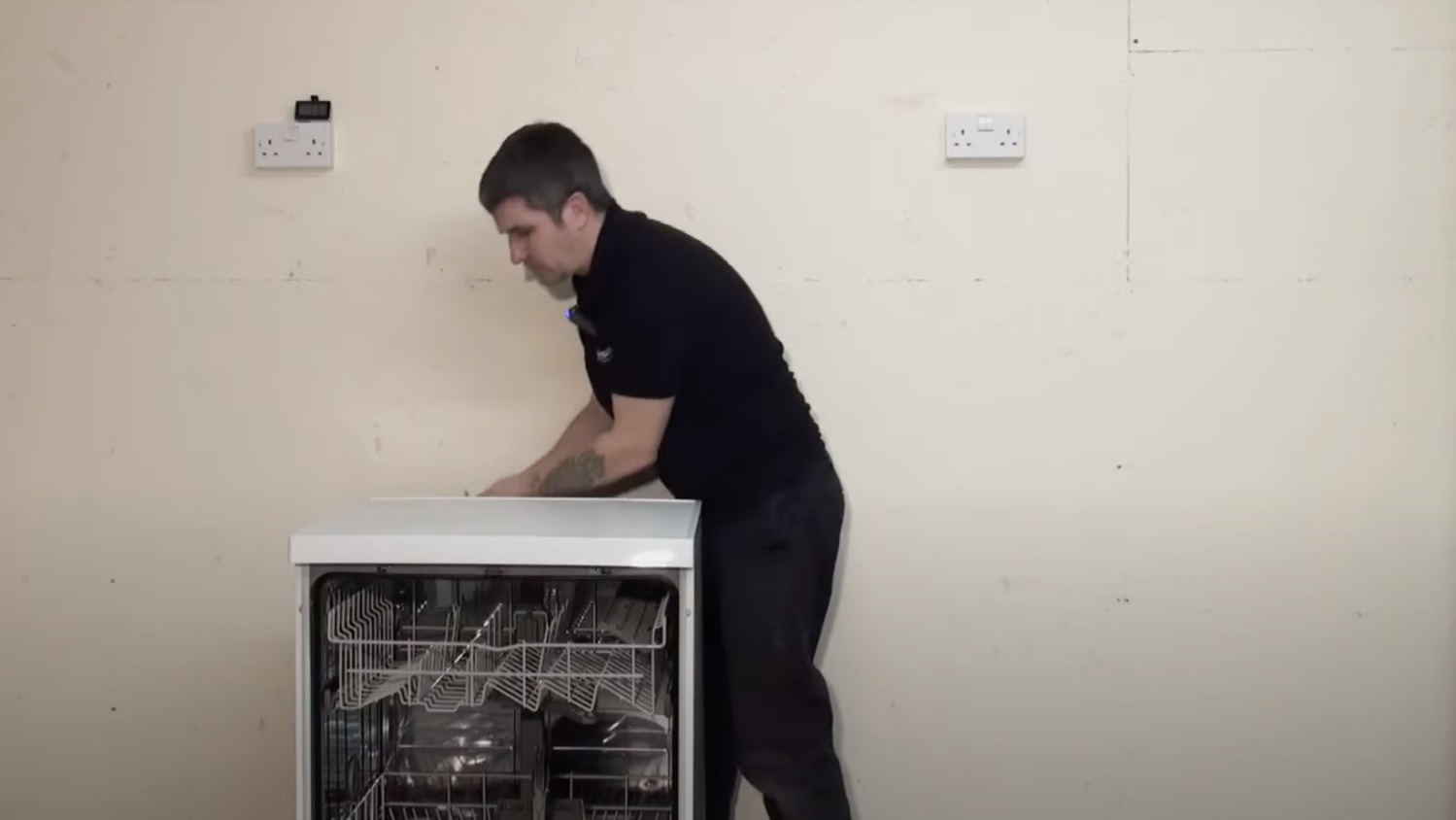

Re-attach the dishwasher lid.
And that's it, your new dishwasher door hinge is all set to go!
