1. Remove old lid flap and spring

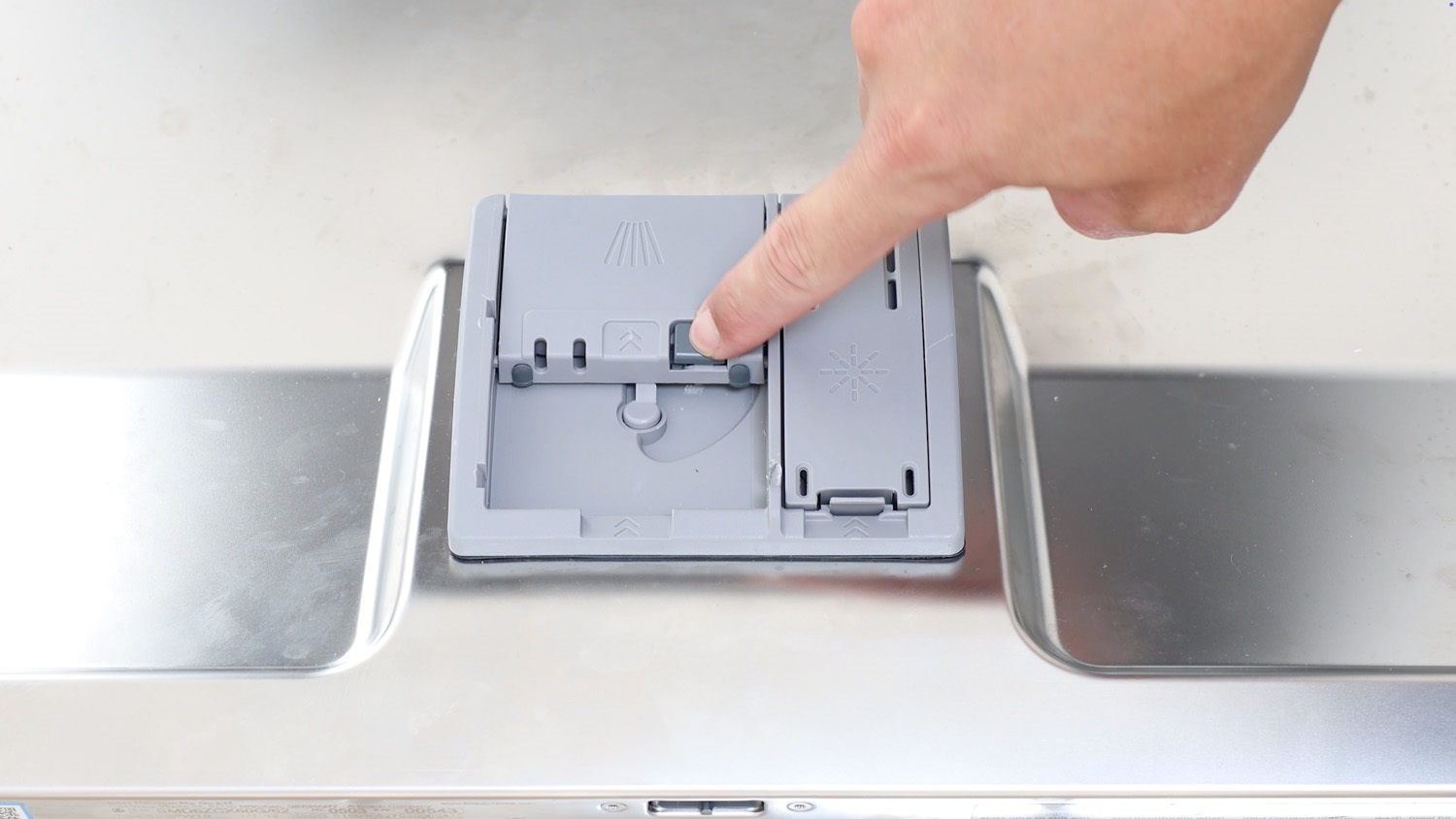

The dispenser lid flap and spring is found here.

where to find dispenser lid flap and spring

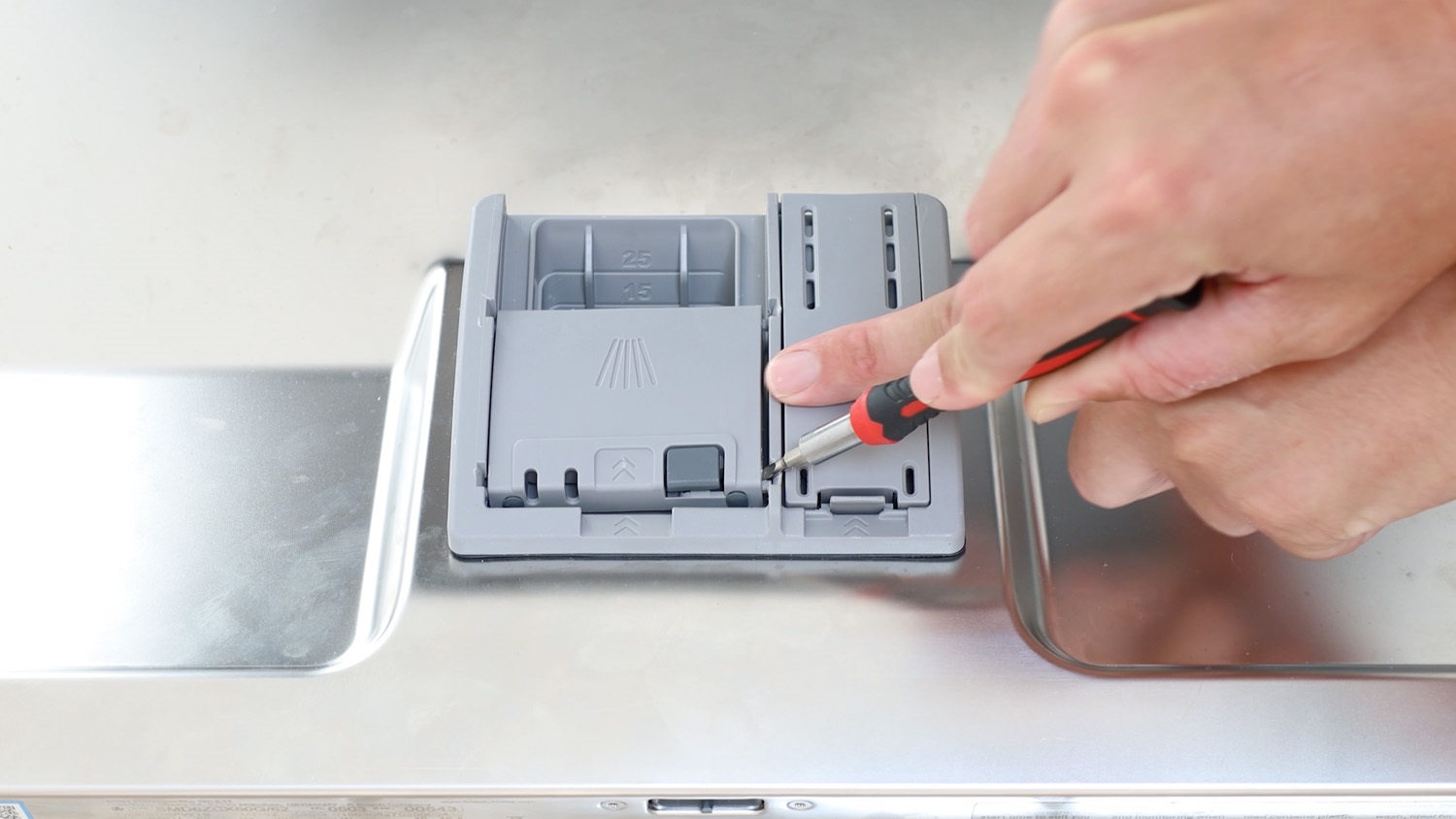

With your flathead screwdriver, lift the lid flap up and out from the sides.

Lift up from side

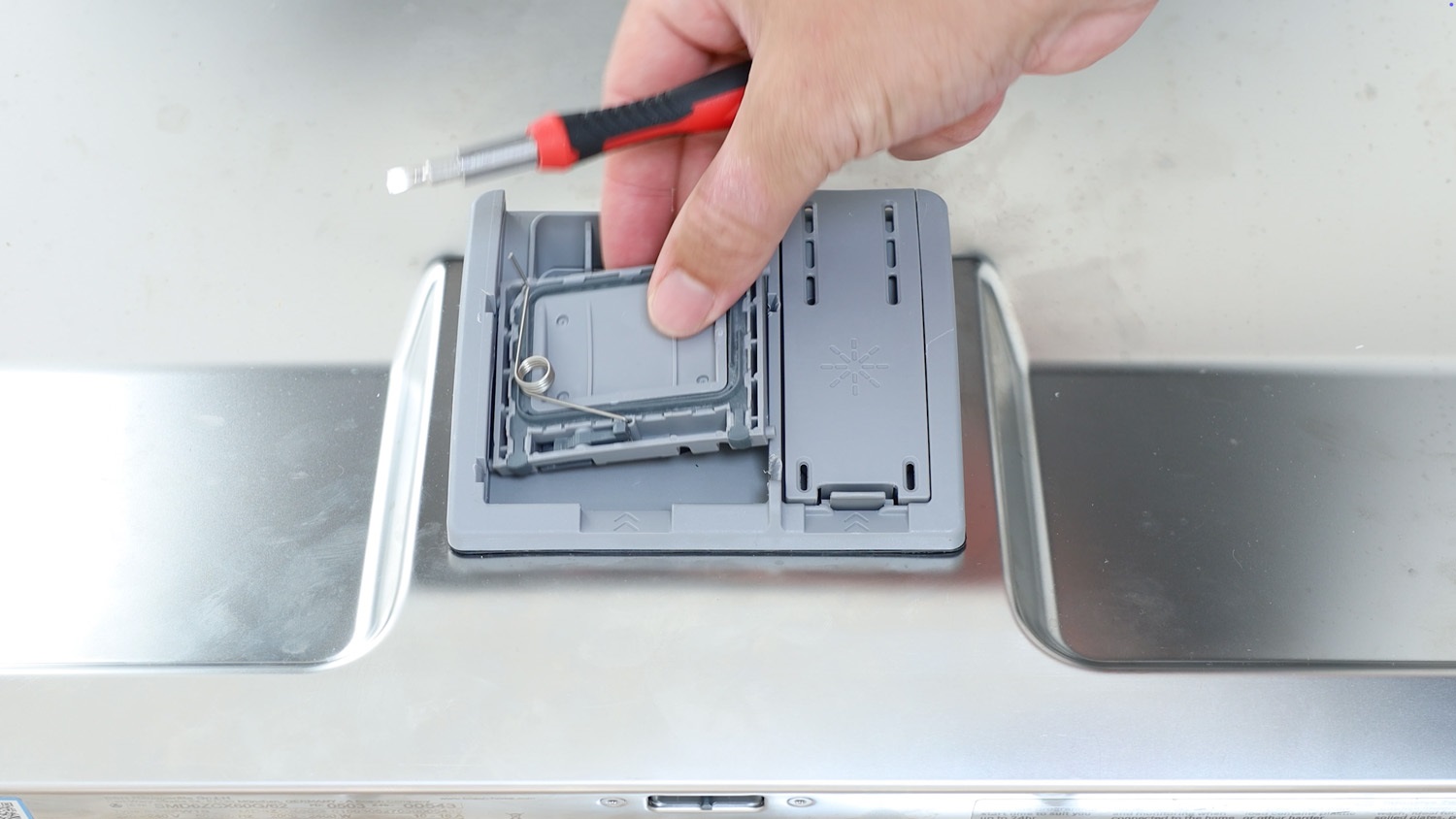

Make sure to remove the old spring as well.

remove the old spring as well

2. Install new lid flap and spring

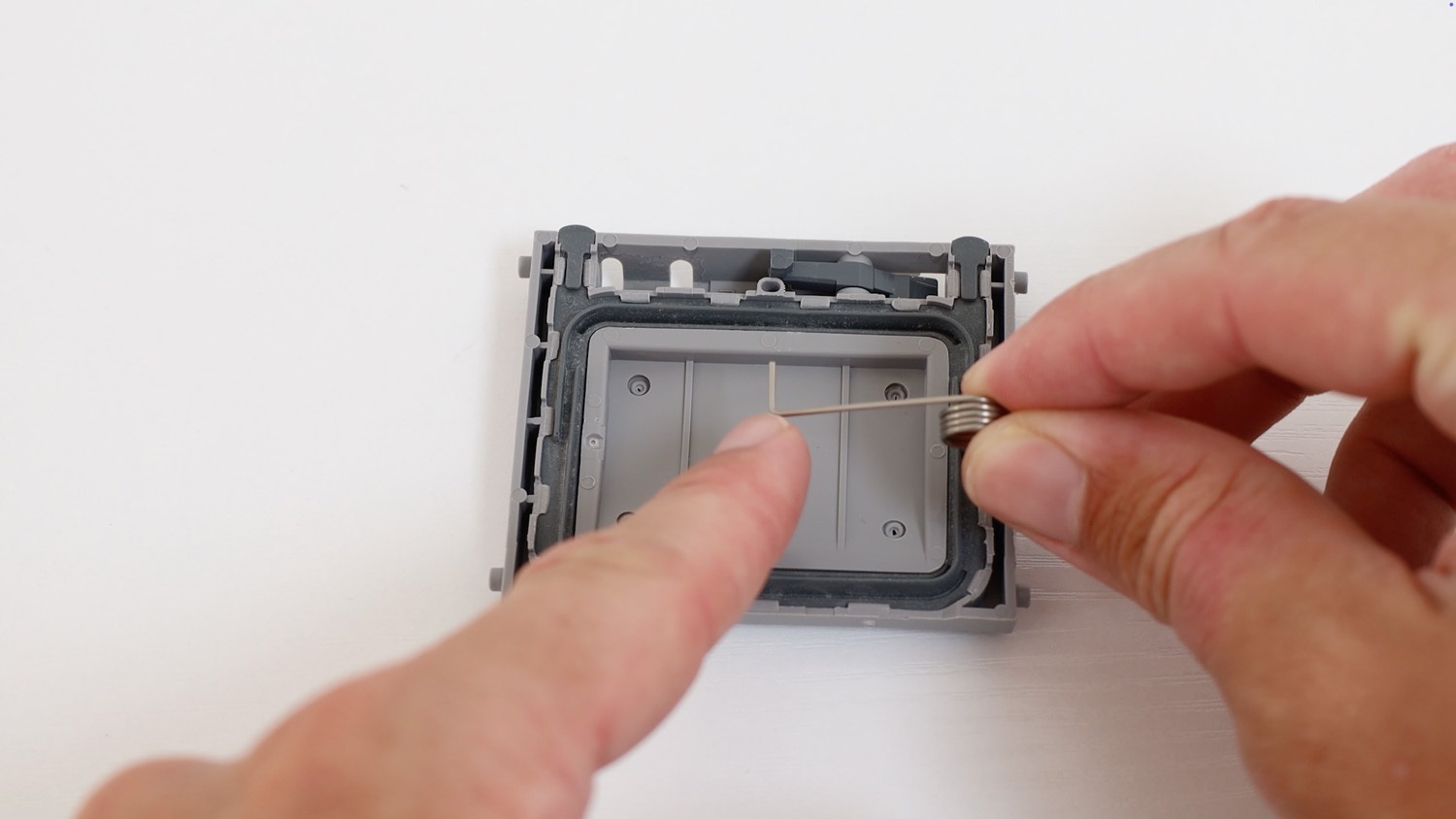

Unpackage your new lid flap and spring.

The short end of the spring is the end that connects to the lid flap.

unpackage new lid flat and spring

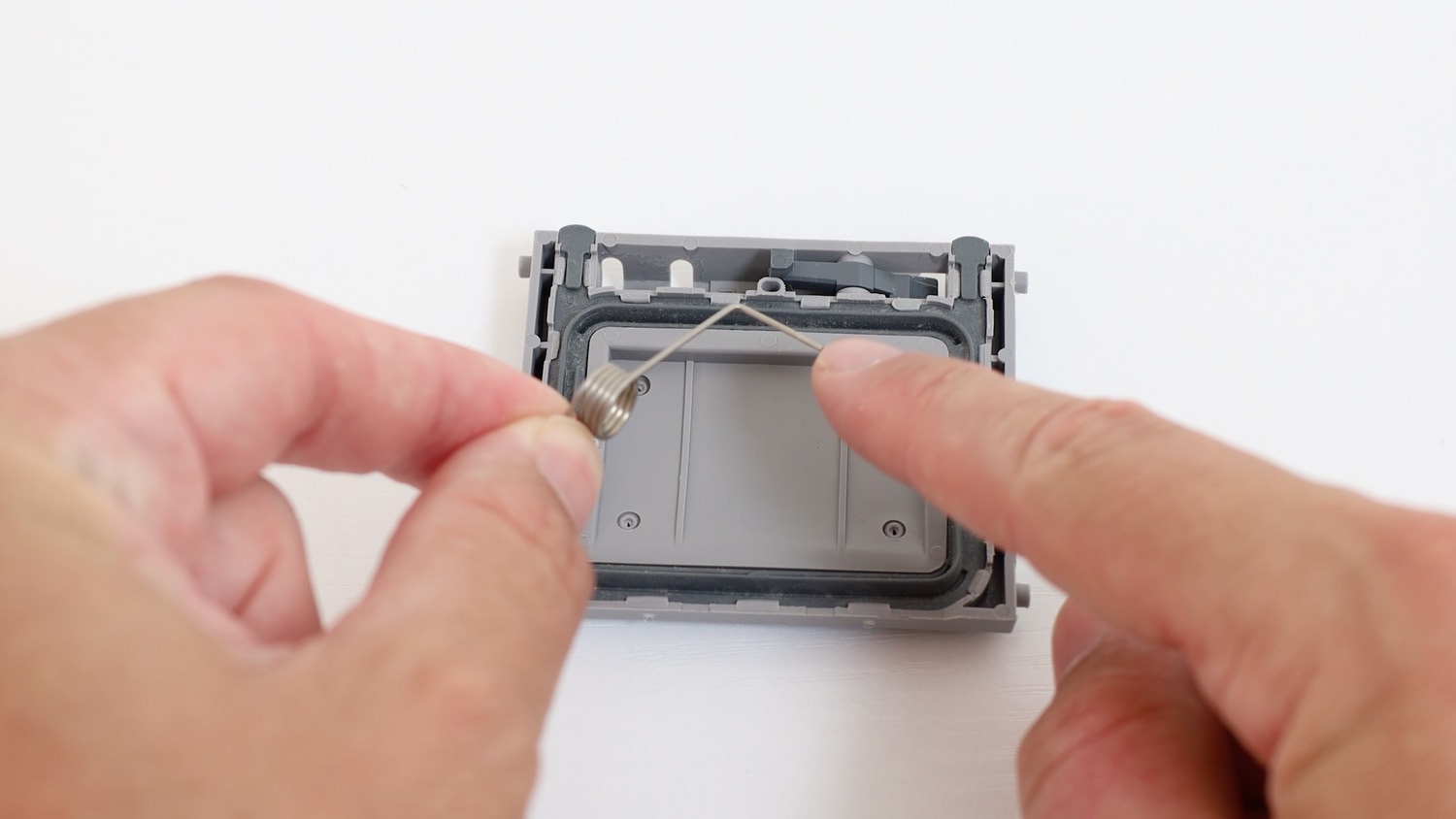

The long end of the spring is what slots inside the dispenser in a second.

long end of spring

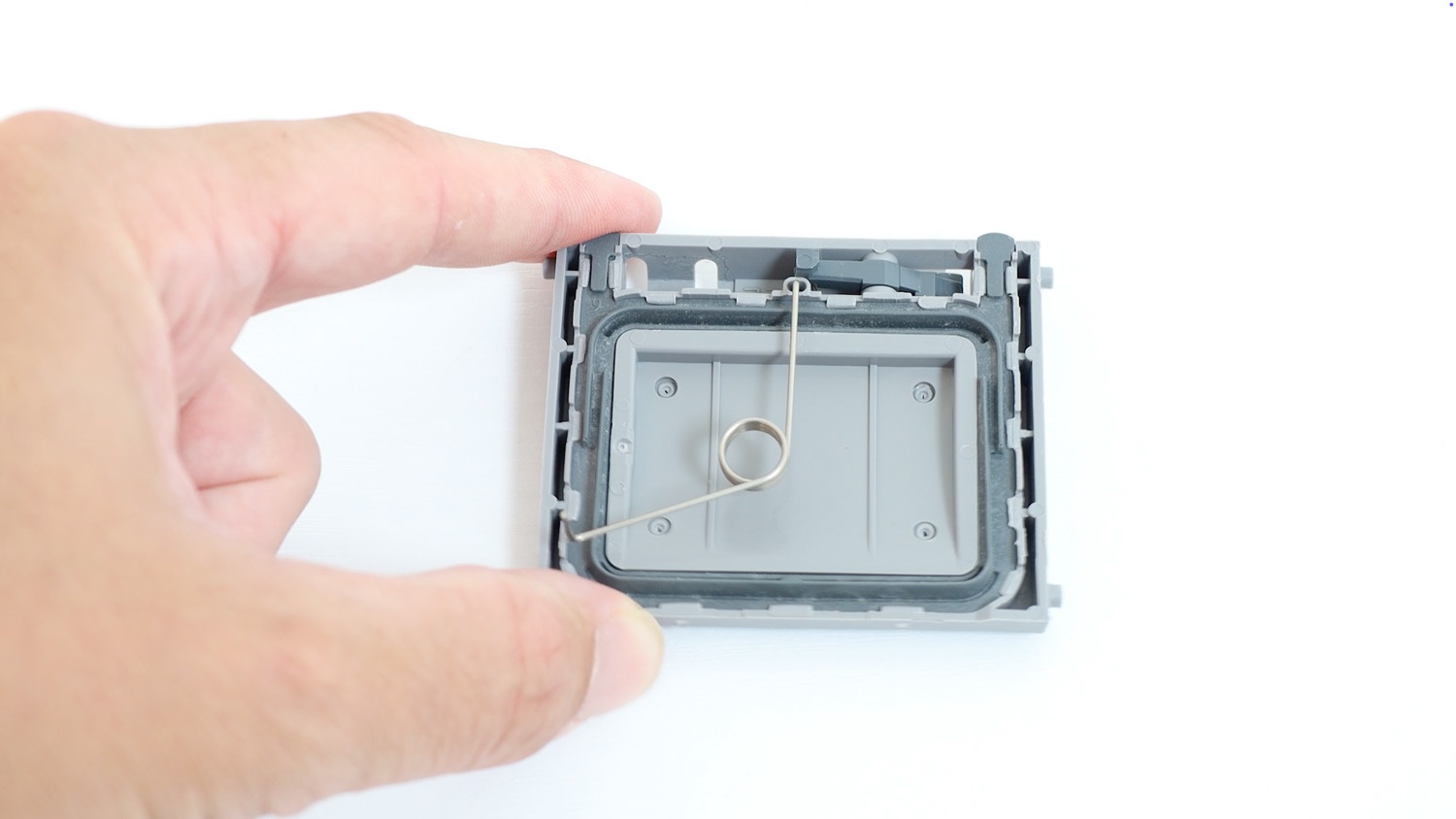

Insert the short end into the new lid.

slide spring into the hole

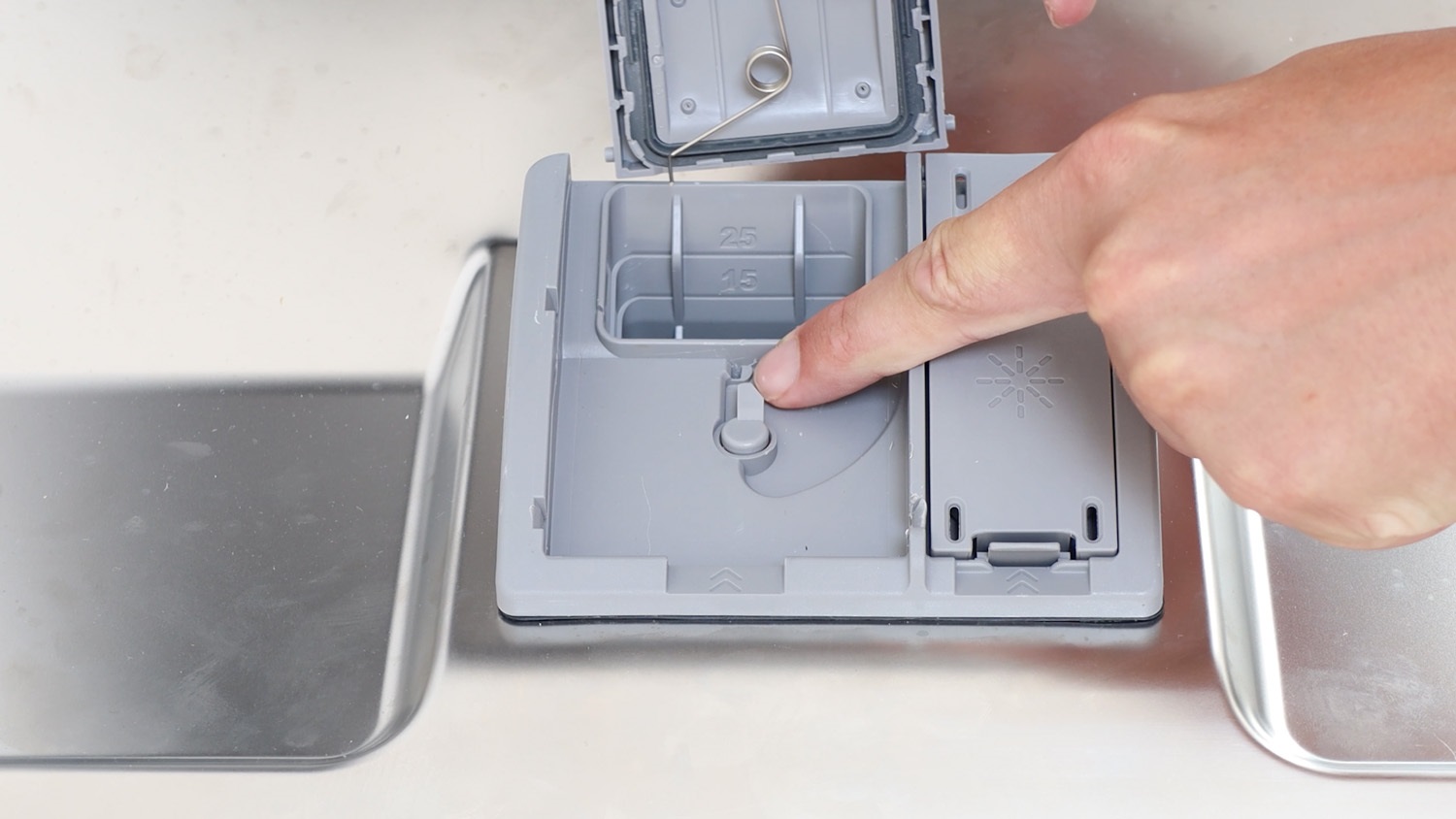

Slide the long end of the spring into the small hole on the dispenser.

where to insert new dispenser lid flap and spring

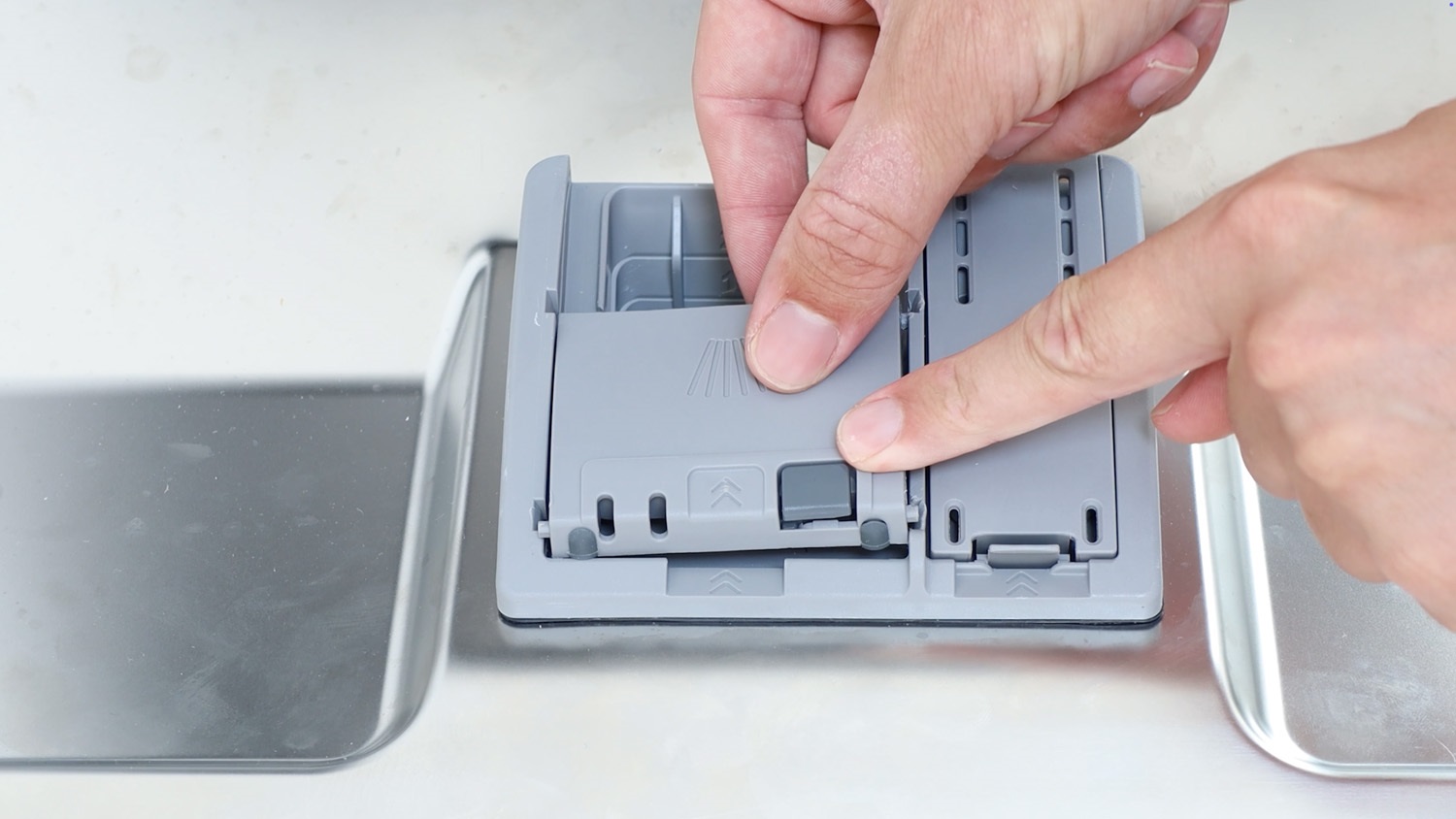

Then, click the dispenser lid in place, as shown.

clip into place

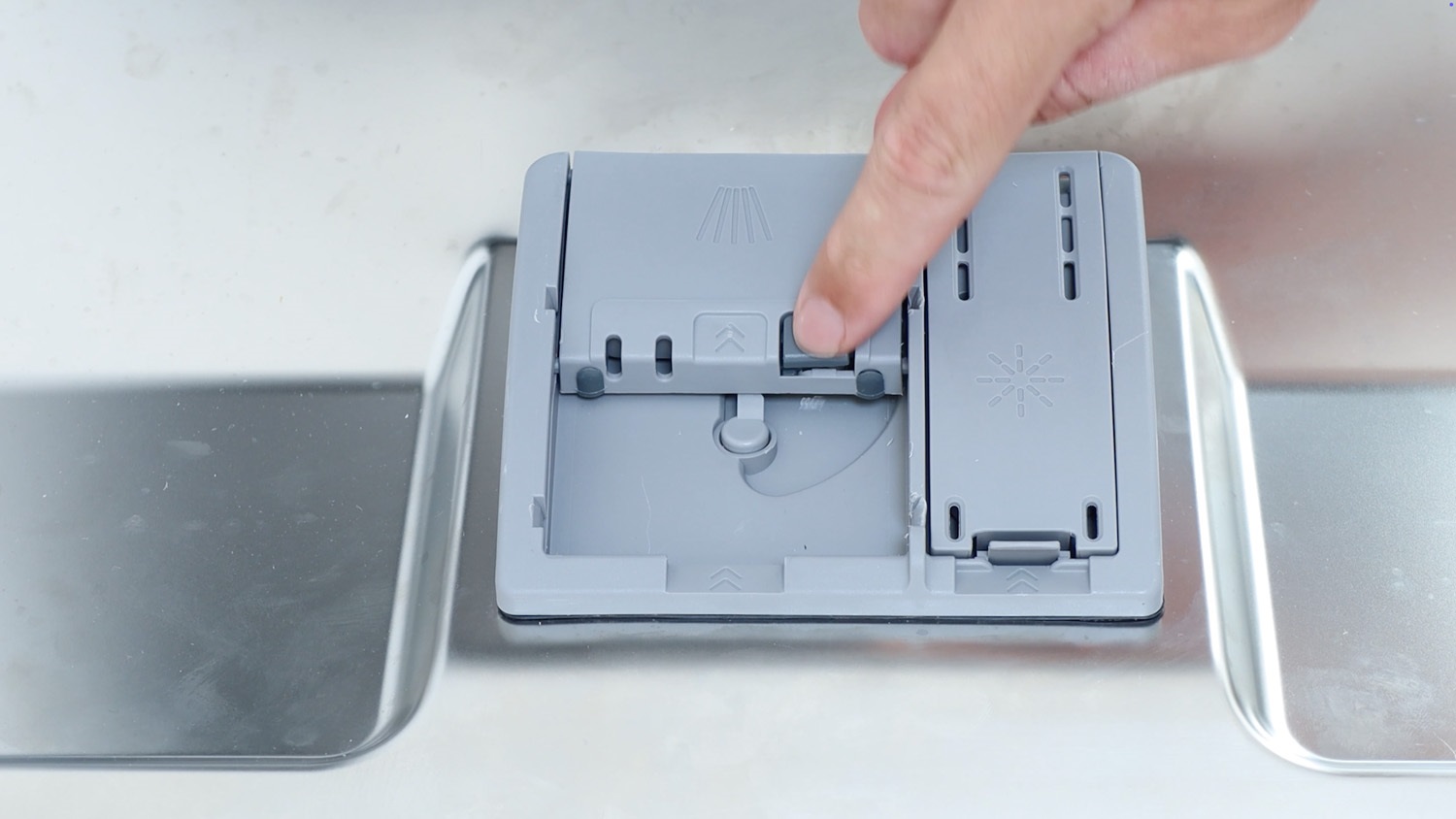

Test to make sure it opens and closes correctly.

test to make sure the new lid flap and spring works correctly

And that’s it, your new dishwasher dispenser lid flap and spring is all set to go.
