Make and Model of Dishwasher Used in This Video
Part Used in This Video
Bosch Dishwasher Basket Rail Clip
1. Remove the Upper Basket Assembly
Start by sliding the upper basket assembly all the way out of the dishwasher and lifting it clear. This gives you clean access to the end of each side rail, where the clips sit.

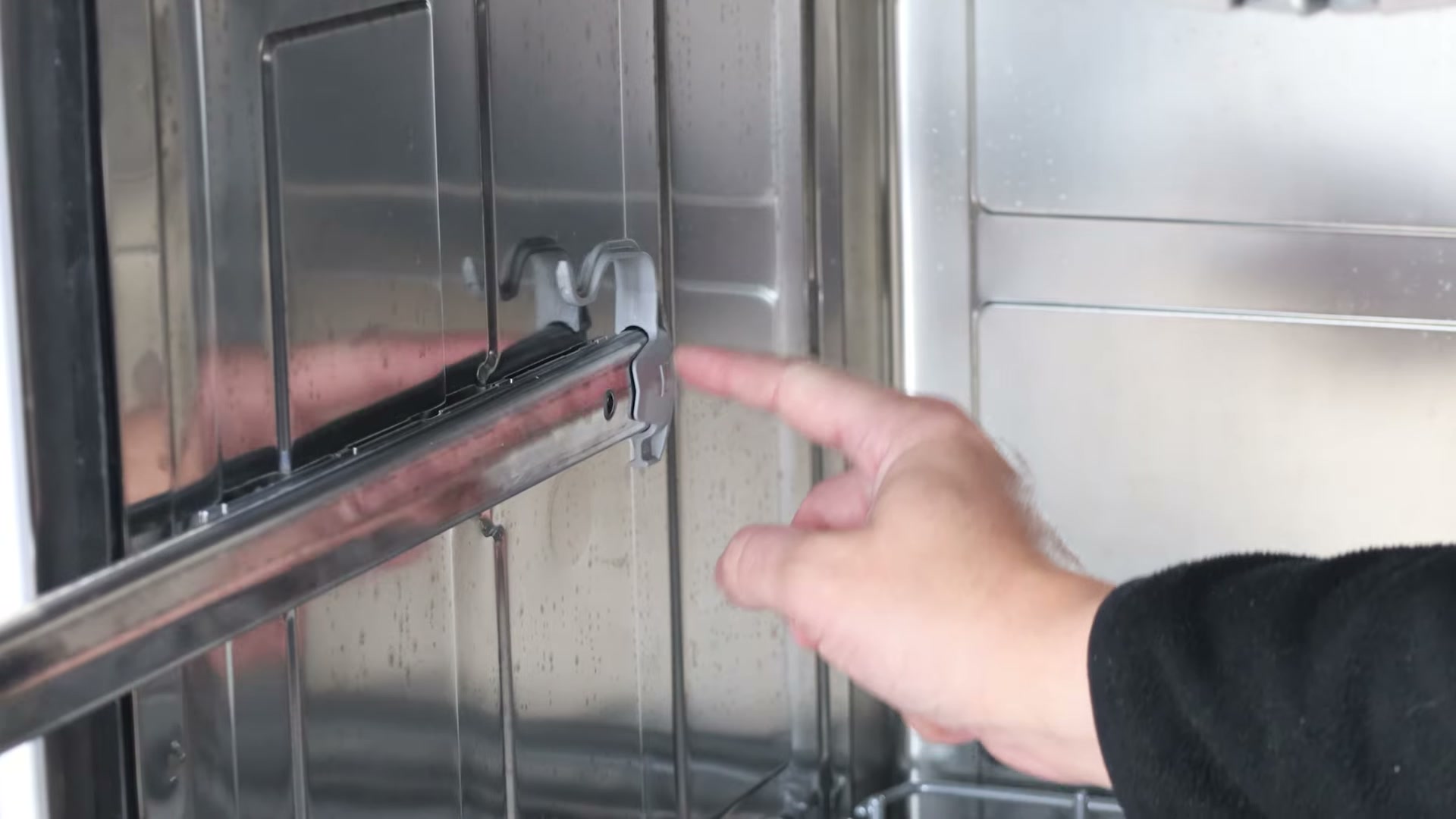

2. Locate the Basket Rail Clips
With the basket removed, look at the ends of both side rails. There is one clip on the left rail and one on the right rail. These small plastic clips stop the upper basket assembly wheels from running off the end of the rail when you slide the basket out.

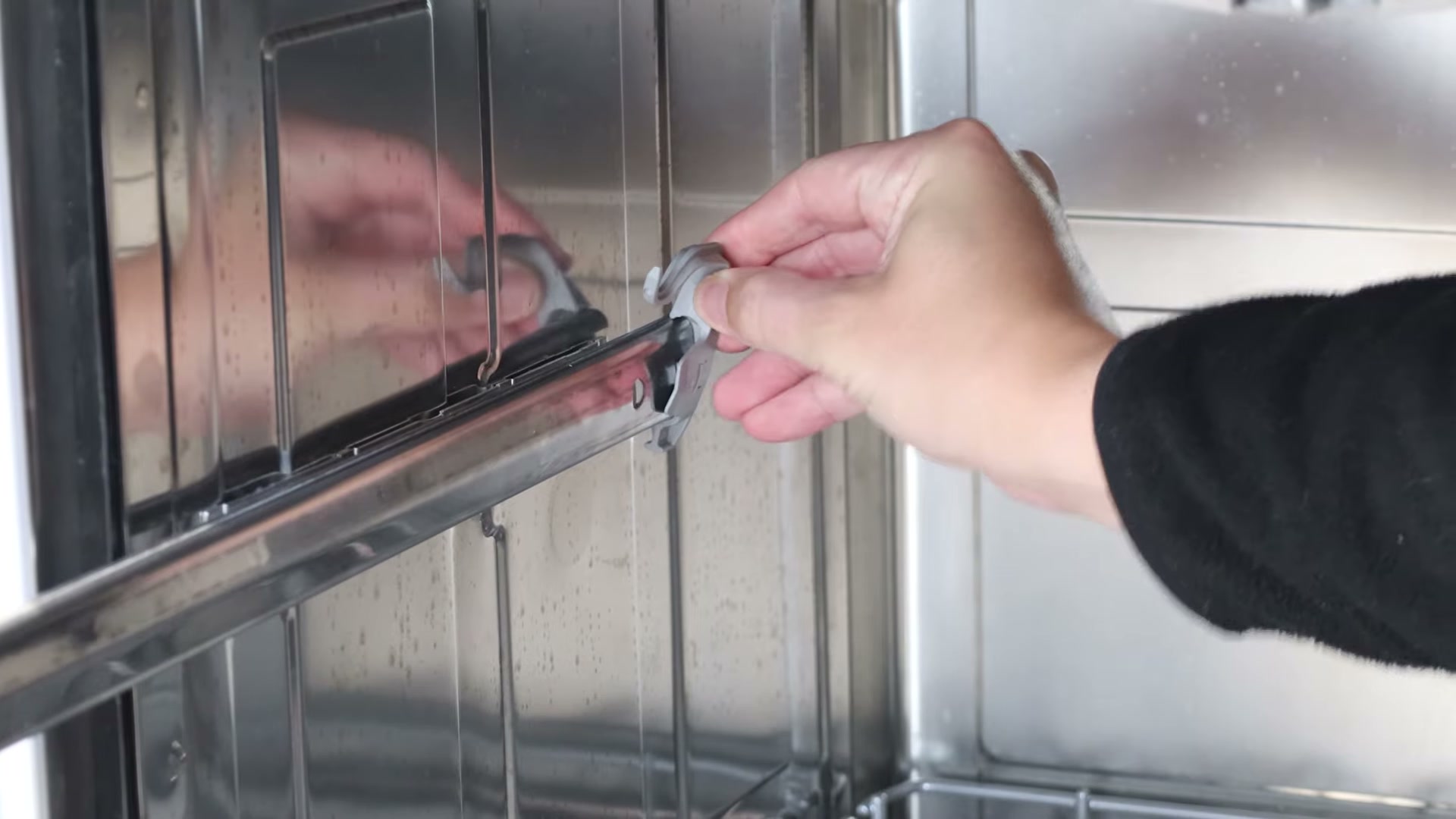

3. Remove the Old Clips
To remove each clip, unclip it from the end of the rail and pull it straight away. Repeat on the opposite side so both of the old clips are off.

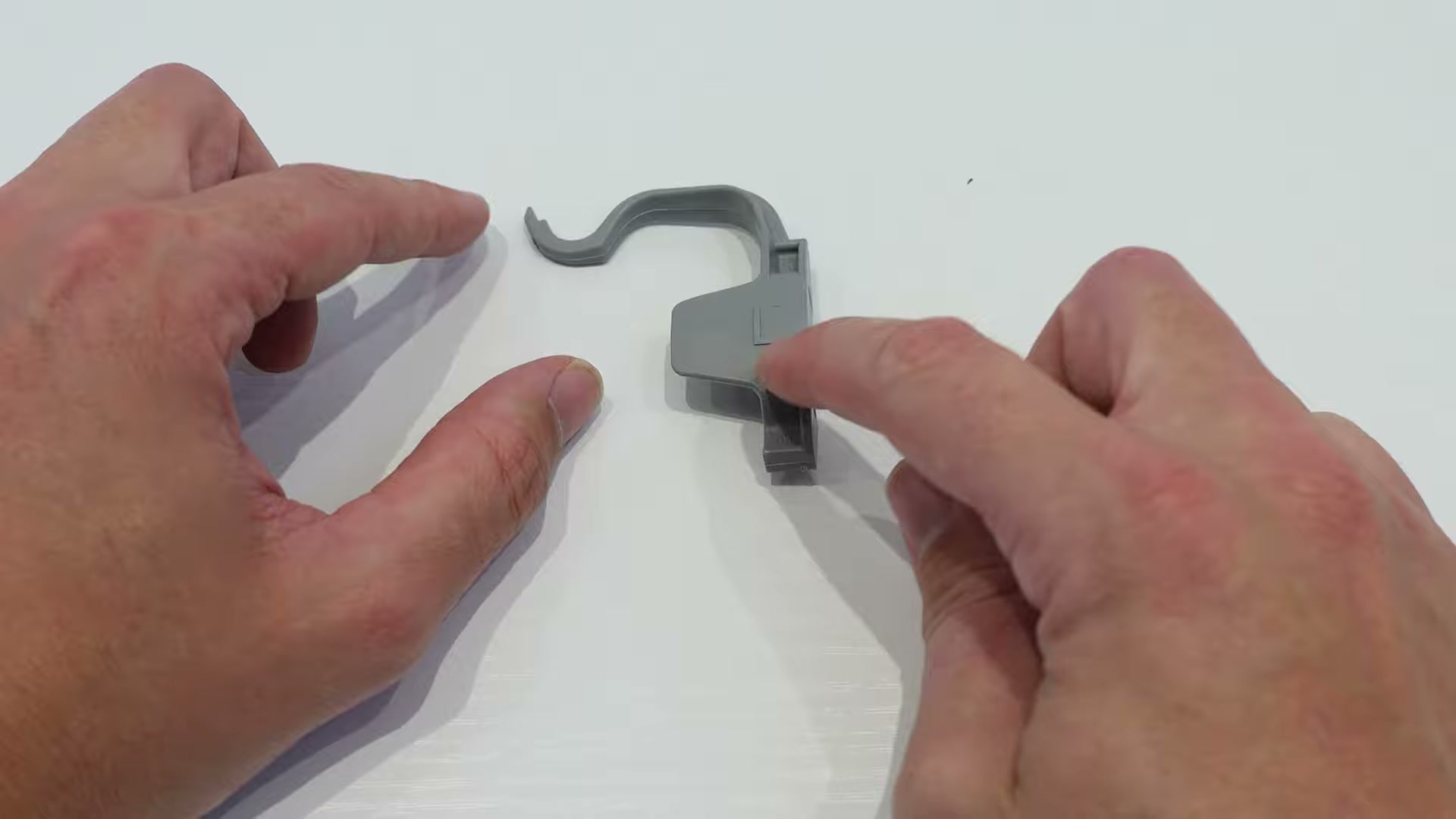

4. Identify the New Clips
Unpackage your new clips. Each one is marked with a letter on the side: L is for the left side rail and R is for the right side rail. Check the marking before fitting so each clip goes on the correct side.

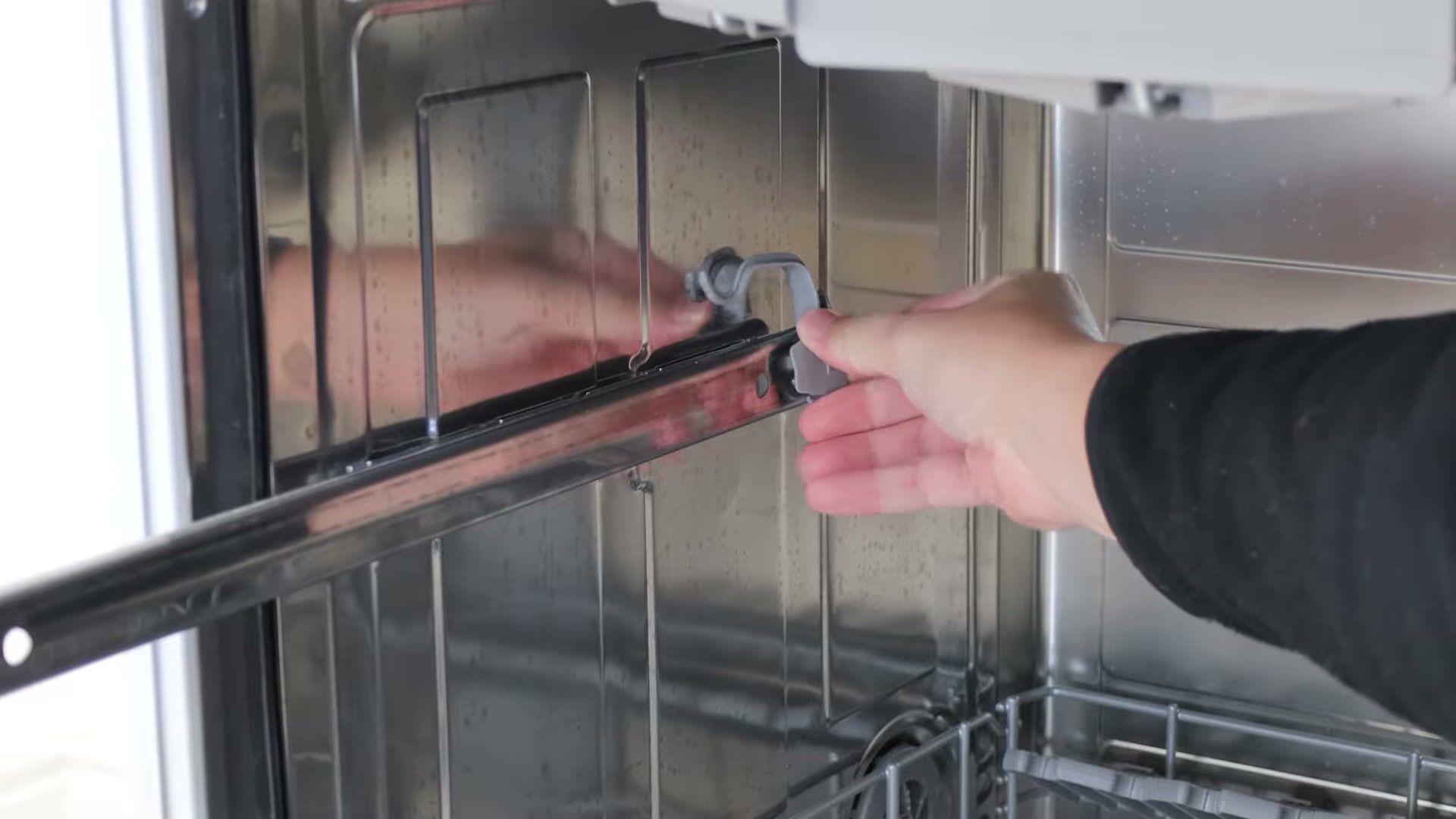

5. Install the New Clips
The fitting process is the same for both clips. Line the new clip up with the end of the rail and push it into position, making sure it clicks firmly into place. Repeat on the other side with the matching L or R clip.

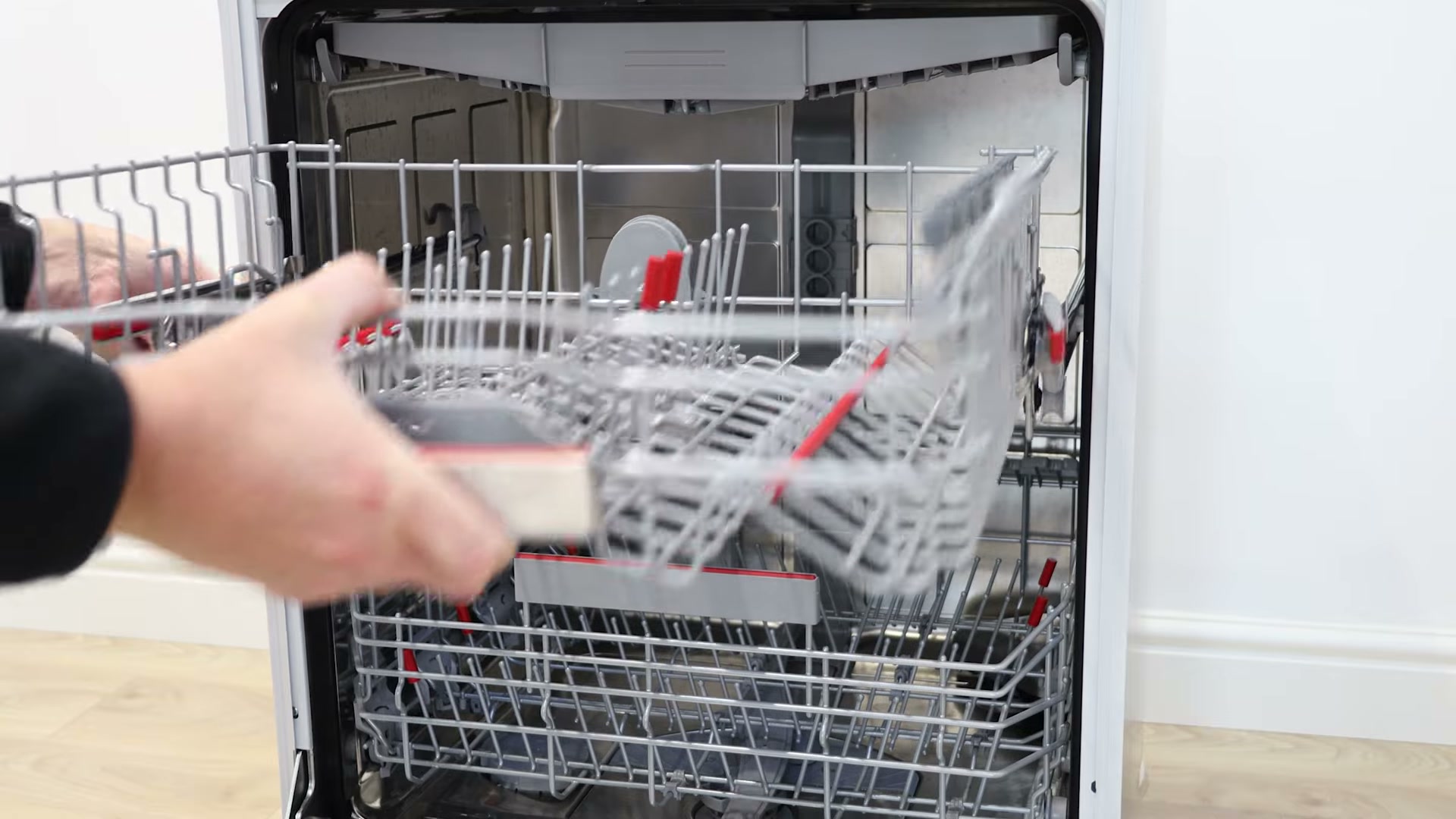

6. Reinsert the Basket Assembly
Slide the upper basket assembly back onto the rails. Push it all the way in, then pull it gently forwards to check that the new clips stop the basket wheels at the end of the rail as they should.
And that's it — your new Bosch dishwasher basket rail clips are fitted and ready to go. Need more Bosch dishwasher spare parts?
