Make and Model of Dishwasher Used in This Video
Part Used in This Video
Bosch Dishwasher Water Spray Head

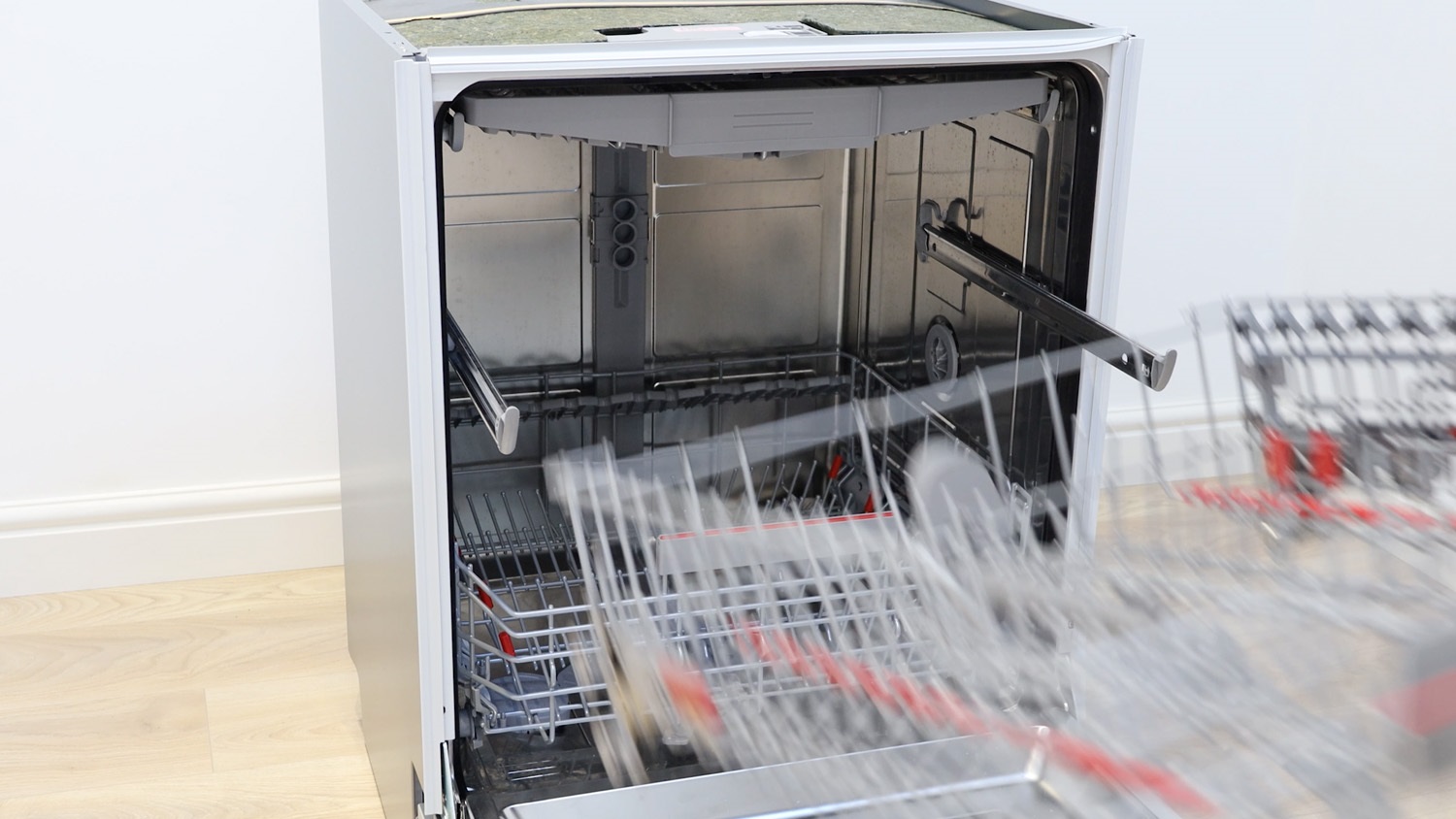

1. Remove upper basket

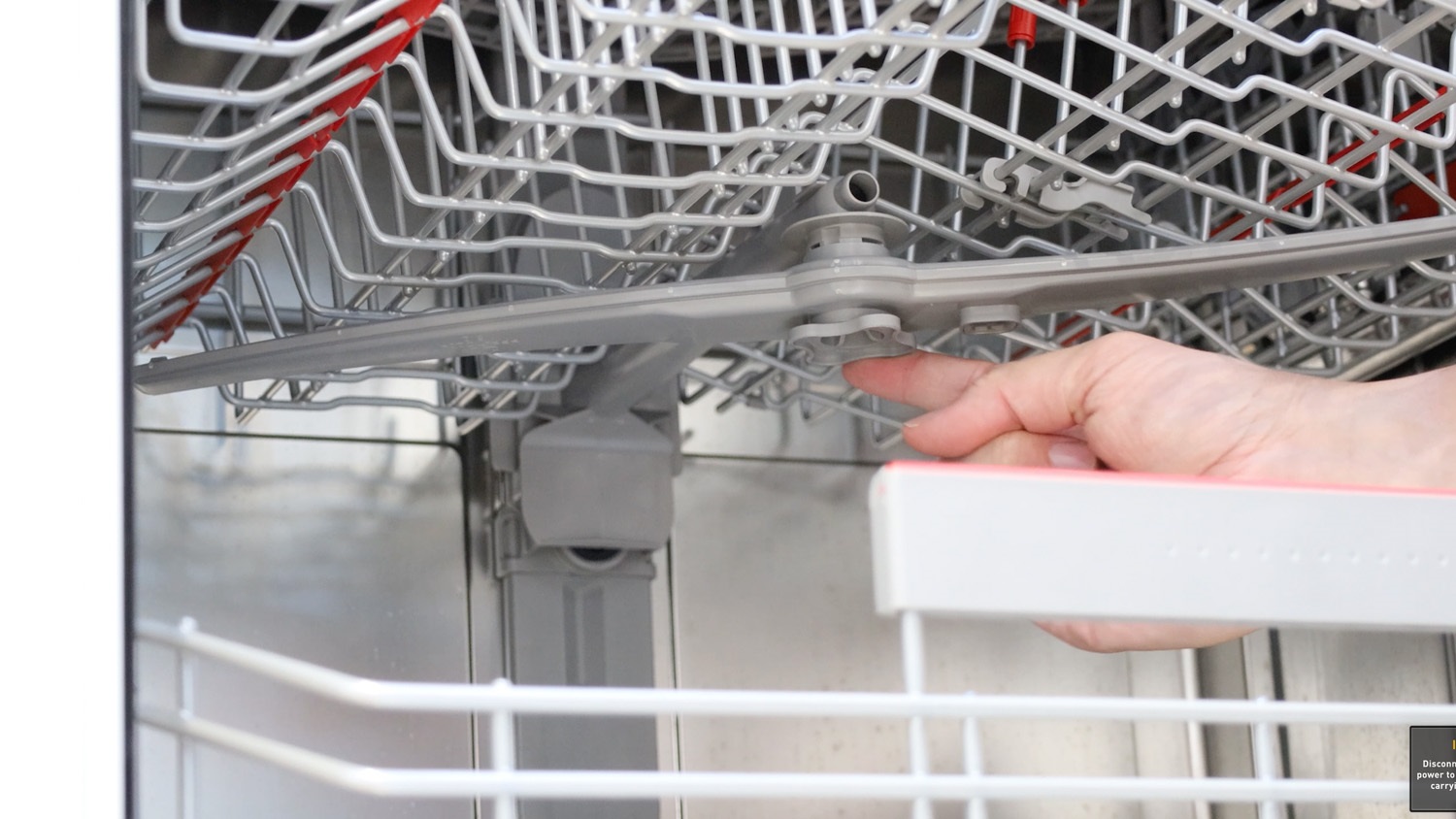

The water spray head is used in place when the upper basket, along with the water spray top (shown here), needs to be removed. Usually, for when large items are being cleaned, such as baking trays and roasting tins.
Start by removing the upper basket and placing it to one side.
2. Explaining how a water spray head works

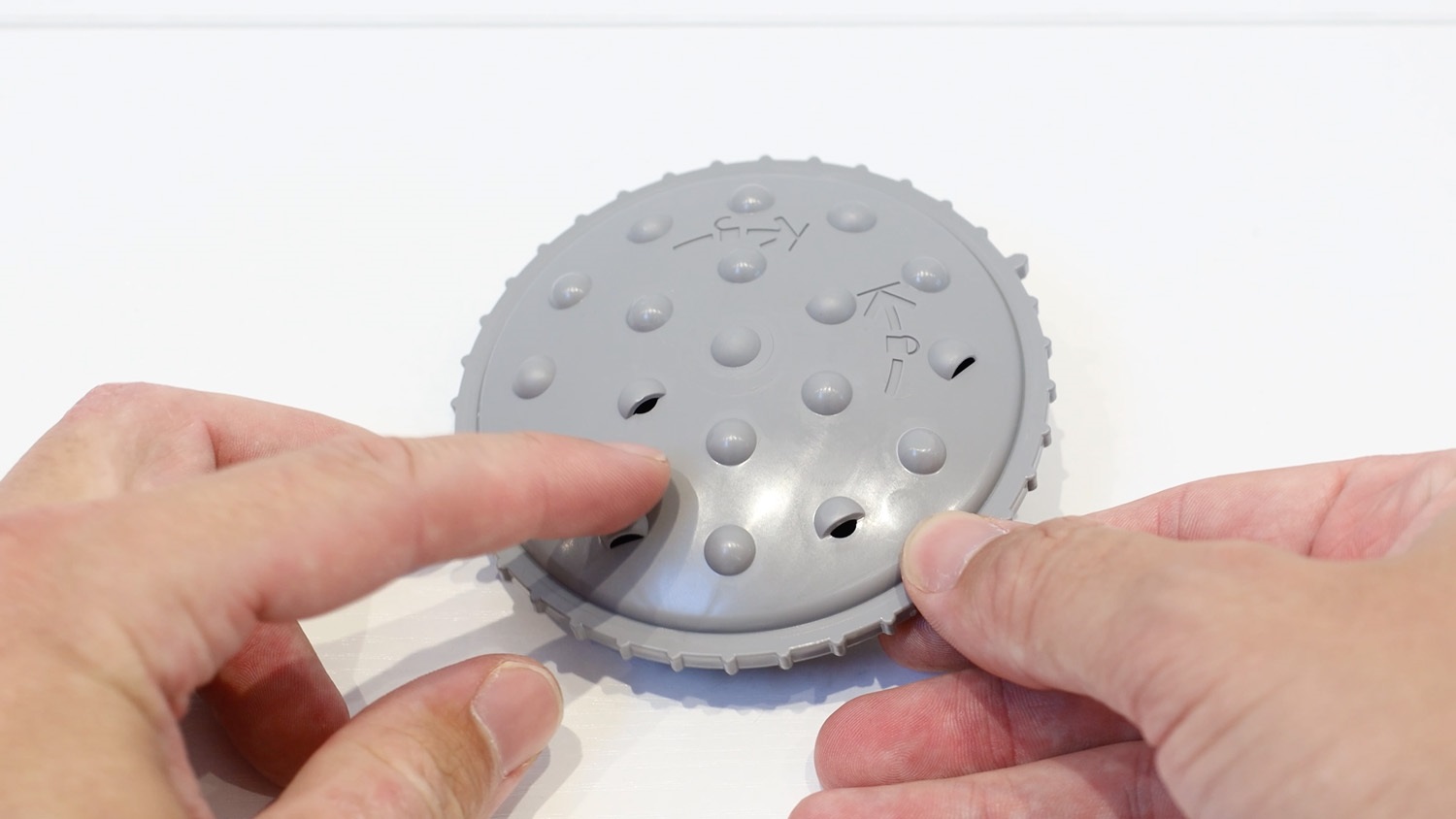

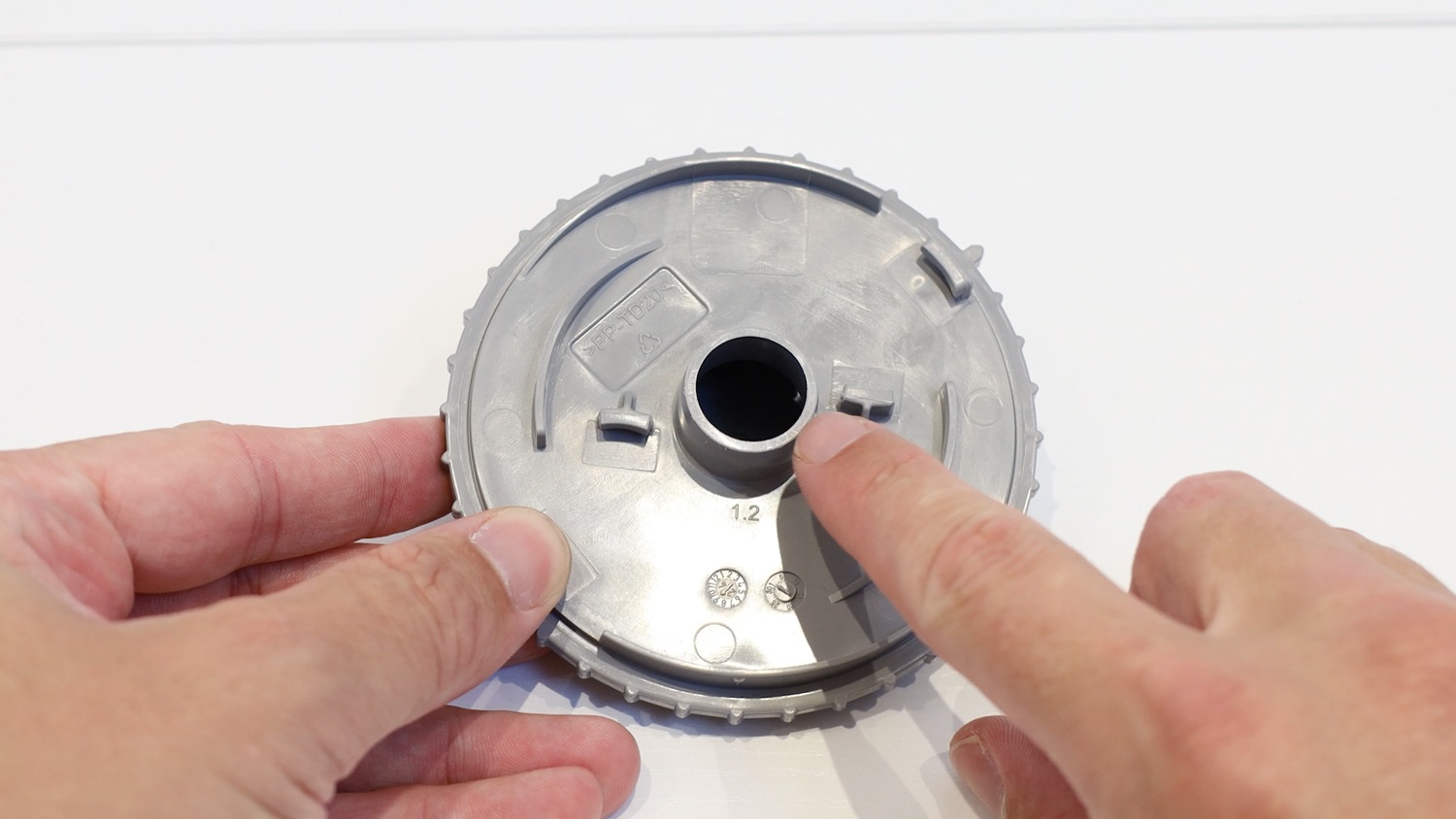

Here’s a close-up look at the water spray head.

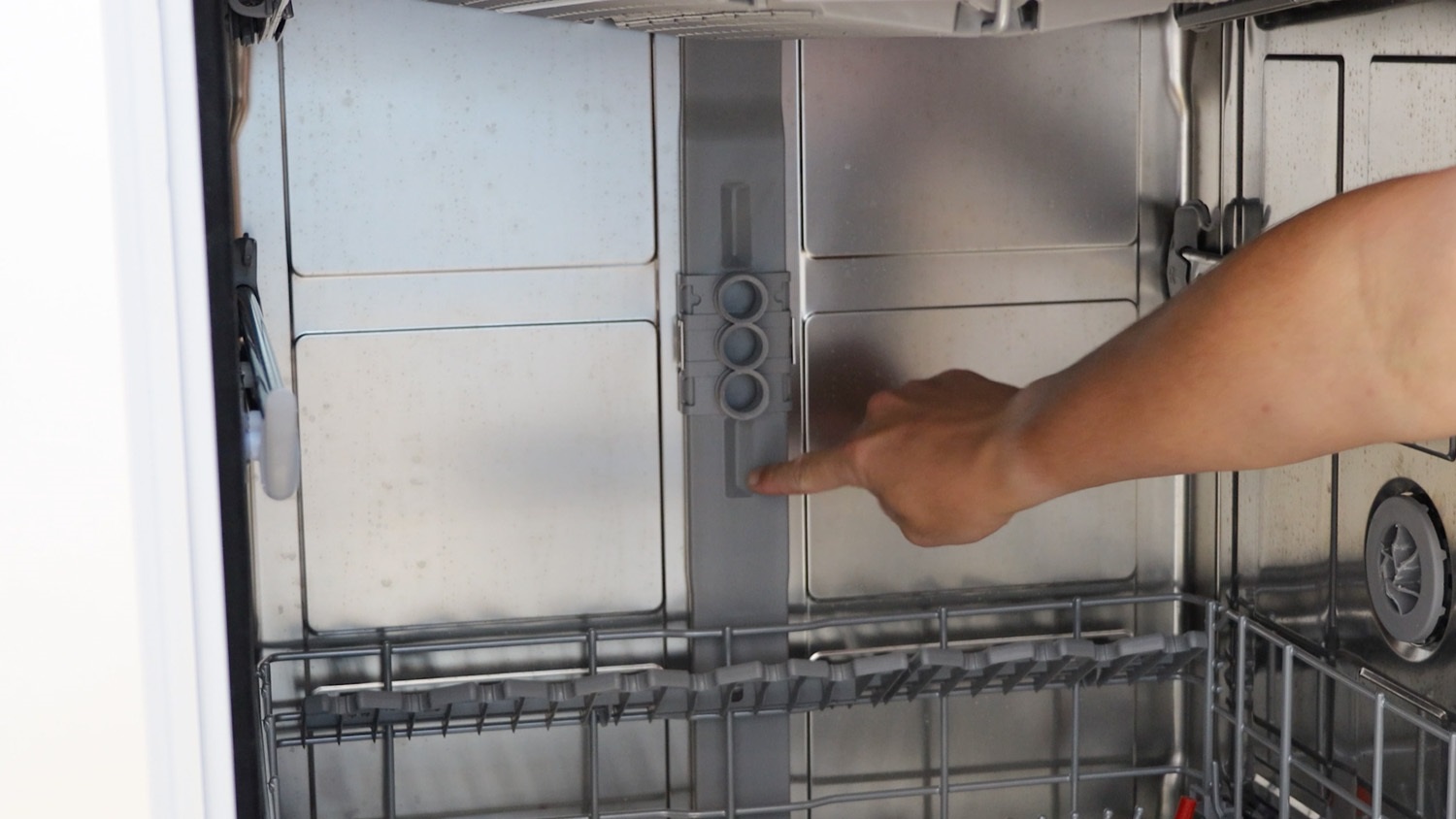

It connects to the middle outlet on the water supply tube (shown here).
And the water then feeds through and out the small openings on the head, providing targeted cleaning to help clean those large items.

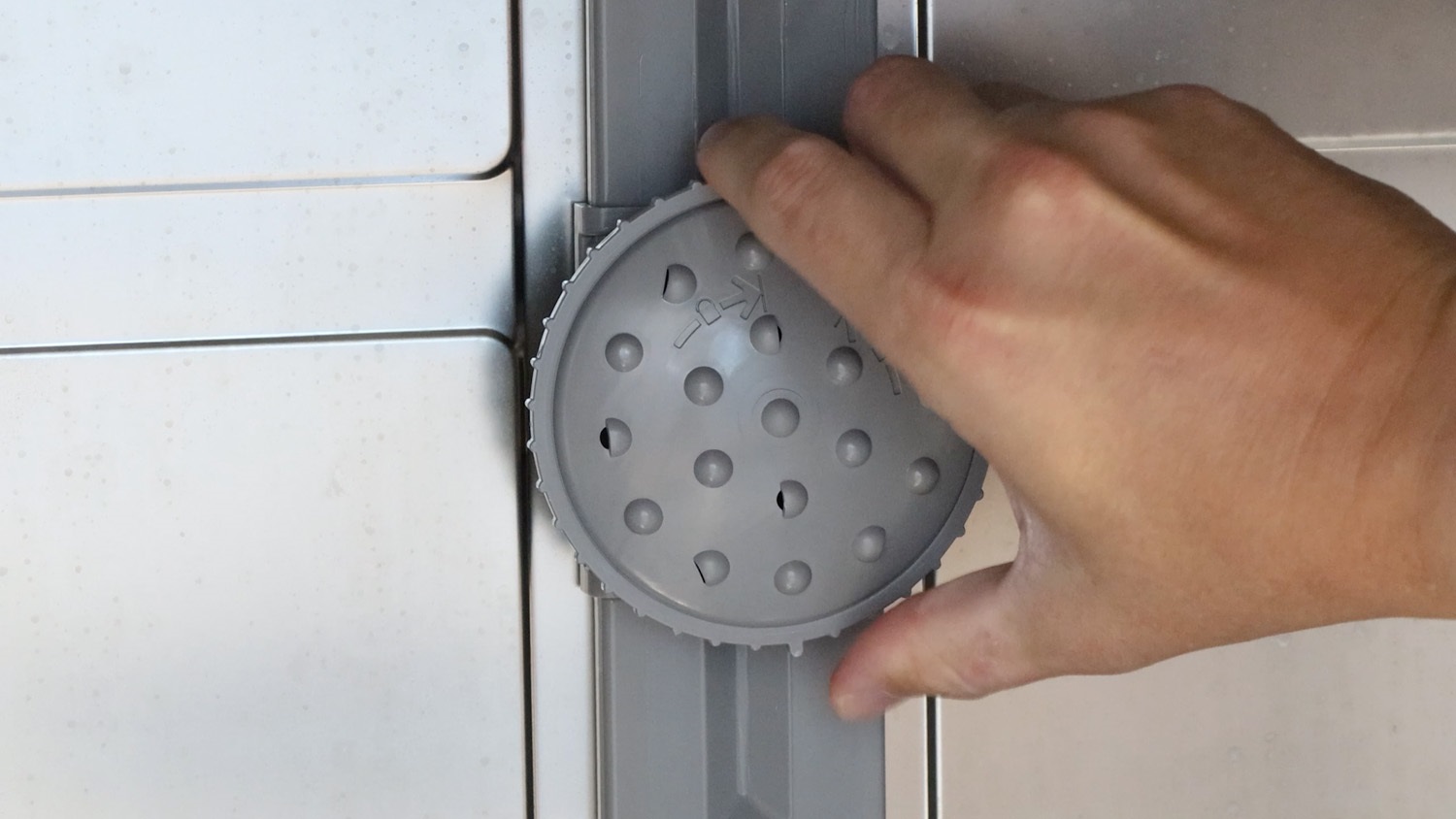

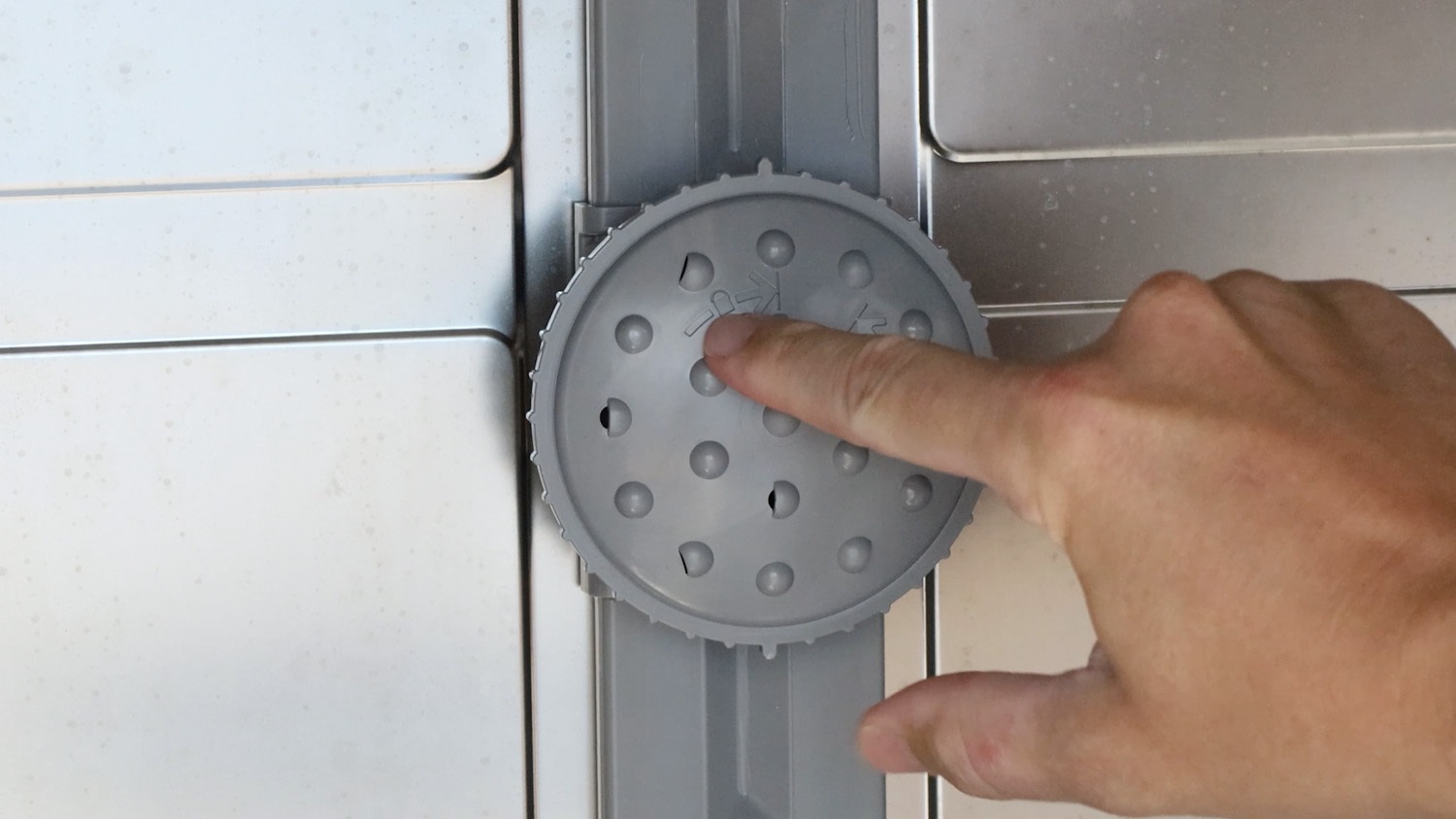

3. How to attach water spray head
Simply attach and rotate clockwise to lock into place.
There are arrows on the part explaining which way to rotate to install and remove.

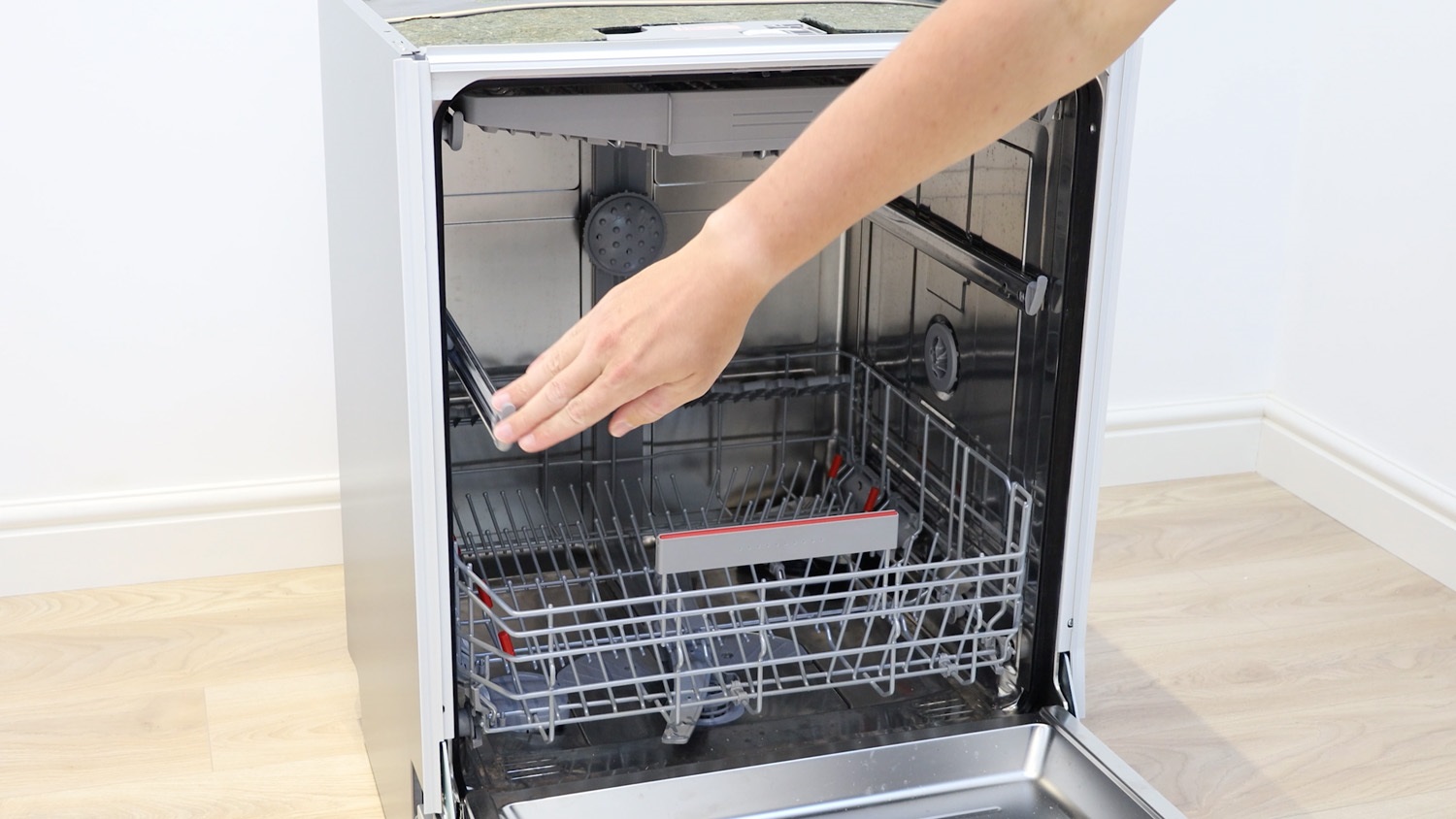

Push the basket rails in.
And that’s it, your new dishwasher water spray head is all set to go.
