Husqvarna Trimmer 23 R (1993-05) Spares

Exploded View Diagrams

30 diagrams

Find Your Spare Part

Clear All

Your appliance

Trimmers

Your brand

Husqvarna

Your model

23 R (1993-05)

01

Husqvarna Trimmer 23 R (1993-05) Spares

Small Fuel Line Pipe Tube

Husqvarna Small Fuel Line Pipe Tube

530069247·
In Stock
£6.80inc. VAT
Fuel Filter

Husqvarna Fuel Filter

530095646·
In Stock
£10.10inc. VAT
Ball Bearing

Husqvarna Ball Bearing

738210204·
In Stock
£6.70inc. VAT
Petrol / Fuel Tank Cap

Husqvarna Petrol / Fuel Tank Cap

530014347·
To Order
£11.80inc. VAT
Throttle Lockout

Husqvarna Throttle Lockout

502199401·
To Order
£6.70inc. VAT
Diaphragm 531 00 45-14

Husqvarna Diaphragm 531 00 45-14

503896701·
In Stock
£3.95inc. VAT
Spark Plug / Bolt Combination Spanner Tool

Husqvarna Spark Plug / Bolt Combination Spanner Tool

501691701·
To Order
£5.20inc. VAT
Check Valve

Husqvarna Check Valve

530026119·
To Order
£6.70inc. VAT

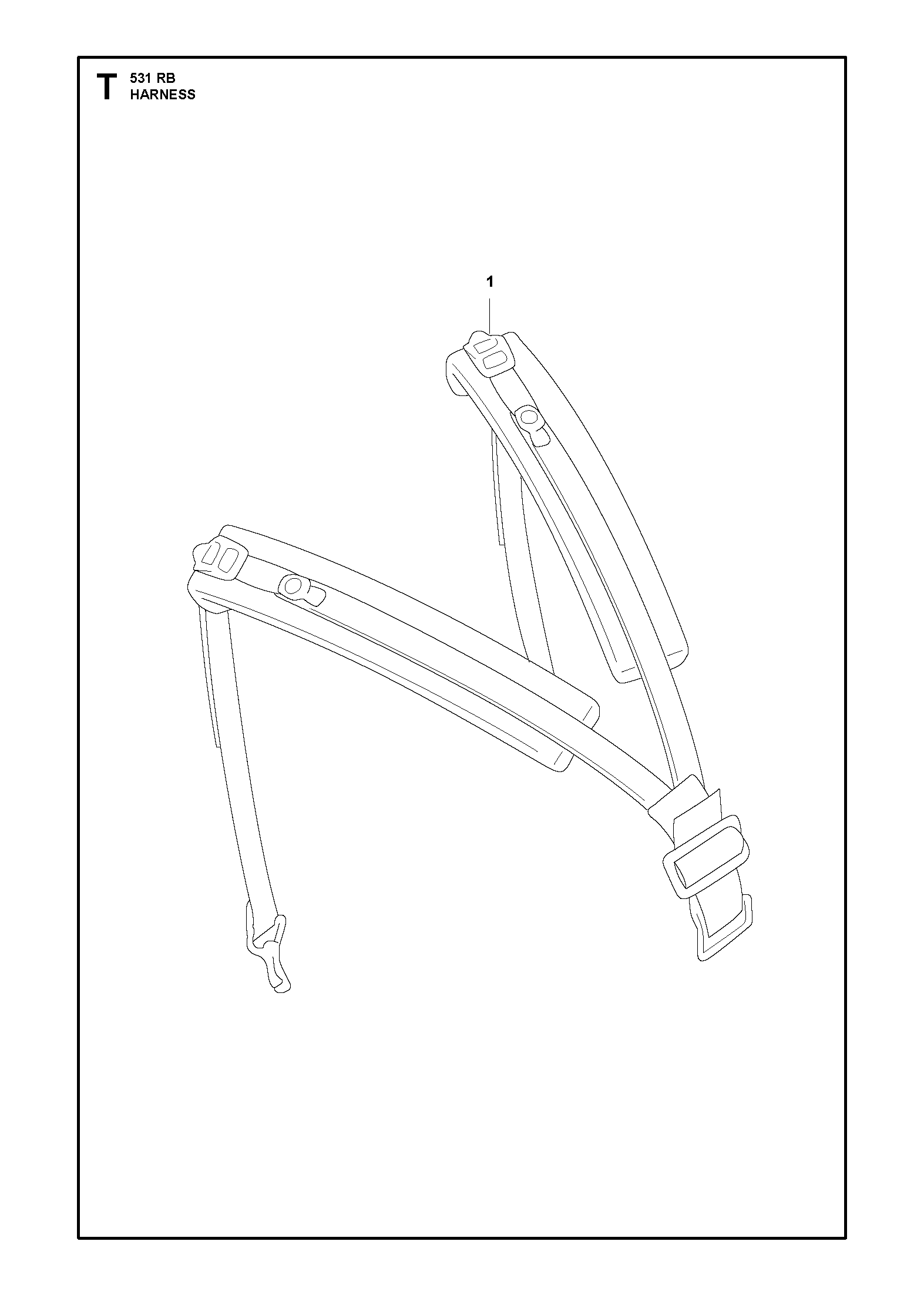

Harness

Husqvarna Harness

502022801·
To Order
£15.10inc. VAT
Screw

Husqvarna Screw

530015886·
To Order
£5.55inc. VAT
Gasket

Husqvarna Gasket

504130906·
To Order
£5.45inc. VAT
Starter Rope Kit

Husqvarna Starter Rope Kit

530069232·
To Order
£6.70inc. VAT

Husqvarna Screw

530015849·
To Order
£5.55inc. VAT
Locking Nut

Husqvarna Locking Nut

537543901·
To Order
£3.95inc. VAT
Diaphragm Pump

Husqvarna Diaphragm Pump

502213601·
To Order
£9.95inc. VAT
Throttle Trigger

Husqvarna Throttle Trigger

502199201·
To Order
£7.85inc. VAT
Switch

Husqvarna Switch

503718201·
To Order
£14.85inc. VAT
Harness

Husqvarna Harness

537216201·
To Order
£28.90inc. VAT
Recoil Spring

Husqvarna Recoil Spring

503794101·
To Order
£5.55inc. VAT
Stop

Husqvarna Stop

502285901·
To Order
£6.15inc. VAT
