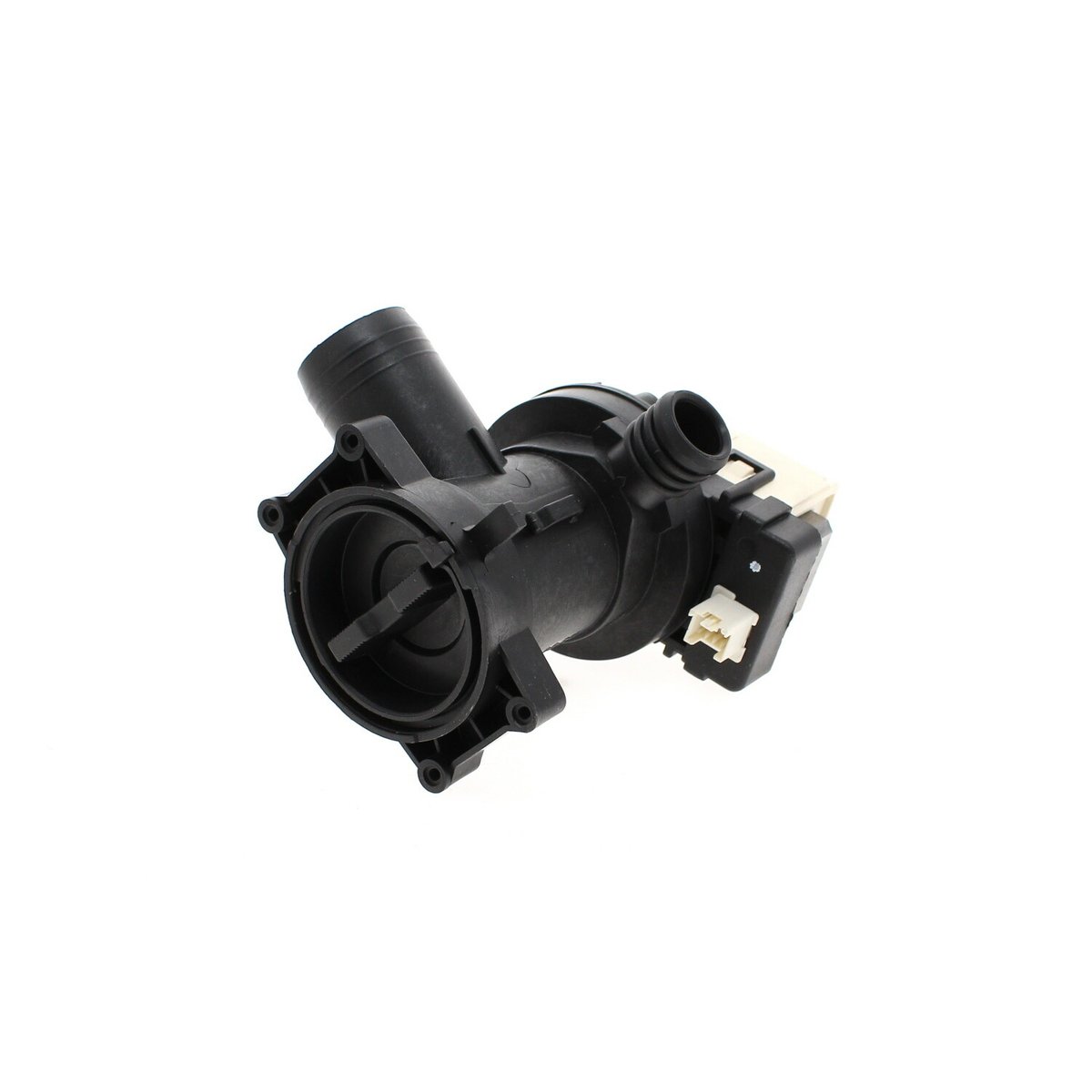

Whirlpool Washing Machine Drain Pump And Filter592994

Name: Whirlpool Washing Machine Drain Pump And Filter
Brand: Whirlpool
SKU: 592994
Price: 16.80 GBP
Availability: InStock

Suitable for Whirlpool, Bauknecht, Hanseatic, Hotpoint, Ignis

Stock Code: 1014624

£16.80inc. VAT

£14.00 ex. VAT

In Stock

Next Day Delivery Available

Moderate DIY repair

A confident home repairer can do this with basic tools.

Compatibility Check

Brand

Model Number

What this part does

Pumps the waste water out and traps debris before it reaches the pump.

Will this fix my appliance?

Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.

Error codes related to this part

Error codes are model dependent, so the same brand may have more than one listed.

Code	Brand	What it means	Confidence
F11	Hotpoint	Means a pump circuit fault, where the machine cannot drain water. It is usually caused by a blockage in the filter, a faulty drain pump, or faulty wiring.	High
F17	Hotpoint	Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.	Medium
F5	Hotpoint	Means a drainage failure, where the machine cannot empty water and often leaves clothes wet. It is usually caused by a blockage in the pump filter, the drain hose, or the plumbing.	High
E1	Whirlpool	Means a long drain error where the machine is taking too long to empty water, or a water inlet fault, shown as E1, F9, or E1F9. It is usually caused by a clogged drain pump filter, a kinked drain hose, or low water pressure.	High
F2	Whirlpool	Means a drainage failure where the washer takes over 8 minutes to drain water, or a water level sensor fault, displayed as F02 or F2E3. It is usually caused by a clogged pump filter, a kinked drain hose, or a faulty drain pump.	High
F21	Whirlpool	Means a long drain condition where the washer is taking too long to drain water. It is usually caused by a clogged drain pump filter, a kinked hose, or a faulty pump.	High
F4	Whirlpool	Means a drainage fault shown as F4E4, a door lock fault shown as F4E1, or a heating element failure on certain front-load models. It is usually caused by a clogged pump filter, a restricted drain hose, a faulty drain pump, or a door lock fault.	High
F8E3	Whirlpool	Means an overflow or excessive water detection where the washer has too much water or foam and activates the drain pump to prevent flooding. It is usually caused by a faulty pressure sensor, a clogged drain pump, or excessive detergent use.	Medium
F9	Whirlpool	Means a long drain error where the washer cannot drain water within the expected time, usually over 8 minutes, shown as F9 E1. It is usually caused by a clogged drain pump filter, a kinked or blocked drain hose, or a faulty drain pump.	High
F9E1	Whirlpool	Means a long drain error where the washer cannot drain water fast enough or at all. It is usually caused by a blocked drain pump filter, a kinked hose, or a failing pump.	High

F11High

Hotpoint

Means a pump circuit fault, where the machine cannot drain water. It is usually caused by a blockage in the filter, a faulty drain pump, or faulty wiring.

F17Medium

Hotpoint

Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.

F5High

Hotpoint

Means a drainage failure, where the machine cannot empty water and often leaves clothes wet. It is usually caused by a blockage in the pump filter, the drain hose, or the plumbing.

E1High

Whirlpool

Means a long drain error where the machine is taking too long to empty water, or a water inlet fault, shown as E1, F9, or E1F9. It is usually caused by a clogged drain pump filter, a kinked drain hose, or low water pressure.

F2High

Whirlpool

Means a drainage failure where the washer takes over 8 minutes to drain water, or a water level sensor fault, displayed as F02 or F2E3. It is usually caused by a clogged pump filter, a kinked drain hose, or a faulty drain pump.

F21High

Whirlpool

Means a long drain condition where the washer is taking too long to drain water. It is usually caused by a clogged drain pump filter, a kinked hose, or a faulty pump.

F4High

Whirlpool

Means a drainage fault shown as F4E4, a door lock fault shown as F4E1, or a heating element failure on certain front-load models. It is usually caused by a clogged pump filter, a restricted drain hose, a faulty drain pump, or a door lock fault.

F8E3Medium

Whirlpool

Means an overflow or excessive water detection where the washer has too much water or foam and activates the drain pump to prevent flooding. It is usually caused by a faulty pressure sensor, a clogged drain pump, or excessive detergent use.

F9High

Whirlpool

Means a long drain error where the washer cannot drain water within the expected time, usually over 8 minutes, shown as F9 E1. It is usually caused by a clogged drain pump filter, a kinked or blocked drain hose, or a faulty drain pump.

F9E1High

Whirlpool

Means a long drain error where the washer cannot drain water fast enough or at all. It is usually caused by a blocked drain pump filter, a kinked hose, or a failing pump.

Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.

Fitting Guidance

Medium

General fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.

Safety: Switch off and unplug at the mains before you start.

You’ll needScrewdriverPliersTowelShallow tray

Specifications

Part Number: 592994
Alternative Part Numbers: 480111100786, 481010476931, 481010584942, 481236018559
Genuine Spare Part: No
For 481010584942

More Details

This is a high quality drain pump filter set for your wash cycle’s draining phase.

The drain pump filter expels the water out of the machine through the drainage hose.

All the lint, debris, and foreign objects from the laundry water goes through this filter and it keeps them from clogging or damaging the drain pump.

A clean filter means the washing machine works well without drainage problems.

This drain pump and filter set suits Bauknecht, Hanseatic, Hotpoint, Ignis, Laden, Maytag, Miostar (migros), Polar, Privileg, Tegran, V zug, and Whirlpool washing machines.

Before ordering, please verify that this set fits your model using our compatibility checker.
