Indesit

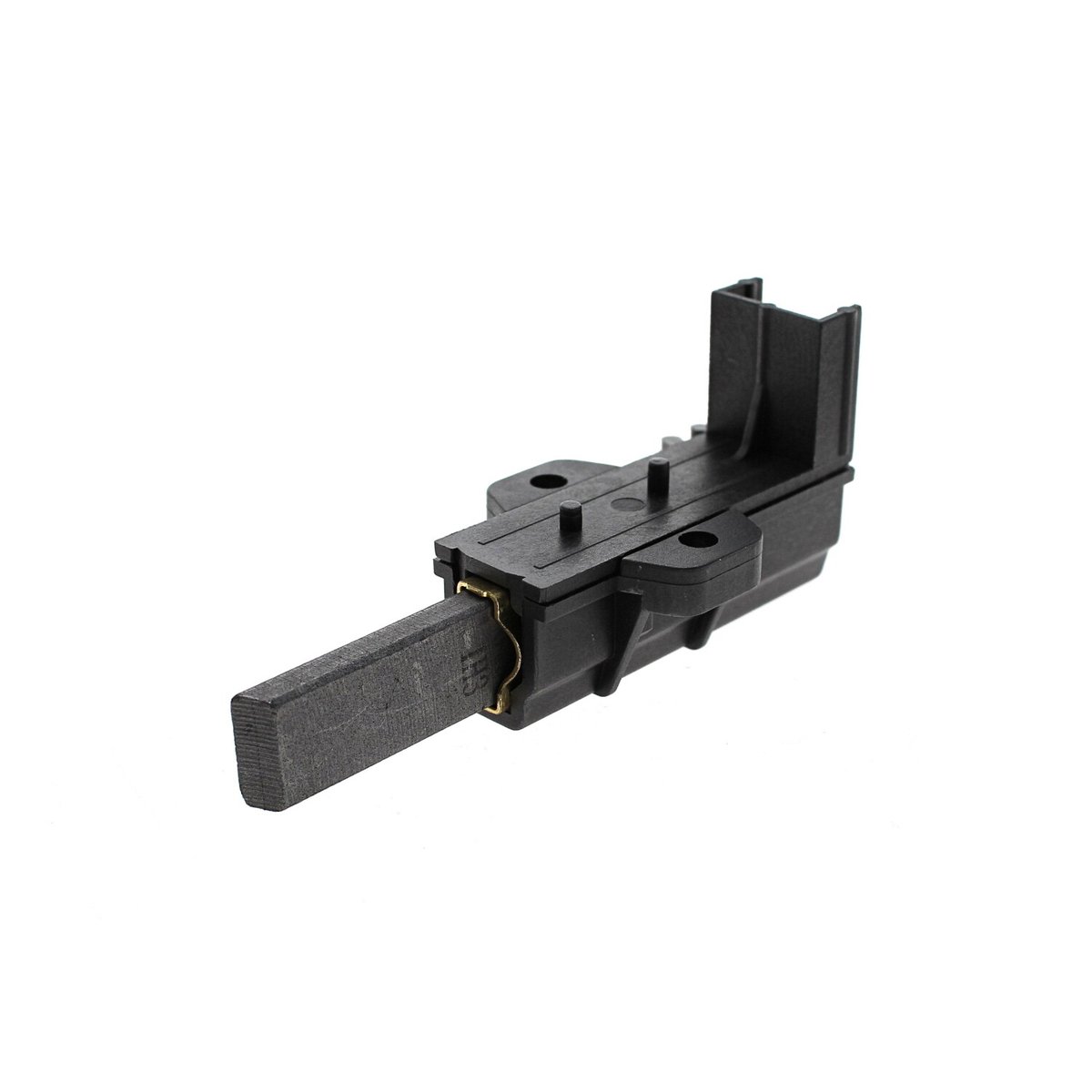

Indesit Washing Machine Carbon BrushC00273898
Suitable for Indesit, Ariston, Hotpoint
Stock Code: 185321
£19.75inc. VAT
£16.46 ex. VAT
Usually dispatched in 5 working days
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Passes current to the spinning part of the motor so it can turn the drum.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
05
Specifications
- Part Number
- C00273898
- EAN / Barcode
- 8055005738986
- Genuine Spare Part
- Yes
06
More Details
What do washing machine carbon brushes do?
Carbon brushes touch the spinning armature, which helps connect all the electrical components and sends power to the drum or pump. The brushes pull double duty, keeping an eye on how fast the motor goes and making sure everything runs smoothly.
It’s one of the commonly replaced parts, and your carbon brushes need to be replaced when they wear down. Damaged carbon brushes give you reduced motor performance, intermittent operation, or even motor failure.
This carbon brush is from Indesit. It also suits Ariston and Hotpoint washing machines. This is a genuine carbon brush for your washing machine motor.
Before ordering, please verify that this set fits your model using our compatibility checker.
07
Video
How to replace washing machine carbon brushes
If you need to replace carbon brushes on your washing machine, we've got the video for you.
The following DIY repair video should assist you in fitting this part. However, the exact procedure may differ depending on your make and model.
Appliance and Part Number:
- Washing machine model used - Hotpoint NSWM743UWUK
- Part number used - RS185321
Need to find a specific part of the video? Use the timestamps below...
- 0:14 - Tools needed
- 0:28 - Lay towels or blanket on floor and put washing machine on its side
- 0:41 - Remove screws and back cover to access the belt and motor unit bolts
- 0:59 - Remove washing machine belt
- 1:11 - Remove motor unit 10mm bolts
- 1:28 - Remove earth connector
- 1:37 - Disconnect block connector
- 1:43 - Slide motor unit out of washing machine
- 1:57 - Showing where the carbon brushes are located
- 2:02 - Remove electrical connector
- 2:07 - Remove 5.5mm bolts holding carbon brush in place
- 2:21 - Remove carbon brushes
- 2:27 - Saying what the carbon brushes do, how they maintain contact and why they need replacing after wearing down
- 2:41 - Attaching new carbon brush
- 2:47 - Re-screwing 5.5mm bolts back in
- 2:54 - Re-connecting electrical connector
- 3:00 - Slide motor unit back onto washing machine drum
- 3:13 - Re-connect earth connector
- 3:17 - Re-connect block connector
- 3:29 - Re-attaching motor unit 10mm bolts
- 3:43 - Re-attaching washing machine belt
- 4:10 - Re-attaching back plate and screws
