Hotpoint

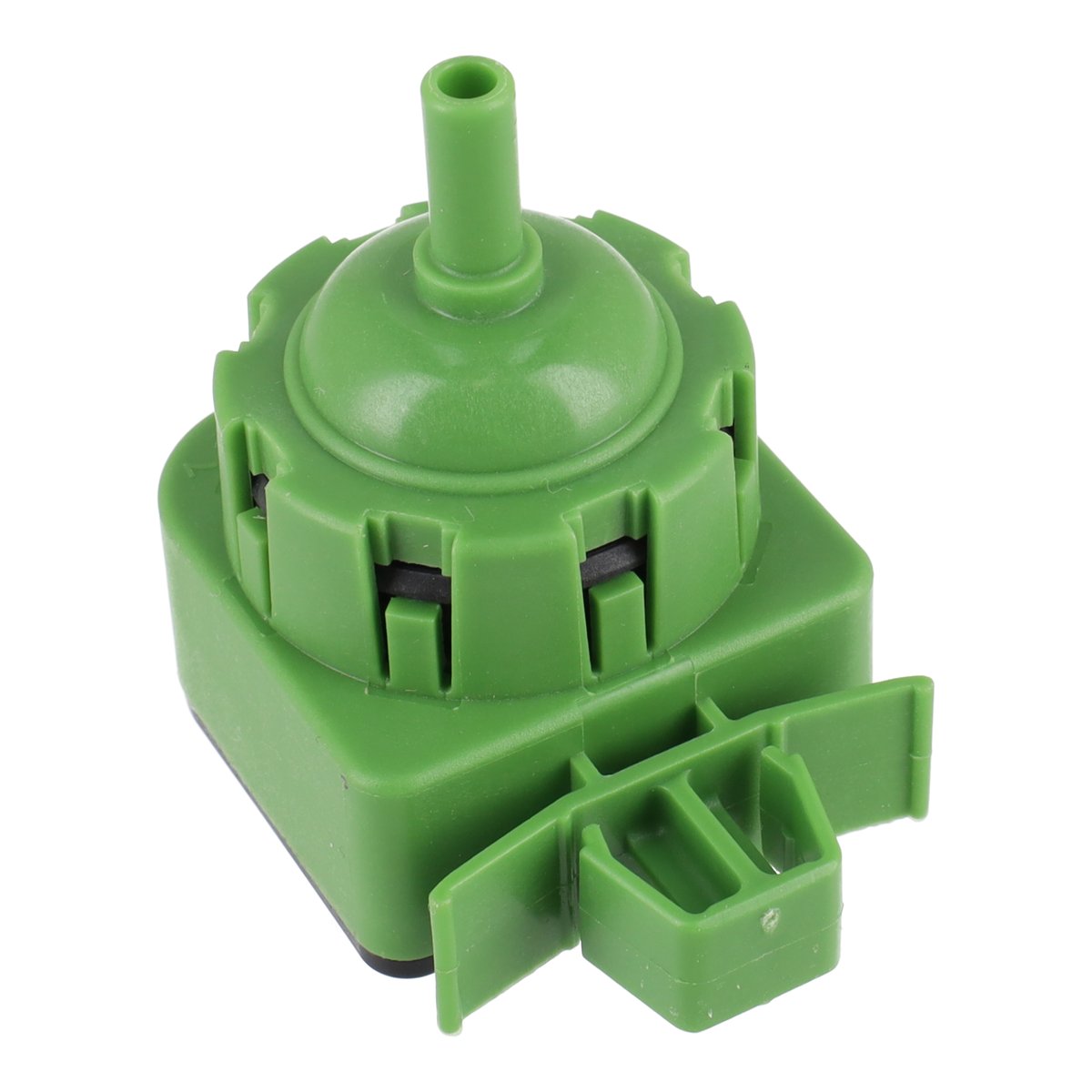

Hotpoint Washing Machine Linear Pressure Switch For C00289362496318
Suitable for Hotpoint, Indesit, Nordmende, Whirlpool
Stock Code: 1014617
£12.75inc. VAT
£10.63 ex. VAT
Usually Despatched Within 3 Days
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Senses the water level in the tub and tells the control board when to start and stop filling.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| A9 | Indesit | Means a water inlet problem, where the machine is not receiving water or not filling sufficiently. It is usually caused by a water inlet fault, a jammed filter, or an open or short circuit on the main wash triac affecting motor control. | Medium |
| E1 | Indesit | Means a water intake failure, where the machine cannot detect enough water in the drum within the allotted time. It is usually caused by a water inlet fault, a valve not closing, or a door lock issue. | Medium |
| F8 | Whirlpool | Means the washer is not detecting the correct amount of incoming water as F8 E1 or Lo FL, while the F08 variant means the heater relay is not being activated. It is usually caused by a water inlet fault, a faulty pressure sensor, a faulty heater relay, or loose module connections. | Medium |
| F8E1 | Whirlpool | Means a long fill or no fill fault where the washer is not detecting enough water entering the tub, also shown as LoFL. It is usually caused by low water pressure, kinked hoses, or clogged inlet screens. | Medium |
A9Medium
Indesit
Means a water inlet problem, where the machine is not receiving water or not filling sufficiently. It is usually caused by a water inlet fault, a jammed filter, or an open or short circuit on the main wash triac affecting motor control.
E1Medium
Indesit
Means a water intake failure, where the machine cannot detect enough water in the drum within the allotted time. It is usually caused by a water inlet fault, a valve not closing, or a door lock issue.
F8Medium
Whirlpool
Means the washer is not detecting the correct amount of incoming water as F8 E1 or Lo FL, while the F08 variant means the heater relay is not being activated. It is usually caused by a water inlet fault, a faulty pressure sensor, a faulty heater relay, or loose module connections.
F8E1Medium
Whirlpool
Means a long fill or no fill fault where the washer is not detecting enough water entering the tub, also shown as LoFL. It is usually caused by low water pressure, kinked hoses, or clogged inlet screens.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- 496318
- Alternative Part Numbers
- 481010906695, C00288973, C00508679
- Genuine Spare Part
- No
