Hotpoint

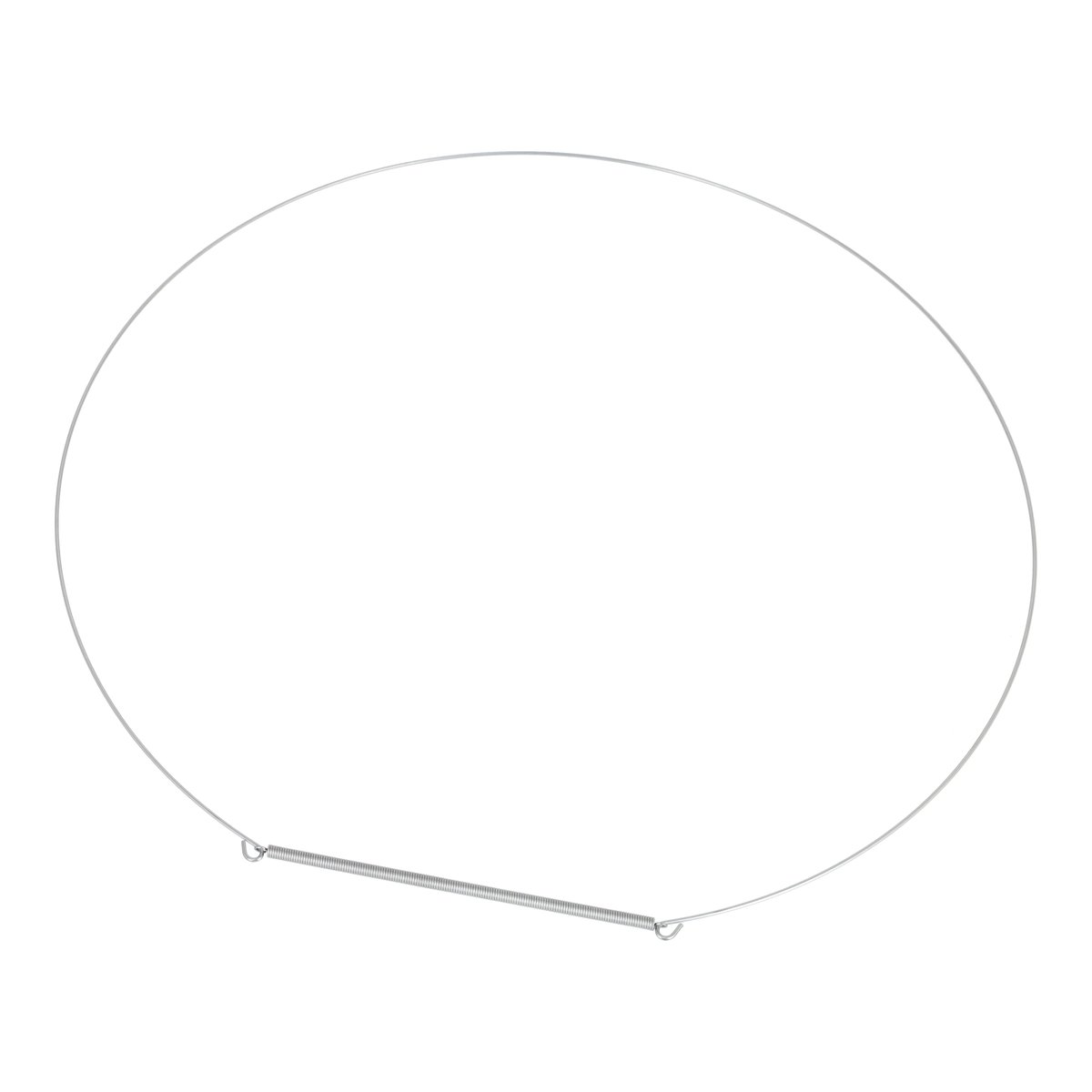

Hotpoint Washing Machine Front Door Seal Clamping Ring Rear481010915290
Suitable for Hotpoint, Ariston, Indesit, Whirlpool
Stock Code: 886510
·
£11.15inc. VAT
£9.29 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Holds the door seal tight against the front panel.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needFlat head screwdriver
- 1
- 2
- 3
- 4
- 5
- 6
05
Specifications
- Part Number
- 481010915290
- Alternative Part Numbers
- C00119209, C00508687
- EAN / Barcode
- 8015250654721
- Genuine Spare Part
- Yes
06
More Details
What is the use of a clamping ring in a washing machine?
A clamping ring holds the tub or drum assembly in place. It also ensures that the inner drum remains stable during the wash and spin cycles to prevent excessive movement or vibration.
Why does it get damaged?
The clamping ring gets damaged when the washing machine is overloaded. It places excessive strain on the ring. Rough handling or impact during transportation or installation can also lead to damage. The continuous agitation and high-speed spinning of the drum contribute to wear and tear on the clamping ring over time.
Are they easy to replace with a new one?
It’s quite simple. See our video tutorial below on how to fit a washing machine clamping ring.
This clamping ring by Hotpoint is a genuine washing machine replacement part. It also fits Ariston, Indesit, and Whirlpool washing machines.
07
Video
How to Fit a Washing Machine Front Door Seal Clamping Ring
If you need to replace the door seal clamping ring on your Hotpoint washing machine, we've got the video for you.
Please note that the following video will give you a guide on how to fit this part, however the exact fitting may differ depending on your make and model.
Appliance and Part Number:
- Washing machine used - Hotpoint NSWM743UWUK
- Part number used - RS886510
Need to find a specific part of the video? Use the timestamps below...
- 0:23 - Removing washing machine lid
- 0:33 - Removing front outer clamping band ring spring
- 0:44 - Removing old door seal ring retaining spring and door seal
- 1:10 - Fitting new door seal ring retaining spring
- 2:03 - Re-fitting outer clamping band ring spring
- 2:57 - Re-fitting washing machine lid
08
Customer Reviews (4)
4.54 reviews
5
2
4
2
3
0
2
0
1
0
Perfect
This clamp is a perfect fit. Can be a bit fiddly to fit. I found it easier to separate one end of the wire/spring then work the wire into the fitting groove of the door seal & then connect the wire/spring back together again.
John britnell · Turriff ·
Quality
Value
Ease of Fitting
Correct part, arrived promptly, watch the video this is challenging to fit
The technician in the video has different hands to me, what took him about 60 seconds took me 60 minutes and I had very sore fingers afterwards when I did the first machine. With assistance it still took about 15 minutes the second time. Wear some suitable gloves.
Nigel Walker · Halifax ·
Quality
Value
Ease of Fitting
FRONT DOOR SEAL CLAMPING RING
The part arrived in good condition. The instructional video showed how to fit the part which proved to be not difficult. Very good service overall.
Nigel Walker · Halifax ·
Quality
Value
Ease of Fitting
Genuine part
Genuine part. Hotpoint. Its a very tight fitting seal. Will take two people to fit this correctly and comfortably. A bit fiddly. Easiest way is to fit the item with your drum out of the machine on a bench .otherwise you may struggle. Took about 30 mins to fit it. However its fitted and is ok . Worth while buying it when ever you change a drum seal
Karl taylor · Redcar ·
Quality
Value
Ease of Fitting
09
Questions & Answers (1)
Is this the inner band that attaches to the drum
Derek William · NEWCASTLE UPON TYNE ·
Hi Derek, I can confirm this is the inner retaining ring.
JordanStaff·
