Hotpoint

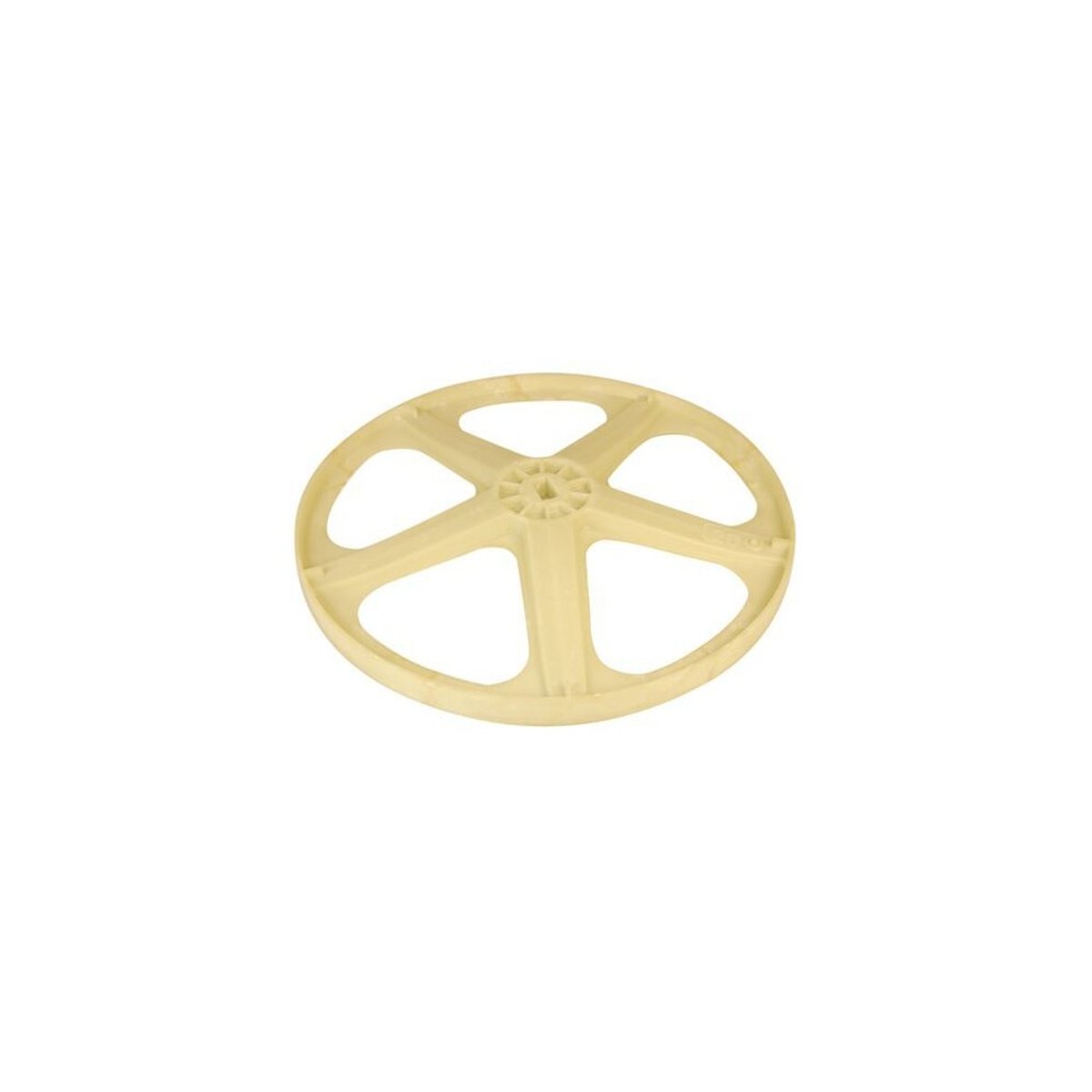

Hotpoint Washing Machine Drum Belt Pulley WheelC00270717
Suitable for Hotpoint, Ariston, Bauknecht, Ignis, Indesit
Stock Code: 184944
£47.00inc. VAT
£39.17 ex. VAT
In Stock
Next Day Delivery Available
01
Compatibility Check
02
Specifications
- Part Number
- C00270717
- Alternative Part Numbers
- 481010914772, C00508684
- EAN / Barcode
- 8055005707173
- Genuine Spare Part
- Yes
03
More Details
What does a Washing Machine Drum Belt Pulley Wheel do?
It’s attached to the back of the drum, linking the motor and drum pulley wheel. When the motor turns on, it rotates and keeps the drum spinning – thoroughly cleaning and rinsing your clothes.
How do you know if your Drum Belt Pulley Wheel is broken or is not working correctly?
Squeaking, screeching, or grinding sounds indicate a worn-out or damaged pulley wheel. Visible signs of wear or damage, such as cracks, chips, or a misshapen appearance on the pulley wheel suggests that you need to change it immediately.
This drum pulley belt wheel is from Hotpoint. It also fits Ariston, Indesit, and Whirlpool washing machines.
This is a genuine drum belt pulley wheel.
Before ordering, please verify that this kit is suitable for your model using our compatibility checker.
04
Video
How to replace a Hotpoint Washing Machine Drum Belt Pulley Wheel
If you need to replace the drum pulley belt wheel on your washing machine, we've got the video for you.
The following DIY repair video should assist you in fitting this part. However, the exact procedure may differ depending on your make and model.
Appliance and Part Number:
- Washing machine model used - Hotpoint NSWM743UWUK
- Part number used - RS184944
Need to find a specific part of the video? Use the timestamps below...
- 0:14 - Tools needed
- 0:28 - Remove screws and rear panel
- 0:43 - Remove washing machine drum belt
- 0:53 - Remove washing machine drum pulley bolt
- 1:12 - Remove old washing machine drum belt pulley wheel
- 1:24 - Install new washing machine drum belt pulley wheel
- 1:31 - Re-install washing machine drum pulley bolt
- 1:54 - Re-install washing machine belt
- 2:31 - Re-attach rear panel and screws
05
Questions & Answers (1)
Does the wheel have grooves in it or is it smooth? The one on my machine is smooth but the belt has ribs
Sam Edwards · Rochester ·
Hi Sam, this pulley is smooth.
JordanStaff·
