Hotpoint

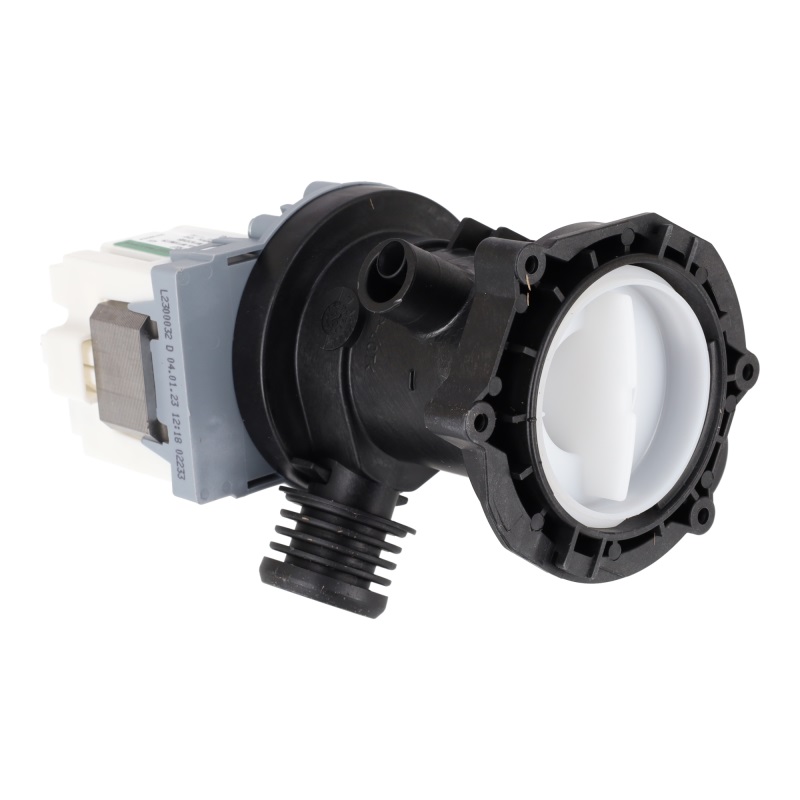

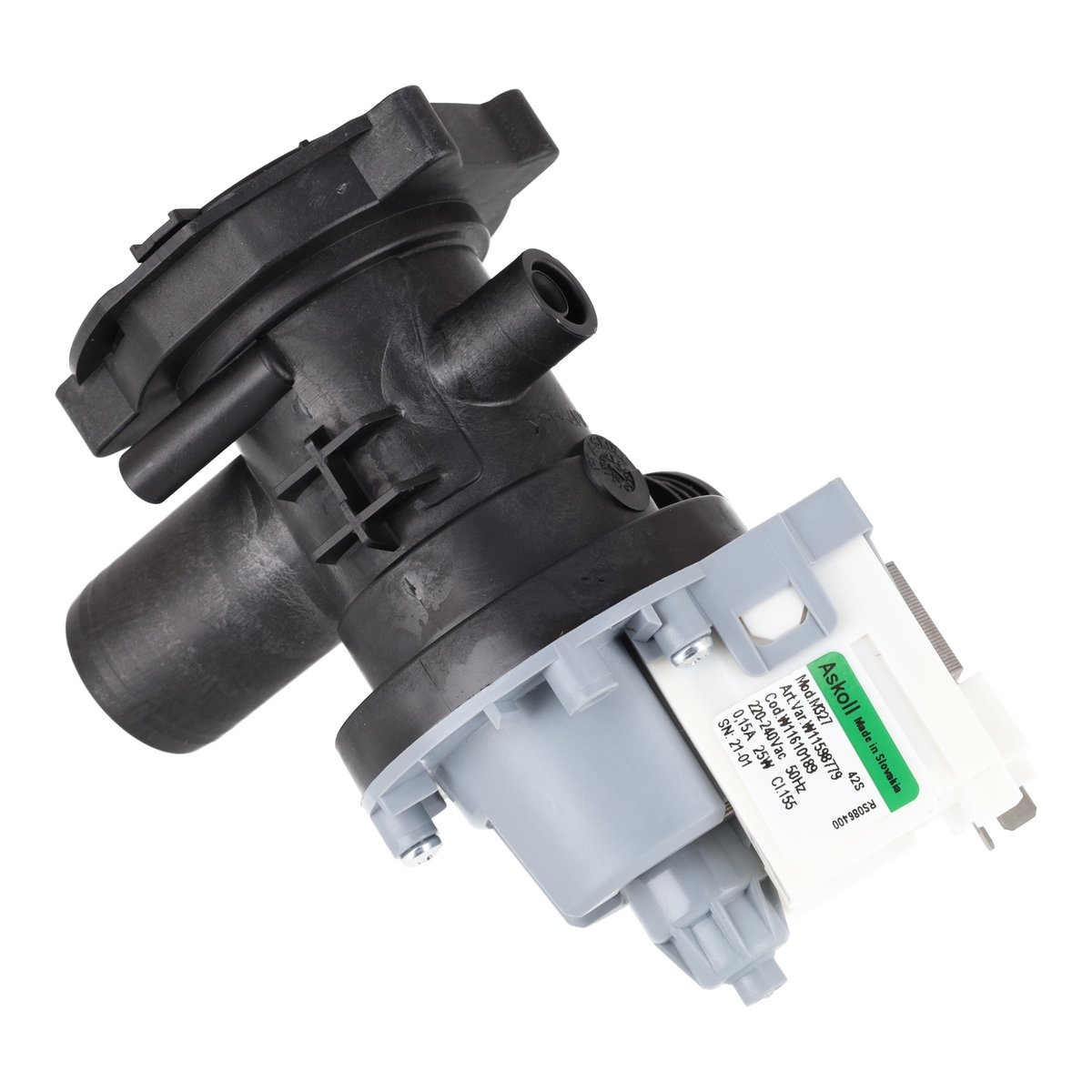

Hotpoint Washing Machine Drain Pump For C00855480388413
Suitable for Hotpoint, Ariston, Creda, Indesit, New World
Stock Code: 1062295
£16.95inc. VAT
£14.13 ex. VAT
Usually dispatched in 5 working days
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Pumps the waste water out and traps debris before it reaches the pump.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F11 | Ariston | Means a pump circuit failure where the machine cannot empty water from the drum because the pump is blocked, faulty, or disconnected. It is usually caused by a blocked or jammed filter, a faulty pump, or a drainage problem. | High |
| F16 | Ariston | Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor. | High |
| F2 | Ariston | Means a drainage issue or a level sensor error. It is usually caused by a blocked drain pump, a kinked drain hose, or a faulty pressure sensor. | High |
| F5 | Ariston | Means a drainage failure where the machine cannot empty water. It is usually caused by a blocked drain filter behind the bottom panel, a kinked hose, or a clogged pump. | High |
| F11 | Hotpoint | Means a pump circuit fault, where the machine cannot drain water. It is usually caused by a blockage in the filter, a faulty drain pump, or faulty wiring. | High |
| F17 | Hotpoint | Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum. | Medium |
| F5 | Hotpoint | Means a drainage failure, where the machine cannot empty water and often leaves clothes wet. It is usually caused by a blockage in the pump filter, the drain hose, or the plumbing. | High |
| A11 | Indesit | Means a serious fault with the drain pump, where the machine cannot communicate with the pump and fails to drain. It is usually caused by a missing or faulty connection in the pump circuit, a faulty pump, a blockage, or a jammed filter. | High |
| F11 | Indesit | Means a drain pump circuit failure, where the machine cannot detect the pump or water is not draining. It is usually caused by a blockage, a faulty pump, or a wiring issue. | High |
| F5 | Indesit | Means a drainage failure, where the machine cannot empty water and stops mid-cycle with water inside. It is usually caused by a blocked filter, an obstructed drain hose, or a jammed pump impeller from coins, debris, or lint buildup. | High |
| E1 | Whirlpool | Means a long drain error where the machine is taking too long to empty water, or a water inlet fault, shown as E1, F9, or E1F9. It is usually caused by a clogged drain pump filter, a kinked drain hose, or low water pressure. | High |
| F2 | Whirlpool | Means a drainage failure where the washer takes over 8 minutes to drain water, or a water level sensor fault, displayed as F02 or F2E3. It is usually caused by a clogged pump filter, a kinked drain hose, or a faulty drain pump. | High |
| F21 | Whirlpool | Means a long drain condition where the washer is taking too long to drain water. It is usually caused by a clogged drain pump filter, a kinked hose, or a faulty pump. | High |
| F4 | Whirlpool | Means a drainage fault shown as F4E4, a door lock fault shown as F4E1, or a heating element failure on certain front-load models. It is usually caused by a clogged pump filter, a restricted drain hose, a faulty drain pump, or a door lock fault. | High |
| F8E3 | Whirlpool | Means an overflow or excessive water detection where the washer has too much water or foam and activates the drain pump to prevent flooding. It is usually caused by a faulty pressure sensor, a clogged drain pump, or excessive detergent use. | Medium |
| F9 | Whirlpool | Means a long drain error where the washer cannot drain water within the expected time, usually over 8 minutes, shown as F9 E1. It is usually caused by a clogged drain pump filter, a kinked or blocked drain hose, or a faulty drain pump. | High |
| F9E1 | Whirlpool | Means a long drain error where the washer cannot drain water fast enough or at all. It is usually caused by a blocked drain pump filter, a kinked hose, or a failing pump. | High |
F11High
Ariston
Means a pump circuit failure where the machine cannot empty water from the drum because the pump is blocked, faulty, or disconnected. It is usually caused by a blocked or jammed filter, a faulty pump, or a drainage problem.
F16High
Ariston
Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor.
F2High
Ariston
Means a drainage issue or a level sensor error. It is usually caused by a blocked drain pump, a kinked drain hose, or a faulty pressure sensor.
F5High
Ariston
Means a drainage failure where the machine cannot empty water. It is usually caused by a blocked drain filter behind the bottom panel, a kinked hose, or a clogged pump.
F11High
Hotpoint
Means a pump circuit fault, where the machine cannot drain water. It is usually caused by a blockage in the filter, a faulty drain pump, or faulty wiring.
F17Medium
Hotpoint
Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.
F5High
Hotpoint
Means a drainage failure, where the machine cannot empty water and often leaves clothes wet. It is usually caused by a blockage in the pump filter, the drain hose, or the plumbing.
A11High
Indesit
Means a serious fault with the drain pump, where the machine cannot communicate with the pump and fails to drain. It is usually caused by a missing or faulty connection in the pump circuit, a faulty pump, a blockage, or a jammed filter.
F11High
Indesit
Means a drain pump circuit failure, where the machine cannot detect the pump or water is not draining. It is usually caused by a blockage, a faulty pump, or a wiring issue.
F5High
Indesit
Means a drainage failure, where the machine cannot empty water and stops mid-cycle with water inside. It is usually caused by a blocked filter, an obstructed drain hose, or a jammed pump impeller from coins, debris, or lint buildup.
E1High
Whirlpool
Means a long drain error where the machine is taking too long to empty water, or a water inlet fault, shown as E1, F9, or E1F9. It is usually caused by a clogged drain pump filter, a kinked drain hose, or low water pressure.
F2High
Whirlpool
Means a drainage failure where the washer takes over 8 minutes to drain water, or a water level sensor fault, displayed as F02 or F2E3. It is usually caused by a clogged pump filter, a kinked drain hose, or a faulty drain pump.
F21High
Whirlpool
Means a long drain condition where the washer is taking too long to drain water. It is usually caused by a clogged drain pump filter, a kinked hose, or a faulty pump.
F4High
Whirlpool
Means a drainage fault shown as F4E4, a door lock fault shown as F4E1, or a heating element failure on certain front-load models. It is usually caused by a clogged pump filter, a restricted drain hose, a faulty drain pump, or a door lock fault.
F8E3Medium
Whirlpool
Means an overflow or excessive water detection where the washer has too much water or foam and activates the drain pump to prevent flooding. It is usually caused by a faulty pressure sensor, a clogged drain pump, or excessive detergent use.
F9High
Whirlpool
Means a long drain error where the washer cannot drain water within the expected time, usually over 8 minutes, shown as F9 E1. It is usually caused by a clogged drain pump filter, a kinked or blocked drain hose, or a faulty drain pump.
F9E1High
Whirlpool
Means a long drain error where the washer cannot drain water fast enough or at all. It is usually caused by a blocked drain pump filter, a kinked hose, or a failing pump.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriverPliersTowelShallow tray
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- 388413
- Alternative Part Numbers
- 1605497, 481010920893, 482000090246, C00044998
- Genuine Spare Part
- No
