Genuine Part

Hotpoint

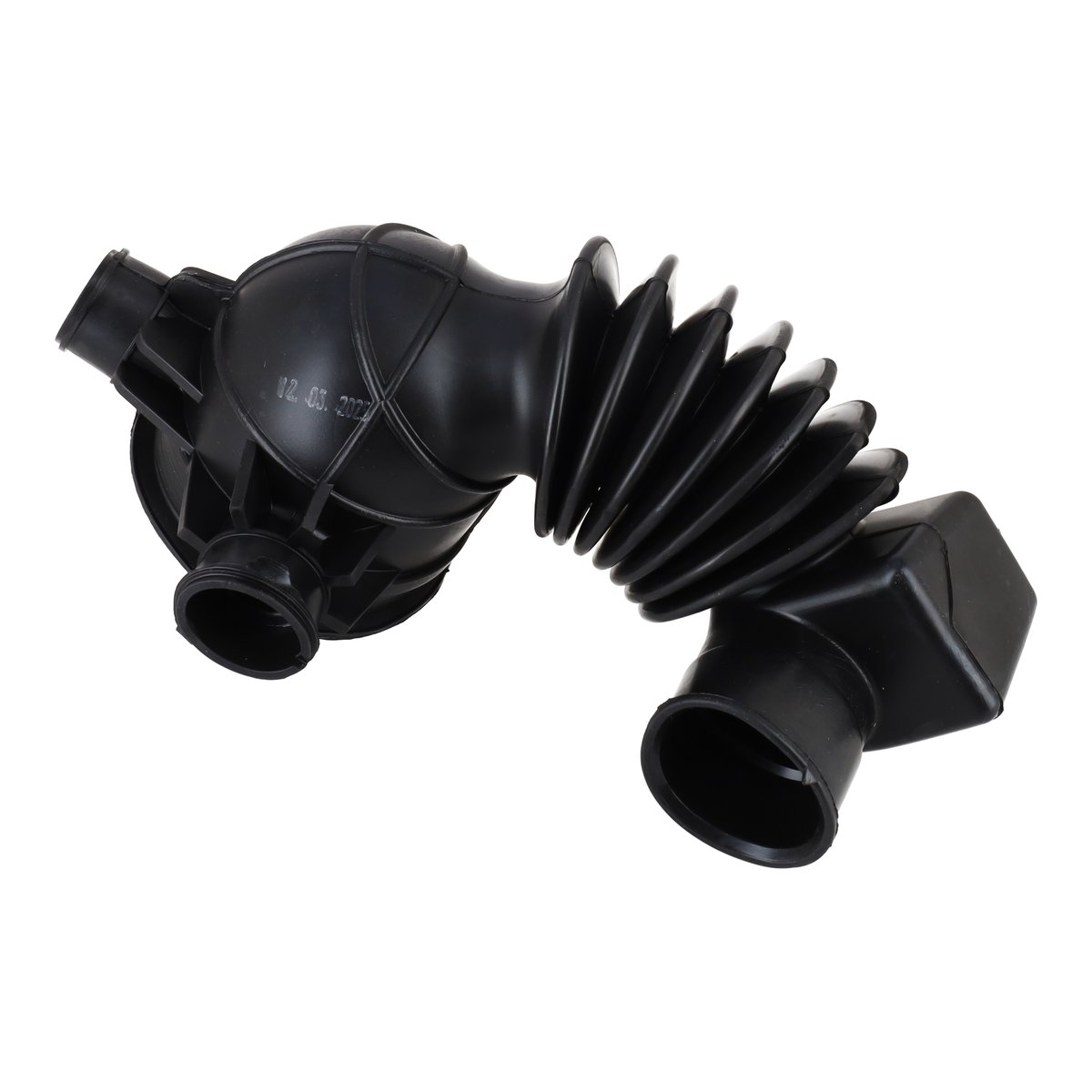

Hotpoint Washing Machine Drain Hose Drum To Pump Sump PipeC00624609

Suitable for Hotpoint, Ariston, Bauknecht, Ignis

Stock Code: 891676

£16.00inc. VAT

£13.33 ex. VAT

Out of stock

Moderate DIY repair

A confident home repairer can do this with basic tools.

Compatibility Check

Brand

Model Number

What this part does

Carries water from the bottom of the tub to the drain pump.

Will this fix my appliance?

Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.

Error codes related to this part

Error codes are model dependent, so the same brand may have more than one listed.

Code	Brand	What it means	Confidence
F11	Ariston	Means a pump circuit failure where the machine cannot empty water from the drum because the pump is blocked, faulty, or disconnected. It is usually caused by a blocked or jammed filter, a faulty pump, or a drainage problem.	High
F16	Ariston	Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor.	High
F2	Ariston	Means a drainage issue or a level sensor error. It is usually caused by a blocked drain pump, a kinked drain hose, or a faulty pressure sensor.	High
F5	Ariston	Means a drainage failure where the machine cannot empty water. It is usually caused by a blocked drain filter behind the bottom panel, a kinked hose, or a clogged pump.	High
F11	Hotpoint	Means a pump circuit fault, where the machine cannot drain water. It is usually caused by a blockage in the filter, a faulty drain pump, or faulty wiring.	High
F17	Hotpoint	Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.	Medium
F5	Hotpoint	Means a drainage failure, where the machine cannot empty water and often leaves clothes wet. It is usually caused by a blockage in the pump filter, the drain hose, or the plumbing.	High

F11High

Ariston

Means a pump circuit failure where the machine cannot empty water from the drum because the pump is blocked, faulty, or disconnected. It is usually caused by a blocked or jammed filter, a faulty pump, or a drainage problem.

F16High

Ariston

Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor.

F2High

Ariston

Means a drainage issue or a level sensor error. It is usually caused by a blocked drain pump, a kinked drain hose, or a faulty pressure sensor.

F5High

Ariston

Means a drainage failure where the machine cannot empty water. It is usually caused by a blocked drain filter behind the bottom panel, a kinked hose, or a clogged pump.

F11High

Hotpoint

Means a pump circuit fault, where the machine cannot drain water. It is usually caused by a blockage in the filter, a faulty drain pump, or faulty wiring.

F17Medium

Hotpoint

Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.

F5High

Hotpoint

Means a drainage failure, where the machine cannot empty water and often leaves clothes wet. It is usually caused by a blockage in the pump filter, the drain hose, or the plumbing.

Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.

Fitting Guidance

Medium

General fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.

Safety: Switch off and unplug at the mains before you start.

You’ll needScrewdriverPliers

Specifications

Part Number: C00624609
Alternative Part Numbers: C00532799
EAN / Barcode: 8015250888348
Genuine Spare Part: Yes
