Hotpoint

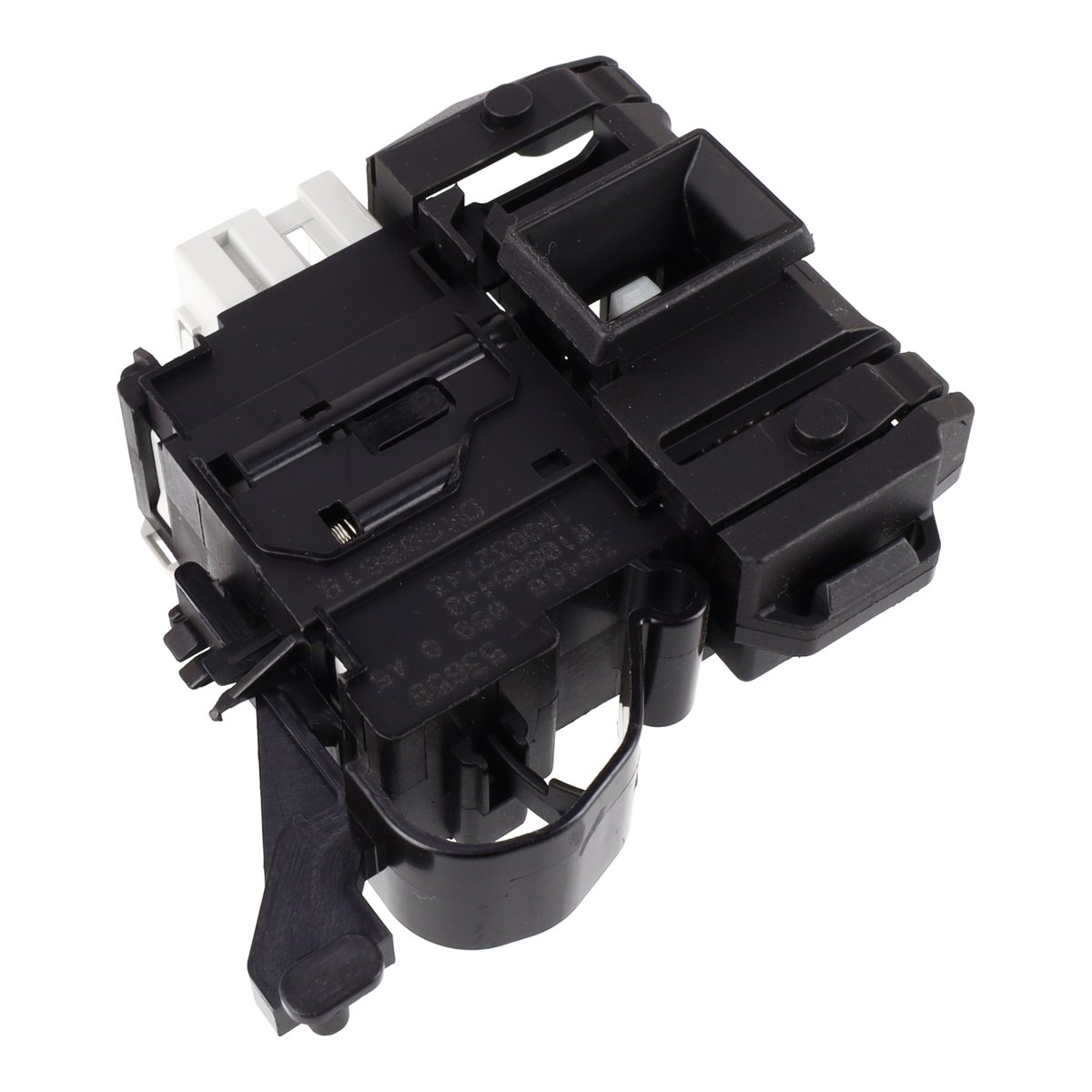

Hotpoint Washing Machine Door Interlock Switch Lock481010885440
Suitable for Hotpoint, Ariston, Bauknecht, Ignis, Indesit
Stock Code: 887883
·
£15.65inc. VAT
£13.04 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Locks the door shut while the cycle is running.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F16 | Ariston | Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor. | Medium |
| F6 | Ariston | Means the machine cannot detect that the door is closed and secured, preventing the cycle from starting. It is usually caused by a faulty door lock mechanism, wiring issues, or obstructions. | High |
| F17 | Hotpoint | Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum. | High |
| F6 | Hotpoint | Means a door lock fault that often prevents the door opening or the machine starting. It is usually caused by a failed door interlock mechanism, wiring issues, or a faulty motor control unit. | High |
| F17 | Indesit | Means a door lock or interlock failure, where the machine cannot detect that the door is securely closed. It is usually caused by a faulty door lock or interlock. | High |
| F13 | Whirlpool | Means a door lock fault, and on washer-dryer models a dryer temperature sensing error. It is usually caused by a faulty door lock mechanism, loose wiring, or a faulty control board. | High |
| F22 | Whirlpool | Means a door lock failure where the washer has failed to lock the door multiple times or cannot unlock it. It is usually caused by a faulty door lock assembly, an overloaded drum, or a faulty central control unit. | High |
| F5 | Whirlpool | Means a door lock or lid lock fault where the machine cannot detect that the door is locking properly. It is usually caused by an obstruction in the latch or a misaligned door. | High |
| F5E2 | Whirlpool | Means a lid lock or door lock fault where the machine cannot detect that the door is securely locked. It is usually caused by an obstruction, a misaligned door, or a failed door lock assembly. | High |
| F5E3 | Whirlpool | Means a door or lid lock failure where the washer cannot detect that the door is securely closed and locked. It is usually caused by a faulty latch mechanism, a mechanical obstruction, or a control board glitch. | High |
F16Medium
Ariston
Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor.
F6High
Ariston
Means the machine cannot detect that the door is closed and secured, preventing the cycle from starting. It is usually caused by a faulty door lock mechanism, wiring issues, or obstructions.
F17High
Hotpoint
Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.
F6High
Hotpoint
Means a door lock fault that often prevents the door opening or the machine starting. It is usually caused by a failed door interlock mechanism, wiring issues, or a faulty motor control unit.
F17High
Indesit
Means a door lock or interlock failure, where the machine cannot detect that the door is securely closed. It is usually caused by a faulty door lock or interlock.
F13High
Whirlpool
Means a door lock fault, and on washer-dryer models a dryer temperature sensing error. It is usually caused by a faulty door lock mechanism, loose wiring, or a faulty control board.
F22High
Whirlpool
Means a door lock failure where the washer has failed to lock the door multiple times or cannot unlock it. It is usually caused by a faulty door lock assembly, an overloaded drum, or a faulty central control unit.
F5High
Whirlpool
Means a door lock or lid lock fault where the machine cannot detect that the door is locking properly. It is usually caused by an obstruction in the latch or a misaligned door.
F5E2High
Whirlpool
Means a lid lock or door lock fault where the machine cannot detect that the door is securely locked. It is usually caused by an obstruction, a misaligned door, or a failed door lock assembly.
F5E3High
Whirlpool
Means a door or lid lock failure where the washer cannot detect that the door is securely closed and locked. It is usually caused by a faulty latch mechanism, a mechanical obstruction, or a control board glitch.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needFlat head screwdriverScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- 481010885440
- Alternative Part Numbers
- C00508660, C00510057, C00516606, C00536021
- EAN / Barcode
- 8015250654837
- Genuine Spare Part
- Yes
07
More Details
How do the locks on your washing machine door work?
The interlock activates when the door is shut, establishing a safe connection that enables the machine to turn on and run safely. This device stops the door from opening while the wash or spin cycles are running, safeguarding you from potential mishaps and ensuring the machine runs smoothly.
When should you replace your door interlock?
If you discover that the door of your washing machine won't lock securely or won't latch shut, it can be a sign that the interlock is broken or worn out. The door interlock may be to blame if the machine refuses to start or stops intermittently mid-cycle.
Would this fit on my washing machine door?
This door interlock is a genuine Hoover washing machine replacement part. It also fits Indesit and Whirlpool washing machines. Use our compatibility checker to see if this part fits your model.
08
Video
How to Replace a Washing Machine Door Lock
If you need to replace the door interlock switch lock on your washing machine, we've got the video for you.
The following DIY repair video should assist you in fitting this part. However, the exact procedure may differ depending on your make and model.
Appliance and Part Number:
- Washing machine model used - Hotpoint NSWM743UWUK
- Part number used - RS887883
Need to find a specific part of the video? Use the timestamps below...
- 0:14 - Tools needed
- 0:30 - Remove outer retaining band from door seal
- 0:48 - Lift door seal away from washing machine
- 0:56 - Remove old interlock switch lock
- 1:04 - Remove wiring from old interlock switch lock
- 1:14 - Attach wiring to new interlock switch lock
- 1:20 - Attach new door interlock switch lock to washing machine
- 1:39 - Re-attach door seal to washing machine lip
- 2:00 - Re-attach outer retaining band
09
Customer Reviews (5)
4.85 reviews
5
4
4
1
3
0
2
0
1
0
Good service and Easy to fit
Easy to order, received quickly and easy to fit.......
Christopher Chambers · Mablethorpe ·
Quality
Value
Ease of Fitting
Great and easy and super service
Really amazing service. Dispatched within hours. Arrived next day. Part was perfect. Easy to fit. Saved a fortune!
Robert Ward · Suffolk ·
Quality
Value
Ease of Fitting
Great product, simple to fit
Great product, easy to fit , rapid delivery so customer not waiting too long
Philip heritage · Bicester ·
Quality
Value
Ease of Fitting
Quality service,
The service received from Ransom spares was brilliant. The part itself is only as good as the manufacturer provide- which is not great quality.
Keith Bendell · Crewkerne ·
Quality
Value
Ease of Fitting
Original part with easy fitting instructions
I was very pleased to receive original branded items, and with the video instructions supplied from Ransom Spares for free, I found it very easy to fit the new door lock. The item was so cheap that I bought 2, so now I have a spare in case this happens again :-) Well done Ransom Spares - 10 out of 10 for customer service. Ps. the items were delivered to Northern Ireland next day! Could not be more pleased.
Robert McElroy · Belfast ·
Quality
Value
Ease of Fitting
10
Questions & Answers (1)
Machine says door is open when its not. Is this the likely cause.
M · Kent ·
Hi, this could be an issued caused by a faulty interlock, however we cannot be 100% sure. I would recommend contacting an engineer to see if they can confirm.
JordanStaff·
