Haier

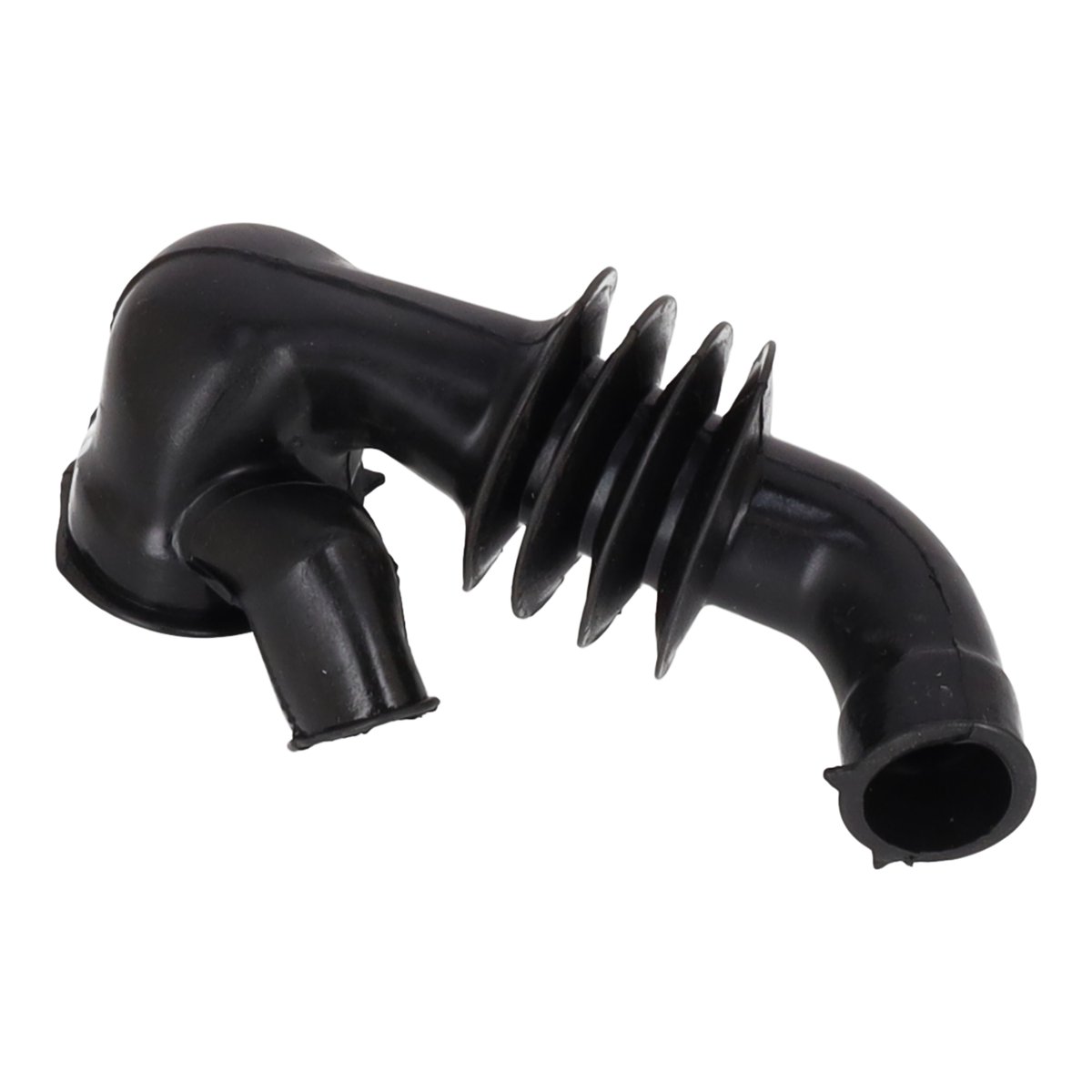

Haier Washing Machine 0020300387A Hose Connecting Cylinder To Pump49046319
Suitable for Haier, Candy, Hoover
Stock Code: 896674
£25.95inc. VAT
£21.63 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Carries water from the bottom of the tub to the drain pump.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E13 | Candy | Means a drainage or water level detection fault. It is usually caused by a blockage in the pump filter, a kinked drain hose, or a malfunctioning pressure switch. | High |
| E18 | Candy | Means a drainage system failure, where the machine cannot empty water efficiently. It is usually caused by a blocked pump filter, a kinked drain hose, or a control board fault. | High |
| E3 | Candy | Means a drainage fault at the drain pump filter at the bottom front of the machine. It is usually caused by a blocked drain pump filter, a kinked drain hose, or a faulty pump motor. | High |
| E1 | Haier | Means the machine cannot empty the water within the allotted time. It is usually caused by a blocked drain hose, a clogged drain pump filter, or improper drain hose installation, with the hose needing to be less than 3m long. | High |
| E8 | Haier | Means the water is not draining properly within the allotted time, or the machine has detected an overfull water level and the pressure sensor has activated. It is usually caused by a clogged drain filter, a kinked hose, or a faulty drain pump. | High |
| F2 | Haier | Means the machine cannot drain water properly, or it has detected a water overflow with the level too high. It is usually caused by a blocked drain filter, an obstructed drain hose, or a faulty drain pump. | High |
| E15 | Hoover | Means a control board failure or corrupted memory chip, or a water leak in the base tray triggering the anti-flood sensor. It is usually caused by a faulty control board or a leak reaching the flood sensor. | Medium |
| E20 | Hoover | Means the machine cannot remove water from the drum. It is usually caused by a blocked pump filter, a kinked or clogged drain hose, or a faulty drain pump. | High |
| E22 | Hoover | Means the machine has not emptied water within the allotted time. It is usually caused by a blocked pump filter, a kinked drain hose, or a faulty drain pump, at times relating to a heating element or water level sensor issue. | High |
| E3 | Hoover | Means the machine cannot empty water from the drum. It is usually caused by a blocked filter, a kinked hose, or a faulty drain pump. | High |
| EA20 | Hoover | Means the machine is failing to empty water from the drum, usually during the drain or spin cycle. It is usually caused by a blockage, a jammed filter, or a faulty drain pump. | High |
E13High
Candy
Means a drainage or water level detection fault. It is usually caused by a blockage in the pump filter, a kinked drain hose, or a malfunctioning pressure switch.
E18High
Candy
Means a drainage system failure, where the machine cannot empty water efficiently. It is usually caused by a blocked pump filter, a kinked drain hose, or a control board fault.
E3High
Candy
Means a drainage fault at the drain pump filter at the bottom front of the machine. It is usually caused by a blocked drain pump filter, a kinked drain hose, or a faulty pump motor.
E1High
Haier
Means the machine cannot empty the water within the allotted time. It is usually caused by a blocked drain hose, a clogged drain pump filter, or improper drain hose installation, with the hose needing to be less than 3m long.
E8High
Haier
Means the water is not draining properly within the allotted time, or the machine has detected an overfull water level and the pressure sensor has activated. It is usually caused by a clogged drain filter, a kinked hose, or a faulty drain pump.
F2High
Haier
Means the machine cannot drain water properly, or it has detected a water overflow with the level too high. It is usually caused by a blocked drain filter, an obstructed drain hose, or a faulty drain pump.
E15Medium
Hoover
Means a control board failure or corrupted memory chip, or a water leak in the base tray triggering the anti-flood sensor. It is usually caused by a faulty control board or a leak reaching the flood sensor.
E20High
Hoover
Means the machine cannot remove water from the drum. It is usually caused by a blocked pump filter, a kinked or clogged drain hose, or a faulty drain pump.
E22High
Hoover
Means the machine has not emptied water within the allotted time. It is usually caused by a blocked pump filter, a kinked drain hose, or a faulty drain pump, at times relating to a heating element or water level sensor issue.
E3High
Hoover
Means the machine cannot empty water from the drum. It is usually caused by a blocked filter, a kinked hose, or a faulty drain pump.
EA20High
Hoover
Means the machine is failing to empty water from the drum, usually during the drain or spin cycle. It is usually caused by a blockage, a jammed filter, or a faulty drain pump.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriverPliers
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 49046319
- EAN / Barcode
- 8057166006010
- Genuine Spare Part
- Yes
