Candy

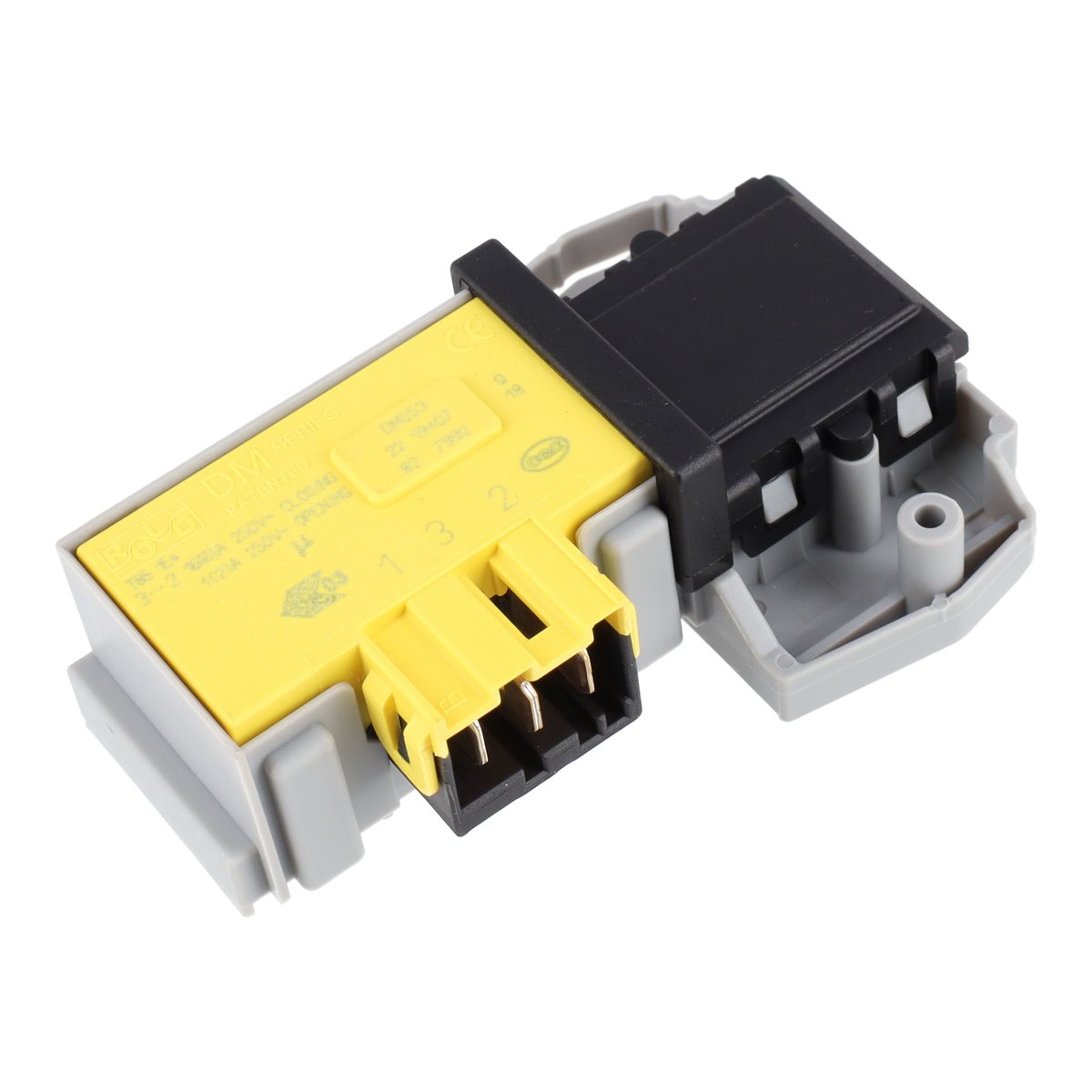

Candy Washing Machine Door Interlock Lock49030389
Suitable for Candy, Arda, Aux, Bauknecht, Baumatic
Stock Code: 123028
·
£8.60inc. VAT
£7.17 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Locks the door shut while the cycle is running.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E1 | Candy | Means a door lock failure, where the machine cannot detect that the door is closed and secure, and on some models a water intake or drain fault. It is usually caused by a faulty door lock or door interlock. | High |
| E7 | Candy | Means a motor fault or a faulty door lock mechanism, appearing when the machine cannot spin or the door fails to lock. It is usually caused by a jammed motor, faulty carbon brushes, a faulty door lock, or a control board fault. | Medium |
| E0 | Haier | Means the machine cannot detect that the top lid or door is shut, either because it was opened during a Delay program or the lid switch is not engaging. It is usually caused by a lid or door left open or a lid switch that is not properly engaging. | High |
| E2 | Haier | Means a door lock error or drainage issue, where the door is not properly closed or the latch is not fully engaged. It is usually caused by a door that is not closing or a latch that is not fully engaging. | High |
| FC1 | Haier | Means a door lock fault preventing cycle start on the HW100-B14636. It is usually caused by a faulty door lock, with the drain hose installation also to be checked. | High |
| E1 | Hoover | Means the machine cannot detect that the door is securely closed and locked, or it fails to drain water within time. It is usually caused by a faulty door lock or interlock, a jammed filter, or a pump not operating. | High |
| E7 | Hoover | Means the machine cannot lock the door to begin a cycle or it detects a faulty motor. It is usually caused by a failed door interlock, a jammed motor, or wiring issues. | High |
E1High
Candy
Means a door lock failure, where the machine cannot detect that the door is closed and secure, and on some models a water intake or drain fault. It is usually caused by a faulty door lock or door interlock.
E7Medium
Candy
Means a motor fault or a faulty door lock mechanism, appearing when the machine cannot spin or the door fails to lock. It is usually caused by a jammed motor, faulty carbon brushes, a faulty door lock, or a control board fault.
E0High
Haier
Means the machine cannot detect that the top lid or door is shut, either because it was opened during a Delay program or the lid switch is not engaging. It is usually caused by a lid or door left open or a lid switch that is not properly engaging.
E2High
Haier
Means a door lock error or drainage issue, where the door is not properly closed or the latch is not fully engaged. It is usually caused by a door that is not closing or a latch that is not fully engaging.
FC1High
Haier
Means a door lock fault preventing cycle start on the HW100-B14636. It is usually caused by a faulty door lock, with the drain hose installation also to be checked.
E1High
Hoover
Means the machine cannot detect that the door is securely closed and locked, or it fails to drain water within time. It is usually caused by a faulty door lock or interlock, a jammed filter, or a pump not operating.
E7High
Hoover
Means the machine cannot lock the door to begin a cycle or it detects a faulty motor. It is usually caused by a failed door interlock, a jammed motor, or wiring issues.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needFlat head screwdriverScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- 49030389
- Alternative Part Numbers
- 00225281, 09201035, 41016879, 41041367
- EAN / Barcode
- 8032767918177
- Genuine Spare Part
- Yes
07
More Details
How does a door interlock function for your washing machine door?
When the door is closed, the interlock engages, creating a secure connection that allows the machine to start and operate safely. This mechanism prevents the door from being opened during the wash or spin cycles, protecting you from potential accidents and ensuring the machine's smooth operation.
When does your door interlock need replacement?
If you find that your washing machine door doesn't lock properly or fails to engage when closed, it could indicate a malfunctioning or worn-out interlock. Once the machine doesn't start or experiences intermittent stopping during cycles, the door interlock might be the culprit.
Would this fit my washing machine door?
This door interlock is a genuine Candy washing machine replacement part.
It also fits Arda, Aux, Bauknecht, Baumatic, Berloni, Brandt, Candy, Caple, Concord, Continental, Continental Edison, Crafft, Cristal, Crop, Daytron, De Dietrich, Detial, Essalem, Euroclean, Falcon, Franke, Frestec, Friac, Frigidaire, Fulgor, Fushishan, Gala, General Electric, German Pool, Heller, Hoover, Hoover-Helkama, House to House, Iberna, Ignis, Jinling, Kelvinator, Korting, Leran, Magna, Mavi, Mayco, Maytag, Meiling, Montpellier, Normende, Orion, Ostein, Otsein, Otsein-Hoover, Pacific, Panda, Philco, Prima, Primotech, Qishuai, Rosieres, SKG, Soliera, Supra, Svago, Teco, Teka, Toshiba, Town Gas, Universe, Victory, Vyatka, Whirlpool Asia, Xingfujiujiu, Xperial, Zerowatt, and Zerowatt-Hoover washing machines.
Use our compatibility checker to see if this part fits your model.
08
Customer Reviews (29)
5.029 reviews
5
28
4
1
3
0
2
0
1
0
Sort by:||
correct part
correct part for washing machine. had no problem in fitting
christopher hobbs · cheltenham ·
Quality
Value
Ease of Fitting
Excellent
Ordered this part and could not fault it. Arrived on time, easy to fit and machine now working like before. Great value for money.
Carrin Mackenzie · Dunfermline ·
Quality
Value
Ease of Fitting
Great product, fast delivery
Website was really easy to use aloud me to select the part using the search tool located the correct part and ordered for next day delivery. Came on time and fitted the part soon as it arrive it was very simple to fit and came with the replacement screw everything I needed to fit. Thank you!
Lucy · Stoke on trent ·
Quality
Value
Ease of Fitting
Excellent Quality
Great product easy of fitting, kept in the loop re delivery
Terry Allbutt · Solihull ·
Quality
Value
Ease of Fitting
Works as intended
Part was easy to install, and works as intended. Good quality
Cristian Lupu · BRIGHTON ·
Quality
Value
Ease of Fitting
09
Questions & Answers (1)
I need to know how can I change the door interlock? thank you in advance.
fada · London ·
Hi Fada, thanks for your message. We have a how-to video showing how to change a washing machine door interlock. This should give you a good idea on what you need to do to replace it.
JordanStaff·
