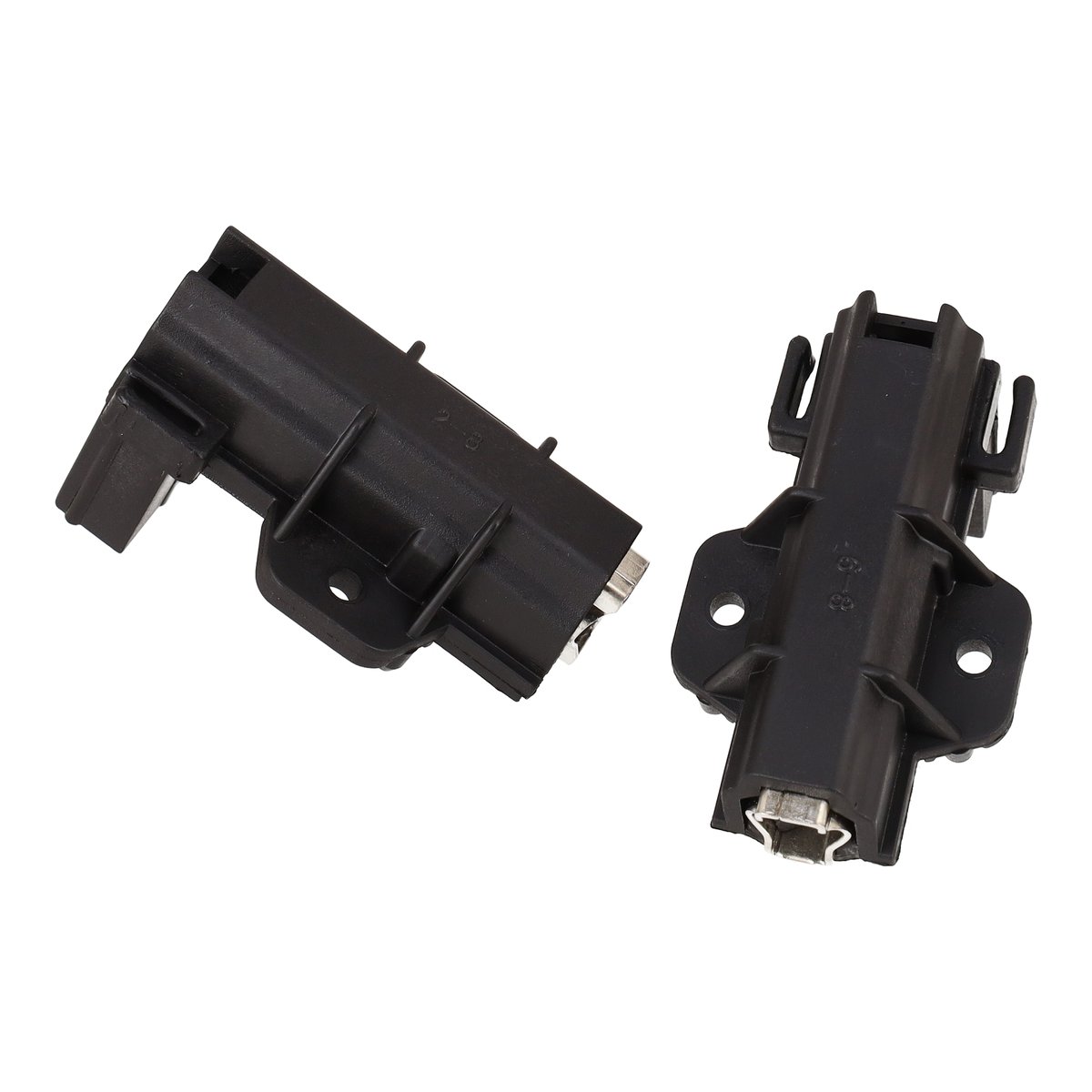

Candy Washing Machine Carbon Brush & Holder Set49028930
Suitable for Candy, Cylinda, Fagor, Friac, Hoover
Stock Code: 123337
£16.45inc. VAT
£13.71 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Passes current to the spinning part of the motor so it can turn the drum.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E17 | Candy | Means a motor tachometer signal fault, where the motor is not turning or spinning properly. It is usually caused by a faulty tachometric dynamo or speed sensor, worn motor carbon brushes, or wiring issues. | High |
| E6 | Candy | Means a motor failure, a faulty door lock, or a motor circuit fault, where the motor is not turning. It is usually caused by a faulty speed sensor or tachometer, a faulty door lock, or a fault in the control board motor drive circuit or triac. | High |
| E7 | Candy | Means a motor fault or a faulty door lock mechanism, appearing when the machine cannot spin or the door fails to lock. It is usually caused by a jammed motor, faulty carbon brushes, a faulty door lock, or a control board fault. | High |
| E8 | Candy | Means a motor or door lock fault that prevents spinning. It is usually caused by a faulty motor, a faulty motor sensor, worn motor brushes, or a faulty door lock. | High |
| E7 | Hoover | Means the machine cannot lock the door to begin a cycle or it detects a faulty motor. It is usually caused by a failed door interlock, a jammed motor, or wiring issues. | Medium |
| E8 | Hoover | Means a serious motor or drive system failure that prevents spinning and stops the machine mid-cycle. It is usually caused by worn carbon brushes, a faulty motor tachometer, or a damaged motor control board. | High |
| E9 | Hoover | Means a motor triac failure on the control board where the machine cannot drive the motor. It is usually caused by a faulty triac, with some models showing this code for a blocked drain filter or a heating element fault. | High |
| EO8 | Hoover | Means a motor circuit malfunction where the washer may not spin, spin too fast, or stop mid-cycle. It is usually caused by worn carbon brushes, a faulty tachometer speed sensor, or a motor control board issue, with overloading contributing. | High |
E17High
Candy
Means a motor tachometer signal fault, where the motor is not turning or spinning properly. It is usually caused by a faulty tachometric dynamo or speed sensor, worn motor carbon brushes, or wiring issues.
E6High
Candy
Means a motor failure, a faulty door lock, or a motor circuit fault, where the motor is not turning. It is usually caused by a faulty speed sensor or tachometer, a faulty door lock, or a fault in the control board motor drive circuit or triac.
E7High
Candy
Means a motor fault or a faulty door lock mechanism, appearing when the machine cannot spin or the door fails to lock. It is usually caused by a jammed motor, faulty carbon brushes, a faulty door lock, or a control board fault.
E8High
Candy
Means a motor or door lock fault that prevents spinning. It is usually caused by a faulty motor, a faulty motor sensor, worn motor brushes, or a faulty door lock.
E7Medium
Hoover
Means the machine cannot lock the door to begin a cycle or it detects a faulty motor. It is usually caused by a failed door interlock, a jammed motor, or wiring issues.
E8High
Hoover
Means a serious motor or drive system failure that prevents spinning and stops the machine mid-cycle. It is usually caused by worn carbon brushes, a faulty motor tachometer, or a damaged motor control board.
E9High
Hoover
Means a motor triac failure on the control board where the machine cannot drive the motor. It is usually caused by a faulty triac, with some models showing this code for a blocked drain filter or a heating element fault.
EO8High
Hoover
Means a motor circuit malfunction where the washer may not spin, spin too fast, or stop mid-cycle. It is usually caused by worn carbon brushes, a faulty tachometer speed sensor, or a motor control board issue, with overloading contributing.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 49028930
- Alternative Part Numbers
- 91212332, 97916670
- EAN / Barcode
- 8032767877184
- Genuine Spare Part
- Yes
07
More Details
This is a genuine carbon brush and holder set for your washing machine motor.
Carbon brushes touch the spinning armature, which helps connect all the electrical components and sends power to the drum or pump.
The brushes pull double duty, keeping an eye on how fast the motor goes and making sure everything runs smoothly while the holder keeps them in place.
One of the commonly replaced parts– carbon brushes need to be replaced when they wear down.
Refer to our video tutorial below on how to fit a carbon brush and its holder.
This carbon brush and holder set is from Candy. You can also check in with the other suitable brands from the list above.
Before ordering, please verify that this set fits your model using our compatibility checker.
08
Video
How to replace Washing Machine Carbon Brushes:
The following DIY repair video should assist you in fitting this part. However the exact procedure may differ depending on your make and model.
Safety Warning - Always unplug from the mains before carrying out any repairs.
09
Customer Reviews (5)
4.85 reviews
5
4
4
1
3
0
2
0
1
0
great product
bought these knowing they where not for my washer, however i knew the carbon brush would fit my plastic case holders, so anyone who has the Hoover washing machine thats dyn8144d1x/1-80 model and you have the E08 error code on the machine then these are the brushes for you, all you need to do is take off the plastic case which is easy fit new brushes to your old plastic cases, the reason if you have not noticed is the locating lugs on these are different and wont fit your motor so swap over and ya back up and running, hope this helps
tom woods · lancashire ·
Quality
Value
Ease of Fitting
simples
Even though i ordered the wrong style of brush. and they didn't fit onto my motor, they were very easy to fit into the old casing. What should have been a 10 minute job took just 20. No engineer call out costs, definitely worth buying.
helen jeffrey · Holywood ·
Quality
Value
Ease of Fitting
Fits Cylinda FT 252
Use the existing plastic parts of the brush holder. The carbon brushes are almost identical to manufacturers original (in dimensions).
Ville · Gnosjö ·
Quality
Value
Ease of Fitting
Adaptable
The brushes listed for my machine were quite expensive and not in stock. I took a chance that the brushes themselves (in the metal sleves) were the same accross the board, and bought these. It didn't take much to adapt them to fit the plastic casings from my machine, and they work fine.
Dr Tim Baugh · Leyrat ·
Quality
Value
Ease of Fitting
Perfect Product
These brushes were exactly as required and fitted perfectly. The motor was transformed and returned to full power as it should be. It was easy to find the required part on the website and processing and delivery was first class.
Mr John Rogers · New Ross ·
Quality
Value
Ease of Fitting
