Bosch

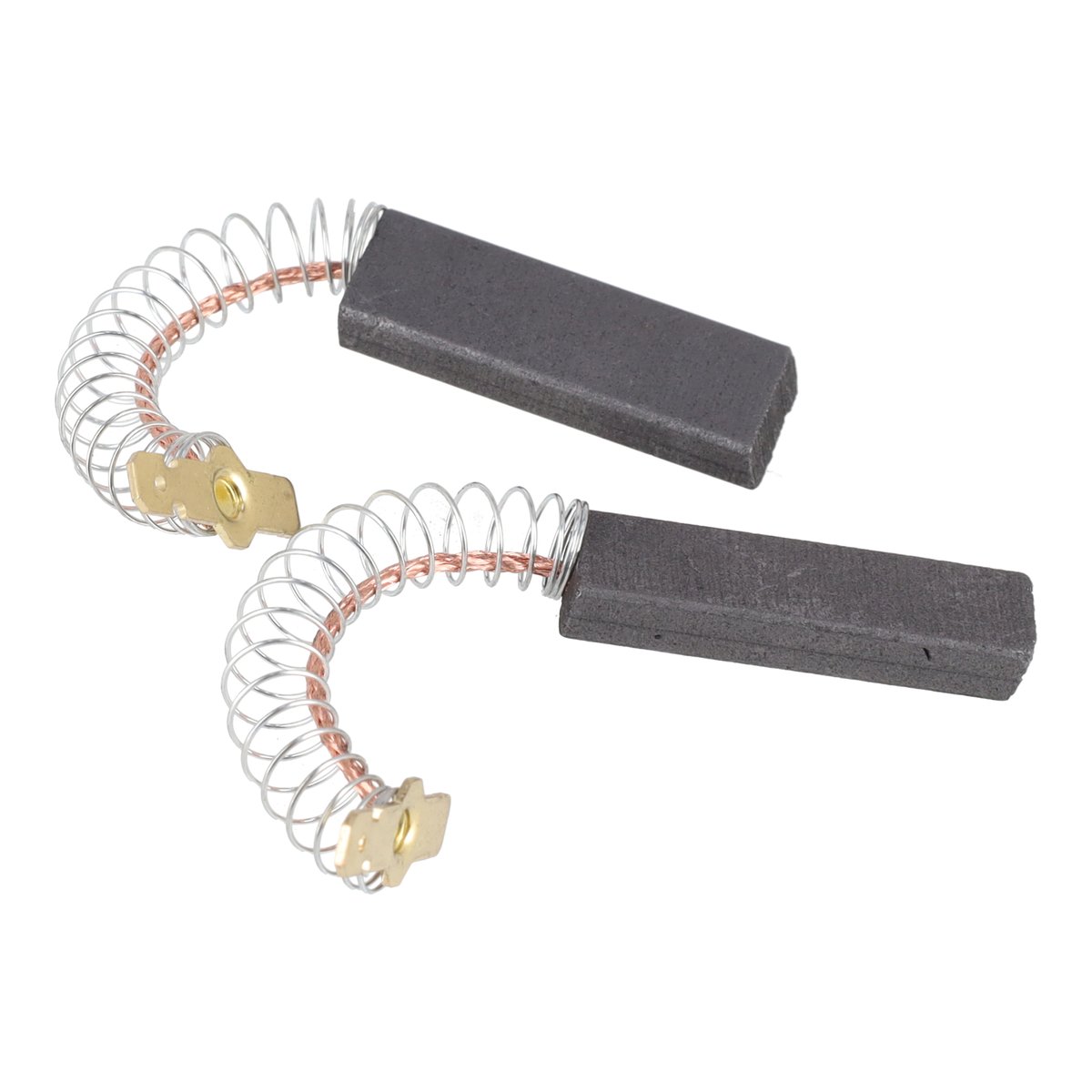

Bosch Washing Machine Carbon BrushesCAR137
Suitable for Bosch, Balay, Constructa, De Dietrich, Gaggenau
Stock Code: 120262
·
£2.15inc. VAT
£1.79 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Passes current to the spinning part of the motor so it can turn the drum.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F21 | Bosch | Means a motor-related fault that often stops the machine mid-cycle, prevents spinning, and may lock the door. It is usually caused by worn-out carbon brushes, a motor issue, or a control board glitch. | High |
| F4 | Bosch | Means a motor-related fault, with some models interpreting it as a drainage timeout. It is usually caused by worn carbon brushes, faulty motor wiring, or a malfunctioning control module. | High |
| F42 | Bosch | Means a motor-related fault where the motor is not communicating its speed properly or is running uncontrollably. It is usually caused by a motor tachometer error or worn-out motor carbon brushes. | High |
| F43 | Bosch | Means a motor or spin failure where the drum cannot turn, causing the cycle to fail and often leaving the door locked. It is usually caused by worn carbon brushes, an unbalanced load, or a faulty motor control module. | High |
| F63 | Bosch | Means a critical motor or control board failure, signalling a communication issue between the motor and the main electronics. It is usually caused by worn motor brushes or a faulty motor control module. | High |
| E42 | Siemens | Means there is a motor circuit fault and the motor is not running properly. It is usually caused by worn carbon brushes, a tacho connection failure, or a control module (PCB) issue. | High |
| E43 | Siemens | Means there is a motor circuit fault and the motor cannot turn or spin. It is usually caused by a seized motor, worn carbon brushes, or a drum blockage. | High |
| E44 | Siemens | Means there is a motor error in the motor circuit. It is usually caused by a fault in the motor circuit, the tacho generator, or heavily worn carbon brushes. | High |
| E60 | Siemens | Means the motor cannot turn the drum, particularly as E6009 or E60-09. It is usually caused by drive circuit faults such as a malfunctioning inverter or worn motor carbon brushes. | High |
| F48 | Siemens | Means the motor cannot turn, or the control board loses connection with the motor. It is usually caused by motor failure, electronic control module issues, or damaged wiring. | High |
| F7 | Siemens | Means there is a motor fault or a failure to reach the correct speed during a cycle, which often cuts out the spin, or on some models a door lock issue. It is usually caused by a motor fault, a pump that is not operating, or a door that is not locking. | High |
| F74 | Siemens | Means there is a problem within the motor circuit or a motor control communication failure. It is usually caused by a faulty control board, a faulty control panel, a worn component, or damaged wiring. | High |
| F9 | Siemens | Means the motor cannot reach the required speed or is not communicating with the control module, often because of a severe unbalanced load that prevented the drum from spinning. It is usually caused by a motor fault, a control board fault, or an unbalanced load. | High |
F21High
Bosch
Means a motor-related fault that often stops the machine mid-cycle, prevents spinning, and may lock the door. It is usually caused by worn-out carbon brushes, a motor issue, or a control board glitch.
F4High
Bosch
Means a motor-related fault, with some models interpreting it as a drainage timeout. It is usually caused by worn carbon brushes, faulty motor wiring, or a malfunctioning control module.
F42High
Bosch
Means a motor-related fault where the motor is not communicating its speed properly or is running uncontrollably. It is usually caused by a motor tachometer error or worn-out motor carbon brushes.
F43High
Bosch
Means a motor or spin failure where the drum cannot turn, causing the cycle to fail and often leaving the door locked. It is usually caused by worn carbon brushes, an unbalanced load, or a faulty motor control module.
F63High
Bosch
Means a critical motor or control board failure, signalling a communication issue between the motor and the main electronics. It is usually caused by worn motor brushes or a faulty motor control module.
E42High
Siemens
Means there is a motor circuit fault and the motor is not running properly. It is usually caused by worn carbon brushes, a tacho connection failure, or a control module (PCB) issue.
E43High
Siemens
Means there is a motor circuit fault and the motor cannot turn or spin. It is usually caused by a seized motor, worn carbon brushes, or a drum blockage.
E44High
Siemens
Means there is a motor error in the motor circuit. It is usually caused by a fault in the motor circuit, the tacho generator, or heavily worn carbon brushes.
E60High
Siemens
Means the motor cannot turn the drum, particularly as E6009 or E60-09. It is usually caused by drive circuit faults such as a malfunctioning inverter or worn motor carbon brushes.
F48High
Siemens
Means the motor cannot turn, or the control board loses connection with the motor. It is usually caused by motor failure, electronic control module issues, or damaged wiring.
F7High
Siemens
Means there is a motor fault or a failure to reach the correct speed during a cycle, which often cuts out the spin, or on some models a door lock issue. It is usually caused by a motor fault, a pump that is not operating, or a door that is not locking.
F74High
Siemens
Means there is a problem within the motor circuit or a motor control communication failure. It is usually caused by a faulty control board, a faulty control panel, a worn component, or damaged wiring.
F9High
Siemens
Means the motor cannot reach the required speed or is not communicating with the control module, often because of a severe unbalanced load that prevented the drum from spinning. It is usually caused by a motor fault, a control board fault, or an unbalanced load.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- CAR137
- Alternative Part Numbers
- 2103, 2222, CAR93
- EAN / Barcode
- 05030017120939
- Genuine Spare Part
- No
- Length
- 35mm
- Width
- 12mm
- Depth
- 4mm
07
More Details
What do carbon brushes do in a washing machine?
Carbon brushes are small blocks made of carbon and attached to the motor, making contact with the spinning armature.
As the motor rotates, the carbon brushes give the necessary electrical connection and allow power to be transmitted to various motor components, such as the drum or pump. The brushes also help regulate the electrical current and control the motor's speed and operation.
Why do you replace them?
Carbon brushes need to be replaced when they wear down or become too short. The constant friction and contact with the spinning armature cause the carbon brushes to gradually wear out.
As the brushes wear down, they lose their optimal conductivity and may not make sufficient contact with the armature, leading to reduced motor performance, intermittent operation, or even motor failure.
How do you install new carbon brushes on your washing machine?
Check the instructions on the video below on how to replace carbon brushes on washing machines.
These parts fit Bosch, Balay, Constructa, De Dietrich, Gaggenau, Kuppersbusch, Lynx, Neff, Pitsos, Profilo, Siemens, Tecnik, and Viva washing machines.
08
Video
How to Replace Washing Machine Carbon Brushes:
The following DIY repair video should assist you in fitting this part. However the exact procedure may differ depending on your make and model.
Safety Warning - Always unplug from the mains before carrying out any repairs.
09
Customer Reviews (133)
4.8133 reviews
5
108
4
25
3
0
2
0
1
0
Sort by:||
Carbon Brushes
Does exactly what it says on the packet. Good compatibility and the washing machine now works as good as ever. All brushes are a bit tricky to replace and these are no exception, but no unexpected problems were encountered.
Jon Mayer · Orpington ·
Quality
Value
Ease of Fitting
Great brushes, easy to fit to Bosch w'machine
Best priced set of brushes for a Bosch washing machine. Easily fitted, so hopefully more years left in machine. Prompt and fast delivery.
Nigel Whittock · Weston super Mare ·
Quality
Value
Ease of Fitting
Machine Bushes
Quality product. Great service, especially as I ordered between Christmas and New Year, came next day.
Lucille gardiner · Dursley ·
Quality
Value
Ease of Fitting
Great product...a little fiddly to fit
Fitted to a Bosch Classixx 1200 Express - Most of the time is taken to take part everything to get to the brushes. They're then a little bit fiddly to load the spring but plenty of online videos available. Probably a 30 min job in total
Louis Hyde · Sussex ·
Quality
Value
Ease of Fitting
Cool carbon
The part was perfect … cheap price , high quality and easy to fit due to the quality of the help Videos provided on ransoms YouTube channel . Thanks guys I have a working washing machine and change from a tenner
David Dixon · Brighton ·
Quality
Value
Ease of Fitting
10
Questions & Answers (3)
Will these fit W542OXOGB
Sheila · Ormskirk ·
Hi Sheila, the carbon brushes required for your model are RS59049.
JordanStaff·
Hi will these fit waq243dogb /01 thanks
Mark · Wales ·
Hi Mark, the carbon brushes listed for your model are RS223560.
JordanStaff·
Is this price for one brush or the pair? Thanks
Caroline · London ·
Hi Caroline, thanks for your question. This is for both the carbon brushes.
JordanStaff·
