Ariston

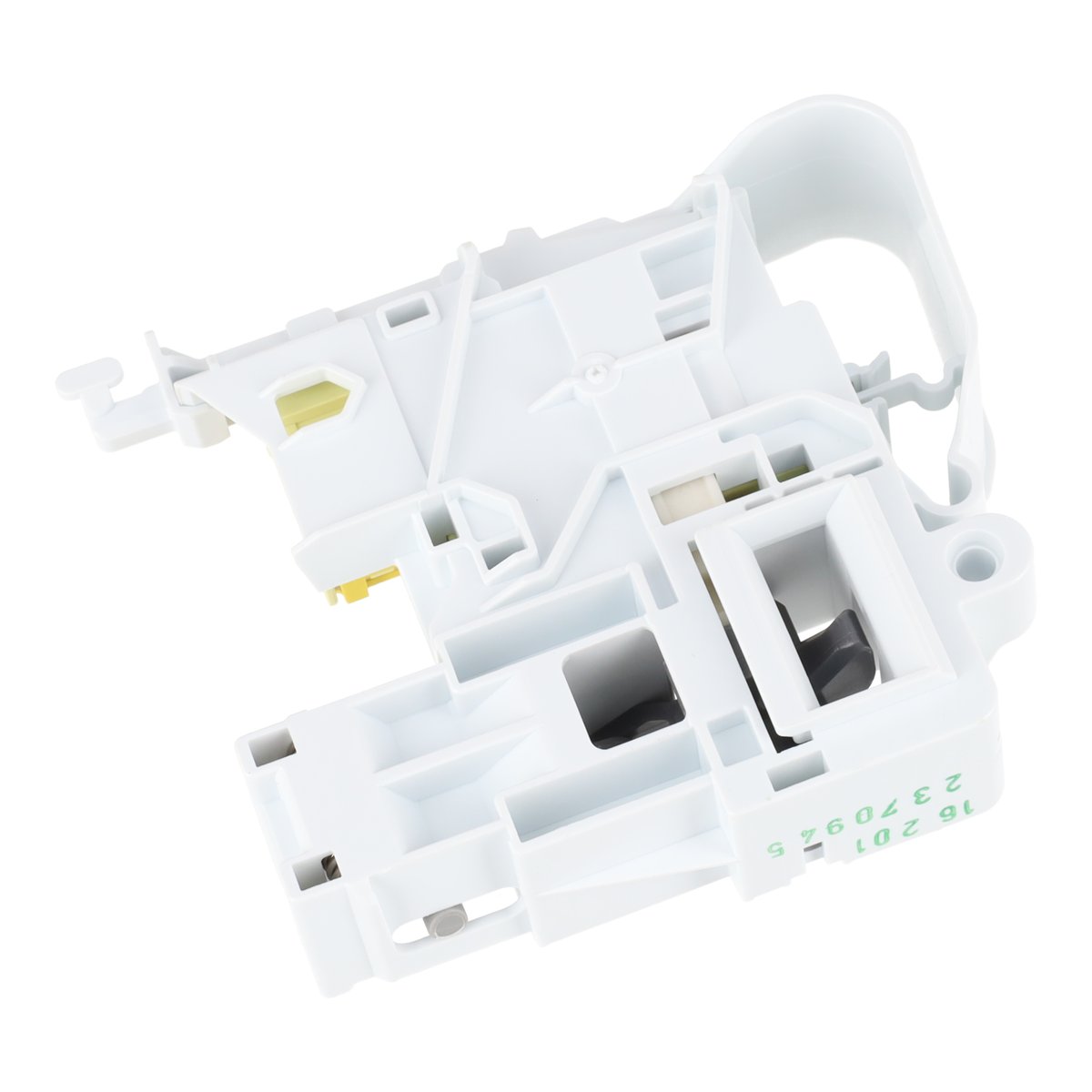

Ariston Washing Machine Thermal Door Lock InterlockC00305602
Suitable for Ariston, Hotpoint
Stock Code: 601139
£22.30inc. VAT
£18.58 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Locks the door shut while the cycle is running.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F16 | Ariston | Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor. | Medium |
| F6 | Ariston | Means the machine cannot detect that the door is closed and secured, preventing the cycle from starting. It is usually caused by a faulty door lock mechanism, wiring issues, or obstructions. | High |
| F17 | Hotpoint | Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum. | High |
| F6 | Hotpoint | Means a door lock fault that often prevents the door opening or the machine starting. It is usually caused by a failed door interlock mechanism, wiring issues, or a faulty motor control unit. | High |
F16Medium
Ariston
Means a critically high water level, or on top loading models a drum position sensor fault, where the machine cannot drain or has detected too much water. It is usually caused by a blockage, a faulty door lock, or a faulty sensor.
F6High
Ariston
Means the machine cannot detect that the door is closed and secured, preventing the cycle from starting. It is usually caused by a faulty door lock mechanism, wiring issues, or obstructions.
F17High
Hotpoint
Means a door lock mechanism failure or a serious drainage problem, where the door lock may be faulty, buzzing, or failing to engage. It is usually caused by a faulty door lock or the pump failing to empty the drum.
F6High
Hotpoint
Means a door lock fault that often prevents the door opening or the machine starting. It is usually caused by a failed door interlock mechanism, wiring issues, or a faulty motor control unit.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needFlat head screwdriverScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- C00305602
- Alternative Part Numbers
- C00119223, C00264161, C00264535, C00299278
- EAN / Barcode
- 8058331056021
- Genuine Spare Part
- Yes
