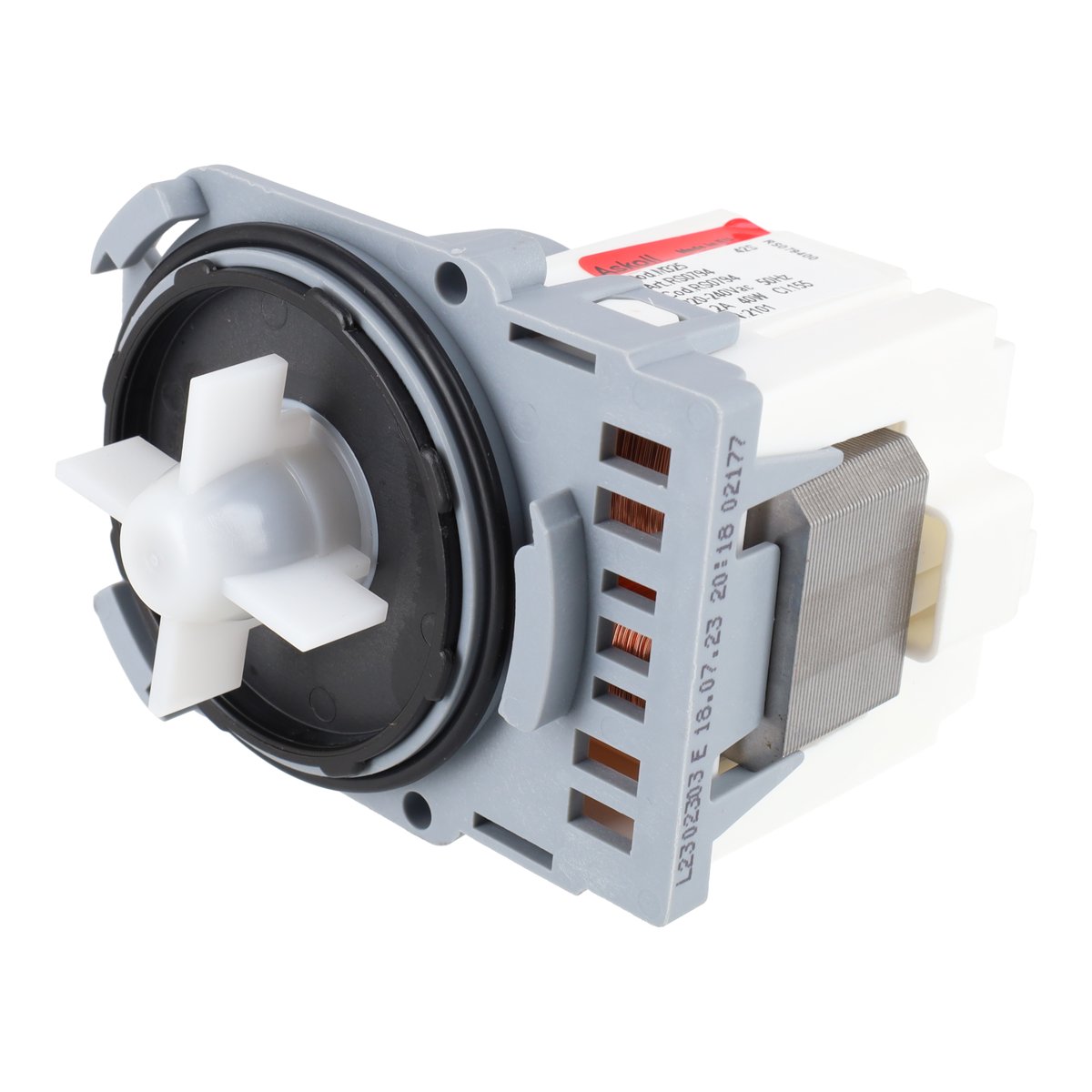

AEG Washing Machine Drain Pump M113 M109 ASKOL8581326630002
Suitable for AEG, Arthur Martin, Bellavita, Corbero, Curtiss
Stock Code: 230980
£19.95inc. VAT
£16.63 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Pumps the waste water out through the drain hose.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| C2 | AEG | Means a water draining problem. It is usually caused by a blockage in the filter or drain hose, or a faulty drain pump. | High |
| C4 | AEG | Means a fault with the wash circulation pump or a drainage issue, often a blockage or open circuit, so the machine cannot circulate water during the wash or drain properly. It is usually caused by a blockage or a faulty circulation pump, with unusual noises at times. | High |
| E2 | AEG | Means a drainage problem, where the machine cannot empty water. It is usually caused by a blocked filter, a clogged hose, or a faulty pump. | High |
| E20 | AEG | Means a drainage problem. It is usually caused by a blockage in the filter, pump, or drain hose. | High |
| E21 | AEG | Means a drainage fault, where water cannot be emptied in time. It is usually caused by a misaligned drain hose, an incorrect drain height, a clogged pump or filter, or a blocked drain. | High |
| E22 | AEG | Means a failure to drain water. It is usually caused by a blocked filter, an obstructed drain hose, a faulty drain pump, or debris in the pump impeller. | High |
| E24 | AEG | Means a drainage fault related to a faulty drain pump, within the E20 to E24 range of drainage faults. It is usually caused by a defective triac on the main control board, or a faulty pump. | High |
| EF3 | AEG | Means a water sensor fault relating to water ingress and a failure to reset after flooding. It is usually caused by a leaking door seal that is damaged or cracked. | Medium |
| C3 | Electrolux | Means a flood or water has been detected in the bottom tray, often with 3 beeps. It is usually caused by a leaking seal, a clogged drain filter, excessive suds, or laundry trapped in the door seal. | Medium |
| C4 | Electrolux | Means the machine cannot empty the water effectively. It is usually caused by a blocked drain pump, a clogged filter, or an issue with the drain hose or pump system. | High |
| E13 | Electrolux | Means there is a water leak into the base pan, or the water level drops below the required point during operation. It is usually caused by a slow leak, over-sudsing, or a faulty pressure sensor or switch. | Medium |
| E20 | Electrolux | Means the machine cannot remove the water. It is usually caused by a clogged drain filter, a kinked drain hose, or a blocked pump. | High |
| E21 | Electrolux | Means the machine is taking too long to drain or cannot drain at all, often with wet clothes or a locked door. It is usually caused by a blocked drain filter, a kinked hose, or a faulty drain pump. | High |
| E30 | Electrolux | Means the machine cannot empty the water, or has detected an overfill or pressure sensor issue, with three beeps on some models. It is usually caused by a clogged filter, a kinked hose, or a faulty drain pump. | High |
| EF1 | Electrolux | Means the machine has failed to drain the water within a set time, often with 15 beeps or flashes. It is usually caused by a clogged filter, a blocked drain hose, or a malfunctioning drain pump. | High |
| EF2 | Electrolux | Means there are excessive suds or foam during the drain cycle, causing a drainage issue. It is usually caused by too much detergent, a clogged drain filter, or a kinked drain hose. | High |
| C2 | Zanussi | Means the machine is unable to empty water, interchangeable with E20 or E21. It is usually caused by a clogged filter, a blocked drain hose, or a faulty drain pump. | High |
| E2 | Zanussi | Means the machine is unable to empty water properly, also displayed as E20, E21, E23, or E24. It is usually caused by a blocked drain filter, an obstructed drain hose, or a faulty drain pump. | High |
| E20 | Zanussi | Means the machine is unable to empty water. It is usually caused by a blocked filter, an obstructed drain hose, or a faulty pump. | High |
| E21 | Zanussi | Means the machine cannot empty water within the expected time. It is usually caused by a blocked filter, an obstructed drain hose, or a faulty pump. | High |
| E22 | Zanussi | Means the machine cannot empty water correctly, particularly during or after a drying cycle. It is usually caused by a blocked drain pump filter, a kinked drain hose, or a faulty drain pump. | High |
| E23 | Zanussi | Means a drainage problem. It is usually caused by a blockage in the drain pump filter, a faulty drain pump, or an issue with the control board. | High |
| E24 | Zanussi | Means a faulty drain pump sensing circuit that prevents water from being drained. It is usually caused by a blockage in the drain pump or filter, or a failure in the circuit controlling the drain pump. | High |
| E54 | Zanussi | Means a motor-related fault where the motor is receiving power when it should be inactive, leading to issues with spinning or drum operation. It is usually caused by a motor relay contact sticking, low voltage being supplied to the motor, or a motor control circuit or PCB failure. | Medium |
| EF3 | Zanussi | Means the Aqua Control system has detected a water leak and activated safety mode. It is usually caused by over-sudsing, a damaged door seal, a filter blockage, or a leak into the base tray. | Medium |
C2High
AEG
Means a water draining problem. It is usually caused by a blockage in the filter or drain hose, or a faulty drain pump.
C4High
AEG
Means a fault with the wash circulation pump or a drainage issue, often a blockage or open circuit, so the machine cannot circulate water during the wash or drain properly. It is usually caused by a blockage or a faulty circulation pump, with unusual noises at times.
E2High
AEG
Means a drainage problem, where the machine cannot empty water. It is usually caused by a blocked filter, a clogged hose, or a faulty pump.
E20High
AEG
Means a drainage problem. It is usually caused by a blockage in the filter, pump, or drain hose.
E21High
AEG
Means a drainage fault, where water cannot be emptied in time. It is usually caused by a misaligned drain hose, an incorrect drain height, a clogged pump or filter, or a blocked drain.
E22High
AEG
Means a failure to drain water. It is usually caused by a blocked filter, an obstructed drain hose, a faulty drain pump, or debris in the pump impeller.
E24High
AEG
Means a drainage fault related to a faulty drain pump, within the E20 to E24 range of drainage faults. It is usually caused by a defective triac on the main control board, or a faulty pump.
EF3Medium
AEG
Means a water sensor fault relating to water ingress and a failure to reset after flooding. It is usually caused by a leaking door seal that is damaged or cracked.
C3Medium
Electrolux
Means a flood or water has been detected in the bottom tray, often with 3 beeps. It is usually caused by a leaking seal, a clogged drain filter, excessive suds, or laundry trapped in the door seal.
C4High
Electrolux
Means the machine cannot empty the water effectively. It is usually caused by a blocked drain pump, a clogged filter, or an issue with the drain hose or pump system.
E13Medium
Electrolux
Means there is a water leak into the base pan, or the water level drops below the required point during operation. It is usually caused by a slow leak, over-sudsing, or a faulty pressure sensor or switch.
E20High
Electrolux
Means the machine cannot remove the water. It is usually caused by a clogged drain filter, a kinked drain hose, or a blocked pump.
E21High
Electrolux
Means the machine is taking too long to drain or cannot drain at all, often with wet clothes or a locked door. It is usually caused by a blocked drain filter, a kinked hose, or a faulty drain pump.
E30High
Electrolux
Means the machine cannot empty the water, or has detected an overfill or pressure sensor issue, with three beeps on some models. It is usually caused by a clogged filter, a kinked hose, or a faulty drain pump.
EF1High
Electrolux
Means the machine has failed to drain the water within a set time, often with 15 beeps or flashes. It is usually caused by a clogged filter, a blocked drain hose, or a malfunctioning drain pump.
EF2High
Electrolux
Means there are excessive suds or foam during the drain cycle, causing a drainage issue. It is usually caused by too much detergent, a clogged drain filter, or a kinked drain hose.
C2High
Zanussi
Means the machine is unable to empty water, interchangeable with E20 or E21. It is usually caused by a clogged filter, a blocked drain hose, or a faulty drain pump.
E2High
Zanussi
Means the machine is unable to empty water properly, also displayed as E20, E21, E23, or E24. It is usually caused by a blocked drain filter, an obstructed drain hose, or a faulty drain pump.
E20High
Zanussi
Means the machine is unable to empty water. It is usually caused by a blocked filter, an obstructed drain hose, or a faulty pump.
E21High
Zanussi
Means the machine cannot empty water within the expected time. It is usually caused by a blocked filter, an obstructed drain hose, or a faulty pump.
E22High
Zanussi
Means the machine cannot empty water correctly, particularly during or after a drying cycle. It is usually caused by a blocked drain pump filter, a kinked drain hose, or a faulty drain pump.
E23High
Zanussi
Means a drainage problem. It is usually caused by a blockage in the drain pump filter, a faulty drain pump, or an issue with the control board.
E24High
Zanussi
Means a faulty drain pump sensing circuit that prevents water from being drained. It is usually caused by a blockage in the drain pump or filter, or a failure in the circuit controlling the drain pump.
E54Medium
Zanussi
Means a motor-related fault where the motor is receiving power when it should be inactive, leading to issues with spinning or drum operation. It is usually caused by a motor relay contact sticking, low voltage being supplied to the motor, or a motor control circuit or PCB failure.
EF3Medium
Zanussi
Means the Aqua Control system has detected a water leak and activated safety mode. It is usually caused by over-sudsing, a damaged door seal, a filter blockage, or a leak into the base tray.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriverTowelShallow tray
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- 8581326630002
- Alternative Part Numbers
- 1105785008, 1320699018, 1320699315, 1321063008
- EAN / Barcode
- 7321421093284
- Genuine Spare Part
- Yes
07
More Details
This is a genuine Askoll drain pump for your wash cycle’s draining phase. Pumps the water out of the machine through the drainage hose.
The filter body housing holds a filter that catches lint, debris, and foreign objects from the laundry water. Keeps them from clogging or damaging the drain pump.
Have you recently checked a wash load only to see soaked clothes? This shows an incomplete cycle, a tell-tale sign of a failing drain pump. Change it with this replacement part.
This Askoll drain pump is from AEG. You can also check other suitable brands from the list above.
Before ordering, please verify that this kit works for your model using our compatibility checker.
