AEG

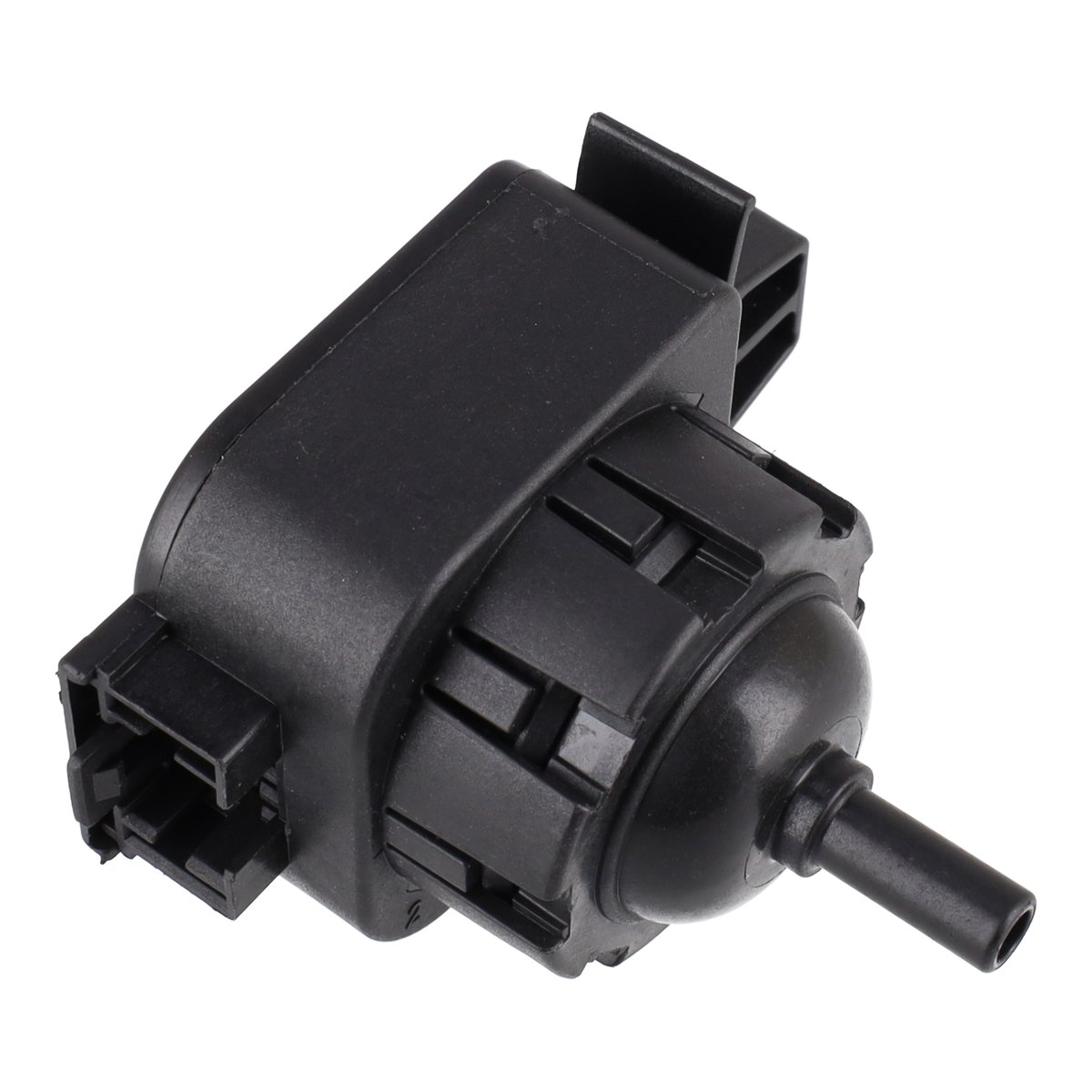

AEG Washing Machine Analogic Pressure Switch3792216040
Suitable for AEG, Arthur Martin, Atag, Bellavita, Bluesky
Stock Code: 242533
£28.80inc. VAT
£24.00 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Senses the water level in the tub and tells the control board when to start and stop filling.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| C1 | AEG | Means a water supply fault, where the machine is not filling, fills too slowly, or is not sensing water levels correctly. It is usually caused by a closed tap, a kinked hose, or a blocked inlet filter. | Medium |
| E10 | AEG | Means a water supply fault, where the machine is not filling, fills too slowly, or fails to detect water in the drum. It is usually caused by a turned off tap, a kinked hose, or clogged inlet filters. | Medium |
| E11 | AEG | Means a water intake failure, where the machine is not receiving enough water or is filling slowly. It is usually caused by a closed tap, a kinked hose, a blocked filter, or a faulty inlet valve. | Medium |
| E30 | AEG | Means water has been detected in the bottom tray and the anti flood system has tripped, or a fault with the water pressure sensor. It is usually caused by leaks, over sudsing, or laundry trapped in the door seal. | Medium |
| EF3 | AEG | Means a water sensor fault relating to water ingress and a failure to reset after flooding. It is usually caused by a leaking door seal that is damaged or cracked. | Medium |
| C1 | Electrolux | Means the washer is not filling with water or is taking it in too slowly. It is usually caused by a closed water tap, a kinked inlet hose, or clogged inlet filters. | Medium |
| E10 | Electrolux | Means the machine is failing to fill, has insufficient water, or has a drain issue. It is usually caused by a kinked hose, low water pressure, clogged filters, or a faulty pressure switch. | High |
| E11 | Electrolux | Means the washer is taking too long to fill or is not filling properly. It is usually caused by closed water taps, kinked inlet hoses, clogged inlet valve screens, low water pressure, a faulty water inlet valve, or a pressure sensor fault. | Medium |
| E12 | Electrolux | Means the machine is not receiving enough water during the rinse cycle, or on some models is not draining due to a blocked filter or hose. It is usually caused by a slow fill, a clogged hose, or a malfunctioning water inlet valve. | Medium |
| C1 | Zanussi | Means the machine is not filling, is filling too slowly, or has failed to detect water entry. It is usually caused by a closed tap, a kinked inlet hose, a clogged inlet filter, or a drain hose positioned too low. | Medium |
| E10 | Zanussi | Means the machine has not received enough water or has failed to detect water within a set time. It is usually caused by a closed tap, a kinked hose, a clogged filter, or low water pressure. | Medium |
| E11 | Zanussi | Means the washer cannot detect enough water in the drum during the washing phase. It is usually caused by a closed tap, a kinked inlet hose, or a blocked inlet filter screen. | Medium |
| E13 | Zanussi | Means an internal water leak has triggered the anti-flood device in the base of the machine. It is usually caused by a drain pump fault, a split hose, or a loose seal. | Medium |
| E35 | Zanussi | Means a water overfill or pressure switch fault, with too much water detected in the drum and the machine stopping, draining continuously, and locking the door for safety. It is usually caused by a faulty pressure switch, a blocked pressure chamber or hose, or an overfilling inlet valve. | Medium |
| EF0 | Zanussi | Means the anti-flood system has been activated with water detected in the base tray, also reported as EFo or EF3. It is usually caused by excessive foam from over-soaping, a clogged drain filter, or a minor leak. | Medium |
C1Medium
AEG
Means a water supply fault, where the machine is not filling, fills too slowly, or is not sensing water levels correctly. It is usually caused by a closed tap, a kinked hose, or a blocked inlet filter.
E10Medium
AEG
Means a water supply fault, where the machine is not filling, fills too slowly, or fails to detect water in the drum. It is usually caused by a turned off tap, a kinked hose, or clogged inlet filters.
E11Medium
AEG
Means a water intake failure, where the machine is not receiving enough water or is filling slowly. It is usually caused by a closed tap, a kinked hose, a blocked filter, or a faulty inlet valve.
E30Medium
AEG
Means water has been detected in the bottom tray and the anti flood system has tripped, or a fault with the water pressure sensor. It is usually caused by leaks, over sudsing, or laundry trapped in the door seal.
EF3Medium
AEG
Means a water sensor fault relating to water ingress and a failure to reset after flooding. It is usually caused by a leaking door seal that is damaged or cracked.
C1Medium
Electrolux
Means the washer is not filling with water or is taking it in too slowly. It is usually caused by a closed water tap, a kinked inlet hose, or clogged inlet filters.
E10High
Electrolux
Means the machine is failing to fill, has insufficient water, or has a drain issue. It is usually caused by a kinked hose, low water pressure, clogged filters, or a faulty pressure switch.
E11Medium
Electrolux
Means the washer is taking too long to fill or is not filling properly. It is usually caused by closed water taps, kinked inlet hoses, clogged inlet valve screens, low water pressure, a faulty water inlet valve, or a pressure sensor fault.
E12Medium
Electrolux
Means the machine is not receiving enough water during the rinse cycle, or on some models is not draining due to a blocked filter or hose. It is usually caused by a slow fill, a clogged hose, or a malfunctioning water inlet valve.
C1Medium
Zanussi
Means the machine is not filling, is filling too slowly, or has failed to detect water entry. It is usually caused by a closed tap, a kinked inlet hose, a clogged inlet filter, or a drain hose positioned too low.
E10Medium
Zanussi
Means the machine has not received enough water or has failed to detect water within a set time. It is usually caused by a closed tap, a kinked hose, a clogged filter, or low water pressure.
E11Medium
Zanussi
Means the washer cannot detect enough water in the drum during the washing phase. It is usually caused by a closed tap, a kinked inlet hose, or a blocked inlet filter screen.
E13Medium
Zanussi
Means an internal water leak has triggered the anti-flood device in the base of the machine. It is usually caused by a drain pump fault, a split hose, or a loose seal.
E35Medium
Zanussi
Means a water overfill or pressure switch fault, with too much water detected in the drum and the machine stopping, draining continuously, and locking the door for safety. It is usually caused by a faulty pressure switch, a blocked pressure chamber or hose, or an overfilling inlet valve.
EF0Medium
Zanussi
Means the anti-flood system has been activated with water detected in the base tray, also reported as EFo or EF3. It is usually caused by excessive foam from over-soaping, a clogged drain filter, or a minor leak.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your washing machine.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
06
Specifications
- Part Number
- 3792216040
- Alternative Part Numbers
- 1324143021, 1325162046, 1328195019, 3792216016
- EAN / Barcode
- 7321422411261
- Genuine Spare Part
- Yes
07
Customer Reviews (2)
4.52 reviews
5
1
4
1
3
0
2
0
1
0
It worked in the end
Received the part promptly. When I opened the padded envelope the part I received was white. I’d already removed the old sensor so compared them side by side. The critical dimensions were pretty close but where the old sensor clipped vertically in to an existing holder, this replacement part wouldn’t clip so I had to cut and file away part of the plastic housing to make it lock in properly. Once the machine was reassembled it worked fine so was just a minor fitting hurdle to overcome.
Matt Chapman · London ·
Quality
Value
Ease of Fitting
Great Product
easy to fit , great product and matches with the stated washing machine.
Mr Brandon Grech · Birzebbugia ·
Quality
Value
Ease of Fitting
