Whirlpool Tumble Dryer Heater Element481010669314
Suitable for Whirlpool, Hotpoint, Ignis, Maytag
Stock Code: 594212
·
£75.90inc. VAT
£63.25 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Heats the drying air and uses the thermostats to hold it at a safe temperature.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E2 | Hotpoint | Means a serious heating fault that causes the dryer to overheat or fail to heat. It is usually caused by a faulty thermistor, a broken heating element, or a control board issue. | High |
| F8 | Hotpoint | Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board. | High |
| F23 | Whirlpool | Means a heater or thermistor failure where the dryer is overheating or cannot detect its operating temperature, resulting in a shutdown. It is usually caused by a faulty heater, a faulty thermistor, or restricted airflow. | High |
| F3 | Whirlpool | Means a temperature sensing fault or moisture sensor fault where the dryer cannot measure heat or dampness and stops to prevent overheating, shown as F3 E1, F3 E2, or F3 E3. It is usually caused by a faulty NTC thermistor or a faulty moisture sensor. | Medium |
| F4 | Whirlpool | Means a heating circuit fault or a low or no line voltage fault shown as F4E4, resulting in no heat or a failure to start. It is usually caused by a tripped circuit breaker, a faulty thermal fuse, a damaged heating element, or a clogged vent system. | Medium |
| F4E3 | Whirlpool | Means a restricted or low airflow fault that can cause long drying times or overheating. It is usually caused by a clogged lint screen, a blocked vent hose, or crushed vent ducting. | Medium |
E2High
Hotpoint
Means a serious heating fault that causes the dryer to overheat or fail to heat. It is usually caused by a faulty thermistor, a broken heating element, or a control board issue.
F8High
Hotpoint
Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.
F23High
Whirlpool
Means a heater or thermistor failure where the dryer is overheating or cannot detect its operating temperature, resulting in a shutdown. It is usually caused by a faulty heater, a faulty thermistor, or restricted airflow.
F3Medium
Whirlpool
Means a temperature sensing fault or moisture sensor fault where the dryer cannot measure heat or dampness and stops to prevent overheating, shown as F3 E1, F3 E2, or F3 E3. It is usually caused by a faulty NTC thermistor or a faulty moisture sensor.
F4Medium
Whirlpool
Means a heating circuit fault or a low or no line voltage fault shown as F4E4, resulting in no heat or a failure to start. It is usually caused by a tripped circuit breaker, a faulty thermal fuse, a damaged heating element, or a clogged vent system.
F4E3Medium
Whirlpool
Means a restricted or low airflow fault that can cause long drying times or overheating. It is usually caused by a clogged lint screen, a blocked vent hose, or crushed vent ducting.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- 481010669314
- Alternative Part Numbers
- 481010376366, 481010477524, C00311153, C00311240
- EAN / Barcode
- 8015250400137
- Genuine Spare Part
- Yes
07
More Details

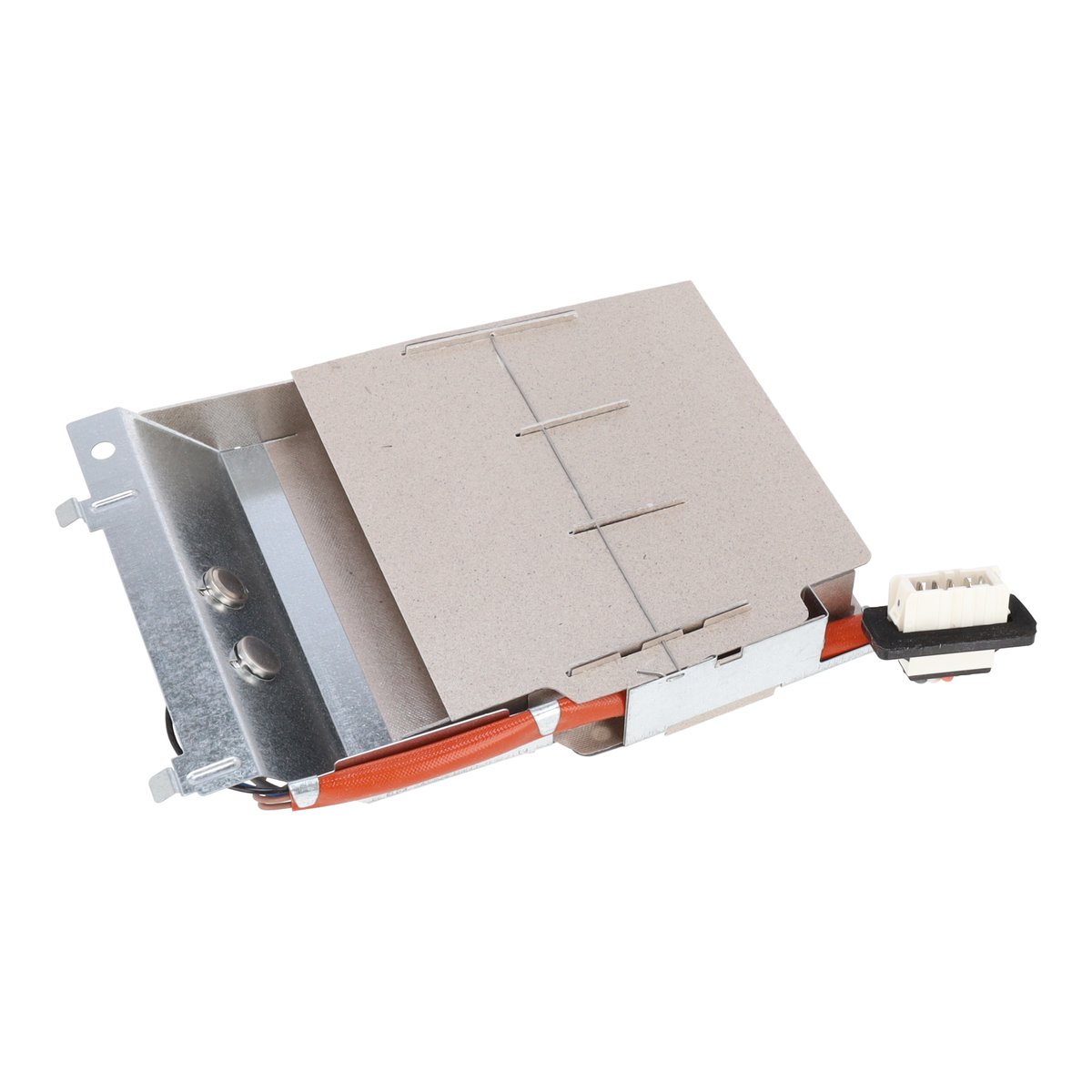

This is a genuine tumble dryer heater element. It’s at the back of your dryer’s housing. Has wiring harnesses so you can connect it to your dryer’s control system.
The heater element produces the heat circulated in the drying chamber. This heat evaporates moisture from your damp laundry including shirts, towels, and other items inside the dryer.
Although the dryer will continue to spin and finish the cycle, it’s not hot enough to help in drying your clothes if the heating element isn't functioning properly. Replace it with this new heater element.
This heater element is from Whirlpool but also fits select models of Hotpoint, Ignis, and Maytag tumble dryers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Customer Reviews (3)
5.03 reviews
5
3
4
0
3
0
2
0
1
0
Good experience
In terms of service I received a confirmation upon ordering which is always a good sign and that was followed up with update when it was despatched. Also the item arrived on time. With regards to the heater element, it was easy to fit and since fitted 10 days ago it’s been working just as you’d expect. I have 4 stars for the value as I’d have preferred to pay less (as always), but in all fairness if it proves to be reliable in the long term it was worth the money.
Gabor Nagy · Gosport ·
Quality
Value
Ease of Fitting
Great product
Great price and fast delivery will use again. D Smith
D Smith · Aylesbury ·
Quality
Value
Ease of Fitting
Quick and easy replacement part
Prompt service. Exactly the same as manufacturers part, quick and easy to fit
peter kerr · Redcar ·
Quality
Value
Ease of Fitting
09
Questions & Answers (3)
Hello, does this fit a whirlpool tumble dryer model number AZB 9780/1 8575 004 15020.
darren · Peterborough ·
Hi Darren, I can confirm this is the correct heating element for your model.
JordanStaff·
Do you sell the thermostats on there own without the heater element, that are attached to the top as per the picture
Colin · Barnsley ·
Hi Colin. No the thermostats for this heater, they only come complete as a heater assembly.
JackStaff·
Does this part come with the thermostat attached to the top as per the picture
Darren · Middlesbrough ·
Hi Darren, I can confirm this will come complete as per the image.
JordanStaff·
