Whirlpool

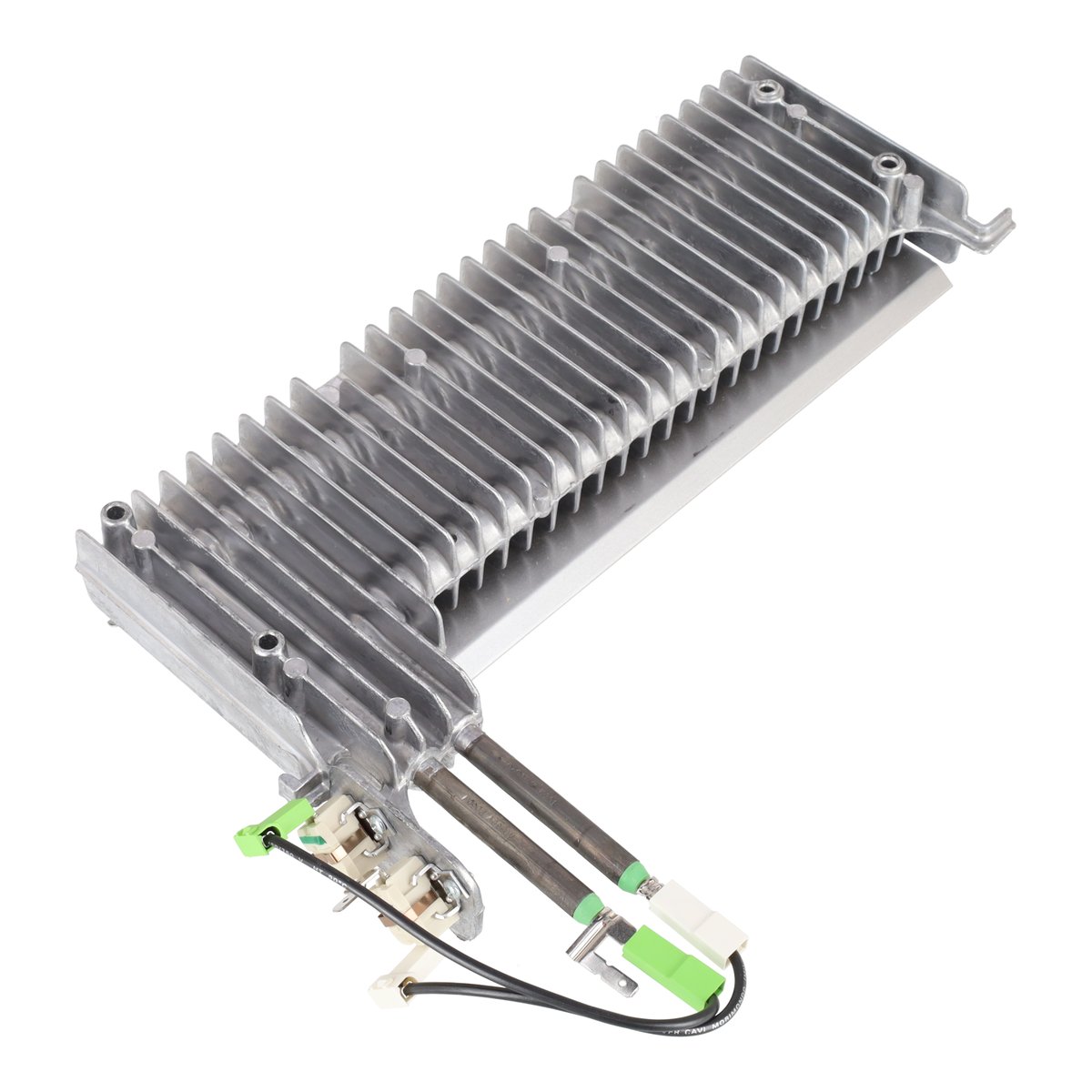

Whirlpool Tumble Dryer Heater Element & Thermostat481225928675
Suitable for Whirlpool, Bauknecht, Bosch, Eslabon de lujo, Ignis
Stock Code: 146414
£47.40inc. VAT
£39.50 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Heats the drying air and uses the thermostats to hold it at a safe temperature.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E5 | Bosch | Means a heating circuit fault leaving the dryer cold, or a drainage problem. It is usually caused by a tripped thermal cut-out, a faulty heating element, or a blocked lint filter. | High |
| E6 | Bosch | Means a heating problem where the dryer is failing to heat up. It is usually caused by restricted airflow from a severely clogged lint filter or heat exchanger, or a failed heater element. | High |
| E9 | Bosch | Means a serious heating circuit fault, usually meaning the dryer has overheated. It is usually caused by a failed heating element, a tripped thermal cut-out, or an electronic control board problem. | High |
| E19 | Siemens | Means the unit is taking too long to reach the target temperature. It is usually caused by a faulty heating element, a tripped thermal cut-out, or restricted airflow from blocked lint filters. | High |
| E63 | Siemens | Means there is a serious fault in the heating system, or a communication failure between the control board and the motor or heating unit. It is usually caused by an overheated heating element, a tripped thermostat, or faulty electronics. | High |
| E9 | Siemens | Means there is a serious overheating fault or a failure in the heating circuit. It is usually caused by blocked airflow, a faulty heating element, or a tripped thermal safety thermostat. | High |
| F9 | Siemens | Means there is a fault in the heating system or heating circuit. It is usually caused by a heating element burning out or a tripped thermal cut-out. | High |
| F23 | Whirlpool | Means a heater or thermistor failure where the dryer is overheating or cannot detect its operating temperature, resulting in a shutdown. It is usually caused by a faulty heater, a faulty thermistor, or restricted airflow. | High |
| F3 | Whirlpool | Means a temperature sensing fault or moisture sensor fault where the dryer cannot measure heat or dampness and stops to prevent overheating, shown as F3 E1, F3 E2, or F3 E3. It is usually caused by a faulty NTC thermistor or a faulty moisture sensor. | Medium |
| F4 | Whirlpool | Means a heating circuit fault or a low or no line voltage fault shown as F4E4, resulting in no heat or a failure to start. It is usually caused by a tripped circuit breaker, a faulty thermal fuse, a damaged heating element, or a clogged vent system. | Medium |
| F4E3 | Whirlpool | Means a restricted or low airflow fault that can cause long drying times or overheating. It is usually caused by a clogged lint screen, a blocked vent hose, or crushed vent ducting. | Medium |
E5High
Bosch
Means a heating circuit fault leaving the dryer cold, or a drainage problem. It is usually caused by a tripped thermal cut-out, a faulty heating element, or a blocked lint filter.
E6High
Bosch
Means a heating problem where the dryer is failing to heat up. It is usually caused by restricted airflow from a severely clogged lint filter or heat exchanger, or a failed heater element.
E9High
Bosch
Means a serious heating circuit fault, usually meaning the dryer has overheated. It is usually caused by a failed heating element, a tripped thermal cut-out, or an electronic control board problem.
E19High
Siemens
Means the unit is taking too long to reach the target temperature. It is usually caused by a faulty heating element, a tripped thermal cut-out, or restricted airflow from blocked lint filters.
E63High
Siemens
Means there is a serious fault in the heating system, or a communication failure between the control board and the motor or heating unit. It is usually caused by an overheated heating element, a tripped thermostat, or faulty electronics.
E9High
Siemens
Means there is a serious overheating fault or a failure in the heating circuit. It is usually caused by blocked airflow, a faulty heating element, or a tripped thermal safety thermostat.
F9High
Siemens
Means there is a fault in the heating system or heating circuit. It is usually caused by a heating element burning out or a tripped thermal cut-out.
F23High
Whirlpool
Means a heater or thermistor failure where the dryer is overheating or cannot detect its operating temperature, resulting in a shutdown. It is usually caused by a faulty heater, a faulty thermistor, or restricted airflow.
F3Medium
Whirlpool
Means a temperature sensing fault or moisture sensor fault where the dryer cannot measure heat or dampness and stops to prevent overheating, shown as F3 E1, F3 E2, or F3 E3. It is usually caused by a faulty NTC thermistor or a faulty moisture sensor.
F4Medium
Whirlpool
Means a heating circuit fault or a low or no line voltage fault shown as F4E4, resulting in no heat or a failure to start. It is usually caused by a tripped circuit breaker, a faulty thermal fuse, a damaged heating element, or a clogged vent system.
F4E3Medium
Whirlpool
Means a restricted or low airflow fault that can cause long drying times or overheating. It is usually caused by a clogged lint screen, a blocked vent hose, or crushed vent ducting.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- 481225928675
- Alternative Part Numbers
- C00311187, 481225928675, 481225938167, 481225938175
- EAN / Barcode
- 8058331111874
- Genuine Spare Part
- No
07
More Details
High-quality heater element and thermostat.
The heater heats the air in the dryer to maintain the right temperature for drying your clothes. You have the thermostat to check the temperature. If it overheats, it interrupts the electrical circuit and stops the cycle until the temperature is normal again.
When you replace the old heater, the thermostat might be worn out. So this set comes with a new thermostat.
This heater and thermostat set fits Bauknecht, Bosch, Eslabon de lujo, Ignis, Proline, Siemens, V zug, and Whirlpool tumble dryers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Customer Reviews (14)
4.814 reviews
5
11
4
3
3
0
2
0
1
0
Sort by:||
Dryer repair
Tumble dryer is old and only lightly used. All that was wrong was heating element. Could have purchased a second hand dryer for amount the part cost, but at least this has a new element that will hopefully last. Easy to replace part which arrived quickly.
Stephanie Curtis · Whitby ·
Quality
Value
Ease of Fitting
good value
When my very old Wirlpool drier failed due to the heater I thought I would not be able to get a replacement and have to buy another drier. However I found a replacement heater on Ransom Spares that was cheaper than other suppliers. It arrived quickly and was easy to fit so the drier was soon back in action again.
David Langdon · PULBOROUGH ·
Quality
Value
Ease of Fitting
Right product easily found and fitted
As always - easy to find the right part on Ransom website and speedily delivered so tumble dryer back in use with minimum delay. Straightforward to fit. Thank you Ransomspares.
Trevor Watts · Bristol ·
Quality
Value
Ease of Fitting
Tumble dryer element
Ransom spares offer an outstanding customer service, The part ordered had express delivery and didn't turn up. not only did they refund my delivery charge but also managed to dispatch a replacement by express delivery. Customer service and handling problems next to none. Highly recommend Ransoms to everyone. Will always use them. Kind regards and well done, Mark.
Mr Mark B Tomlin · AMERSHAM ·
Quality
Value
Ease of Fitting
Good product , value for money
Ordered and received within a couple of days very pleased with service
Geoff beale · Hazlemere ·
Quality
Value
Ease of Fitting
