Indesit

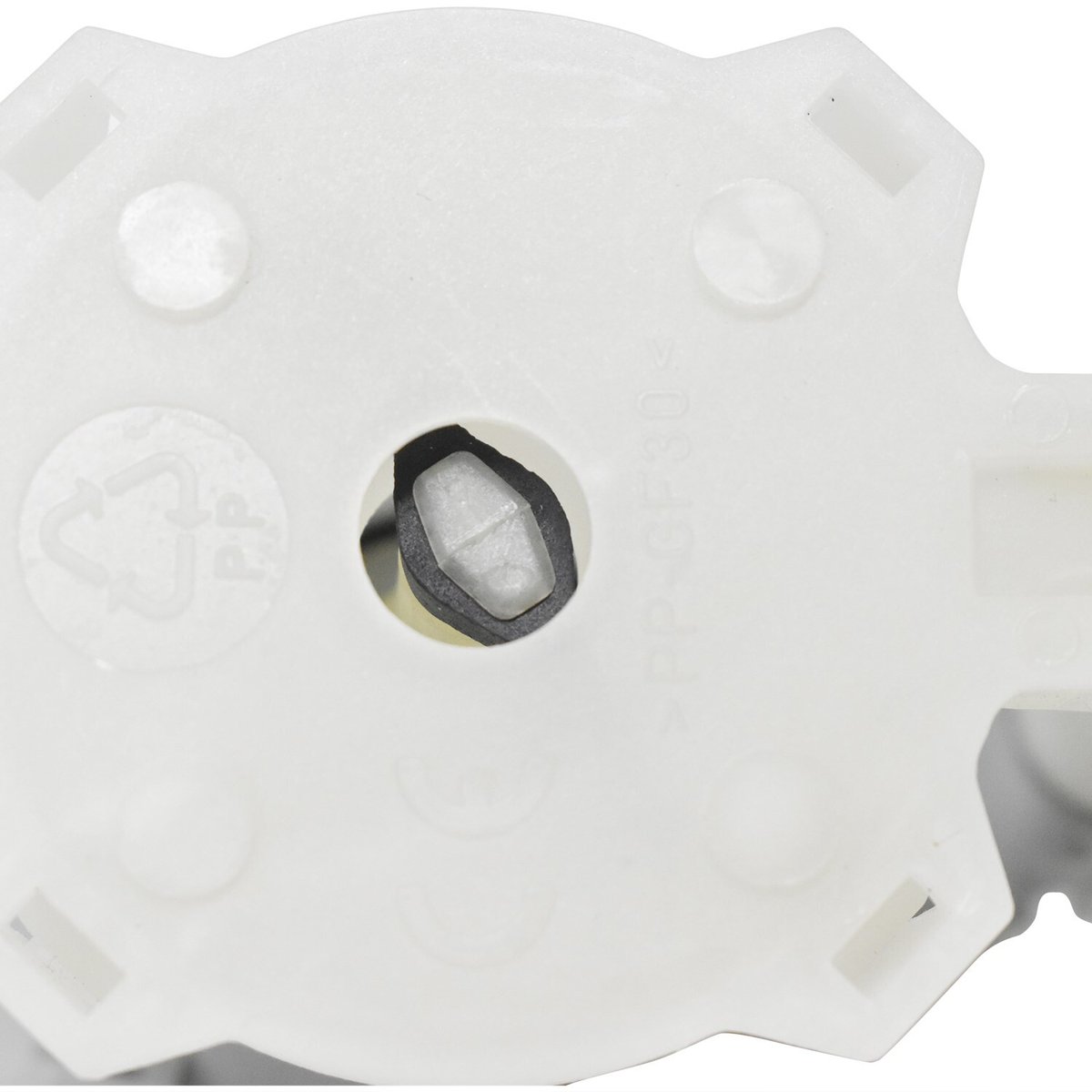

Indesit Tumble Dryer Water Condenser Pump163ID14
Suitable for Indesit, Ariston, Creda, Export, Hotpoint
Stock Code: 824222
·
£16.20inc. VAT
£13.50 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Pumps the collected water up to the container or drain.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F11 | Ariston | Means the machine cannot detect the condensation pump, preventing water from being drained and often stopping the dryer after a few minutes. It is usually caused by a no pump connection or an open circuit pump fault. | High |
| F5 | Ariston | Means a drainage fault, often caused by lint buildup. It is usually caused by a blocked filter, an obstructed hose, or a malfunctioning drain pump. | High |
| H20 | Ariston | Means the machine cannot empty water from its reservoir, or the sensor detects a full tank when it is empty, causing the unit to stop mid-cycle. It is usually caused by a blocked pump, a dirty condenser unit, or a broken pump impeller. | High |
| F11 | Hotpoint | Means a pump circuit fault, where the pump is disconnected, blocked, or faulty and water is not pumping out. It is usually caused by an open circuit in the pump system. | High |
| F4 | Hotpoint | Means the pump is running when it should not be, suggesting a water drainage problem or a heater circuit fault. It is usually caused by moisture causing a short circuit in the pump circuit, or a clogged pump filter preventing proper drainage. | High |
| F5 | Hotpoint | Means a drainage problem where the pump is not working or a blockage is preventing water from draining. It is usually caused by a blocked filter, a clogged waste pipe, or a failed pump. | High |
| H20 | Hotpoint | Means a water drainage problem, signalling that the condenser water reservoir is full or that draining has failed. It is usually caused by a blocked drain pump, a blocked filter, debris accumulation, or a malfunctioning sensor. | High |
| F11 | Indesit | Means a pump circuit failure, where water is not being pumped out correctly on condenser or heat pump models. It is usually caused by a blockage in the filter, a faulty water pump, or a communication fault between the control boards. | High |
| F15 | Indesit | Means a dryer heater control fault or a drainage failure on washer-dryers, where the dryer cannot detect the heating element or water is not pumped out correctly. It is usually caused by a failed heating element, broken wires, or a blocked pump. | Medium |
F11High
Ariston
Means the machine cannot detect the condensation pump, preventing water from being drained and often stopping the dryer after a few minutes. It is usually caused by a no pump connection or an open circuit pump fault.
F5High
Ariston
Means a drainage fault, often caused by lint buildup. It is usually caused by a blocked filter, an obstructed hose, or a malfunctioning drain pump.
H20High
Ariston
Means the machine cannot empty water from its reservoir, or the sensor detects a full tank when it is empty, causing the unit to stop mid-cycle. It is usually caused by a blocked pump, a dirty condenser unit, or a broken pump impeller.
F11High
Hotpoint
Means a pump circuit fault, where the pump is disconnected, blocked, or faulty and water is not pumping out. It is usually caused by an open circuit in the pump system.
F4High
Hotpoint
Means the pump is running when it should not be, suggesting a water drainage problem or a heater circuit fault. It is usually caused by moisture causing a short circuit in the pump circuit, or a clogged pump filter preventing proper drainage.
F5High
Hotpoint
Means a drainage problem where the pump is not working or a blockage is preventing water from draining. It is usually caused by a blocked filter, a clogged waste pipe, or a failed pump.
H20High
Hotpoint
Means a water drainage problem, signalling that the condenser water reservoir is full or that draining has failed. It is usually caused by a blocked drain pump, a blocked filter, debris accumulation, or a malfunctioning sensor.
F11High
Indesit
Means a pump circuit failure, where water is not being pumped out correctly on condenser or heat pump models. It is usually caused by a blockage in the filter, a faulty water pump, or a communication fault between the control boards.
F15Medium
Indesit
Means a dryer heater control fault or a drainage failure on washer-dryers, where the dryer cannot detect the heating element or water is not pumped out correctly. It is usually caused by a failed heating element, broken wires, or a blocked pump.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriverPliers
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 163ID14
- Alternative Part Numbers
- C00193127, C00306876
- Genuine Spare Part
- No
07
More Details
What does a condenser pump do in a tumble dryer?
A condenser pump removes the moisture extracted from the clothes during the drying process. As the warm air circulates within the dryer, it comes into contact with a cold surface, causing the moisture in the air to condense into water droplets.
The condenser pump collects this water and pumps it out of the dryer, either into a removable container or through a drainage system.
When do you replace your water condenser pump?
The water condenser pump typically needs to be replaced when it malfunctions or becomes inefficient in pumping out the condensed water.
Signs that indicate the need for replacement include the pump failing to remove water effectively, leakage or pooling of water around the pump area, unusual noises or vibrations coming from the pump, or a complete failure to pump water at all.
Would this water condenser pump work in my tumble dryer?
This water condenser pump fits Indesit, Ariston, Creda, Export, Hotpoint, Proline, and Swan tumble dryers.
08
Customer Reviews (16)
4.916 reviews
5
15
4
1
3
0
2
0
1
0
Sort by:||
Excellent
First time I have used Ransom spares ,and I will certainly use them again .The website was correct , easy to use ,very ,the repair advice was very informative, the part arrived very quickly and it fitted perfectly,I installed it myself without any hassle . I would highly recommend Ransom spares
David Triccas · Horsham ·
Quality
Value
Ease of Fitting
Perfect!
Very easy to fit. Fast delivery and value for good money.
Shilpapper · Peterborough ·
Quality
Value
Ease of Fitting
Easy to find
Found easily by using the model number. Arrived on time
Melissa Dyer · Cheshunt ·
Quality
Value
Ease of Fitting
Quality and affordable
This a perfect replacement for manufactured part good quality and easy to use excellent service from Ransom
Graeme · South Shields ·
Quality
Value
Ease of Fitting
Looks different but fits just as well
The part that arrived looked different to what was in this picture. I went on to support team to question this and they were helpful, I didn't think it would work as a replacement but there was no problem at all once i got to putting it in. If you look at the part confused that its different, it'll be fine.
Anonymous · Unspecified ·
Quality
Value
Ease of Fitting
09
Questions & Answers (1)
Where on the dryer is the pump located please?
Kerry · Bromley ·
Hi Kerry, this is usually located behind the condenser unit.
JordanStaff·
