Indesit

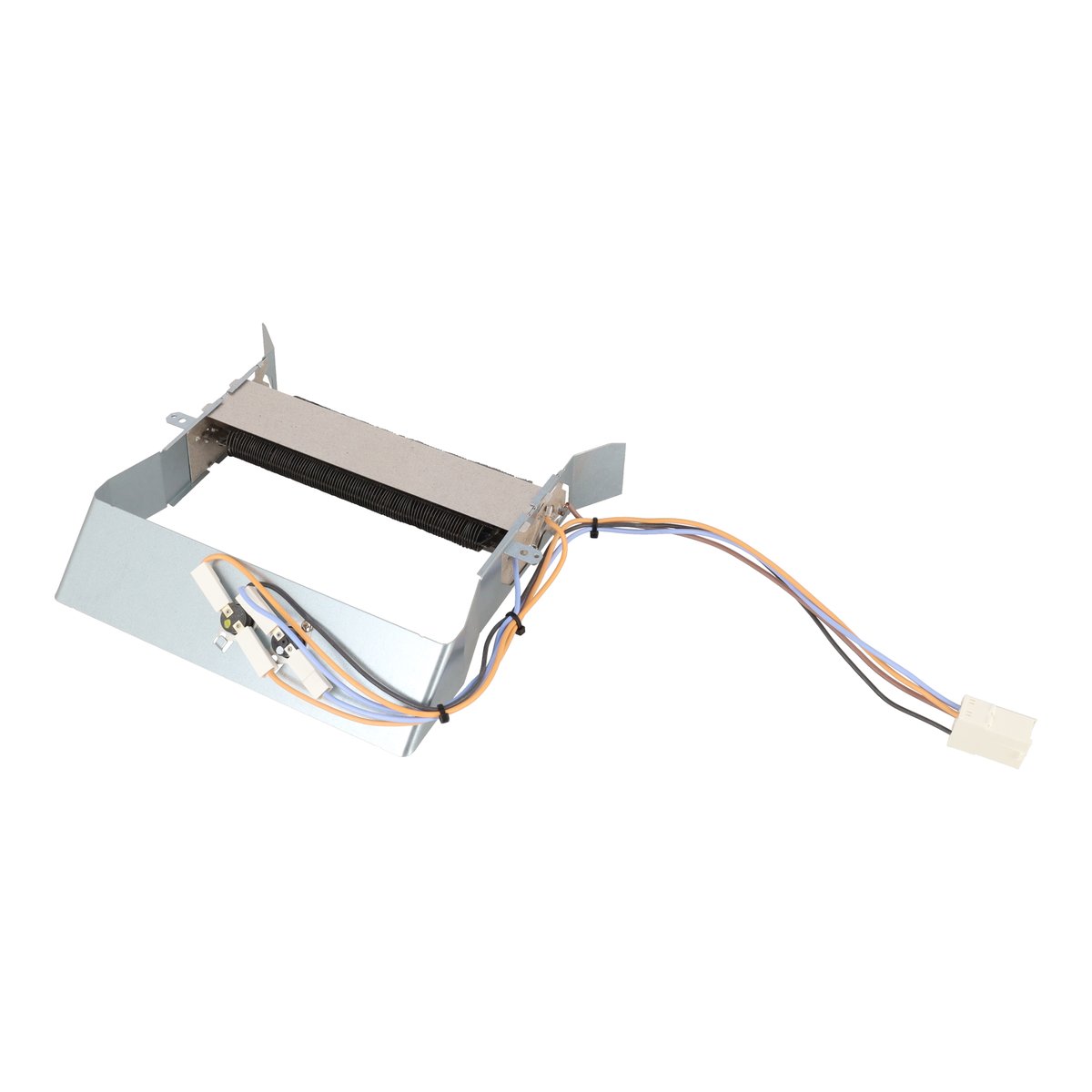

Indesit Tumble Dryer Heater Element 2300WC00282396
Suitable for Indesit, Ariston, Creda, Export, Hotpoint
Stock Code: 388414
·
£26.90inc. VAT
£22.42 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Heats the drying air and uses the thermostats to hold it at a safe temperature.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F13 | Ariston | Means a dryer circuit malfunction involving the NTC temperature sensor, a heating element failure, or a lack of airflow. It is usually caused by a faulty sensor or a blockage in the condenser or heater unit. | High |
| F4 | Ariston | Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element. | High |
| F6 | Ariston | Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue. | High |
| F7 | Ariston | Means the dryer cannot heat properly or at all, or on some models a motor circuit fault prevents the drum from turning. It is usually caused by a heater relay fault, a heating element failure, or a control board malfunction. | High |
| F8 | Ariston | Means a heater element or heater relay fault. It is usually caused by a burned-out heating element, a faulty relay on the PCB, or wiring damage. | High |
| E2 | Hotpoint | Means a serious heating fault that causes the dryer to overheat or fail to heat. It is usually caused by a faulty thermistor, a broken heating element, or a control board issue. | High |
| F8 | Hotpoint | Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board. | High |
| F14 | Indesit | Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board. | High |
| F4 | Indesit | Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating. | High |
| F8 | Indesit | Means a heater fault that pauses the cycle partway through. It is usually caused by a heater relay fault, a shorted or open heating element, or wiring damage. | High |
F13High
Ariston
Means a dryer circuit malfunction involving the NTC temperature sensor, a heating element failure, or a lack of airflow. It is usually caused by a faulty sensor or a blockage in the condenser or heater unit.
F4High
Ariston
Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element.
F6High
Ariston
Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue.
F7High
Ariston
Means the dryer cannot heat properly or at all, or on some models a motor circuit fault prevents the drum from turning. It is usually caused by a heater relay fault, a heating element failure, or a control board malfunction.
F8High
Ariston
Means a heater element or heater relay fault. It is usually caused by a burned-out heating element, a faulty relay on the PCB, or wiring damage.
E2High
Hotpoint
Means a serious heating fault that causes the dryer to overheat or fail to heat. It is usually caused by a faulty thermistor, a broken heating element, or a control board issue.
F8High
Hotpoint
Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.
F14High
Indesit
Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.
F4High
Indesit
Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.
F8High
Indesit
Means a heater fault that pauses the cycle partway through. It is usually caused by a heater relay fault, a shorted or open heating element, or wiring damage.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- C00282396
- Alternative Part Numbers
- 1703005, 1703248, C00113946, C00116599
- EAN / Barcode
- 8055005823965
- Genuine Spare Part
- Yes
07
More Details
This is a genuine 2300W tumble dryer heater element. It’s at the back of your dryer’s housing.
The heater element produces the heat circulated in the drying chamber. This heat evaporates moisture from your damp laundry including shirts, towels, and other items inside the dryer.
Has wiring harnesses to connect to your dryer’s control system.
Check out our DIY video guide below to help you with the replacement process.
This heater element is from Indesit but also fits select models of Ariston, Creda, Export, Hotpoint, and Proline tumble dryers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Video
How to Fit a Tumble Dryer Heater Element
Please note that the following video will give you a guide on how to fit this part, however the exact fitting may differ depending on your make and model.
Safety Warning - Always unplug from the mains before carrying out any repairs.
09
Customer Reviews (8)
5.08 reviews
5
8
4
0
3
0
2
0
1
0
Sort by:||
Exactly what I needed
I ordered this replacement part for my IDC85 Indesit tumble dryer. Some water had leaked into the old part and my dryer was tripping all of the power in my home. This part was a little tricky to replace but now it is in my dryer is working perfectly again
Marie Hamilton · Portsmouth ·
Quality
Value
Ease of Fitting
upgraded product ,very easy to fit
although only one of the heater stats had failed i thought best to replace complete heater unit.not a great fan of hotpoint and this tumble dryer was one modified by them(fires etc)so particulary wary.good fast service again
paul cartersmith · worthing ·
Quality
Value
Ease of Fitting
Just what I needed
As a family of 5, including 3 children under 10, a tumble dryer is essential! Ours had stopped heating up so we bought this to replace the broken heating element. The part was very easy to fit, tumble dryer was back up and running again in no time. The kids are happy they can continue changing their outfits 1683 times a day!
Amanda · Luton ·
Quality
Value
Ease of Fitting
Good replacement
Ordered this bit as old elements were broken & no heat in the dryer the connecting plug was easy to change as the older model is a different fitting ( do one wire at a time ) although after there was still no heat this was down to the front thermostat gone too ordered this from ransoms arrived quickly dryer up & running again 😃
Paul Alderman · Walsall ·
Quality
Value
Ease of Fitting
Indesit condenser fixed
Ordered this when the Indesit dryer stopped working. This had happened before with the thermostat on the back, which you just reset. However, when I took the back off it became clear the elements were totally shot - new part. It arrived quickly and I set to work. I got so far then cursed as the connector seemed wrong. Wife to the rescue - she spotted the instructins which I had missed - just had to use the old connector on the new wires. After that it was a breeze. Lesson learned: Read the instructions that come with these pieces. Also, I found a good vid on youtube which explained how to get the side off the dryer. Easy! Cheers and thanks R
R Kennedy · Derby ·
Quality
Value
Ease of Fitting
10
Questions & Answers (1)
As buying the panel does it come with new thermostats already installed or do you have to order them separate. Thanks
Andrew · North east ·
Hi Andrew, this heater comes with both of the thermostats that are joined to the heater.
JackStaff·
