Genuine Part

Hotpoint

Hotpoint Tumble Dryer Thermostat TOC KitC00209193

Name: Hotpoint Tumble Dryer Thermostat TOC Kit
Brand: Hotpoint
SKU: C00209193
Price: 31.50 GBP
Availability: InStock
Rating: 4.9 (9 reviews)

Suitable for Hotpoint, Ariston, Creda, Crusader, Electra

Stock Code: 4600

£31.50inc. VAT

£26.25 ex. VAT

In Stock

Next Day Delivery Available

Moderate DIY repair

A confident home repairer can do this with basic tools.

Compatibility Check

Brand

Model Number

What this part does

Senses the air temperature and cuts the heater if it gets too hot.

Will this fix my appliance?

Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.

Error codes related to this part

Error codes are model dependent, so the same brand may have more than one listed.

Code	Brand	What it means	Confidence
F4	Ariston	Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element.	High
F6	Ariston	Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue.	High
F8	Hotpoint	Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.	High
F14	Indesit	Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.	High
F4	Indesit	Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.	High

F4High

Ariston

Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element.

F6High

Ariston

Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue.

F8High

Hotpoint

Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.

F14High

Indesit

Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.

F4High

Indesit

Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.

Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.

Fitting Guidance

Medium

General fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.

Safety: Switch off and unplug at the mains and let it cool before you start.

You’ll needScrewdriverNut driver

Specifications

Part Number: C00209193
Alternative Part Numbers: 1741124, C00810254
EAN / Barcode: 8055005091937
Genuine Spare Part: Yes

More Details

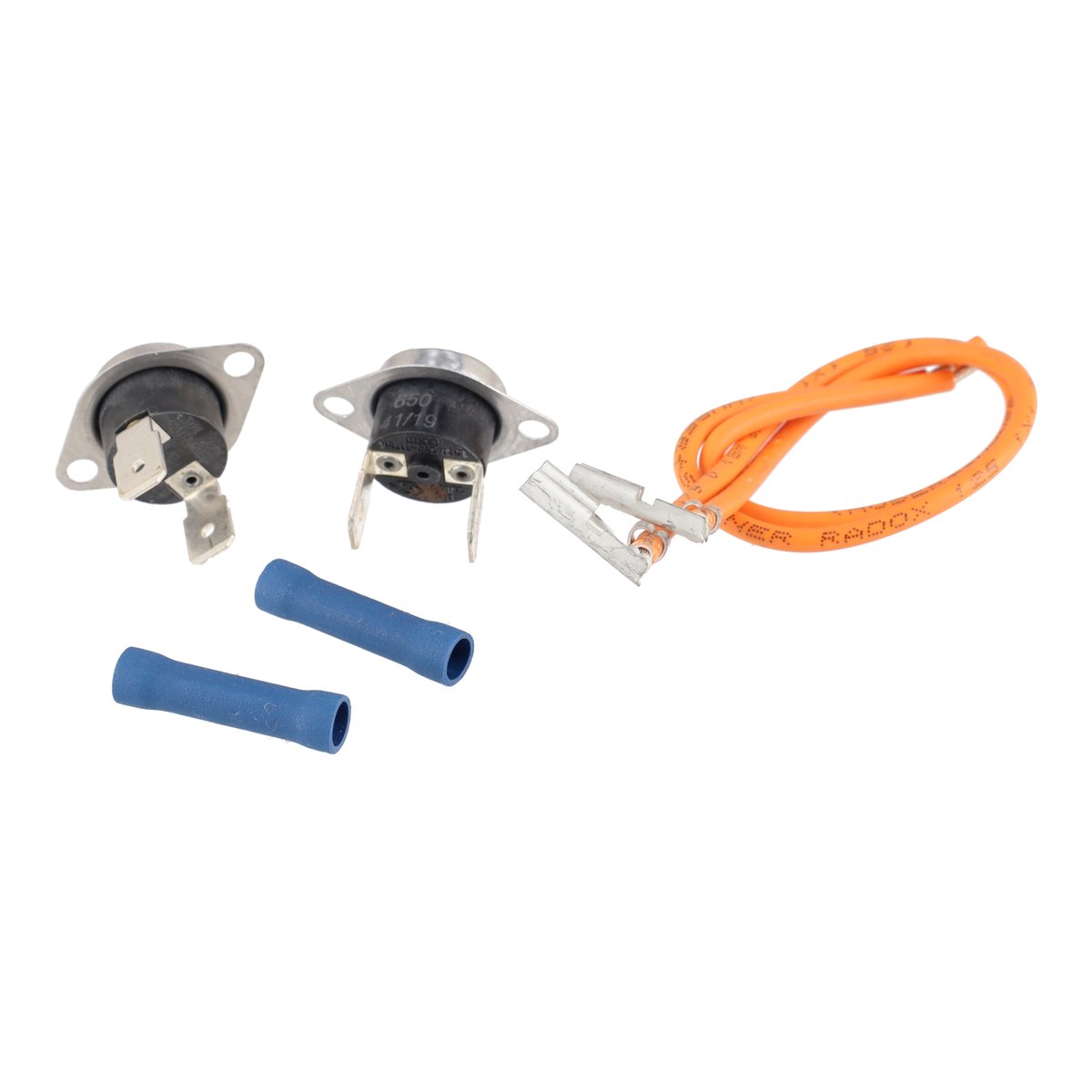

This is a genuine tumble dryer thermostat kit. Complete with a thermostat, a thermal overload cutout for safety, replacement wiring, mounting screws or clips, and an installation manual.

The thermostat monitors your tumble dryer’s temperature to prevent overheating and protect your clothes and the dryer.

A damaged thermostat or TOC in a tumble dryer can cause overheating, no heat, inconsistent drying, or the dryer shutting off unexpectedly. Replace it promptly with this part.

Check out our DIY video guide below to help you with the replacement process.

This thermostat kit for your tumble dryer is from Hotpoint. Also fits Ariston, Creda, Crusader, Electra, English Electric, Export, Indesit, Parnall, and Thorn tumble dryers.

Before ordering, please verify with our compatibility checker that this kit works for your model.
