Hotpoint

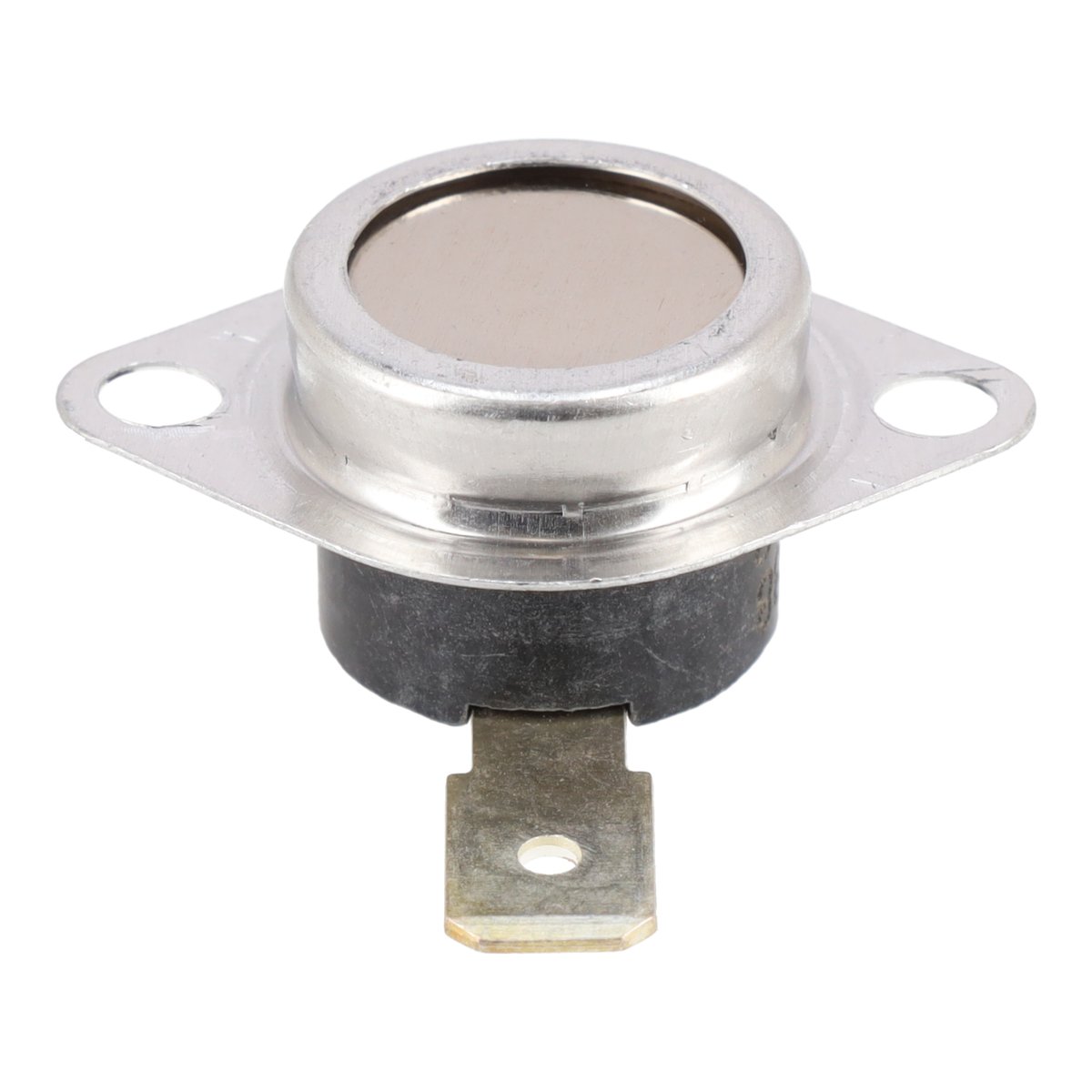

Hotpoint Tumble Dryer Thermostat KitC00116598
Suitable for Hotpoint, Ariston, Creda, Export, Indesit
Stock Code: 3850
·
£15.10inc. VAT
£12.58 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Senses the air temperature and cuts the heater if it gets too hot.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F4 | Ariston | Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element. | High |
| F6 | Ariston | Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue. | High |
| F8 | Hotpoint | Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board. | High |
| F14 | Indesit | Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board. | High |
| F4 | Indesit | Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating. | High |
F4High
Ariston
Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element.
F6High
Ariston
Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue.
F8High
Hotpoint
Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.
F14High
Indesit
Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.
F4High
Indesit
Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- C00116598
- Alternative Part Numbers
- 1703200, 1703608, C00113863, C00113946
- EAN / Barcode
- 8052476165983
- Genuine Spare Part
- Yes
07
More Details
A genuine two-piece thermostat kit for regulating your tumble dryer’s drying temperature.
Noticing your tumble dryer's heating is not right? Might be with your dryer's thermostat.
Excessively high temperatures damage clothes. You can even damage the dryer itself. There's also a risk of starting a fire if not careful. The thermostat automatically cuts off the heating element if it overheats.
Check out our video below on how to fit a thermostat.
This thermostat kit for your tumble dryer is from Hotpoint.You can also check in with the other suitable brands from the list above.
Before ordering, please verify with our compatibility checker that this kit works for your model.
08
Video
How to replace tumble dryer thermostats:
The following DIY repair video should assist you in fitting this part. However the exact procedure may differ depending on your make and model.
Safety Warning - Always unplug from the mains before carrying out any repairs.
09
Customer Reviews (23)
5.023 reviews
5
22
4
1
3
0
2
0
1
0
Sort by:||
Fast service
Part arrived in good time and well packaged. Part was correct and of good quality
Terence Hudson · Middlesbrough ·
Quality
Value
Ease of Fitting
Tumble Dryer working again
Quick delivery and parts worked as expected . Dryer is now working again and getting hot. Apparently opening the door while it’s hot can cause them to fail .
Will Moore · Bristol ·
Quality
Value
Ease of Fitting
Great deal
Excellent value for money. A quality replacement part at a great price. Arrived on time. No issues at all.
Denis Robertson · Tore ·
Quality
Value
Ease of Fitting
Great product, easy to fit
Arrived a bit squashed, but contents ok. Dryer now working again. Easy fix, very pleased.
Stuart Dayman · Leicester ·
Quality
Value
Ease of Fitting
Excellent. Just as stated.
Great service, quick dispatch. Just the part I needed easy to fit dryer is now working perfectly. Saved me calling and paying an engineer. Thanks to all your team for advice and quick resolution to my problem.
Paul Cusworth · Hartlepool ·
Quality
Value
Ease of Fitting
10
Questions & Answers (5)
Would this part be suitable for model TDWSF 83B EP.
John Dunlop · Coatbridge ·
Hi John, the thermostats for your model are only available complete with the heater element. This is part number RS594212.
JordanStaff·
Hello there, I would like to ask about this product as when I disassembly I forgot to take note on which is side is for the yellow spot and which side is for the white spot, could you help me with that, thank you so very much. Also, is this product come with a pair of two (one for yellow and one for white)?
Phuc · Bristol ·
Hi, I can confirm this kit is supplied as a pair; however we cannot help with fitting instructions. I'd recommend contacting an engineer to see if they're able to confirm.
JordanStaff·
Are these suitable for Hotpoint Aquarius TVFS73BGG(UK) model no. 610260143, Ind Code 95859750100?
Gary · Northamptonshire ·
Hi Gary, the thermostat kit for your model is RS4967.
JordanStaff·
Hi this kit is a pair of thermostats, is that correct please.
Vashka · Cornwall ·
Hi Vashka, I can confirm this kit contains two thermostats.
JordanStaff·
Hi, Would these be a suitable replacement for a Hotpoint TDWSF83EPZ (UK)? If not what should i use? Thanks :)
J · Cambridge ·
Hi, The thermostats are not available separately on this model. You'd need RS594212, which is the complete heater and thermostat unit.
JordanStaff·
