Hotpoint
Hotpoint Tumble Dryer Green / Yellow Spot Thermostat KitC00095566
Suitable for Hotpoint, Ariston, Creda, Crusader, Electra
Stock Code: 4813
·
£16.90inc. VAT
£14.08 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Senses the air temperature and cuts the heater if it gets too hot.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F4 | Ariston | Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element. | High |
| F6 | Ariston | Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue. | High |
| F8 | Hotpoint | Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board. | High |
| F14 | Indesit | Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board. | High |
| F4 | Indesit | Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating. | High |
F4High
Ariston
Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element.
F6High
Ariston
Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue.
F8High
Hotpoint
Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.
F14High
Indesit
Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.
F4High
Indesit
Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- C00095566
- Alternative Part Numbers
- 1701583
- EAN / Barcode
- 8059131955668
- Genuine Spare Part
- Yes
07
More Details

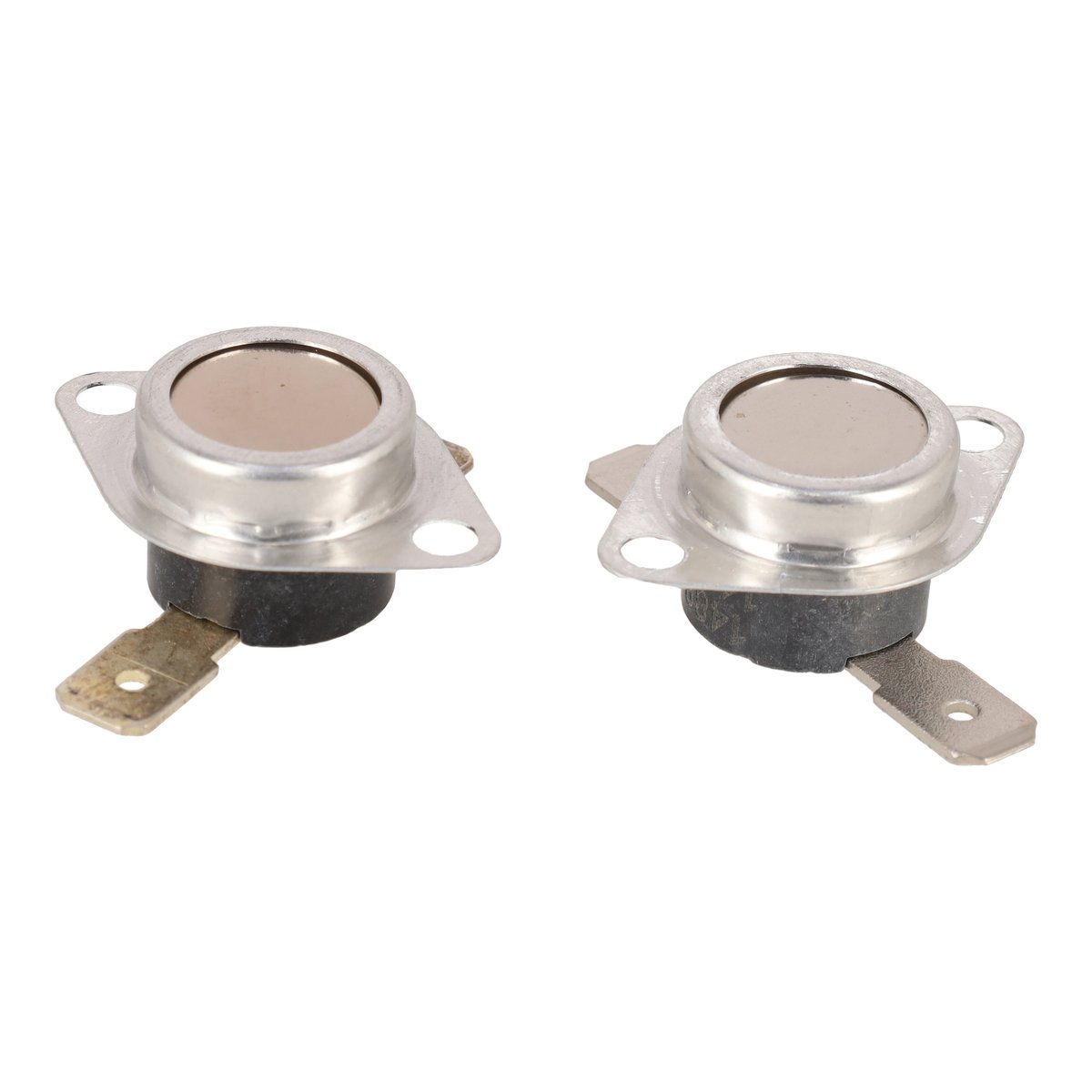

- This is the Genuine 'Green Spot' Thermostat Kit for select Ariston, Creda, Hotpoint, and Indesit Tumble Dryers
- The kit includes 106 degrees (cycling stat) and 130 degrees (one shot stat)
- Both thermostats in the kit should be replaced
- Please check you model number against the 'fits models' list below before ordering
08
Video
How to replace tumble dryer thermostats:
The following DIY repair video should assist you in fitting this part. However the exact procedure may differ depending on your make and model.
Safety Warining - Always unplug from the mains before carrying out any repairs.
09
Customer Reviews (16)
4.816 reviews
5
13
4
3
3
0
2
0
1
0
Sort by:||
Easy to fit
Simple replacement and quite inexpensive. I fitted these while replacing the heater element, must have added nearly 3 minutes to the job. Delighted
derek dorman · Amersham ·
Quality
Value
Ease of Fitting
Easy to fit
Original makers parts, easy to fit. Make sure you get the correct temperature
L · Edinburgh ·
Quality
Value
Ease of Fitting
Good Quality
Thought part might be hard to get as drier 15 yrs old but was easy to obtain and easy to fit would use Ransom again
GEORGE WILKINSON · WALLSEND ·
Quality
Value
Ease of Fitting
Crusader tumble dryer
Tumble dryer stopped heating. So found this website which was awesome at find the right part for the machine. Delived on time took 5 minutes to fit. Works like new 👍
Mike Matthews · Banbury ·
Quality
Value
Ease of Fitting
Good stuff
Part came within timescale indicated. As described. Fixed the tumble dryer. Only slight negative is that the box the part came in wasn’t very strong and had been squished in transit. Luckily the part wasn’t damaged. Good service would use again.
Sarah B · Shiremoor ·
Quality
Value
Ease of Fitting
10
Questions & Answers (2)
Does this fit a indesit IS31V(UK) tumble dryer I used the check but it was unable to confirm if it was compatible, thanks
Stacey · Eastbourne ·
Hi Stacey, the thermostat kit required for your model is RS144886.
JordanStaff·
I have a Creda 37748E tumble dryer and only get high heat and no lower heat? what parts do I need to fix this?
Jim Edward · Ipswich, Suffolk ·
Hi Jim, thanks for your question. Unfortunately we aren't able to diagnose the issue with your tumble dryer. I would recommend contacting an engineer to see if they're able to let you know what part you require. Once you know we should be able to source the part you need.
JordanStaff·
