Hotpoint

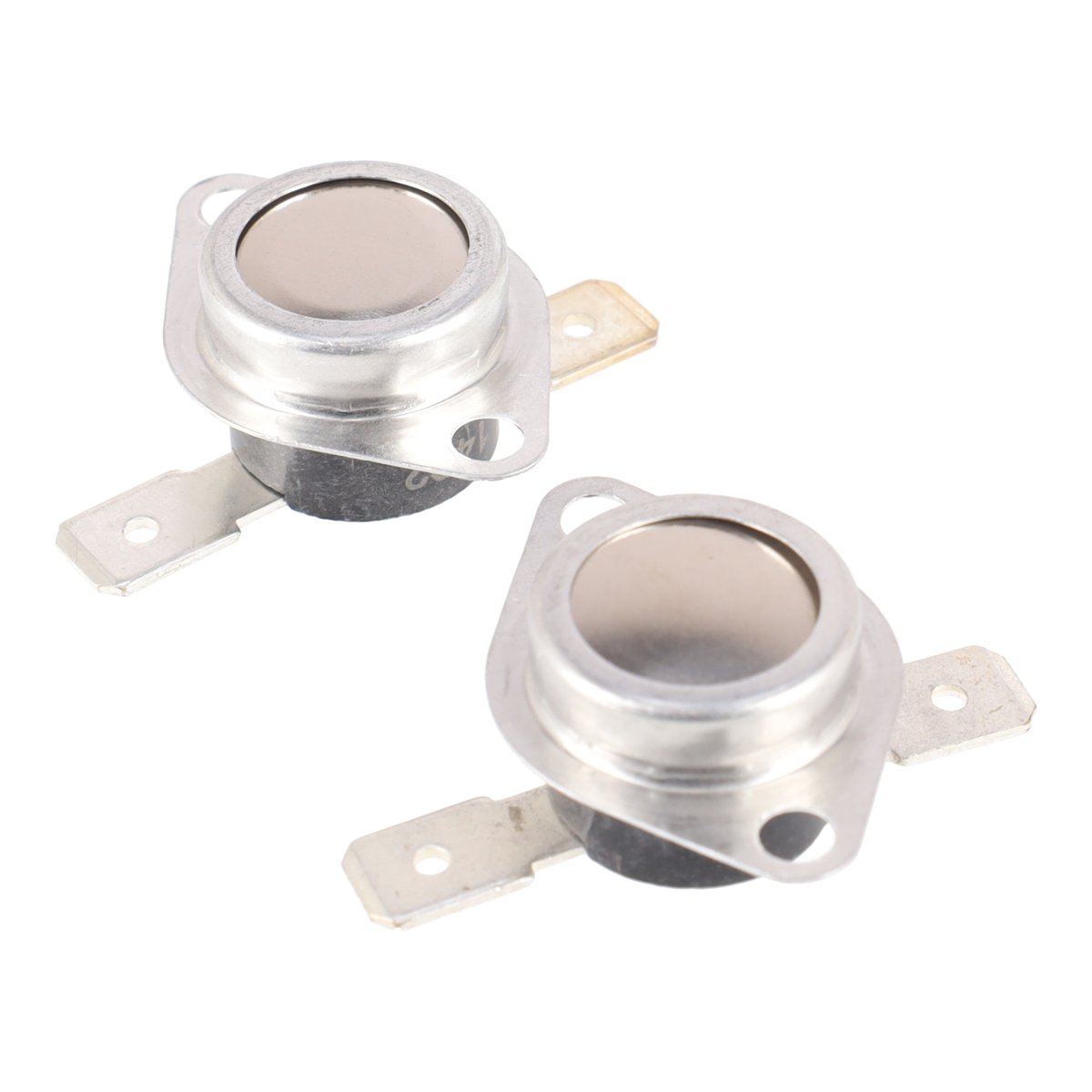

Hotpoint Tumble Dryer Cut Out Thermostat Kit (Both Stats)C00112196
Suitable for Hotpoint, Ariston, Creda, Export, Indesit
Stock Code: 4967
·
£21.10inc. VAT
£17.58 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Senses the air temperature and cuts the heater if it gets too hot.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| F4 | Ariston | Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element. | High |
| F6 | Ariston | Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue. | High |
| F8 | Hotpoint | Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board. | High |
| F14 | Indesit | Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board. | High |
| F4 | Indesit | Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating. | High |
F4High
Ariston
Means a heating circuit fault where the dryer cannot heat up or has detected a faulty water sensor, leading to cold air production. It is usually caused by a tripped thermostat, a faulty thermal fuse, or a damaged heating element.
F6High
Ariston
Means the thermal overload thermostat has tripped due to overheating, or the door switch is failing to register that the door is closed. It is usually caused by a heating circuit fault or a door lock issue.
F8High
Hotpoint
Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.
F14High
Indesit
Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.
F4High
Indesit
Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- C00112196
- Alternative Part Numbers
- 1702896, 1703037, 1703242, 1703347
- EAN / Barcode
- 8052476121965
- Genuine Spare Part
- Yes
07
More Details
This is a genuine thermostat kit for your tumble dryer.
Regulates the internal temperature to prevent overheating. It also helps maintain the right heat level to protect both the dryer and your clothes.
Observe the tumble dryer thermostat for overheating, failure to heat up, or unexpected shutdowns. Look for burn marks, cracks, or corrosion, as these signs indicate that you may need to replace the thermostat. Change it with this replacement part.
This thermostat kit is from Hotpoint. It also fits Ariston, Creda, Export, Indesit, Proline, and Swan tumble dryers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Customer Reviews (15)
4.815 reviews
5
12
4
3
3
0
2
0
1
0
Sort by:||
Great product
This product seems to last for 24 months and are easy to fit
Tony Katz · Yeovil ·
Quality
Value
Ease of Fitting
does what it does
items as described, I found it easy to fit and repaired the tumble dryer
andy gall · norwich ·
Quality
Value
Ease of Fitting
Helpful website
Website identified the parts (the spots on the thermostats were not very clear due to the heat). machine running well.
David Fisher · Gloucester ·
Quality
Value
Ease of Fitting
Tumble Dryer thermostat
Excellent service. Parts easy to replace, customer happy with successful repair for little cost.
Ian Smith · Andover ·
Quality
Value
Ease of Fitting
Good product
Excellent company to deal with, received the produce in good time. Easy to fit and worked as expected cheaper than having to replace the tumble dryer.
Malcolm Ellarby · Hedon ·
Quality
Value
Ease of Fitting
09
Questions & Answers (4)
I have a indesit idvl75brk(uk) which looks like it has 3 thermostats. What is the middle one for.
Tony · Devon ·
Hi Tony, the middle one is the thermister that measures the exhaust air temperature inside the dryer.
JordanStaff·
Looking for a thermostat to fit a Hotpoint tumble dryer, tdwsf 83b do/uk, 240V . It has an orange dot on the back of one of them. Do you have a set that is compatible with this model as nowhere seems to.
Damian · GRIMSBY ·
Hi Damian, this kit has one blue spot and one orange spot thermostat.
JordanStaff·
Why there is a blue dot on one of them? Does it matter how I connect themy in terms of left and right kinnda prawns? Regards Kamila
Kamila · Hounslow ·
Hi Kamila, thanks for your message. One is a thermostat and the other is a cut out, so you'll need to make sure they are fitted the right way round. If you're unsure on which way they go, I'd recommend contacting an engineer.
JordanStaff·
Does this include both thermostats in the kit?
Brian · Huddersfield ·
Hi Brian, I can confirm both the thermostat and the cut out are supplied in this kit.
SamStaff·
