Hotpoint

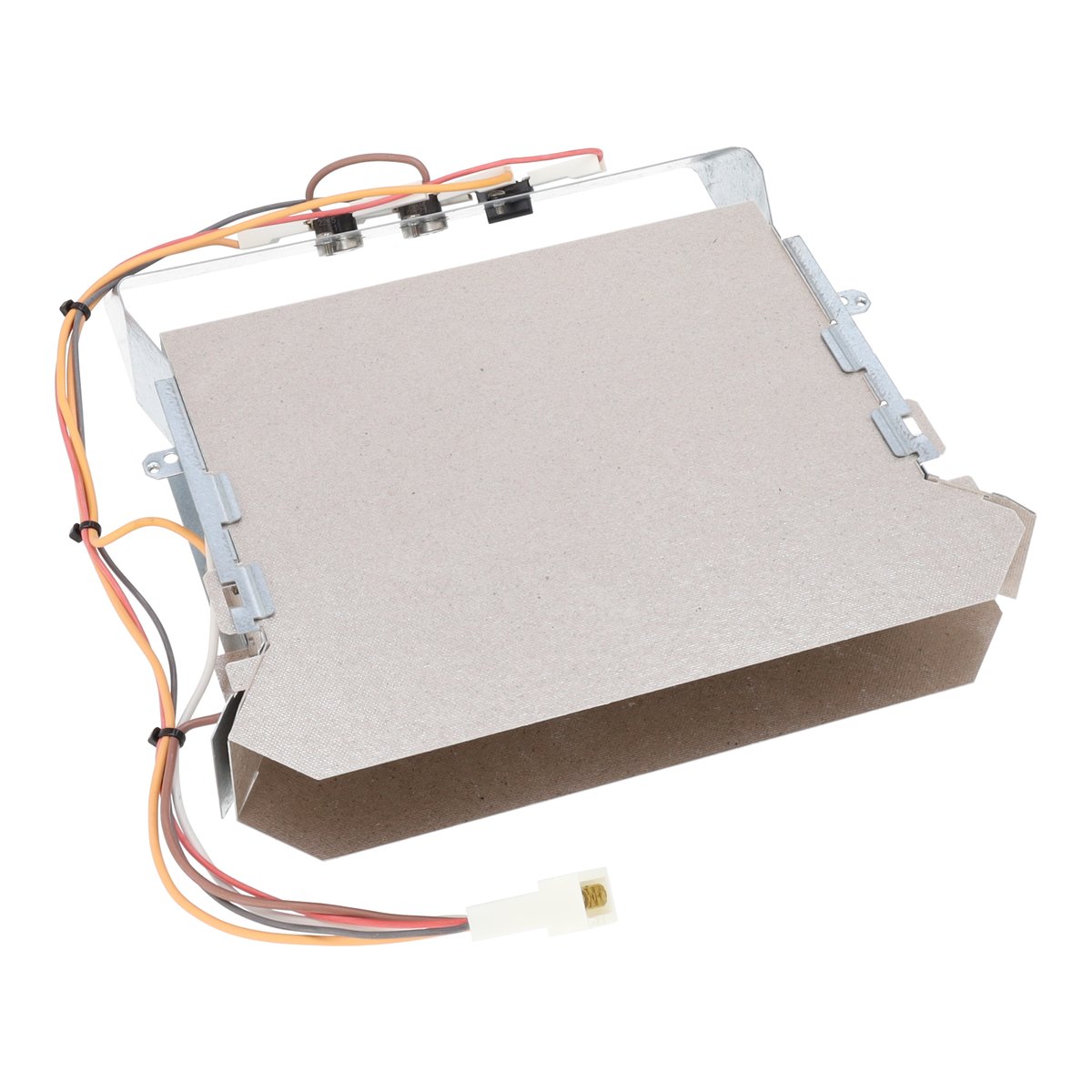

Hotpoint Tumble Dryer 2.05 kW Heating ElementC00505409
Suitable for Hotpoint, Indesit, Swan
Stock Code: 826386
·
£28.50inc. VAT
£23.75 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Heats the drying air and uses the thermostats to hold it at a safe temperature.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E2 | Hotpoint | Means a serious heating fault that causes the dryer to overheat or fail to heat. It is usually caused by a faulty thermistor, a broken heating element, or a control board issue. | High |
| F8 | Hotpoint | Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board. | High |
| F14 | Indesit | Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board. | High |
| F4 | Indesit | Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating. | High |
| F8 | Indesit | Means a heater fault that pauses the cycle partway through. It is usually caused by a heater relay fault, a shorted or open heating element, or wiring damage. | High |
E2High
Hotpoint
Means a serious heating fault that causes the dryer to overheat or fail to heat. It is usually caused by a faulty thermistor, a broken heating element, or a control board issue.
F8High
Hotpoint
Means a heating circuit fault, where the heating element is energised when it should not be. It is usually caused by a faulty thermostat, thermal cut-out, or a malfunctioning control board.
F14High
Indesit
Means a heating circuit fault, specifically that the heating element is not activating. It is usually caused by a faulty heating element, a tripped thermostat, or faulty wiring or control board.
F4High
Indesit
Means a serious heating circuit fault that leaves the dryer producing no heat, usually within 3 to 5 minutes of operation. It is usually caused by a failed thermostat, a heating element, or a blocked airflow system causing overheating.
F8High
Indesit
Means a heater fault that pauses the cycle partway through. It is usually caused by a heater relay fault, a shorted or open heating element, or wiring damage.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your tumble dryer.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- C00505409
- Alternative Part Numbers
- C00306310, C00345690, C00506093
- EAN / Barcode
- 8015250840711
- Genuine Spare Part
- Yes
07
More Details
How does the heating element in a tumble dryer control temperature?
The heat from the tumble dryer heater components dries the clothing. To regulate the temperature, they combine an electrical resistance device with a thermostat.
When the dryer is turned on, electrical current flows through the heater element. The wire heats up as a result of resistance that the current meets during its passage through the wire. The clothes are then dried by the warm air in the vicinity.
When do they need to get replaced?
Heating and cooling processes, tension, mineral deposits from hard water, and ageing can cause heater elements to deteriorate over time. The need for heater element replacement is indicated by signs like insufficient heating, prolonged drying times, insufficient heat production, cold spots on clothing or the drum, visibly damaged elements (burn marks, breaks, or corrosion), and a broken thermostat signalling problems with temperature regulation.
Would this heating element work in my tumble dryer?
This heater element is a genuine Hotpoint tumble dryer replacement part. It also fits Indesit and Swan tumble dryers.
08
Customer Reviews (5)
5.05 reviews
5
5
4
0
3
0
2
0
1
0
It works!
Thanks for the exact replacement of the heating element module for our Hotpoint condensing tumble dryer. We've had a full load of washing to dry go through it, and it now works like a new machine.
Stuart · Durham ·
Quality
Value
Ease of Fitting
Easy fix
Thanks again to ransom spares... Another great part delivered and useful video showing how to fit, you saved me the cost of a new condenser dryer.
Rik Sherwood · BANGOR ·
Quality
Value
Ease of Fitting
Simply refurbed our tumble dryer
Went on the Ransomes website, asked what part we needed from a part number, paid and ordered, arrived 3 days later, fitted in around 35 mins, one repaired tumble dryer, wife very happy.
Paul Crabbe · Crewkerne ·
Quality
Value
Ease of Fitting
Good product, works perfectly
Fast delivery, Easy to install works perfectly thank you.
Chris McKeown · Pershore ·
Quality
Value
Ease of Fitting
Good prce & quick delivery
Exact part I needed for my tumble dryer at a good price and with express delivery received in less than 36 hours. Easily fitted too - couldn't be more pleased :-).
Alistair Smith · Winchester ·
Quality
Value
Ease of Fitting
09
Questions & Answers (17)
Sort by:|
Does this come with the sensors shown in the diagram.
Graham · Devon ·
Hi Graham, I can confirm this will be supplied with the thermostats shown in the image.
JordanStaff·
Does this part come with the thermostats as the picture shows them
Brandon · Bracknell ·
Hi Brandon, I can confirm this heater is supplied with the thermostats.
JordanStaff·
Does this fit IDVL75BRK(UK)
Victoria · Somerset ·
Hi Victoria, the heater element for your model is RS601455.
JordanStaff·
Does this fit FTVFG65BGG (UK ) and do you have any instructions on how to fit ? Many thanks.
Gary · Brierley Hill ·
Hi Gary, the heater listed for your model is RS599159.
JordanStaff·
Will this fit a FETV60CP?
Stephen · Telford ·
Hi Stephen, the heater element for your model is RS495560.
JordanStaff·
