Gardena

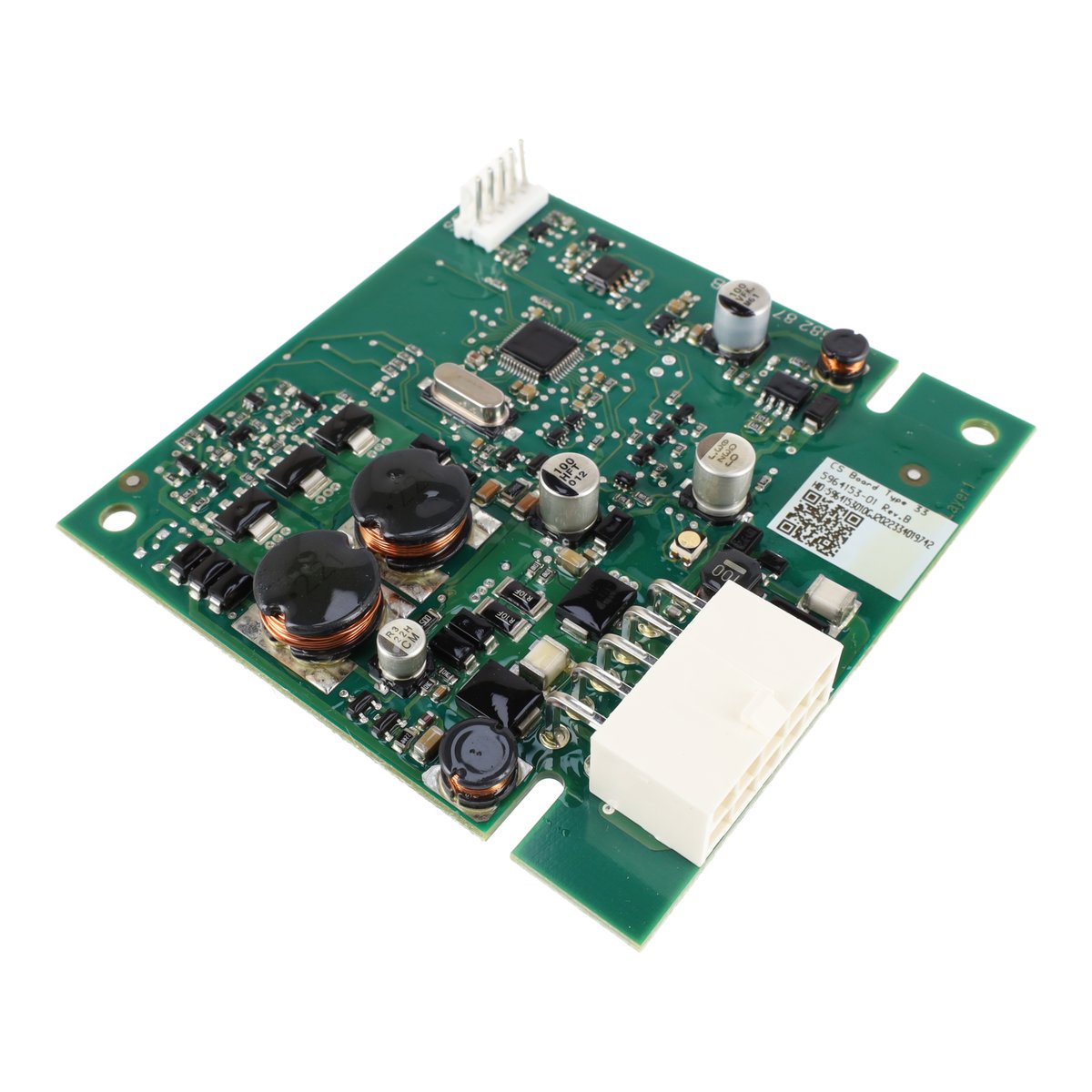

Gardena Robotic Lawnmower Printed Circuit Board PCB592909401
Suitable for Gardena, Flymo, Husqvarna, McCulloch
Stock Code: 735773
£145.70inc. VAT
£121.42 ex. VAT
In Stock
Next Day Delivery Available
Does this part fit my appliance?
Check compatibility with your model number
01
Specifications
- Part Number
- 592909401
- Alternative Part Numbers
- 586713901, 588882501
- EAN / Barcode
- 7391736454261
- Genuine Spare Part
- Yes
02
Description
This is a genuine printed circuit board for your robotic lawn mower.
It helps the charging station and mower communicate. This means it helps your mower know when to return to its charging dock or when it’s time to start mowing.
If your robotic mower is having trouble starting or suddenly loses power, this could indicate an issue with the PCB. Check for loose connections or damaged solder joints, especially around power input areas. Change it with this replacement part.
This printed circuit board is from Gardena. Also fits Flymo, Gardena, and McCulloch robotic lawn mowers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
03
Customer Reviews (6)
5.06 reviews
5
6
4
0
3
0
2
0
1
0
Sort by:||
Exact spare, worked as expected
My flymo 1200r started having issues with the boarder wire gradually getting worse with sensing it. Checked the boundary wire multiple times and could find no issues so diagnosed a faulty base charger board. Arrived within a few days, was identical to the old one so was a direct swap. Once fitted the mower worked like a new one. Only downside is cost, could have been an expensive waste of it wasn't the board but every supplier was around the same price or more. Since I'd used Ransom's before I chose them again
Paul Whenman · Peterborough ·
Quality
Value
Ease of Fitting
Exactly what was needed.
The lawnmower was giving a message to say that there was "No Loop Signal". The voltage at the charging terminals was only about 1.5V instead of 28V. When I disconnected one end of the loop the voltage went up to 28V. So, the loop connection was pulling the voltage down. I surmised that there must be a fault in the charger/power supply board (i.e. this one). As there are two different versions of the 1200R I did a bit of research and it seems that this one board works on both versions. The replacement board was fairly easy to fit and the voltage on the charging terminals was now 28V with the loop connected. What's more, the lawnmower now worked! £100 is a bit steep for a power supply board but it fixed the problem.
Hugh Mccullough · Belfast ·
Quality
Value
Ease of Fitting
Perfect spare
Once you are certain the old charging station pcb has failed you will likewise spend more time than you hoped searching the interweb to make sure that you find the right solution. My problem was related to the Flymo 1200r charging station. This replacement pcb worked first time perfectly and is still functioning perfectly a year later!!!
Gordon Lewis · Sheffield ·
Quality
Value
Ease of Fitting
Good quality easy to replace
This is the second Gardena printed circuit board I have ordered. Appears to be good quality, good solid board, easy to replace. Must treat this with more respect as I damaged the circuit board whilst powered up and fiddling with the boundary and guide wires. Will power off base station in future when working on boundary wires.
Clive Birch · Cullompton ·
Quality
Value
Ease of Fitting
Great product, easy to fit
As it says on the tin :) Generated new loop signal and Marvin set off to maintain his domain.
