Hotpoint

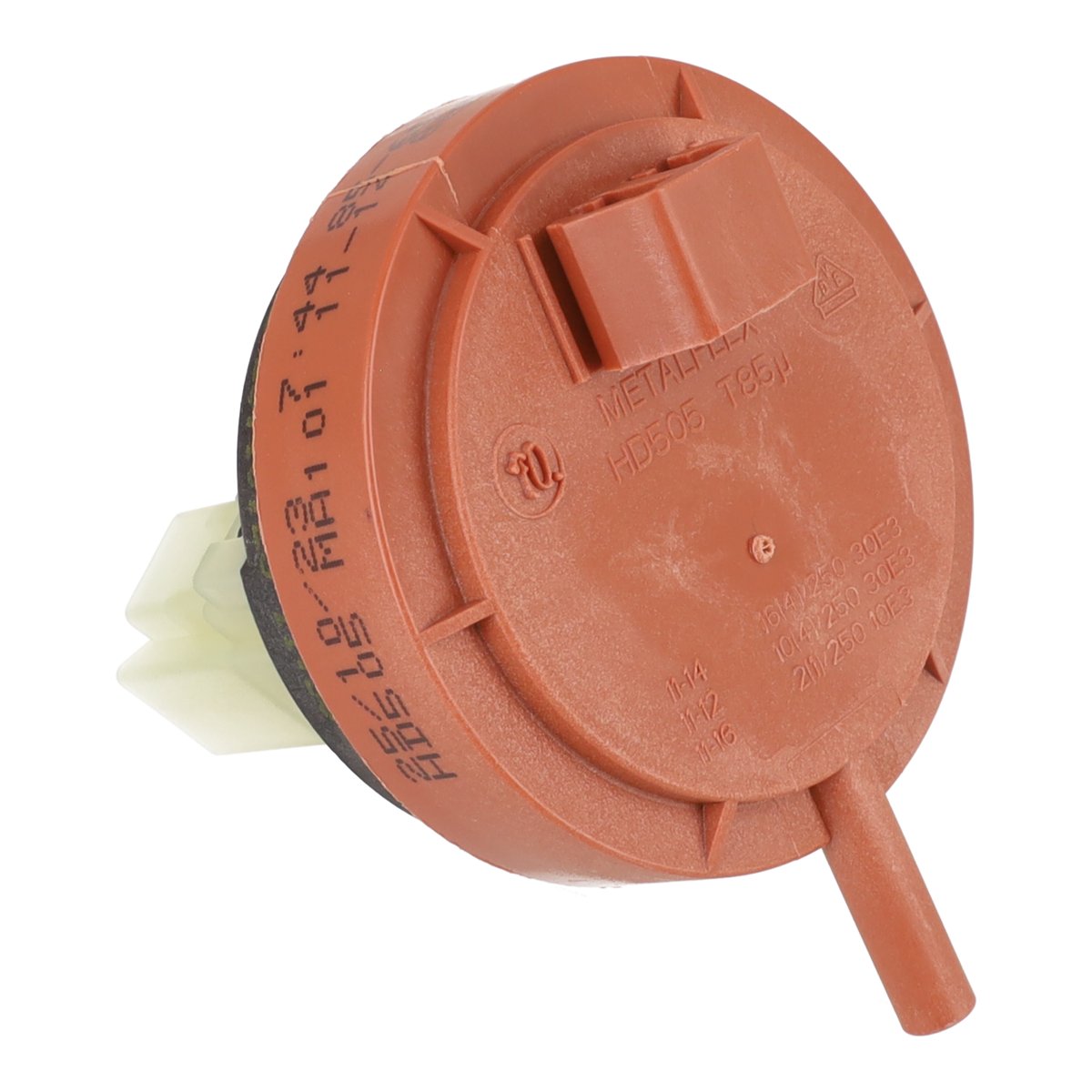

Hotpoint Dishwasher Pressure Switch 85/65C00274118
Suitable for Hotpoint, Ariston, Indesit, Scholtes, Whirlpool
Stock Code: 387776
£16.60inc. VAT
£13.83 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Senses the water level by pressure so the dishwasher stops filling.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| A5 | Ariston | Means the machine has overfilled with water or the correct water level cannot be detected. It is usually caused by a faulty pressure switch, a blocked pressure chamber or hose, or a malfunctioning drain pump. | High |
| F13 | Ariston | Means the unit cannot detect or manage water intake, signalled by lights one, three, and four flashing. It is usually caused by a faulty water fill valve, a faulty flow sensor, or a main circuit board fault. | Medium |
| F6 | Ariston | Means the machine is not detecting water entering the unit within the expected time. It is usually caused by a water supply failure, a fill timeout, or a blocked filter. | Medium |
| H20 | Ariston | Means the machine is not filling with enough water within the allotted time. It is usually caused by a closed water tap, a kinked inlet hose, or a clogged inlet filter. | Medium |
| F6 | Hotpoint | Means a water fill timeout, where the machine cannot detect that it is filling within the required time. It is usually caused by a closed tap, a kinked hose, a blocked filter, or a faulty water inlet valve. | Medium |
| F7 | Hotpoint | Means a water filling problem, where the machine fails to fill properly or detects insufficient water flow within the allotted time. It is usually caused by a closed water tap, a kinked inlet hose, a faulty flow meter or water sensor, or a defective inlet valve. | Medium |
| A10 | Indesit | Means a fill fault, with a short or open circuit on the water fill valve triac. It is usually caused by a failed fill valve, faulty heating circuit components, or an inadequate water supply. | Medium |
| E1 | Indesit | Means a water intake failure or a water leak, where the machine cannot fill properly or has detected water in the base. It is usually caused by a closed water tap, a kinked supply hose, a clogged filter, or a faulty water inlet valve. | Medium |
| F6 | Indesit | Means a water fill timeout, where the machine is not detecting water entering or is taking too long to fill. It is usually caused by a closed water tap, a kinked hose, a blocked inlet filter, or a faulty water inlet valve. | Medium |
| H20 | Indesit | Means a water supply fault, where the machine is not filling or not detecting enough water within the required time. It is usually caused by a closed tap, a kinked hose, a clogged inlet filter, or a faulty pressure sensor. | Medium |
| E6 | Whirlpool | Means the unit detects no water, low water pressure, or incorrect water temperature, shown as F6E6. It is usually caused by a closed water tap, a kinked supply hose, a faulty water inlet valve, or a broken flow meter. | Medium |
| F6 | Whirlpool | Means the unit is not receiving water or cannot detect it, shown as F6E1 or E1 F6. It is usually caused by a closed water supply valve, a kinked inlet hose, a faulty inlet valve, or a faulty flow meter. | Medium |
| H2 | Whirlpool | Means the dishwasher is not filling properly or cannot detect water entering the unit, shown as H2O. It is usually caused by a closed tap, a kinked inlet hose, or a blocked inlet screen. | Medium |
A5High
Ariston
Means the machine has overfilled with water or the correct water level cannot be detected. It is usually caused by a faulty pressure switch, a blocked pressure chamber or hose, or a malfunctioning drain pump.
F13Medium
Ariston
Means the unit cannot detect or manage water intake, signalled by lights one, three, and four flashing. It is usually caused by a faulty water fill valve, a faulty flow sensor, or a main circuit board fault.
F6Medium
Ariston
Means the machine is not detecting water entering the unit within the expected time. It is usually caused by a water supply failure, a fill timeout, or a blocked filter.
H20Medium
Ariston
Means the machine is not filling with enough water within the allotted time. It is usually caused by a closed water tap, a kinked inlet hose, or a clogged inlet filter.
F6Medium
Hotpoint
Means a water fill timeout, where the machine cannot detect that it is filling within the required time. It is usually caused by a closed tap, a kinked hose, a blocked filter, or a faulty water inlet valve.
F7Medium
Hotpoint
Means a water filling problem, where the machine fails to fill properly or detects insufficient water flow within the allotted time. It is usually caused by a closed water tap, a kinked inlet hose, a faulty flow meter or water sensor, or a defective inlet valve.
A10Medium
Indesit
Means a fill fault, with a short or open circuit on the water fill valve triac. It is usually caused by a failed fill valve, faulty heating circuit components, or an inadequate water supply.
E1Medium
Indesit
Means a water intake failure or a water leak, where the machine cannot fill properly or has detected water in the base. It is usually caused by a closed water tap, a kinked supply hose, a clogged filter, or a faulty water inlet valve.
F6Medium
Indesit
Means a water fill timeout, where the machine is not detecting water entering or is taking too long to fill. It is usually caused by a closed water tap, a kinked hose, a blocked inlet filter, or a faulty water inlet valve.
H20Medium
Indesit
Means a water supply fault, where the machine is not filling or not detecting enough water within the required time. It is usually caused by a closed tap, a kinked hose, a clogged inlet filter, or a faulty pressure sensor.
E6Medium
Whirlpool
Means the unit detects no water, low water pressure, or incorrect water temperature, shown as F6E6. It is usually caused by a closed water tap, a kinked supply hose, a faulty water inlet valve, or a broken flow meter.
F6Medium
Whirlpool
Means the unit is not receiving water or cannot detect it, shown as F6E1 or E1 F6. It is usually caused by a closed water supply valve, a kinked inlet hose, a faulty inlet valve, or a faulty flow meter.
H2Medium
Whirlpool
Means the dishwasher is not filling properly or cannot detect water entering the unit, shown as H2O. It is usually caused by a closed tap, a kinked inlet hose, or a blocked inlet screen.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- C00274118
- EAN / Barcode
- 8055005741184
- Genuine Spare Part
- Yes
07
More Details
A genuine pressure switch for your dishwasher.
Monitors the water level in your dishwasher. Signals when to start its wash cycle and helps prevent any overflow. This switch ensures everything runs smoothly and that your dishes come out sparkling clean.
Water leaking from the switch itself or around its connections can indicate damage or wear. If you notice this, change the switch promptly with this replacement part.
This is a pressure switch from Hotpoint. Also fits Ariston, Indesit, Scholtes, and Whirlpool dishwashers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Customer Reviews (2)
5.02 reviews
5
2
4
0
3
0
2
0
1
0
Dishwasher - Easy Fix
Hotpoint dishwasher (10 years old) filling and immediately emptying and showing pressure switch error. Changing the pressure switch was 2-3 minutes work, as usual removing the integrated unit and removing the size panel took much longer. Good, original replacement part. Happy.
Chris · South Wales ·
Quality
Value
Ease of Fitting
Great product
Easy to fit. Works well l, quick delivery. Dishwasher fixed.
S · Driffield ·
Quality
Value
Ease of Fitting
