Candy

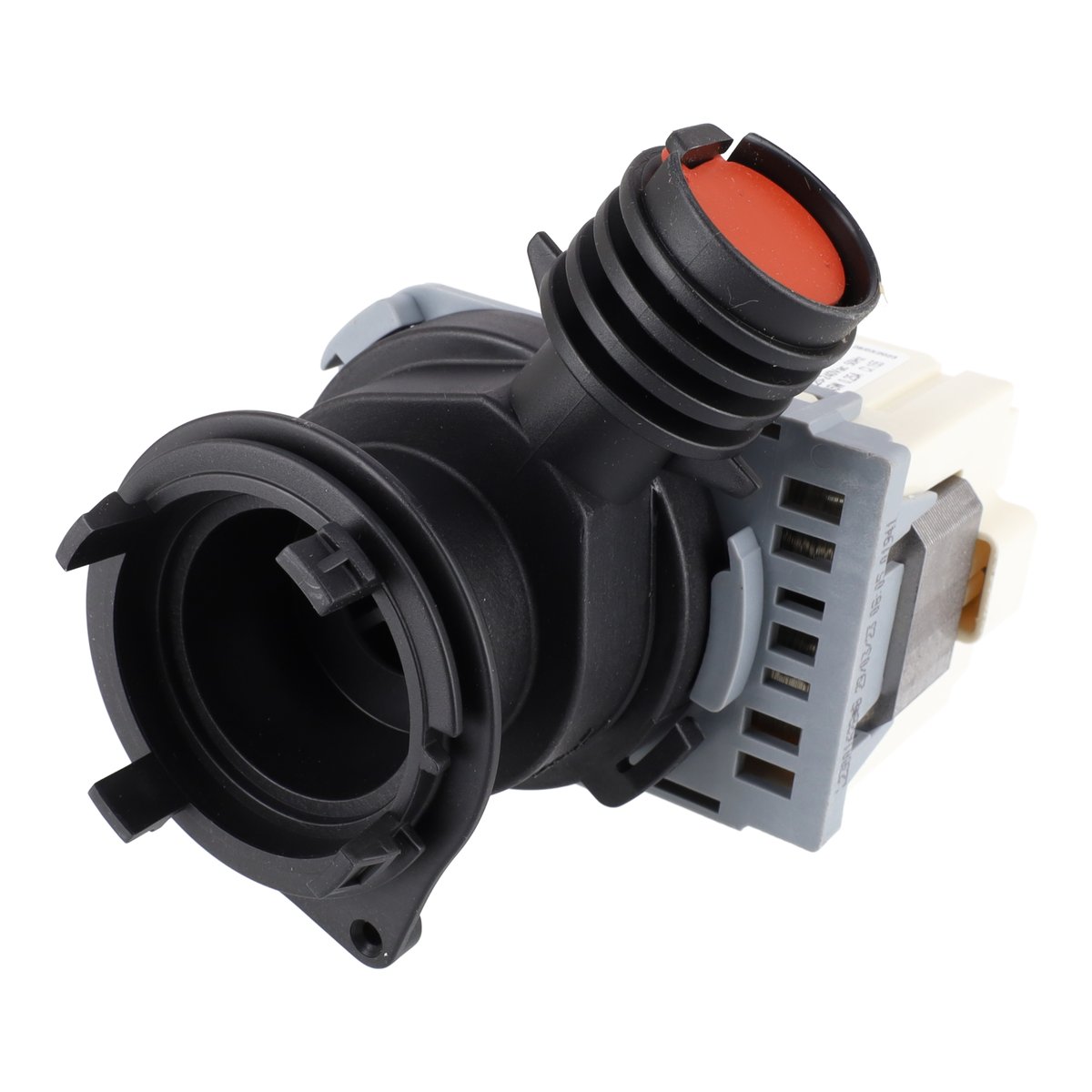

Candy Dishwasher Drain Pump & Body91200173
Suitable for Candy, Baumatic, Cylinda, Drean, Friac
Stock Code: 129104
£22.25inc. VAT
£18.54 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Pumps the dirty water out of the dishwasher at the end of the cycle.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E3 | Candy | Means the machine cannot drain the water within the expected time. It is usually caused by a clogged filter, a kinked drain hose, or a faulty drain pump. | High |
| F8 | Candy | Means a water heating failure at the heating element, the temperature sensor or NTC, or a severely clogged filter restricting water circulation. It is usually caused by a faulty heating element, a faulty NTC sensor, or a clogged filter. | Medium |
| E1 | Haier | Means the machine cannot drain the water within the allotted time. It is usually caused by a blocked drain filter, a kinked drain hose, or a clogged drain pump. | High |
| E3 | Haier | Means the machine cannot drain the water or the water is not reaching the required temperature. It is usually caused by a blocked drain filter, a kinked drain hose, or a faulty drain pump. | High |
| E4 | Haier | Means the machine has detected a drain fault or no water entering, signalled by the first, third, and fourth lights flashing. It is usually caused by a faulty drain pump or a water inlet valve fault, with a bent or flattened inlet pipe also contributing. | High |
| E5 | Haier | Means the machine has detected too much water, from either a drain failure or an overfill. It is usually caused by a blocked filter, an obstructed drain hose, or a faulty water inlet valve. | High |
| F3 | Haier | Means the machine cannot drain the water or the water is not heating. It is usually caused by a clogged filter, a kinked drain hose, or a faulty drain pump. | High |
| F4 | Haier | Means the machine cannot drain the water within the allowed time or the water is not heating. It is usually caused by a clogged filter, a blocked drain pump or hose, or a faulty heater. | High |
| F50 | Haier | Means a No Drive or motor communication failure, where the machine stops the cycle, closes the water inlet valve, and runs the drain pump for about 120 seconds. It is usually caused by a failure in the main motor or control board. | Medium |
| FC0 | Haier | Means a wash pump error or a critical communication fault, where the main control board is not receiving proper feedback from the motor. It is usually caused by a faulty motor or control board. | Medium |
| E3 | Hoover | Means the machine cannot empty water within the allotted time. It is usually caused by a blocked filter, a kinked drain hose, or a faulty drain pump. | High |
| E4 | Hoover | Means the machine cannot drain properly or water has pooled in the base and triggered the safety sensor. It is usually caused by a kinked drain hose, a blocked filter, or a faulty pump. | High |
| E6 | Hoover | Means a main motor or circulation pump fault, often a failure in the tachometric dynamo motor tacho. It is usually caused by the motor tacho or, on certain models, a faulty NTC temperature sensor relating to water heating. | Medium |
E3High
Candy
Means the machine cannot drain the water within the expected time. It is usually caused by a clogged filter, a kinked drain hose, or a faulty drain pump.
F8Medium
Candy
Means a water heating failure at the heating element, the temperature sensor or NTC, or a severely clogged filter restricting water circulation. It is usually caused by a faulty heating element, a faulty NTC sensor, or a clogged filter.
E1High
Haier
Means the machine cannot drain the water within the allotted time. It is usually caused by a blocked drain filter, a kinked drain hose, or a clogged drain pump.
E3High
Haier
Means the machine cannot drain the water or the water is not reaching the required temperature. It is usually caused by a blocked drain filter, a kinked drain hose, or a faulty drain pump.
E4High
Haier
Means the machine has detected a drain fault or no water entering, signalled by the first, third, and fourth lights flashing. It is usually caused by a faulty drain pump or a water inlet valve fault, with a bent or flattened inlet pipe also contributing.
E5High
Haier
Means the machine has detected too much water, from either a drain failure or an overfill. It is usually caused by a blocked filter, an obstructed drain hose, or a faulty water inlet valve.
F3High
Haier
Means the machine cannot drain the water or the water is not heating. It is usually caused by a clogged filter, a kinked drain hose, or a faulty drain pump.
F4High
Haier
Means the machine cannot drain the water within the allowed time or the water is not heating. It is usually caused by a clogged filter, a blocked drain pump or hose, or a faulty heater.
F50Medium
Haier
Means a No Drive or motor communication failure, where the machine stops the cycle, closes the water inlet valve, and runs the drain pump for about 120 seconds. It is usually caused by a failure in the main motor or control board.
FC0Medium
Haier
Means a wash pump error or a critical communication fault, where the main control board is not receiving proper feedback from the motor. It is usually caused by a faulty motor or control board.
E3High
Hoover
Means the machine cannot empty water within the allotted time. It is usually caused by a blocked filter, a kinked drain hose, or a faulty drain pump.
E4High
Hoover
Means the machine cannot drain properly or water has pooled in the base and triggered the safety sensor. It is usually caused by a kinked drain hose, a blocked filter, or a faulty pump.
E6Medium
Hoover
Means a main motor or circulation pump fault, often a failure in the tachometric dynamo motor tacho. It is usually caused by the motor tacho or, on certain models, a faulty NTC temperature sensor relating to water heating.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 91200173
- Alternative Part Numbers
- 91200172
- EAN / Barcode
- 4045516001055
- Genuine Spare Part
- Yes
07
More Details
This is a genuine dishwasher drain pump and body.
Removes the wastewater in the dishwasher after every wash cycle. It activates automatically during the draining phase to pump out wastewater. That wastewater is then released to the plumbing system through the pump and the drain hose so only clean water enters the dishwasher and thoroughly washes the dishes.
Watch our video below on how to fit a new dishwasher drain pump.
This drain pump is from Candy. You can also check the other suitable brands from the list above.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Video
How to replace the pump on a dishwasher:
The following DIY repair video should assist you in fitting this part. However the exact procedure may differ depending on your make and model.
Safety Warning - Always unplug from the mains before carrying out any repairs.
