Bosch

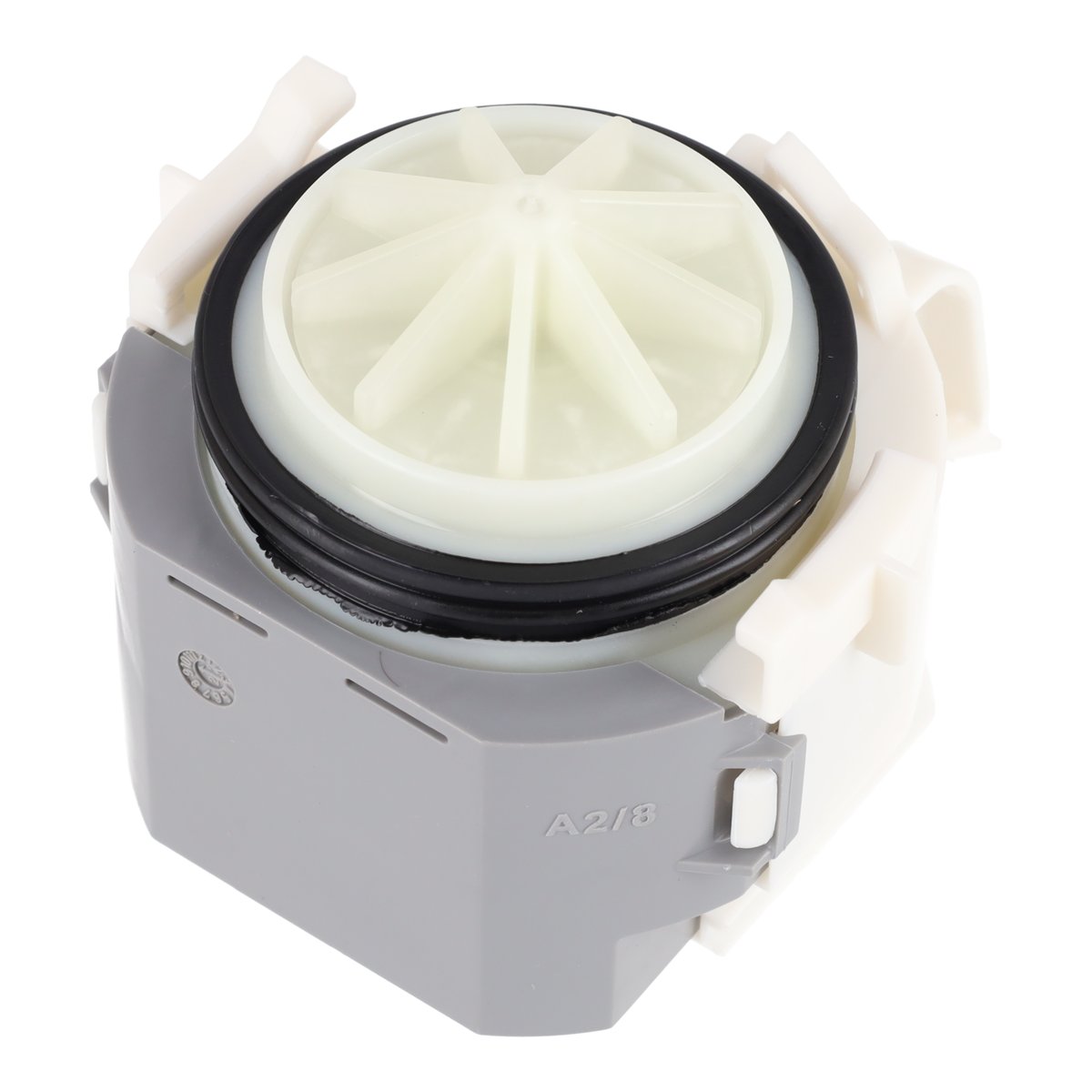

Bosch Dishwasher Drain Pump00631200
Suitable for Bosch, Balay, Bauknecht, Blaupunkt, Constructa
Stock Code: 844629
£30.80inc. VAT
£25.67 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Pumps the dirty water out of the dishwasher at the end of the cycle.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E1 | Bosch | Means a water supply problem, a door latch fault, or a heat pump motor circuit fault at the main control board. It is usually caused by a faulty water inlet valve, drain pump, or main control board. | Medium |
| E19 | Bosch | Means a heat exchanger fault affecting the recirculation valve (also called the outlet valve), or a fault where the dishwasher cannot drain water properly. It is usually caused by a faulty recirculation valve or a drainage problem at the pump. | Medium |
| E21 | Bosch | Means a circulation pump or drainage fault that stops the dishwasher mid-cycle or prevents it draining. It is usually caused by a blockage, debris in the pump impeller, or a faulty pump motor. | Medium |
| E22 | Bosch | Means a drainage fault, often with standing water at the bottom. It is usually caused by food particles, grease, or debris clogging the internal filter, or a kinked drain hose. | High |
| E23 | Bosch | Means a drain fault, or an abnormal presence of water where it should not be. It is usually caused by a clogged or faulty drain pump, a worn drain pump seal, or a fault in the coil winding. | High |
| E24 | Bosch | Means a drainage fault, often appearing with standing water in the tub or a humming noise. It is usually caused by a blocked filter, a clogged drain hose, or a loose pump cover. | High |
| E25 | Bosch | Means the pump cannot expel water. It is usually caused by a blocked drain pump, a clogged filter, a loose pump cover, or debris such as glass in the drain pump. | High |
| E17 | Neff | Means the water level inside the appliance is too high. It is usually caused by excessive water intake, a blockage, a drainage fault, or excessive detergent suds. | Medium |
| E22 | Neff | Means a blocked or dirty filter is preventing proper drainage, leaving residual water in the sump. It is usually caused by a blocked filter, a blocked drain pump, or a kinked drain hose. | High |
| E23 | Neff | Means there is a drainage fault with the pump jammed by food debris or glass and unable to remove water. It is usually caused by a blocked drain pump, clogged filters, or a kinked drain hose. | High |
| E24 | Neff | Means there is a drainage fault preventing the machine from emptying. It is usually caused by a blocked drain pump, clogged filters, a kinked drain hose, a loose pump cover, or a blocked hose under the sink. | High |
| E25 | Neff | Means a drain pump blockage is preventing the unit from emptying. It is usually caused by debris such as glass or food around the impeller, a clogged filter, or a kinked hose. | High |
| E18 | Siemens | Means there is a drainage fault or a water supply issue. It is usually caused by a blocked filter, an obstructed drain pump, or a kinked drain hose. | High |
| E20 | Siemens | Means there is a drainage problem or a fault with the pump that moves water around during the wash. It is usually caused by a clogged filter, a clogged drain pump, or a blockage in the pump. | High |
| E21 | Siemens | Means the drain pump or circulation pump is jammed, obstructed, or failing. It is usually caused by food debris, broken glass, or crystallised dishwasher salt blocking the drain pump, filter, or hose. | High |
| E22 | Siemens | Means there is a drainage blockage or soiled filter system, often stopping the cycle mid-way. It is usually caused by food residue or excessive soap buildup. | High |
| E23 | Siemens | Means there is a problem with the drain pump, indicating a failure, obstruction, or incorrect resistance value. It is usually caused by the pump impeller being jammed by debris, a blocked drain hose, or a pump that requires replacement. | High |
| E24 | Siemens | Means water is not draining from the machine. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose. | High |
| E25 | Siemens | Means the machine has failed to drain, with a humming pump that will not drain suggesting a blocked or broken drain pump. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose. | High |
| E3 | Siemens | Means the unit cannot reach the required water level in the allotted time, with a drainage issue or a water level sensor problem preventing it from filling correctly. It is usually caused by a blocked filter, a drain pump that is not operating, or a blocked spray arm. | High |
| E4 | Siemens | Means water is not draining properly or an overflow has occurred. It is usually caused by clogged filters, a blocked drain pump, or a kinked drain hose. | High |
| F9 | Whirlpool | Means the unit cannot remove water or has a continuous fill fault, displayed as F9E1 and may stop mid-cycle with error lights and a beep. It is usually caused by a blocked filter, a drainage fault, continuous filling, a faulty pump, or a faulty control board. | High |
E1Medium
Bosch
Means a water supply problem, a door latch fault, or a heat pump motor circuit fault at the main control board. It is usually caused by a faulty water inlet valve, drain pump, or main control board.
E19Medium
Bosch
Means a heat exchanger fault affecting the recirculation valve (also called the outlet valve), or a fault where the dishwasher cannot drain water properly. It is usually caused by a faulty recirculation valve or a drainage problem at the pump.
E21Medium
Bosch
Means a circulation pump or drainage fault that stops the dishwasher mid-cycle or prevents it draining. It is usually caused by a blockage, debris in the pump impeller, or a faulty pump motor.
E22High
Bosch
Means a drainage fault, often with standing water at the bottom. It is usually caused by food particles, grease, or debris clogging the internal filter, or a kinked drain hose.
E23High
Bosch
Means a drain fault, or an abnormal presence of water where it should not be. It is usually caused by a clogged or faulty drain pump, a worn drain pump seal, or a fault in the coil winding.
E24High
Bosch
Means a drainage fault, often appearing with standing water in the tub or a humming noise. It is usually caused by a blocked filter, a clogged drain hose, or a loose pump cover.
E25High
Bosch
Means the pump cannot expel water. It is usually caused by a blocked drain pump, a clogged filter, a loose pump cover, or debris such as glass in the drain pump.
E17Medium
Neff
Means the water level inside the appliance is too high. It is usually caused by excessive water intake, a blockage, a drainage fault, or excessive detergent suds.
E22High
Neff
Means a blocked or dirty filter is preventing proper drainage, leaving residual water in the sump. It is usually caused by a blocked filter, a blocked drain pump, or a kinked drain hose.
E23High
Neff
Means there is a drainage fault with the pump jammed by food debris or glass and unable to remove water. It is usually caused by a blocked drain pump, clogged filters, or a kinked drain hose.
E24High
Neff
Means there is a drainage fault preventing the machine from emptying. It is usually caused by a blocked drain pump, clogged filters, a kinked drain hose, a loose pump cover, or a blocked hose under the sink.
E25High
Neff
Means a drain pump blockage is preventing the unit from emptying. It is usually caused by debris such as glass or food around the impeller, a clogged filter, or a kinked hose.
E18High
Siemens
Means there is a drainage fault or a water supply issue. It is usually caused by a blocked filter, an obstructed drain pump, or a kinked drain hose.
E20High
Siemens
Means there is a drainage problem or a fault with the pump that moves water around during the wash. It is usually caused by a clogged filter, a clogged drain pump, or a blockage in the pump.
E21High
Siemens
Means the drain pump or circulation pump is jammed, obstructed, or failing. It is usually caused by food debris, broken glass, or crystallised dishwasher salt blocking the drain pump, filter, or hose.
E22High
Siemens
Means there is a drainage blockage or soiled filter system, often stopping the cycle mid-way. It is usually caused by food residue or excessive soap buildup.
E23High
Siemens
Means there is a problem with the drain pump, indicating a failure, obstruction, or incorrect resistance value. It is usually caused by the pump impeller being jammed by debris, a blocked drain hose, or a pump that requires replacement.
E24High
Siemens
Means water is not draining from the machine. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose.
E25High
Siemens
Means the machine has failed to drain, with a humming pump that will not drain suggesting a blocked or broken drain pump. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose.
E3High
Siemens
Means the unit cannot reach the required water level in the allotted time, with a drainage issue or a water level sensor problem preventing it from filling correctly. It is usually caused by a blocked filter, a drain pump that is not operating, or a blocked spray arm.
E4High
Siemens
Means water is not draining properly or an overflow has occurred. It is usually caused by clogged filters, a blocked drain pump, or a kinked drain hose.
F9High
Whirlpool
Means the unit cannot remove water or has a continuous fill fault, displayed as F9E1 and may stop mid-cycle with error lights and a beep. It is usually caused by a blocked filter, a drainage fault, continuous filling, a faulty pump, or a faulty control board.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off and unplug at the mains before you start.
You’ll needScrewdriver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 00631200
- Genuine Spare Part
- Yes
07
More Details
What is the purpose of a drain pump for dishwashers?
The drain pump removes dirty water from the dishwasher's tub at the end of a washing cycle. As the dishwasher operates, it accumulates water containing food particles, detergent residue, and other debris. It pumps the water through a drain hose and into the household plumbing system or a designated drain.
Why do you replace your dishwasher’s drain pump?
The pump's motor or impeller may wear out or become damaged and lead to decreased performance or complete failure. A malfunctioning drain pump can result in drainage issues, such as water not being properly expelled from the dishwasher or water remaining in the tub after the cycle.
Would this drain pump work on my dishwasher?
This dishwasher drain pump is a genuine Bosch dishwasher spare part. It also fits Balay, Blaupunkt, Bosch, Constructa, Gaggenau, Ikea, Junker, Koenic, Kuppersbusch, Neff, Siemens, Viva dishwashers.
