Bosch

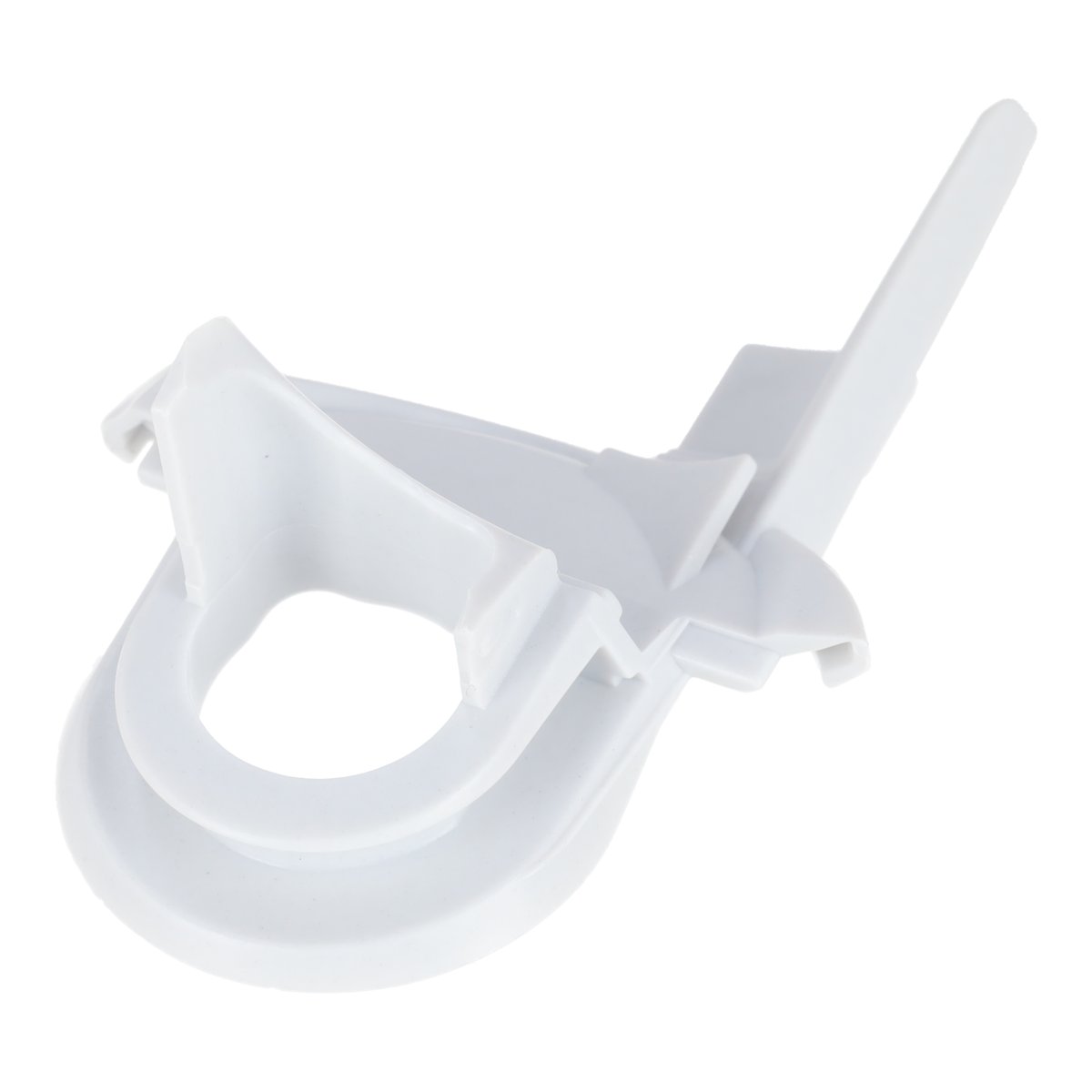

Bosch Dishwasher Drain Pump Lid Cover00611322
Suitable for Bosch, Airlux, Atag, Balay, Bauknecht
Stock Code: 57443
·
£11.00inc. VAT
£9.17 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Protects the pump impeller and channels waste water when emptying.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E19 | Bosch | Means a heat exchanger fault affecting the recirculation valve (also called the outlet valve), or a fault where the dishwasher cannot drain water properly. It is usually caused by a faulty recirculation valve or a drainage problem at the pump. | Medium |
| E21 | Bosch | Means a circulation pump or drainage fault that stops the dishwasher mid-cycle or prevents it draining. It is usually caused by a blockage, debris in the pump impeller, or a faulty pump motor. | Medium |
| E22 | Bosch | Means a drainage fault, often with standing water at the bottom. It is usually caused by food particles, grease, or debris clogging the internal filter, or a kinked drain hose. | Medium |
| E23 | Bosch | Means a drain fault, or an abnormal presence of water where it should not be. It is usually caused by a clogged or faulty drain pump, a worn drain pump seal, or a fault in the coil winding. | Medium |
| E24 | Bosch | Means a drainage fault, often appearing with standing water in the tub or a humming noise. It is usually caused by a blocked filter, a clogged drain hose, or a loose pump cover. | Medium |
| E25 | Bosch | Means the pump cannot expel water. It is usually caused by a blocked drain pump, a clogged filter, a loose pump cover, or debris such as glass in the drain pump. | Medium |
| E17 | Neff | Means the water level inside the appliance is too high. It is usually caused by excessive water intake, a blockage, a drainage fault, or excessive detergent suds. | Medium |
| E22 | Neff | Means a blocked or dirty filter is preventing proper drainage, leaving residual water in the sump. It is usually caused by a blocked filter, a blocked drain pump, or a kinked drain hose. | Medium |
| E23 | Neff | Means there is a drainage fault with the pump jammed by food debris or glass and unable to remove water. It is usually caused by a blocked drain pump, clogged filters, or a kinked drain hose. | Medium |
| E24 | Neff | Means there is a drainage fault preventing the machine from emptying. It is usually caused by a blocked drain pump, clogged filters, a kinked drain hose, a loose pump cover, or a blocked hose under the sink. | Medium |
| E25 | Neff | Means a drain pump blockage is preventing the unit from emptying. It is usually caused by debris such as glass or food around the impeller, a clogged filter, or a kinked hose. | Medium |
| E18 | Siemens | Means there is a drainage fault or a water supply issue. It is usually caused by a blocked filter, an obstructed drain pump, or a kinked drain hose. | Medium |
| E20 | Siemens | Means there is a drainage problem or a fault with the pump that moves water around during the wash. It is usually caused by a clogged filter, a clogged drain pump, or a blockage in the pump. | Medium |
| E21 | Siemens | Means the drain pump or circulation pump is jammed, obstructed, or failing. It is usually caused by food debris, broken glass, or crystallised dishwasher salt blocking the drain pump, filter, or hose. | Medium |
| E22 | Siemens | Means there is a drainage blockage or soiled filter system, often stopping the cycle mid-way. It is usually caused by food residue or excessive soap buildup. | Medium |
| E23 | Siemens | Means there is a problem with the drain pump, indicating a failure, obstruction, or incorrect resistance value. It is usually caused by the pump impeller being jammed by debris, a blocked drain hose, or a pump that requires replacement. | Medium |
| E24 | Siemens | Means water is not draining from the machine. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose. | Medium |
| E25 | Siemens | Means the machine has failed to drain, with a humming pump that will not drain suggesting a blocked or broken drain pump. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose. | Medium |
| E3 | Siemens | Means the unit cannot reach the required water level in the allotted time, with a drainage issue or a water level sensor problem preventing it from filling correctly. It is usually caused by a blocked filter, a drain pump that is not operating, or a blocked spray arm. | Medium |
| E4 | Siemens | Means water is not draining properly or an overflow has occurred. It is usually caused by clogged filters, a blocked drain pump, or a kinked drain hose. | Medium |
| F9 | Whirlpool | Means the unit cannot remove water or has a continuous fill fault, displayed as F9E1 and may stop mid-cycle with error lights and a beep. It is usually caused by a blocked filter, a drainage fault, continuous filling, a faulty pump, or a faulty control board. | Medium |
E19Medium
Bosch
Means a heat exchanger fault affecting the recirculation valve (also called the outlet valve), or a fault where the dishwasher cannot drain water properly. It is usually caused by a faulty recirculation valve or a drainage problem at the pump.
E21Medium
Bosch
Means a circulation pump or drainage fault that stops the dishwasher mid-cycle or prevents it draining. It is usually caused by a blockage, debris in the pump impeller, or a faulty pump motor.
E22Medium
Bosch
Means a drainage fault, often with standing water at the bottom. It is usually caused by food particles, grease, or debris clogging the internal filter, or a kinked drain hose.
E23Medium
Bosch
Means a drain fault, or an abnormal presence of water where it should not be. It is usually caused by a clogged or faulty drain pump, a worn drain pump seal, or a fault in the coil winding.
E24Medium
Bosch
Means a drainage fault, often appearing with standing water in the tub or a humming noise. It is usually caused by a blocked filter, a clogged drain hose, or a loose pump cover.
E25Medium
Bosch
Means the pump cannot expel water. It is usually caused by a blocked drain pump, a clogged filter, a loose pump cover, or debris such as glass in the drain pump.
E17Medium
Neff
Means the water level inside the appliance is too high. It is usually caused by excessive water intake, a blockage, a drainage fault, or excessive detergent suds.
E22Medium
Neff
Means a blocked or dirty filter is preventing proper drainage, leaving residual water in the sump. It is usually caused by a blocked filter, a blocked drain pump, or a kinked drain hose.
E23Medium
Neff
Means there is a drainage fault with the pump jammed by food debris or glass and unable to remove water. It is usually caused by a blocked drain pump, clogged filters, or a kinked drain hose.
E24Medium
Neff
Means there is a drainage fault preventing the machine from emptying. It is usually caused by a blocked drain pump, clogged filters, a kinked drain hose, a loose pump cover, or a blocked hose under the sink.
E25Medium
Neff
Means a drain pump blockage is preventing the unit from emptying. It is usually caused by debris such as glass or food around the impeller, a clogged filter, or a kinked hose.
E18Medium
Siemens
Means there is a drainage fault or a water supply issue. It is usually caused by a blocked filter, an obstructed drain pump, or a kinked drain hose.
E20Medium
Siemens
Means there is a drainage problem or a fault with the pump that moves water around during the wash. It is usually caused by a clogged filter, a clogged drain pump, or a blockage in the pump.
E21Medium
Siemens
Means the drain pump or circulation pump is jammed, obstructed, or failing. It is usually caused by food debris, broken glass, or crystallised dishwasher salt blocking the drain pump, filter, or hose.
E22Medium
Siemens
Means there is a drainage blockage or soiled filter system, often stopping the cycle mid-way. It is usually caused by food residue or excessive soap buildup.
E23Medium
Siemens
Means there is a problem with the drain pump, indicating a failure, obstruction, or incorrect resistance value. It is usually caused by the pump impeller being jammed by debris, a blocked drain hose, or a pump that requires replacement.
E24Medium
Siemens
Means water is not draining from the machine. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose.
E25Medium
Siemens
Means the machine has failed to drain, with a humming pump that will not drain suggesting a blocked or broken drain pump. It is usually caused by a blocked drain pump, a clogged filter, or a kinked hose.
E3Medium
Siemens
Means the unit cannot reach the required water level in the allotted time, with a drainage issue or a water level sensor problem preventing it from filling correctly. It is usually caused by a blocked filter, a drain pump that is not operating, or a blocked spray arm.
E4Medium
Siemens
Means water is not draining properly or an overflow has occurred. It is usually caused by clogged filters, a blocked drain pump, or a kinked drain hose.
F9Medium
Whirlpool
Means the unit cannot remove water or has a continuous fill fault, displayed as F9E1 and may stop mid-cycle with error lights and a beep. It is usually caused by a blocked filter, a drainage fault, continuous filling, a faulty pump, or a faulty control board.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off at the mains and turn off the water supply before you start.
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 00611322
- Alternative Part Numbers
- 00628305
- Genuine Spare Part
- Yes
07
More Details
This genuine drain pump lid cover is a protective access cover for your dishwasher’s drain pump. You can easily spot drainage issues.
Lid cover also seals the pump compartment from water leaks during washing up. Also grants easy access for maintenance, safeguarding against debris and ensuring smooth operation.
This drain pump lid cover is from Bosch dishwashers. Also fits Airlux, Atag, Balay, Bauknecht, Belion, Blaupunkt, Constructa, Cylinda, Gaggenau, Gorenje, Ikea, Jenn Air, Junker, Kenmore, Koenic, Kuppersbusch, Lord, Neff, Novamatic, Pelgrim, Pitsos, Profilo, Siemens, Tecnik, Thermador, V zug, Viva, Whirlpool, and Zelmer dishwashers.
Before ordering, please verify that this part is suitable for your model using our compatibility checker.
08
Customer Reviews (6)
5.06 reviews
5
6
4
0
3
0
2
0
1
0
Sort by:||
Simple part, very easy to fit
I ordered this part from Ranson spares as our dishwasher some how chewed up the original part. I was somewhat weary of replacing parts in a dishwasher, but the online videos from Bosch's youtune channel and others made it seem so easy. Still spectical I ordered the part. The part did take a few days to arrive, which meant our dishwasher was out of action, it would have been nicer to have the part posted out sooner. But once arrived, I cleaned the debris and freed the tumbler inside.. and teh part clicked in and fit like a glove!! No issues with the part and its function. I have a Happy wife, no more hand washing dishes!
Hari Kara · Heme Hempstead ·
Quality
Value
Ease of Fitting
Great product, easy to fit
Thought we were looking at an expensive job to get our dishwasher working again. This was an easy product to find, buy and fit.
Tim Harris · Bexleyheath ·
Quality
Value
Ease of Fitting
Exact replacement
Exact re-placement for broken unit, so easy to fit,
Wendy Gordon · Chipping Norton ·
Quality
Value
Ease of Fitting
Good quality and price
Always cheaper than other companies. Sorts out any problem straight away
Rpc · Stevenage ·
Quality
Value
Ease of Fitting
Exactly the right part
Found immediately on the website, fast delivery. Replaced in the dishwasher , dishwasher repaired. Marvellous service!
Rita · Ickenham ·
Quality
Value
Ease of Fitting
09
Questions & Answers (2)
Will this fit my machine model number SMS25EW00G/63
Phaedra · Somerset ·
Hi Phaedra, I can confirm this is correct for your model.
JordanStaff·
Good Morning I have a Bosch dishwasher model number SM150C06GB/03 I'm after the pump cover but I see you part numbers are different is this part you supply compatible with my appliance please? Many Thanks Simon
Simon Lock · Dorset ·
Hi Simon, I can confirm this is the correct drain pump lid cover for your dishwasher.
JordanStaff·
