Bosch

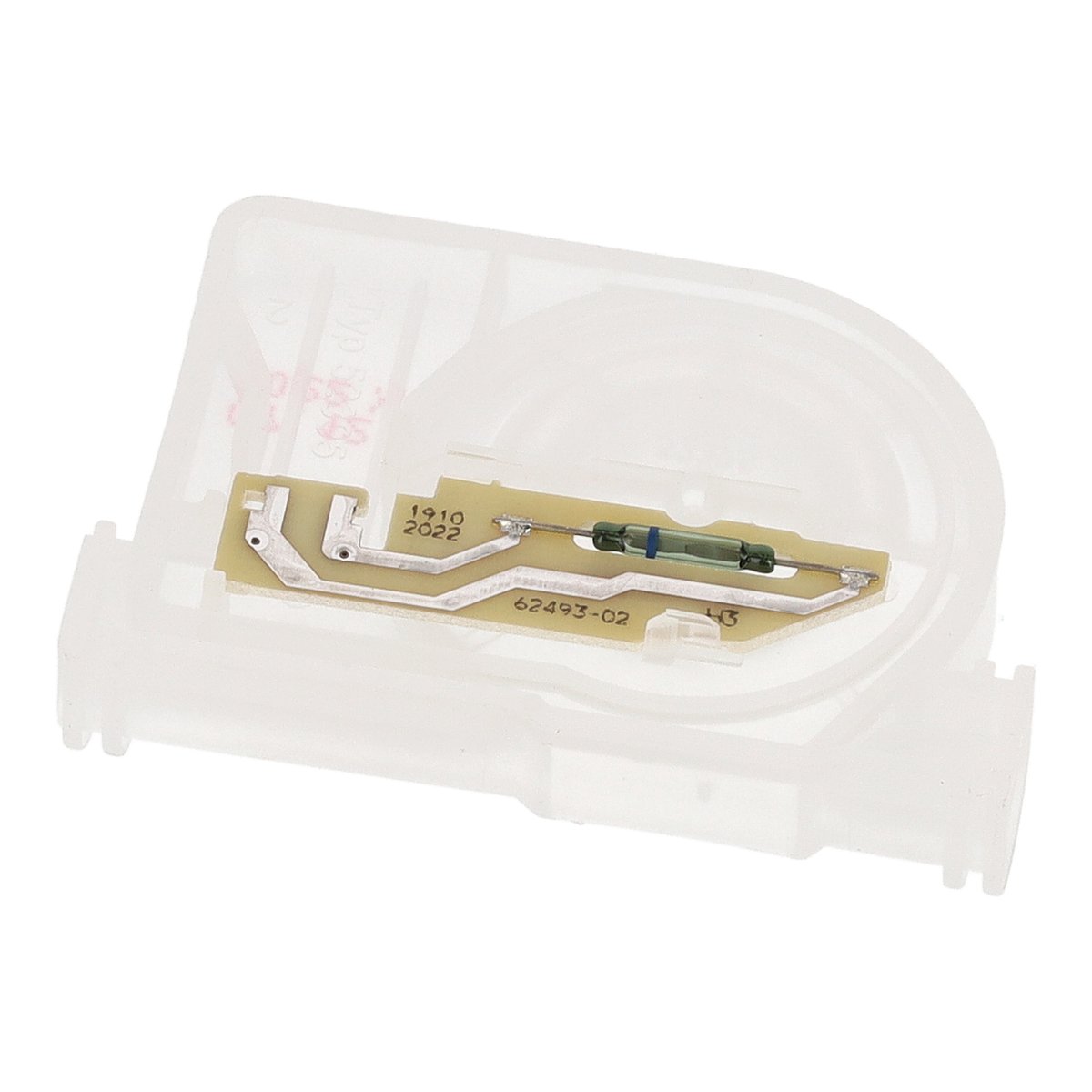

Bosch Dishwasher Contact Reed Flow Meter Sensor00611317
Suitable for Bosch, Airlux, Atag, Balay, Bauknecht
Stock Code: 56195
·
£18.00inc. VAT
£15.00 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Measures how much water has entered so the dishwasher fills to the right level.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E1 | Bosch | Means a water supply problem, a door latch fault, or a heat pump motor circuit fault at the main control board. It is usually caused by a faulty water inlet valve, drain pump, or main control board. | Medium |
| E14 | Bosch | Means the flow sensor or reed switch cannot detect water entering the machine. It is usually caused by a clogged inlet filter, low water pressure, or a faulty flow meter. | Medium |
| E16 | Bosch | Means a filling fault, where water cannot enter the machine or the water level is incorrect. It is usually caused by a clogged inlet filter, a kinked supply hose, or a faulty inlet valve. | Medium |
| E17 | Bosch | Means the machine is not filling with enough water or the flow rate is too low. It is usually caused by a kinked hose, a clogged inlet filter, low water pressure, or a faulty water inlet valve. | Medium |
| E18 | Bosch | Means the unit is not receiving enough water or the flow is too low. It is usually caused by a kinked inlet hose, a closed water tap, a clogged inlet filter, or a blockage in the drain pump. | Medium |
| E3 | Bosch | Means the dishwasher cannot fill with enough water within the allotted time. It is usually caused by a closed water tap, a blocked inlet hose, or a faulty inlet valve. | Medium |
| E5 | Bosch | Means the unit cannot fill with water properly or detect that it has, often stopping mid-cycle. It is usually caused by a filling problem or a fault in the main control board (power module or diverter circuit). | Medium |
| E8 | Bosch | Means the water level in the tub is too low, failing to rise above the heating element. It is usually caused by a clogged inlet filter, a faulty water inlet valve, or a defective flow sensor. | Medium |
| E14 | Neff | Means there is a water intake fault. It is usually caused by a faulty flow sensor, a stuck inlet valve, a leak activating the anti flood switch, a clogged inlet filter, or a kinked hose. | Medium |
| E17 | Neff | Means the water level inside the appliance is too high. It is usually caused by excessive water intake, a blockage, a drainage fault, or excessive detergent suds. | Medium |
| E14 | Siemens | Means there is a fault with the flow meter or sensor that monitors water entering the machine, often because no water flow is detected. It is usually caused by a faulty reed switch in the side water tank or a heating system failure. | Medium |
| E16 | Siemens | Means water is entering the water filling system uncontrollably or not at all. It is usually caused by a clogged filter, a faulty or stuck water inlet valve, or a kinked supply hose. | Medium |
| E17 | Siemens | Means the water flow rate is too high or the machine is overfilling. It is usually caused by high water pressure, a kinked inlet hose, a clogged filter in the AquaStop valve, or a malfunctioning flow sensor. | Medium |
| E32 | Siemens | Means the water level in the tub is too low. It is usually caused by blocked filters, kinked hoses, excessive suds, or dishes tipping over and collecting water. | High |
| E5 | Siemens | Means the water level in the unit is too low or the inlet valve is malfunctioning, and it appears on some models as a technical electronics error or a flood sensor issue. It is usually caused by a malfunctioning inlet valve or a water supply fault. | Medium |
| E6 | Whirlpool | Means the unit detects no water, low water pressure, or incorrect water temperature, shown as F6E6. It is usually caused by a closed water tap, a kinked supply hose, a faulty water inlet valve, or a broken flow meter. | Medium |
| E7 | Whirlpool | Means the unit is not detecting enough water entering the tub through the flow meter, reported as F7. It is usually caused by a faulty flow meter, low water pressure, a clogged inlet valve, or a blocked spray arm. | Medium |
| F5 | Whirlpool | Means a water detection or drainage fault has been detected. It is usually caused by a blocked filter, a faulty water inlet valve, a faulty float switch, or a rotor blocked in the wash motor. | Medium |
| F6 | Whirlpool | Means the unit is not receiving water or cannot detect it, shown as F6E1 or E1 F6. It is usually caused by a closed water supply valve, a kinked inlet hose, a faulty inlet valve, or a faulty flow meter. | Medium |
| F7 | Whirlpool | Means the machine is not detecting enough water entering the tub through the flow meter. It is usually caused by a faulty flow meter, a closed water tap, or a faulty inlet valve. | Medium |
| H2 | Whirlpool | Means the dishwasher is not filling properly or cannot detect water entering the unit, shown as H2O. It is usually caused by a closed tap, a kinked inlet hose, or a blocked inlet screen. | Medium |
E1Medium
Bosch
Means a water supply problem, a door latch fault, or a heat pump motor circuit fault at the main control board. It is usually caused by a faulty water inlet valve, drain pump, or main control board.
E14Medium
Bosch
Means the flow sensor or reed switch cannot detect water entering the machine. It is usually caused by a clogged inlet filter, low water pressure, or a faulty flow meter.
E16Medium
Bosch
Means a filling fault, where water cannot enter the machine or the water level is incorrect. It is usually caused by a clogged inlet filter, a kinked supply hose, or a faulty inlet valve.
E17Medium
Bosch
Means the machine is not filling with enough water or the flow rate is too low. It is usually caused by a kinked hose, a clogged inlet filter, low water pressure, or a faulty water inlet valve.
E18Medium
Bosch
Means the unit is not receiving enough water or the flow is too low. It is usually caused by a kinked inlet hose, a closed water tap, a clogged inlet filter, or a blockage in the drain pump.
E3Medium
Bosch
Means the dishwasher cannot fill with enough water within the allotted time. It is usually caused by a closed water tap, a blocked inlet hose, or a faulty inlet valve.
E5Medium
Bosch
Means the unit cannot fill with water properly or detect that it has, often stopping mid-cycle. It is usually caused by a filling problem or a fault in the main control board (power module or diverter circuit).
E8Medium
Bosch
Means the water level in the tub is too low, failing to rise above the heating element. It is usually caused by a clogged inlet filter, a faulty water inlet valve, or a defective flow sensor.
E14Medium
Neff
Means there is a water intake fault. It is usually caused by a faulty flow sensor, a stuck inlet valve, a leak activating the anti flood switch, a clogged inlet filter, or a kinked hose.
E17Medium
Neff
Means the water level inside the appliance is too high. It is usually caused by excessive water intake, a blockage, a drainage fault, or excessive detergent suds.
E14Medium
Siemens
Means there is a fault with the flow meter or sensor that monitors water entering the machine, often because no water flow is detected. It is usually caused by a faulty reed switch in the side water tank or a heating system failure.
E16Medium
Siemens
Means water is entering the water filling system uncontrollably or not at all. It is usually caused by a clogged filter, a faulty or stuck water inlet valve, or a kinked supply hose.
E17Medium
Siemens
Means the water flow rate is too high or the machine is overfilling. It is usually caused by high water pressure, a kinked inlet hose, a clogged filter in the AquaStop valve, or a malfunctioning flow sensor.
E32High
Siemens
Means the water level in the tub is too low. It is usually caused by blocked filters, kinked hoses, excessive suds, or dishes tipping over and collecting water.
E5Medium
Siemens
Means the water level in the unit is too low or the inlet valve is malfunctioning, and it appears on some models as a technical electronics error or a flood sensor issue. It is usually caused by a malfunctioning inlet valve or a water supply fault.
E6Medium
Whirlpool
Means the unit detects no water, low water pressure, or incorrect water temperature, shown as F6E6. It is usually caused by a closed water tap, a kinked supply hose, a faulty water inlet valve, or a broken flow meter.
E7Medium
Whirlpool
Means the unit is not detecting enough water entering the tub through the flow meter, reported as F7. It is usually caused by a faulty flow meter, low water pressure, a clogged inlet valve, or a blocked spray arm.
F5Medium
Whirlpool
Means a water detection or drainage fault has been detected. It is usually caused by a blocked filter, a faulty water inlet valve, a faulty float switch, or a rotor blocked in the wash motor.
F6Medium
Whirlpool
Means the unit is not receiving water or cannot detect it, shown as F6E1 or E1 F6. It is usually caused by a closed water supply valve, a kinked inlet hose, a faulty inlet valve, or a faulty flow meter.
F7Medium
Whirlpool
Means the machine is not detecting enough water entering the tub through the flow meter. It is usually caused by a faulty flow meter, a closed water tap, or a faulty inlet valve.
H2Medium
Whirlpool
Means the dishwasher is not filling properly or cannot detect water entering the unit, shown as H2O. It is usually caused by a closed tap, a kinked inlet hose, or a blocked inlet screen.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off at the mains and turn off the water supply before you start.
You’ll needScrewdriverPliers
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- 00611317
- Genuine Spare Part
- Yes
07
More Details
What is the flow metre on a dishwasher?
The flow metre measures the flow rate of water entering the dishwasher. It accurately monitors the amount of water used during the cleaning cycle.
The flow metre helps the dishwasher regulate water levels, control the duration of different cycles, and ensure proper water distribution for effective cleaning.
Why does it get damaged?
The flow metre gets damaged with accumulation of debris or mineral deposits in the water supply. Excessive pressure fluctuations in the water supply or sudden water surges can place stress on the flow metre and potentially lead to damage.
In some cases, manufacturing defects or component failures can also result in the malfunction or damage of the flow metre.
Would this fit in my dishwasher?
This contact reed flow metre is a genuine Bosch dishwasher spare part. It also fits Balay, Blaupunkt, Constructa, Gaggenau, Gorenje, Ikea, Junker, Koenic, Kuppersbusch, Neff, Pitsos, Profilo, Siemens, Tecnik, Thermador, Viva, and Whirlpool dishwashers. Use our compatibility checker to see if this part fits your model.
08
Customer Reviews (15)
5.015 reviews
5
15
4
0
3
0
2
0
1
0
Sort by:||
Save us money
Thanks so much for the part . This fixed the problem , although it was a little fiddly because we actually had to solder the wires onto the new part but all in all brilliant and save us a pretty penny. We will definitely use this place again . Thank you
Hayley Anne Townley · Stockport ·
Quality
Value
Ease of Fitting
Easy fix
I saw someone else fixing an error code with a Bosch Classixx dishwasher using this part from Ransom Spares. For £15 is seemed worth a try. It took longer to pull the dishwasher out that to replace the part and the dishwasher is back working!
Chris Clode · Cwmbran ·
Quality
Value
Ease of Fitting
Bosch Flow
The part was exactly what I wanted and works prefect. Unfortunately Ransom took 4 working days before posting the item and this was after I had to call their customer services and then another 2/3 days for delivery poor service
Gary Richardson · Rotherham ·
Quality
Value
Ease of Fitting
Great product
Decent price, arrived quickly. Found a video on how to fit - very easy!
Diana Beech · St Leonards on Sea ·
Quality
Value
Ease of Fitting
Easy fit, well packaged, good instructions
Once I tracked down the likely cause of my dishwasher problem, I ordered a new reed flow meter from Ransom Spares. It arrived when I expected, well protected, and took me about 15 minutes to do the replacement. All is good now, the dishwasher is working perfectly.
Nick Flynn · Budleigh Salterton ·
Quality
Value
Ease of Fitting
09
Questions & Answers (2)
It this the correct part for a bosch dishwasher SMS50C02GB/41
Emma · Liverpool ·
Hi Emma, I can confirm this is compatible with your model.
JordanStaff·
Does this part come with fitting instructions? On my model, Bosch SMS69L22GB/44, the unit appears to be part of the matrix, and I can't for the life of me see how to release it! Appreciate your advice.
Matt · Bristol ·
Hi Matt, unfortunately this isn't supplied with fitting instructions. I'd recommend contacting an engineer to see if they can offer any advice.
JordanStaff·
