Beko

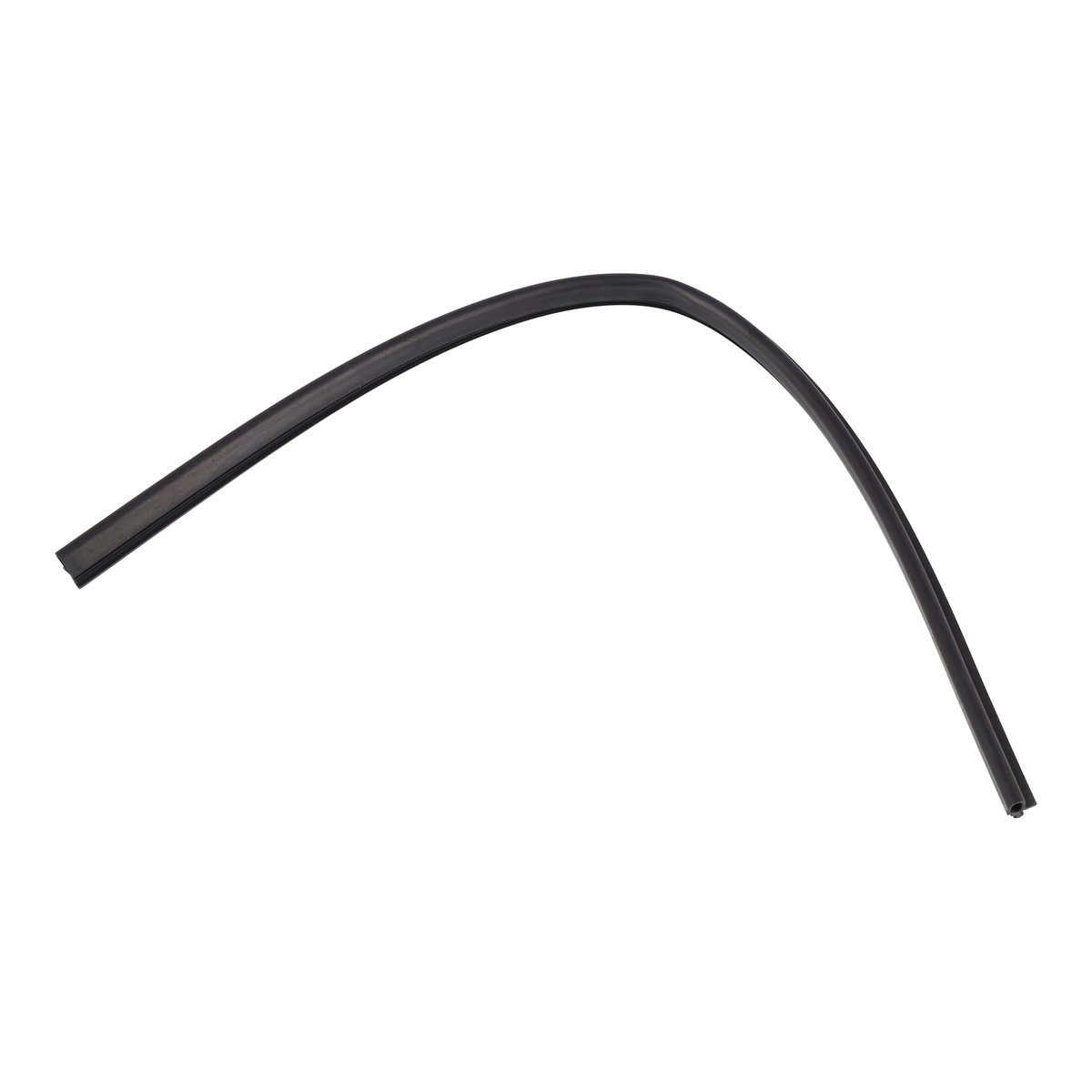

Beko Dishwasher Lower Bottom Door SealC00914092
Suitable for Beko, Altus, Arcelik, Belling, Blomberg
Stock Code: 157853
·
£7.65inc. VAT
£6.38 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Seals around the door opening so water and heat cannot escape.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E1 | Beko | Means water has collected in the base and the flood protection has shut the machine down. It is usually caused by an overflow or a leak inside the machine. | Medium |
| E15 | Beko | Means the leak sensor has detected water in the base of the machine. It is usually caused by a leak inside the dishwasher, often from the drain pump. | High |
| E4 | Beko | Means the machine cannot drain the water and has stopped to prevent flooding. It is usually caused by a blocked drain filter, a clogged or kinked drain hose, or a faulty drain pump. | Medium |
| P1 | Beko | Means the machine has either failed to fill with water, or detected a flood and run the drain pump to clear it. It is usually caused by a water supply problem, or a leak collecting in the base. | Medium |
| E15 | Blomberg | Means water has leaked into the base pan and activated the flood protection, leaving the drain pump running constantly to clear it. It is usually caused by a clogged drain or a damaged seal. | Medium |
| E4 | Blomberg | Means water is overflowing or leaking and has triggered the flood protection. It is usually caused by a faulty drain pump, a blocked filter, or water trapped in the base pan. | Medium |
| C4 | Grundig | Means water has leaked into the base and the anti-flood device has activated. It is usually caused by a leak or a door that is not sealing, with the inlet valve shut off to stop further water entering. | High |
| E1 | Grundig | Means water has been detected in the base of the machine. It is usually caused by a leak, or by a water supply or sensor fault around the inlet valve and water pressure. | Medium |
| E15 | Grundig | Means water has leaked into the base tray and the anti-flood safety switch has activated. It is usually caused by an internal water leak, with the drain pump running continuously even when the machine is off. | Medium |
| E4 | Grundig | Means water has accumulated in the base pan and the safety flood switch has triggered. It is usually caused by a clogged filter, a kinked drain hose, or a faulty leaking seal. | Medium |
| E5 | Grundig | Means the anti-flood protection sensor has detected water in the base of the unit. It is usually caused by a leak or a door that is not sealing, and can relate to the water heating or fill systems. | High |
| E7 | Grundig | Means the machine cannot accurately determine the water level. It is usually caused by a water detection or level sensor fault, or a drainage issue where the anti-flood device in the base has activated. | Medium |
E1Medium
Beko
Means water has collected in the base and the flood protection has shut the machine down. It is usually caused by an overflow or a leak inside the machine.
E15High
Beko
Means the leak sensor has detected water in the base of the machine. It is usually caused by a leak inside the dishwasher, often from the drain pump.
E4Medium
Beko
Means the machine cannot drain the water and has stopped to prevent flooding. It is usually caused by a blocked drain filter, a clogged or kinked drain hose, or a faulty drain pump.
P1Medium
Beko
Means the machine has either failed to fill with water, or detected a flood and run the drain pump to clear it. It is usually caused by a water supply problem, or a leak collecting in the base.
E15Medium
Blomberg
Means water has leaked into the base pan and activated the flood protection, leaving the drain pump running constantly to clear it. It is usually caused by a clogged drain or a damaged seal.
E4Medium
Blomberg
Means water is overflowing or leaking and has triggered the flood protection. It is usually caused by a faulty drain pump, a blocked filter, or water trapped in the base pan.
C4High
Grundig
Means water has leaked into the base and the anti-flood device has activated. It is usually caused by a leak or a door that is not sealing, with the inlet valve shut off to stop further water entering.
E1Medium
Grundig
Means water has been detected in the base of the machine. It is usually caused by a leak, or by a water supply or sensor fault around the inlet valve and water pressure.
E15Medium
Grundig
Means water has leaked into the base tray and the anti-flood safety switch has activated. It is usually caused by an internal water leak, with the drain pump running continuously even when the machine is off.
E4Medium
Grundig
Means water has accumulated in the base pan and the safety flood switch has triggered. It is usually caused by a clogged filter, a kinked drain hose, or a faulty leaking seal.
E5High
Grundig
Means the anti-flood protection sensor has detected water in the base of the unit. It is usually caused by a leak or a door that is not sealing, and can relate to the water heating or fill systems.
E7Medium
Grundig
Means the machine cannot accurately determine the water level. It is usually caused by a water detection or level sensor fault, or a drainage issue where the anti-flood device in the base has activated.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off and unplug at the mains before you start.
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- C00914092
- Alternative Part Numbers
- 1882470100
- Genuine Spare Part
- Yes
- Length
- 555mm
07
More Details
What is the mechanism of the dishwasher door seal?
The dishwasher door or compartment is sealed with a heat-resistant rubber or silicone door seal. When the door is closed, the seal creates a tight barrier that keeps the dishwasher’s insulation intact and prevents heat and water loss.
How can I tell if the dishwasher door seal is damaged?
Watch for obvious signs of deterioration such as fractures, rips, or fraying. It can be an indication that the seal is damaged if you see water escaping from the dishwasher door or variations in temperature during the washing up. A poor seal may cause overheating or uneven heat.
Would this fit in my dishwasher?
This dishwasher door seal is a genuine Beko dishwasher part. It also fits Altus, Arcelik, Belling, Blomberg, Bru, Defy, Diplomat, Elektra Bregenz, Flavel, Grundig, Howden, Lamona, Leisure, Maytag, Proline, and Technika dishwashers. Use our compatibility checker to see if this part fits your model.
08
Customer Reviews (8)
4.88 reviews
5
6
4
2
3
0
2
0
1
0
Sort by:||
Great part but not so quick delivery
The part was exactly what we had paid for, it was easy to fit and does the job Last time we ordered another deal, it was received within just a couple of days, but this time it took several weeks to arrive. I was told this was because the part wasn't in stock, I accept this, but it would have been better if if been told this was the case when I ordered it.
Ken Sanderson · Keighley ·
Quality
Value
Ease of Fitting
Seals dishwasher
Excellent part genuine. Easy fitting and fixed my dishwasher.
Douglas Herron · Blyth ·
Quality
Value
Ease of Fitting
Good replacement
The bottom door seal seemed a bit smaller than the original and we were sceptical as to whether it would be adequate, but one got the main door seal on the right way round it didn’t leak any more!
Melinda Amos · Nottinghamshire ·
Quality
Value
Ease of Fitting
Lower door seal
Fast delivery and perfect match for old part. Easy fitted (small lip faces in towards inside of dishwasher).
William Eadie · Bellshill ·
Quality
Value
Ease of Fitting
Easy D.I.Y. fit
Takes only a few minutes. No need to dismantle anything. Remove old seal by pulling it out. Neds a good pull. Clean area thoroughly and press new seal in fits easily. Leak gone.
andreas simon · Bridgwater ·
Quality
Value
Ease of Fitting
09
Questions & Answers (2)
What's the length of the seal in cm?
S.M · Galway ·
Hi, this seal is 555mm.
JordanStaff·
is this the seal that goes all the way around the door? or just the one that goes along the bottom?
Chris · Stockport ·
Hi Chris, this is just the seal for the bottom edge of the door.
JordanStaff·
