Beko

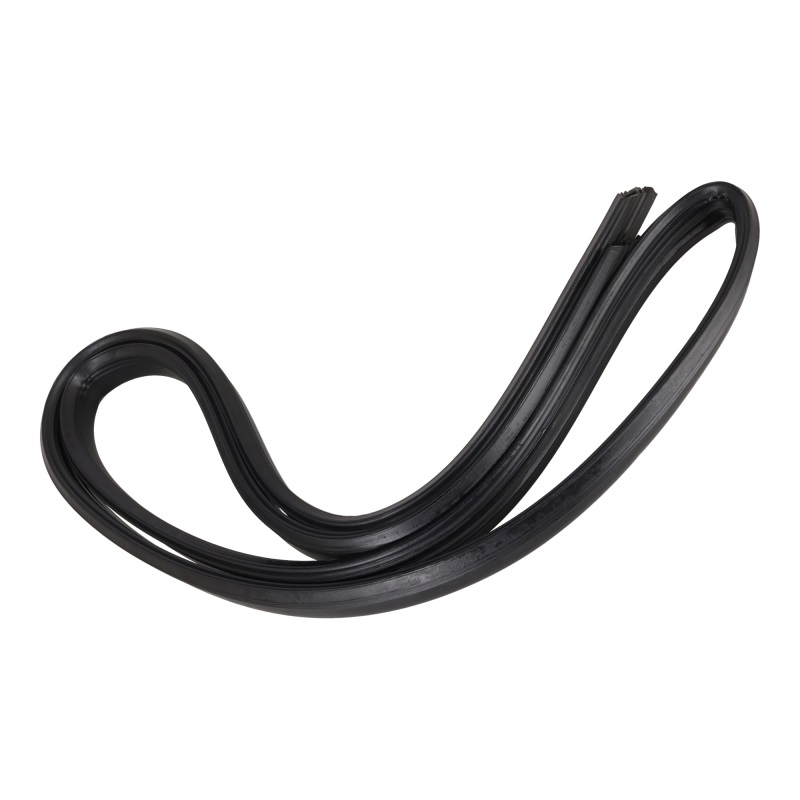

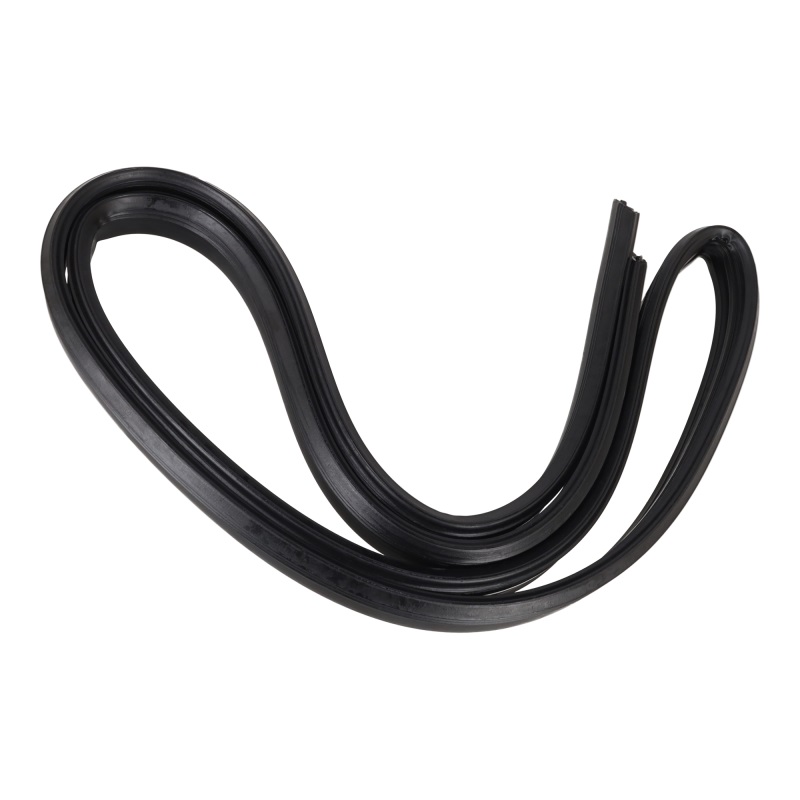

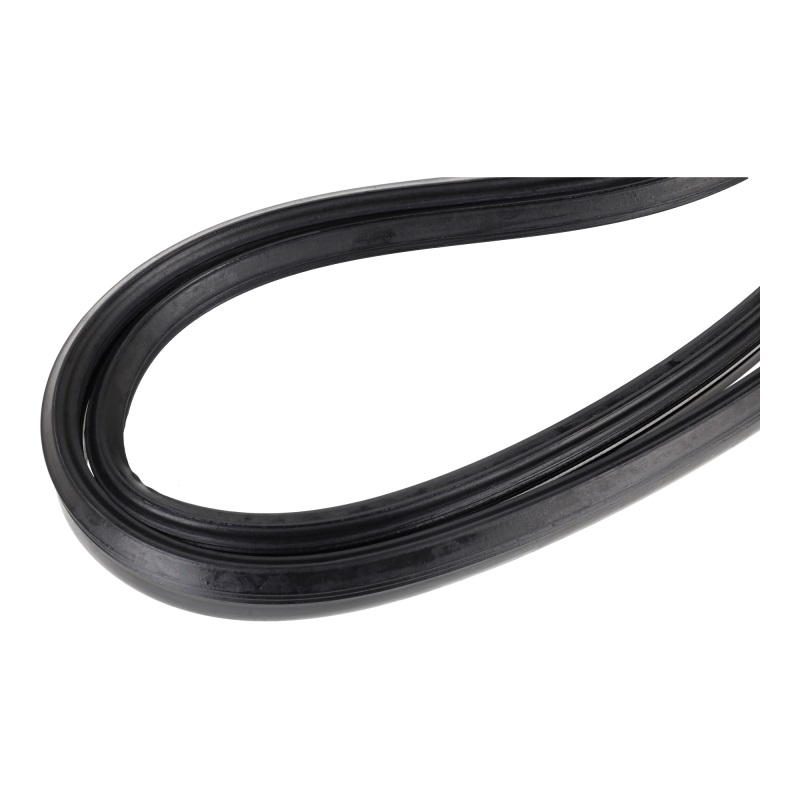

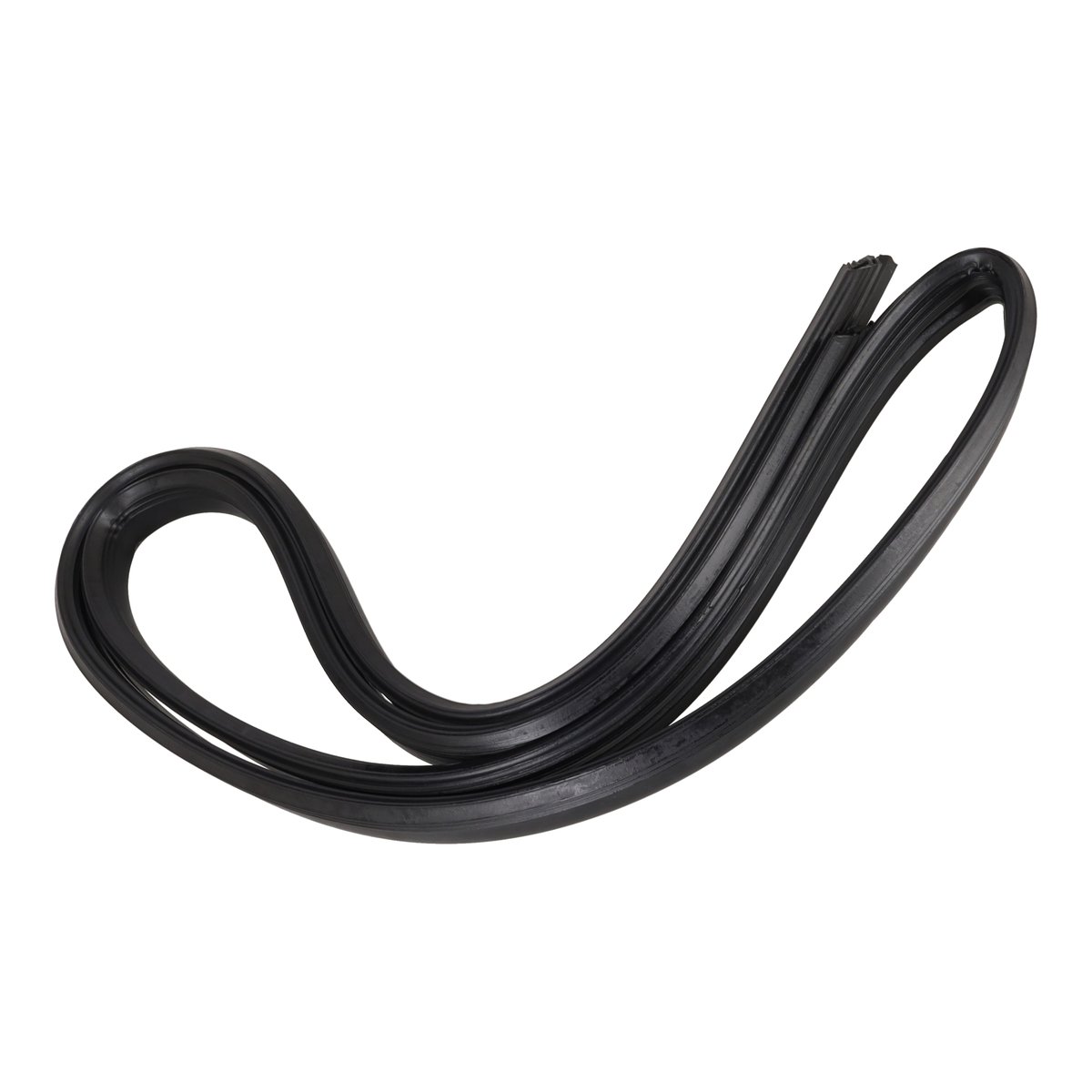

Beko Dishwasher Door SealC00912655
Suitable for Beko, Altus, Arcelik, Belling, Blomberg
Stock Code: 158221
·
£9.45inc. VAT
£7.88 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Seals around the door opening so water and heat cannot escape.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E1 | Beko | Means water has collected in the base and the flood protection has shut the machine down. It is usually caused by an overflow or a leak inside the machine. | Medium |
| E15 | Beko | Means the leak sensor has detected water in the base of the machine. It is usually caused by a leak inside the dishwasher, often from the drain pump. | High |
| E4 | Beko | Means the machine cannot drain the water and has stopped to prevent flooding. It is usually caused by a blocked drain filter, a clogged or kinked drain hose, or a faulty drain pump. | Medium |
| P1 | Beko | Means the machine has either failed to fill with water, or detected a flood and run the drain pump to clear it. It is usually caused by a water supply problem, or a leak collecting in the base. | Medium |
| E15 | Blomberg | Means water has leaked into the base pan and activated the flood protection, leaving the drain pump running constantly to clear it. It is usually caused by a clogged drain or a damaged seal. | Medium |
| E4 | Blomberg | Means water is overflowing or leaking and has triggered the flood protection. It is usually caused by a faulty drain pump, a blocked filter, or water trapped in the base pan. | Medium |
| C4 | Grundig | Means water has leaked into the base and the anti-flood device has activated. It is usually caused by a leak or a door that is not sealing, with the inlet valve shut off to stop further water entering. | High |
| E1 | Grundig | Means water has been detected in the base of the machine. It is usually caused by a leak, or by a water supply or sensor fault around the inlet valve and water pressure. | Medium |
| E15 | Grundig | Means water has leaked into the base tray and the anti-flood safety switch has activated. It is usually caused by an internal water leak, with the drain pump running continuously even when the machine is off. | Medium |
| E4 | Grundig | Means water has accumulated in the base pan and the safety flood switch has triggered. It is usually caused by a clogged filter, a kinked drain hose, or a faulty leaking seal. | Medium |
| E5 | Grundig | Means the anti-flood protection sensor has detected water in the base of the unit. It is usually caused by a leak or a door that is not sealing, and can relate to the water heating or fill systems. | High |
| E7 | Grundig | Means the machine cannot accurately determine the water level. It is usually caused by a water detection or level sensor fault, or a drainage issue where the anti-flood device in the base has activated. | Medium |
E1Medium
Beko
Means water has collected in the base and the flood protection has shut the machine down. It is usually caused by an overflow or a leak inside the machine.
E15High
Beko
Means the leak sensor has detected water in the base of the machine. It is usually caused by a leak inside the dishwasher, often from the drain pump.
E4Medium
Beko
Means the machine cannot drain the water and has stopped to prevent flooding. It is usually caused by a blocked drain filter, a clogged or kinked drain hose, or a faulty drain pump.
P1Medium
Beko
Means the machine has either failed to fill with water, or detected a flood and run the drain pump to clear it. It is usually caused by a water supply problem, or a leak collecting in the base.
E15Medium
Blomberg
Means water has leaked into the base pan and activated the flood protection, leaving the drain pump running constantly to clear it. It is usually caused by a clogged drain or a damaged seal.
E4Medium
Blomberg
Means water is overflowing or leaking and has triggered the flood protection. It is usually caused by a faulty drain pump, a blocked filter, or water trapped in the base pan.
C4High
Grundig
Means water has leaked into the base and the anti-flood device has activated. It is usually caused by a leak or a door that is not sealing, with the inlet valve shut off to stop further water entering.
E1Medium
Grundig
Means water has been detected in the base of the machine. It is usually caused by a leak, or by a water supply or sensor fault around the inlet valve and water pressure.
E15Medium
Grundig
Means water has leaked into the base tray and the anti-flood safety switch has activated. It is usually caused by an internal water leak, with the drain pump running continuously even when the machine is off.
E4Medium
Grundig
Means water has accumulated in the base pan and the safety flood switch has triggered. It is usually caused by a clogged filter, a kinked drain hose, or a faulty leaking seal.
E5High
Grundig
Means the anti-flood protection sensor has detected water in the base of the unit. It is usually caused by a leak or a door that is not sealing, and can relate to the water heating or fill systems.
E7Medium
Grundig
Means the machine cannot accurately determine the water level. It is usually caused by a water detection or level sensor fault, or a drainage issue where the anti-flood device in the base has activated.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
Safety: Switch off and unplug at the mains before you start.
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- C00912655
- Alternative Part Numbers
- 1749190100
- Genuine Spare Part
- Yes
- Length
- 1775mm
07
More Details
What is the mechanism of the dishwasher door seal?
A heat-resistant rubber or silicone door seal keeps the dishwasher's door or compartment shut. The seal forms a tight barrier when the door is shut to preserve the insulation of the dishwasher and prevent heat and water loss.
How can I tell if the dishwasher door seal is damaged?
Keep an eye out for visible symptoms of wear and tear like fractures, rips, or fraying. If you observe water escaping from the dishwasher door or changes in temperature during the washing up, it may be a sign that the seal has broken. Uneven heating or overheating comes from a weak seal.
Would this fit in my dishwasher?
This dishwasher door seal is a genuine Beko dishwasher part. It also fits Altus, Arcelik, Beko, Belling, Blomberg, Bru, Defy, Diplomat, Elektra Bregenz, Flavel, Grundig, Howden, Lamona, Leisure, Maytag, and Proline dishwashers. Use our compatibility checker to see if this part fits your model.
08
Customer Reviews (5)
5.05 reviews
5
5
4
0
3
0
2
0
1
0
Does a great job.
This is the second time I've bought parts from Ransom's and as always, the product does exactly as was promised. The part actually arrived earlier than I was expecting, it took 5 minutes to remove the old failed seal and replace it. Excellent product that does exactly what it says on the tin. Highly recommend this company.
Ken Sanderson · Riddlesden, West Yorkshire ·
Quality
Value
Ease of Fitting
Good product
Easy to fit once you put it in the right way round as it fits both ways and it is difficult to tell which way it should go!
Melinda Amos · Nottinghamshire ·
Quality
Value
Ease of Fitting
Great product
Great product and quality, also very good prices. I will definitely use them again.
Dan · Peterborough ·
Quality
Value
Ease of Fitting
Perfect fit
This was a perfect fit (and easy to fit) for my Diplomat HJA8630 dishwasher. Prompt delivery too.
Alison Burns · Edinburgh ·
Quality
Value
Ease of Fitting
dishwasher door seal
Excellent product, price and prompt delivery. Very, very, happy !
Richard · SOUTH OCKENDON ·
Quality
Value
Ease of Fitting
09
Questions & Answers (4)
Hi can you confirm this 3 sided seal will fit a Beko DIN15X10 integrated dishwasher please
Catherine · Northumberland ·
Hi Catherine, I can confirm this is the correct 3 sided seal for your dishwasher.
JordanStaff·
Hi does this fit all three sides of beko dw686 integrated dishwasher? Also is this right part it replace for fixing the heat/steam escaping at wash cycle?
MR Rohit Kumar · Swindon (Wilts) ·
Hi, I can confirm this seal is for the three sides and is 1775mm long.
JordanStaff·
I have a Beko DFS05010W dishwasher. Could you confirm if this seal fits. I may also replace the bottom seal if you have those in stock. Thanks in advance.
Mark · Normanton ·
Hi Mark, the lower seal for your dishwasher is RS157854 and the three sided seal is RS157824.
JordanStaff·
Hi, I have a Blomberg LDVN 2284 dishwasher. The part you advertise looks comparable. Does this seal include the top seal which with my machine appears be separate. Frank
Frank · Bolton ·
Hi Frank, this is the side and top seal. The bottom seal is RS157853.
JordanStaff·
