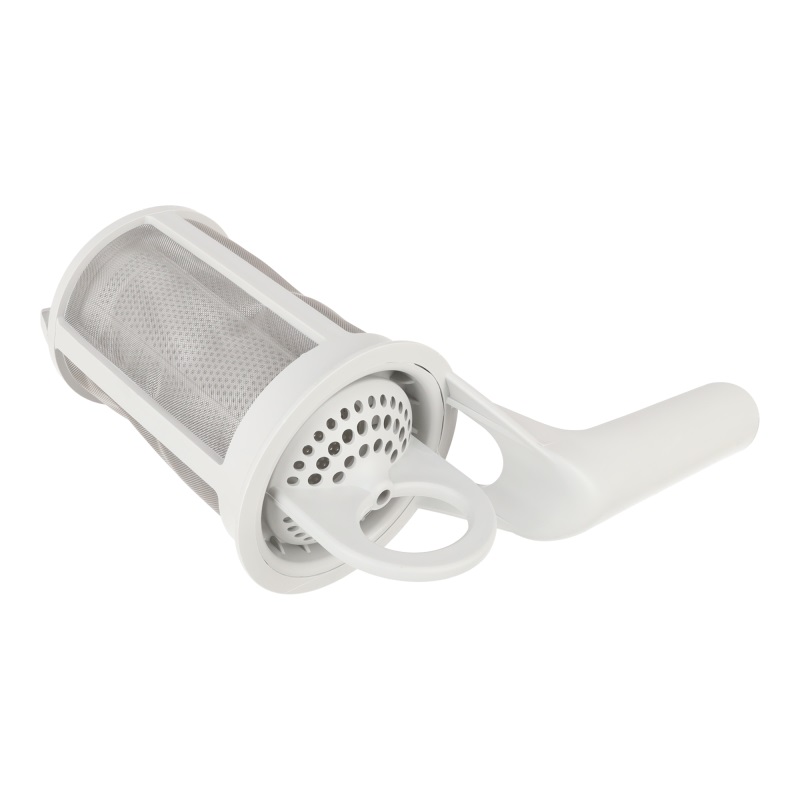

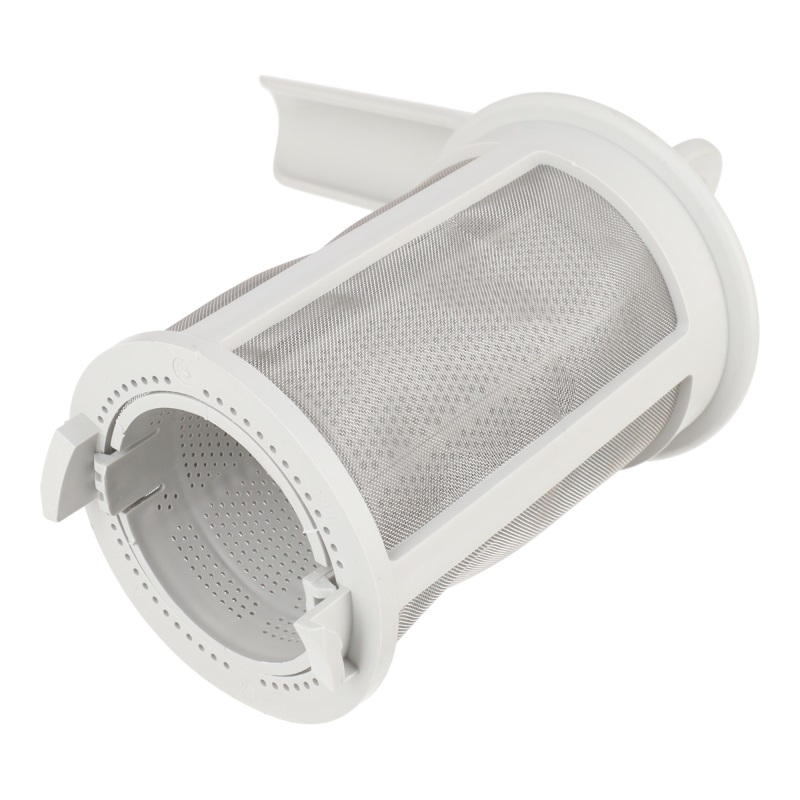

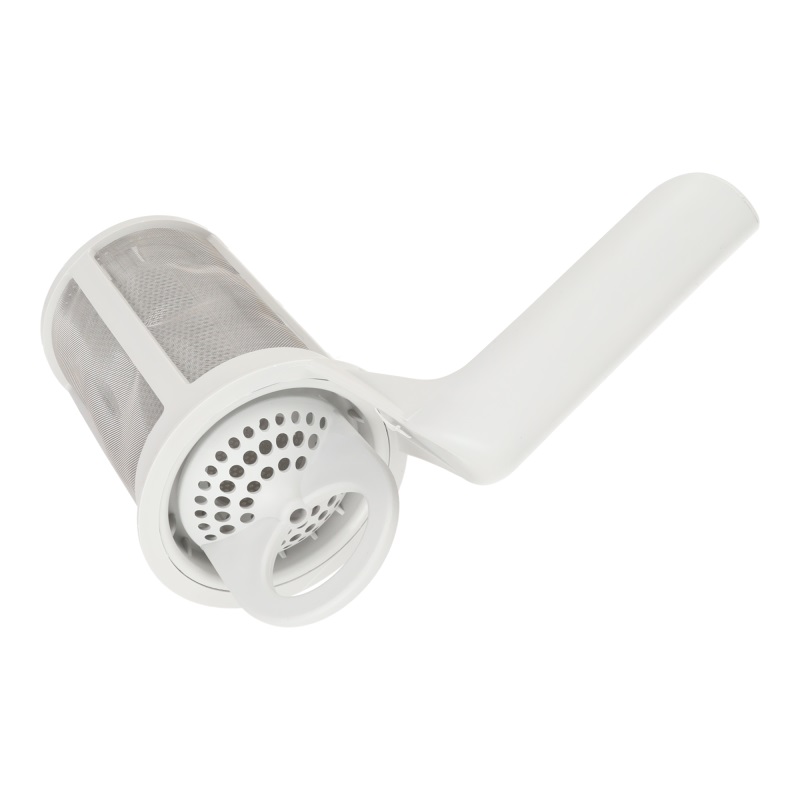

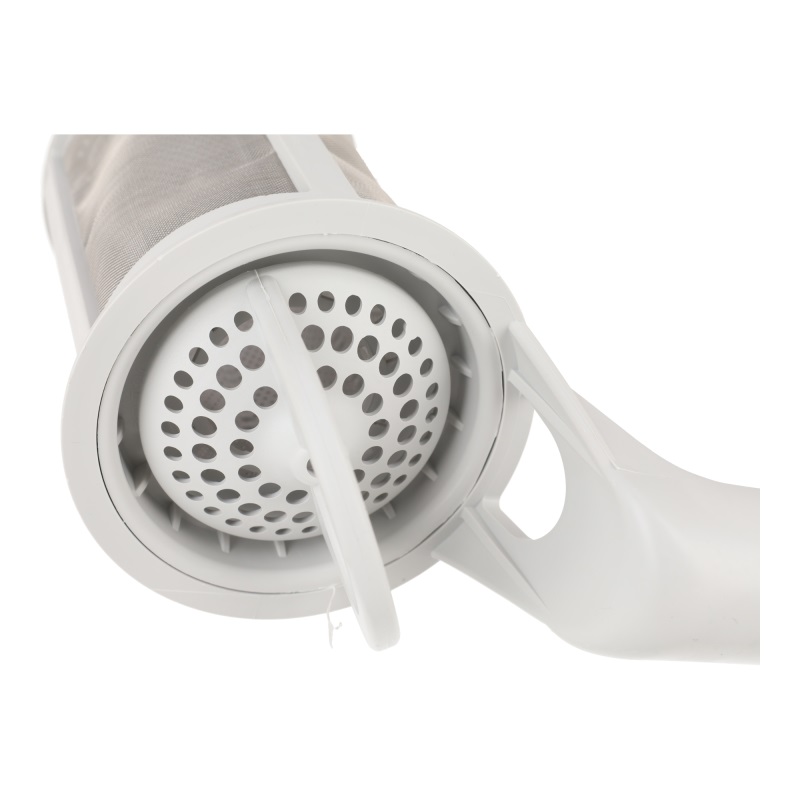

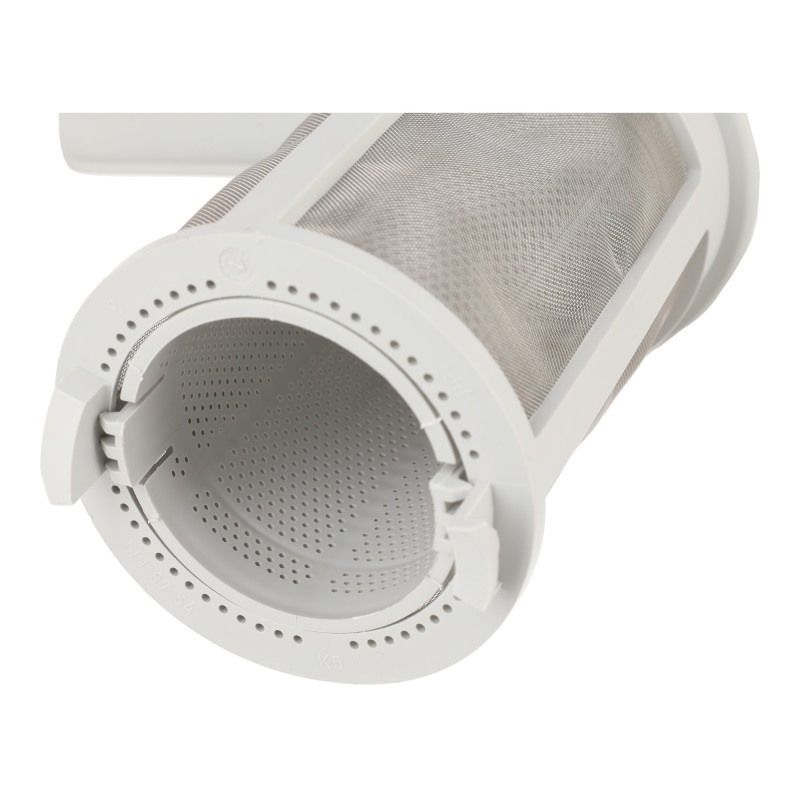

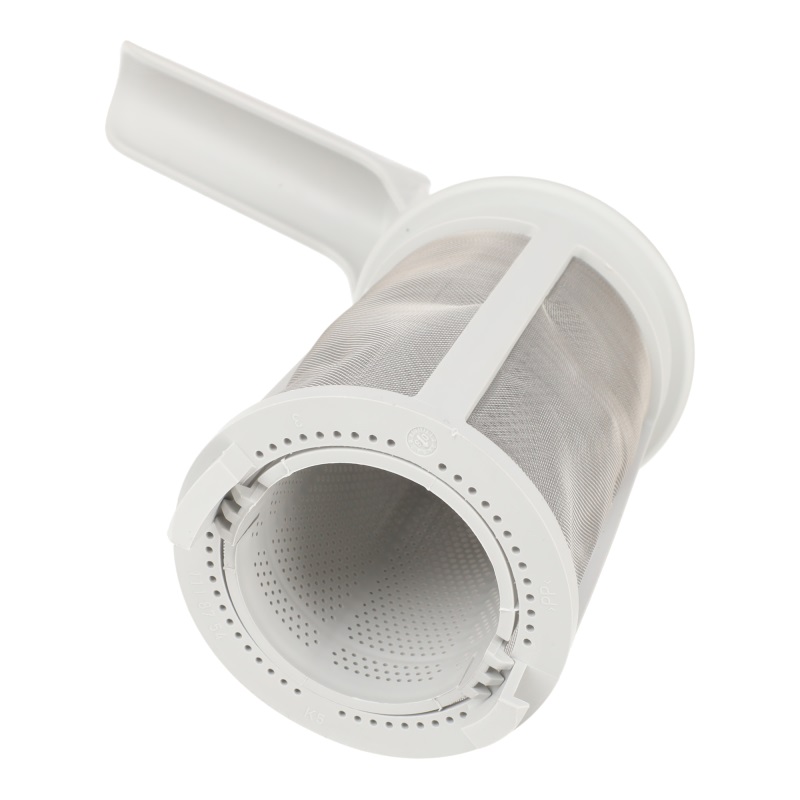

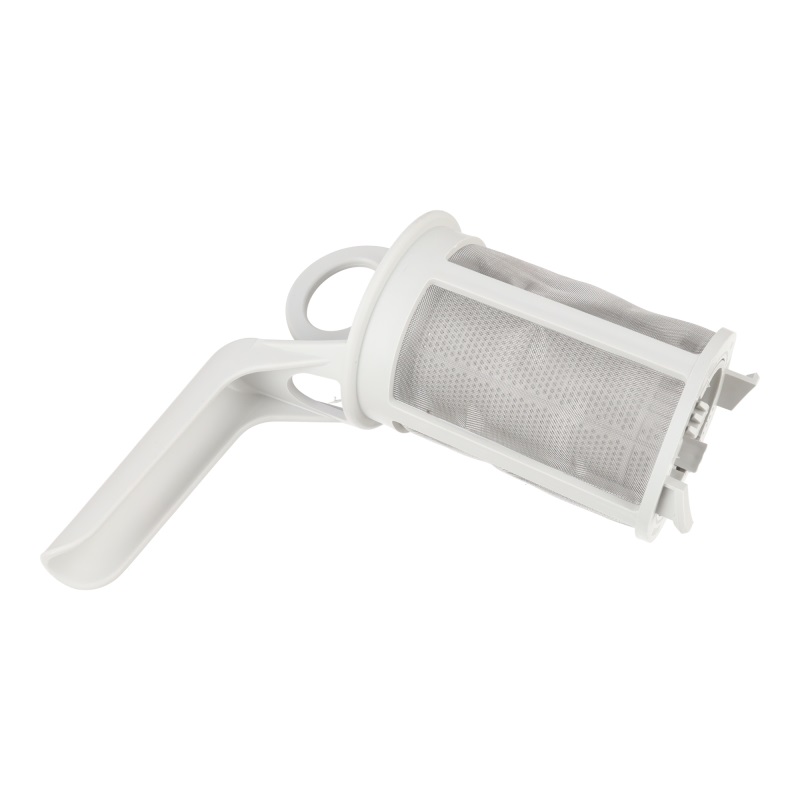

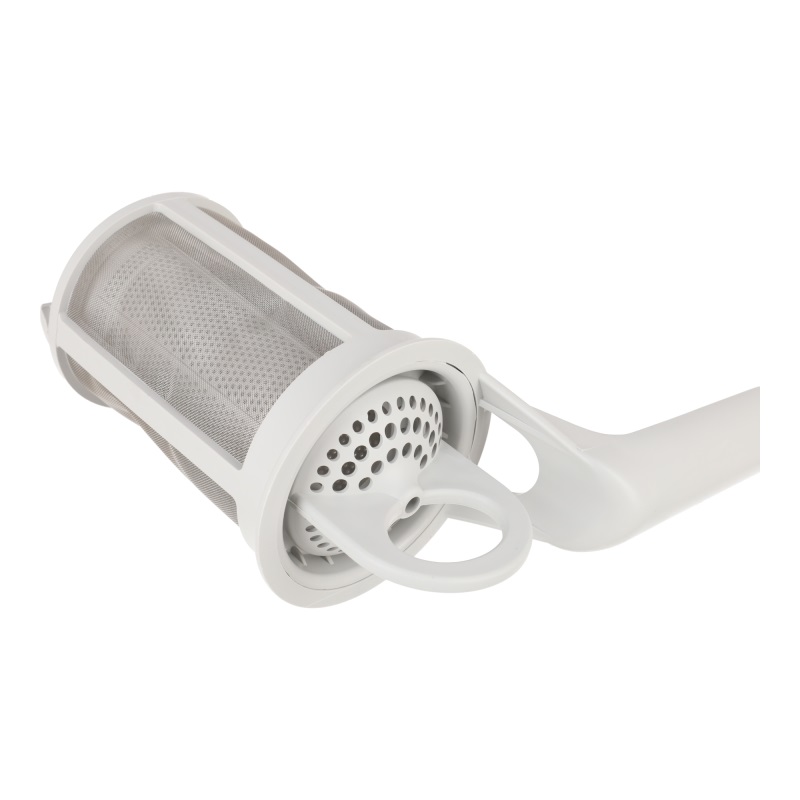

AEG Dishwasher Drain Filter50297774007
Suitable for AEG, Arthur Martin, Atag, Blomberg, Bluesky
Stock Code: 252594
·
£13.90inc. VAT
£11.58 ex. VAT
In Stock
Next Day Delivery Available
Easy DIY repair
Most customers complete this swap with basic tools in a few minutes.
01
Compatibility Check
02
What this part does
Traps food scraps and debris before the water reaches the drain pump.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| AL6 | AEG | Means a water drainage problem, where the machine cannot empty properly. It is usually caused by clogged filters or sump, a kinked drain hose, a blocked sink spigot, or a siphon blanking plug left in place. | High |
| C2 | AEG | Means a water drainage failure, where the machine cannot empty properly. It is usually caused by a kinked drain hose, a clogged internal filter, a dirty sump, or a blocked sink spigot. | High |
| E2 | AEG | Means a drainage failure where water is not emptying properly, or on some compact models a heating element malfunction. It is usually caused by clogged filters, a kinked drain hose, a blocked drain pump, or an improperly installed sink spigot. | High |
| I20 | AEG | Means a drainage fault, where the machine cannot expel water properly. It is usually caused by a clogged filter, a blocked drain hose, or a faulty drain pump. | High |
| E1 | Blomberg | Means water has leaked into the base of the machine and triggered the flood protection, or that the machine cannot drain water out. It is usually caused by a leak under the machine, debris in the drain pump or filter, or a clogged or kinked drain hose. | Medium |
| AL6 | Electrolux | Means the unit cannot drain the water away. It is usually caused by clogged filters, a blocked drain hose, a restricted sink trap, or a blocked drain pump. | High |
| C2 | Electrolux | Means the unit is not draining properly. It is usually caused by clogged filters, a blocked drain pump, a kinked drain hose, or a blocked sink spigot. | High |
| E2 | Electrolux | Means the machine cannot remove the water, leaving it sitting in the tub. It is usually caused by a clogged filter, an obstructed drain pump, or a kinked drain hose. | High |
| E20 | Electrolux | Means the unit cannot remove the water. It is usually caused by a blocked cylindrical filter at the base, a clogged drain hose, or a faulty drain pump. | High |
| E4 | Electrolux | Means standing water is preventing the unit from draining correctly. It is usually caused by a drainage fault, a water leak into the base pan, or an overfill from excess foam due to the wrong detergent. | High |
| F8 | Electrolux | Means the unit cannot empty the water properly, with water remaining in the bottom of the tub. It is usually caused by a blocked filter, a clogged drain hose, or a malfunctioning sensor. | High |
| I20 | Electrolux | Means the dishwasher is not draining properly. It is usually caused by a blocked drain pump, a clogged waste hose, an unremoved knockout plug in the disposer, or a clogged sink spigot. | High |
| I44 | Electrolux | Means the pressure switch has detected a water level or drainage problem. It is usually caused by dirty filters, a clogged drain pump, or a kinked drain hose. | High |
| AL2 | Zanussi | Means the machine is unable to remove water from the tub, also reported as i20, C2, F2, or two beeps or flashes. It is usually caused by a blockage, a clogged filter, or an incorrect drain installation. | High |
| AL6 | Zanussi | Means the machine is unable to empty water, also reported as i20, C2, or F2. It is usually caused by clogged filters, a blocked drain pump, a kinked drain hose, or a blocked sink spigot. | High |
| C2 | Zanussi | Means the machine cannot empty water, interchangeable with i20, F2, or AL6. It is usually caused by a blocked filter, a clogged drain hose, or a faulty drain pump. | High |
| I20 | Zanussi | Means the appliance is unable to remove water. It is usually caused by a clogged filter, a blocked or kinked drain hose, or a faulty drain pump. | High |
AL6High
AEG
Means a water drainage problem, where the machine cannot empty properly. It is usually caused by clogged filters or sump, a kinked drain hose, a blocked sink spigot, or a siphon blanking plug left in place.
C2High
AEG
Means a water drainage failure, where the machine cannot empty properly. It is usually caused by a kinked drain hose, a clogged internal filter, a dirty sump, or a blocked sink spigot.
E2High
AEG
Means a drainage failure where water is not emptying properly, or on some compact models a heating element malfunction. It is usually caused by clogged filters, a kinked drain hose, a blocked drain pump, or an improperly installed sink spigot.
I20High
AEG
Means a drainage fault, where the machine cannot expel water properly. It is usually caused by a clogged filter, a blocked drain hose, or a faulty drain pump.
E1Medium
Blomberg
Means water has leaked into the base of the machine and triggered the flood protection, or that the machine cannot drain water out. It is usually caused by a leak under the machine, debris in the drain pump or filter, or a clogged or kinked drain hose.
AL6High
Electrolux
Means the unit cannot drain the water away. It is usually caused by clogged filters, a blocked drain hose, a restricted sink trap, or a blocked drain pump.
C2High
Electrolux
Means the unit is not draining properly. It is usually caused by clogged filters, a blocked drain pump, a kinked drain hose, or a blocked sink spigot.
E2High
Electrolux
Means the machine cannot remove the water, leaving it sitting in the tub. It is usually caused by a clogged filter, an obstructed drain pump, or a kinked drain hose.
E20High
Electrolux
Means the unit cannot remove the water. It is usually caused by a blocked cylindrical filter at the base, a clogged drain hose, or a faulty drain pump.
E4High
Electrolux
Means standing water is preventing the unit from draining correctly. It is usually caused by a drainage fault, a water leak into the base pan, or an overfill from excess foam due to the wrong detergent.
F8High
Electrolux
Means the unit cannot empty the water properly, with water remaining in the bottom of the tub. It is usually caused by a blocked filter, a clogged drain hose, or a malfunctioning sensor.
I20High
Electrolux
Means the dishwasher is not draining properly. It is usually caused by a blocked drain pump, a clogged waste hose, an unremoved knockout plug in the disposer, or a clogged sink spigot.
I44High
Electrolux
Means the pressure switch has detected a water level or drainage problem. It is usually caused by dirty filters, a clogged drain pump, or a kinked drain hose.
AL2High
Zanussi
Means the machine is unable to remove water from the tub, also reported as i20, C2, F2, or two beeps or flashes. It is usually caused by a blockage, a clogged filter, or an incorrect drain installation.
AL6High
Zanussi
Means the machine is unable to empty water, also reported as i20, C2, or F2. It is usually caused by clogged filters, a blocked drain pump, a kinked drain hose, or a blocked sink spigot.
C2High
Zanussi
Means the machine cannot empty water, interchangeable with i20, F2, or AL6. It is usually caused by a blocked filter, a clogged drain hose, or a faulty drain pump.
I20High
Zanussi
Means the appliance is unable to remove water. It is usually caused by a clogged filter, a blocked or kinked drain hose, or a faulty drain pump.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
EasyGeneral fitting guidance. The exact steps can vary slightly with the make and model of your dishwasher.
- 1
- 2
- 3
- 4
- 5
- 6
06
Specifications
- Part Number
- 50297774007
- Alternative Part Numbers
- 1118591005, 1118591013, 1118754009, 1118754108
- EAN / Barcode
- 7321420789294
- Genuine Spare Part
- Yes
07
More Details

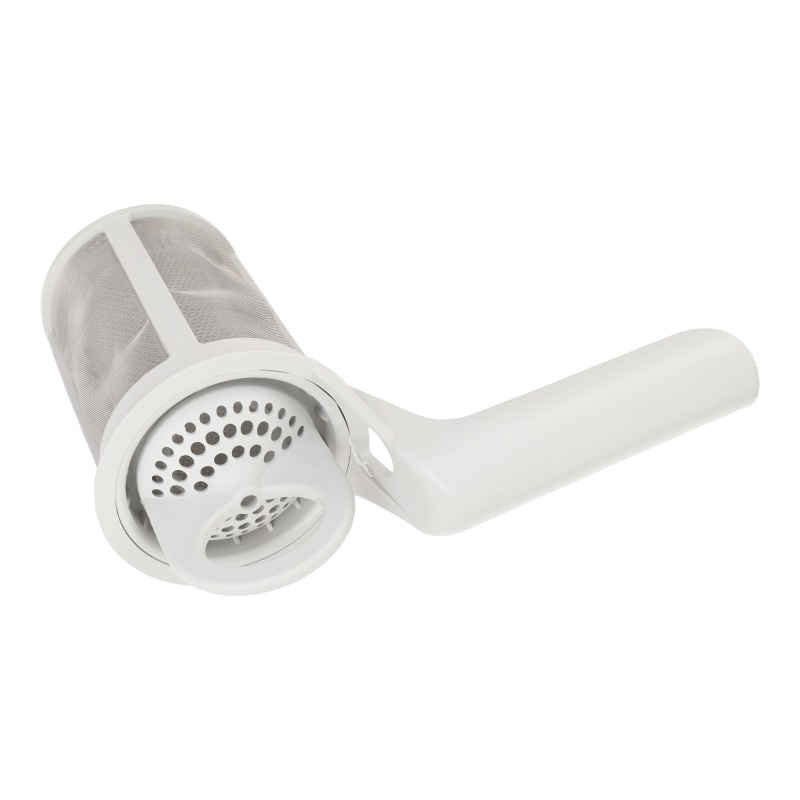

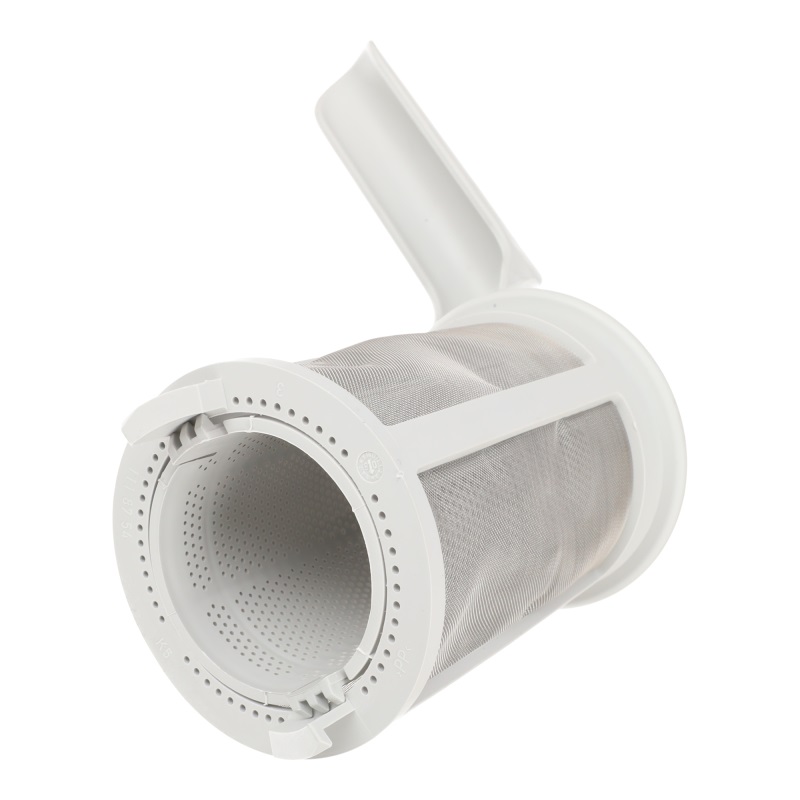

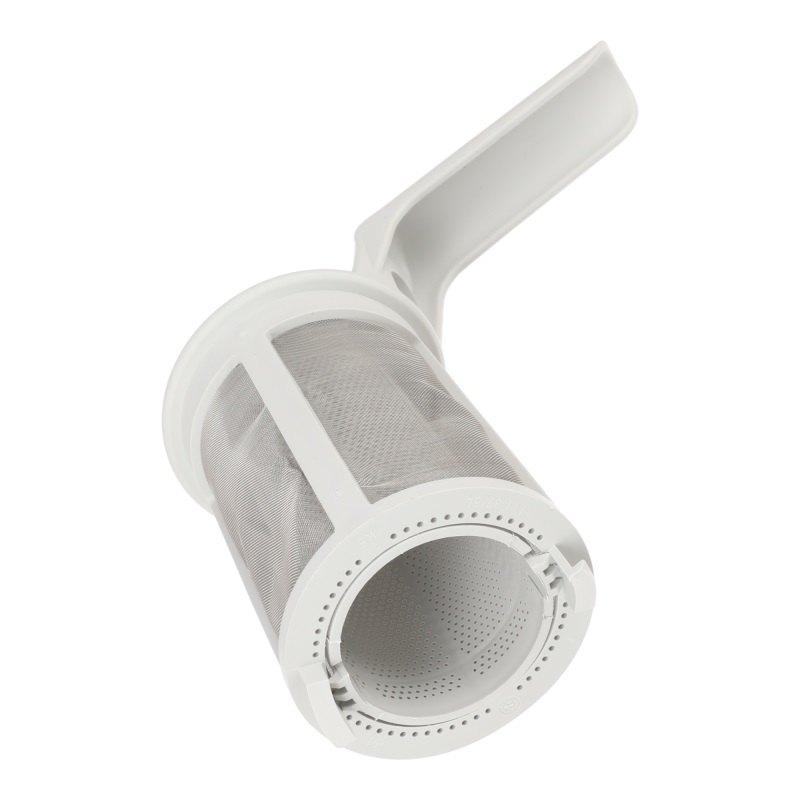

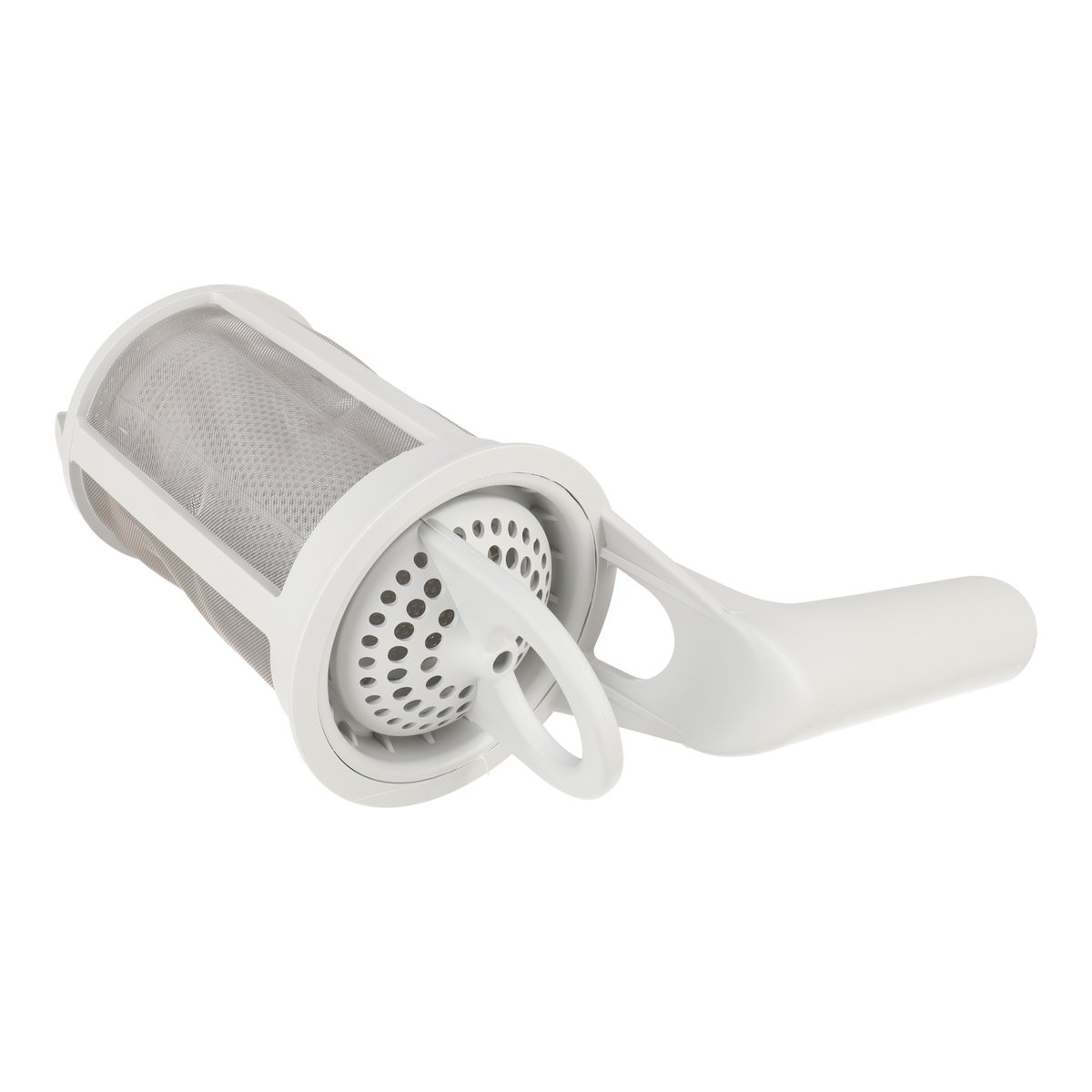

This is a genuine drain filter for your dishwasher in white. Made of plastic and mesh for daily dishwashing.
During the dishwasher's wash cycle, food bits and other gunk get washed off dishes and into the dishwasher's water. The drain's microfilters catch these bits and stop them from going back onto clean dishes.
When the filter is blocked with debris, it restricts the flow of water, leading to poor drainage and potentially causing water to back up in the dishwasher. Change it with this replacement part.
Check out our video below on how to fit a drain mesh filter.
This white drain filter is from AEG. You can also check the other suitable brands from the list above.
Before ordering, please verify that this fits your model using our compatibility checker.
Cleaning & Replacing Dishwasher Filters
Safety Warning - Always unplug from the mains before carrying out any repairs.
08
Video
The following DIY repair video should assist you in fitting this part. However the exact procedure may differ depending on your make and model.
09
Customer Reviews (10)
4.910 reviews
5
9
4
1
3
0
2
0
1
0
Sort by:||
Ideal Product
The description of this part was exactly what I was looking for and it fits precisely.
David Beckett · Coventry ·
Quality
Value
Ease of Fitting
Good service at great prices
I needed a part for my Ikea dishwasher and searched on goggle. Ransom Spares offered the part at a good price and I found the comprehensive "select model number" very helpful as I was then sure that it was the correct part for my machine.
Paul Dillien · Thatcham ·
Quality
Value
Ease of Fitting
Great product, easy to fit
NEW REVIEW FOR AEG DISHWASHER DRAIN FILTER COMPLETE👍😄
Yngve Aglen · Namsos ·
Quality
Value
Ease of Fitting
Good product
Product is as described and fits perfectly to its place! Shipping to Finland took about 1week.
Markus · Helsinki ·
Quality
Value
Ease of Fitting
Great
Works great, no issues at all. Just plug and play in my dishwasher
Nice · Nice ·
Quality
Value
Ease of Fitting
10
Questions & Answers (2)
hi Will this filter fit a zanussi zdf 3020 91151302101? Thanks robert
Robert · Lingfield ·
Hi Robert, I can confirm this filter is correct for your dishwasher.
JordanStaff·
Will this product fit Zanussi ZDF 2020 Type 911 D51-OL PNC 519 101 02 S-No 95229106 Thank you
Lorraine Best · Leeds ·
Hi Lorraine, I can confirm this is the correct filter for your model.
JordanStaff·
