Hotpoint
Hotpoint Cooker & Hob 2000W Fan Oven ElementC00084399
Suitable for Hotpoint, Ariston, Cannon, Creda, Export
Stock Code: 8443
·
£15.90inc. VAT
£13.25 ex. VAT
In Stock
Next Day Delivery Available
Moderate DIY repair
A confident home repairer can do this with basic tools.
01
Compatibility Check
02
What this part does
Generates the heat that the fan circulates around the oven.
03
Will this fix my appliance?
Tick the symptoms your appliance is showing. We’ll tell you how confident we are this part is the fix.
04
Error codes related to this part
Error codes are model dependent, so the same brand may have more than one listed.
| Code | Brand | What it means | Confidence |
|---|---|---|---|
| E1 | Whirlpool | Means the oven cannot control its temperature because of an electronic control board, keypad, or temperature sensor fault. It is usually caused by a faulty electronic control board, a shorted keypad, or a failed temperature sensor. | Medium |
| E6 | Whirlpool | Means the oven cannot detect its internal temperature, appearing as F6 E6 on wall ovens. It is usually caused by a faulty temperature sensor, damaged wiring, or a faulty control board. | Medium |
E1Medium
Whirlpool
Means the oven cannot control its temperature because of an electronic control board, keypad, or temperature sensor fault. It is usually caused by a faulty electronic control board, a shorted keypad, or a failed temperature sensor.
E6Medium
Whirlpool
Means the oven cannot detect its internal temperature, appearing as F6 E6 on wall ovens. It is usually caused by a faulty temperature sensor, damaged wiring, or a faulty control board.
Don’t see your code? Different model years sometimes use different codes. Get in touch with our parts team and we’ll help you identify the right replacement.
05
Fitting Guidance
MediumGeneral fitting guidance. The exact steps can vary slightly with the make and model of your cooker.
Safety: Switch off and unplug at the mains and let it cool before you start.
You’ll needScrewdriverNut driver
- 1
- 2
- 3
- 4
- 5
- 6
- 7
06
Specifications
- Part Number
- C00084399
- Alternative Part Numbers
- 6204676, C00230168
- EAN / Barcode
- 8059131843996
- Genuine Spare Part
- Yes
- 2000 watts
- 2 Turns
- Length
- 210 mm
- Width
- 180 mm
- Bracket
- 70 mm
- Tags
- 25 mm
07
More Details

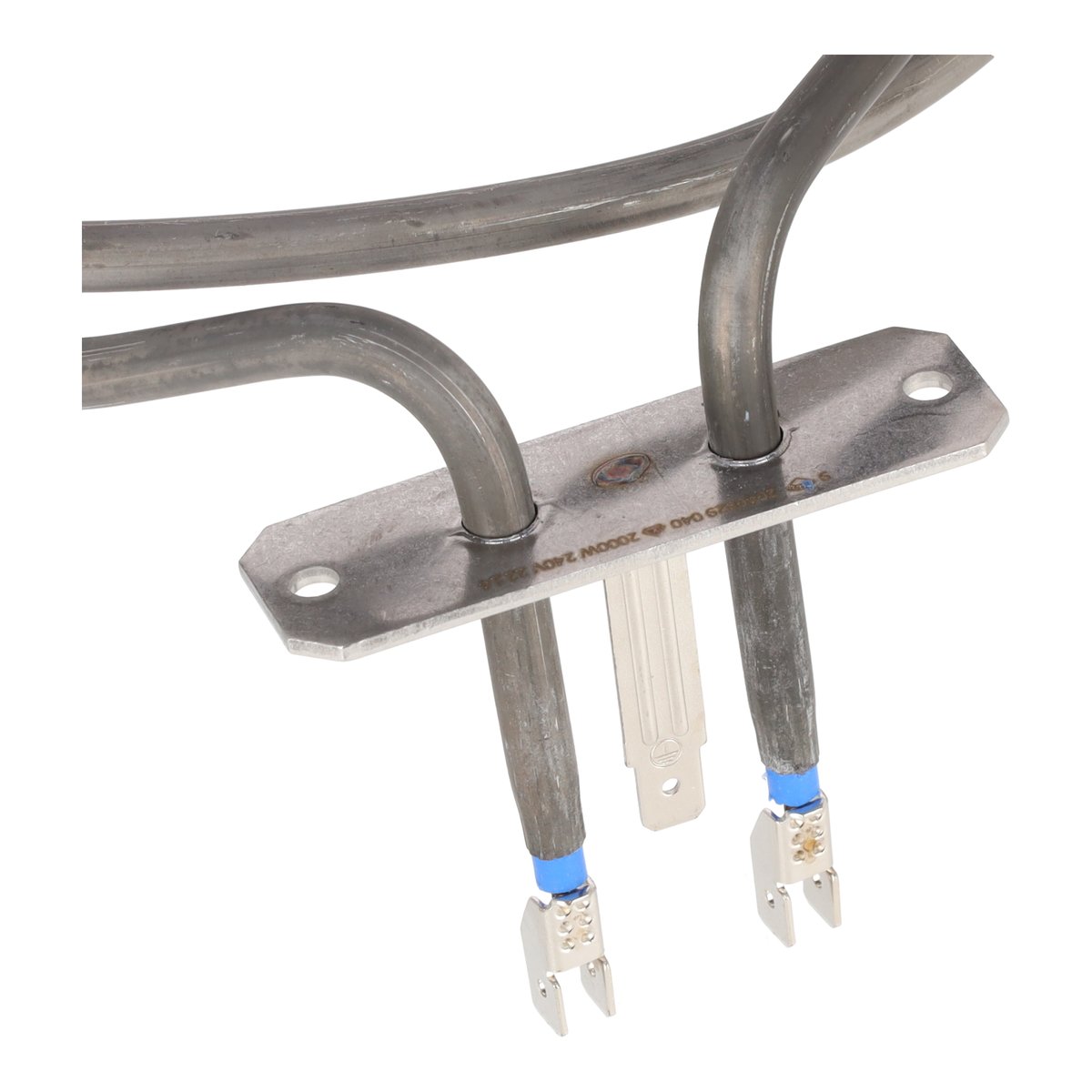

This is a genuine replacement fan oven element. It is 2000W and has two fixing holes in the bracket.
The fan oven element is designed to heat up your oven during cooking. If your oven is no longer getting hot then it could be due to a faulty fan oven element.
This part fits select models of Ariston, Cannon, Creda, Export, Hotpoint, Indesit, Whirlpool Cookers.
Check out our DIY video guide below to help you with the replacement process.
08
Video
How to Replace A Fan Oven Element 2000W - Hotpoint
If you need to replace the oven element on your Hotpoint oven, we've got the video for you.
The following DIY repair video should assist you in fitting this part. However, the exact procedure may differ depending on your make and model.
Appliance and Part Number:
- Oven model used - Hotpoint DU2540WH
- Part number used - RS8443
Need to find a specific part of the video? Use the timestamps below...
- 0:21 - Taking the oven door off
- 0:37 - Removing backplate
- 0:46 - Removing oven element
- 1:09 - Installing new oven element
- 1:41 - Putting oven door back on
09
Customer Reviews (315)
4.9315 reviews
5
298
4
16
3
1
2
0
1
0
Sort by:||
Terminal clips not the easiest to connect
This is the second replacement element needed for my oven. Now installed, functions satisfactorily so far. Hope it lasts longer than the last one, which was less than three years.
Douglas Bingham · Plungar ·
Quality
Value
Ease of Fitting
Like for Like
Straight swap for the faulty original (5 years old), excellent. Delivery on time (paid for next day) Will certainly use Ransomspares in the future
Grant · Buchanan ·
Quality
Value
Ease of Fitting
Great quality product
Would be good to have courier and tracking details as parcel did not arrive till monday evening when product was ordered on wednesday
Victoria Morgen · Cranbrook ·
Quality
Value
Ease of Fitting
Perfect Service
Perfect item. Easy to use website to order. Great quality and fast delivery. Thanks for the free squeezable stress relief lady lumps in the package too! Well done guys, I'll be back. Trust pilot review left as well for you....
Jay Sawyer · LINCOLN ·
Quality
Value
Ease of Fitting
This was a like for like element
The product is working fine so far, it was a straight swop for the old one that had failed.The only down side is since I bought this product I have had emails from other suppliers offering the same thing at a lower price.
Maurice Mason · Long Eaton ·
Quality
Value
Ease of Fitting
10
Questions & Answers (13)
Sort by:|
Is this part compatible with the Hotpoint DU2 540 XI main oven?. Oven details say that the oven wattage is 5100
Gemma · Kent ·
Hi Gemma, I can confirm this is the correct main fan oven element for your model.
JordanStaff·
Hi would this element fit my Hotpoint SHS 33 X 2250 -2400W
Pablo · Cheshire ·
Hi Pablo, I can confirm this is the correct element for your model.
JordanStaff·
I have a Indesit fid20wh/1 and in you video it has an earth wire in the middle my oven has 3 wires but two connected to one pole and one to the other is this correct be for I order this element ? Cheers Roger
Roger · Fleet Hampshire ·
Hi Roger, I can confirm this is the correct fan element for your model.
JordanStaff·
Hello, I was wondering if your whirlpool fan element Part Number RS8443 would be compatible with the Whirlpool service number 857726238500? Many thanks
Donna · Scotland ·
Hi Donna, the fan element required for your cooker is RS189013.
JordanStaff·
Hi, just noticed that your heating element has what looks like 4 spade connectors (and an earth connector). A competitors site shows the correct element for this cooker as having 2 spade connectors (plus the earth). As I have not removed the cover to see how many mine has, how do I know which one is the correct one for my oven? Or does it not matter if I only need to use 2 of the connectors?
Steve · Newcastle upon Tyne ·
Hi Steve, You will need to fit your wires to only one of the spade connectors per terminal, leaving one free and it will work the same as the original.
JordanStaff·
