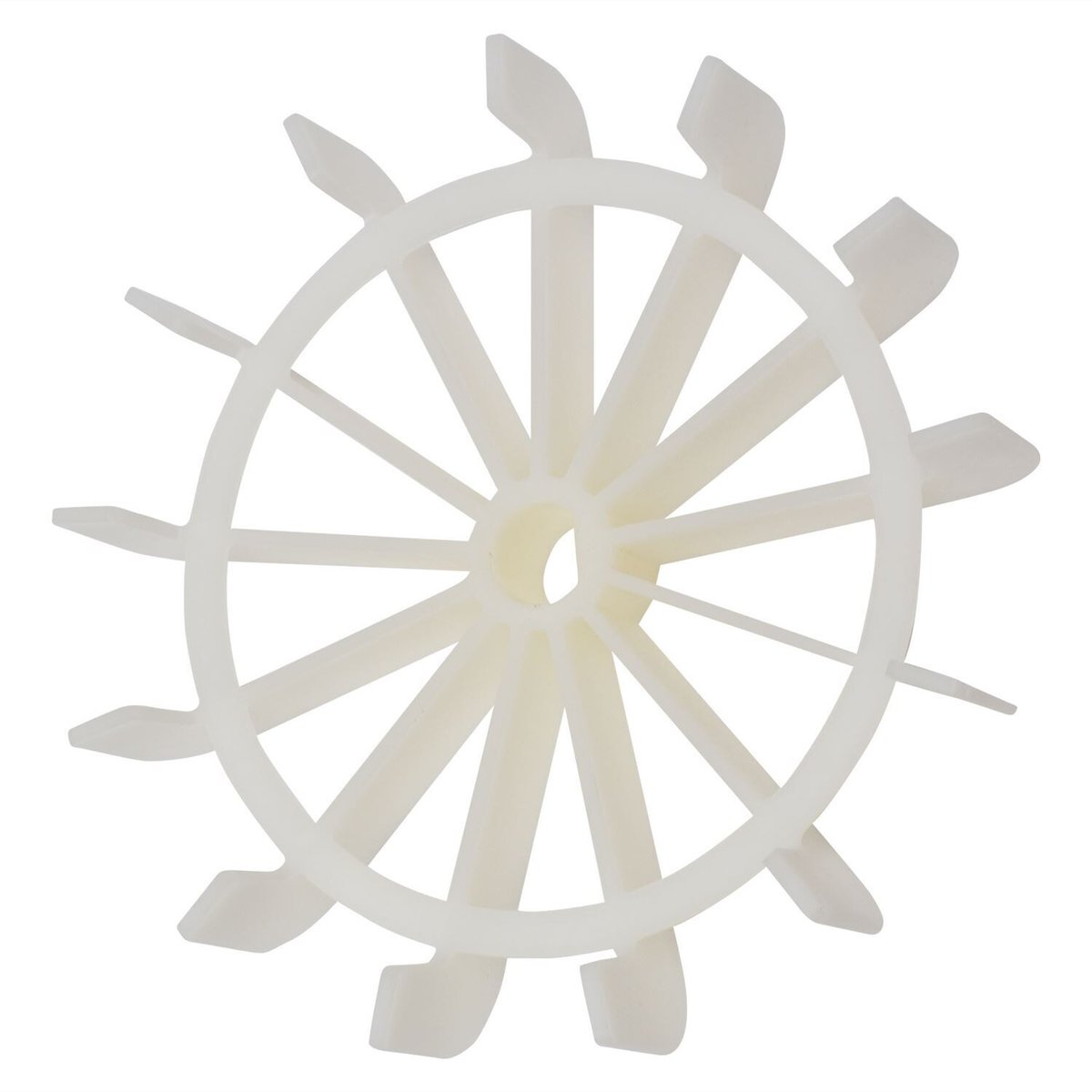

Bosch Chopper Fan2609003854

Very important part - machine overheats and cuts out if not fitted or broken. Remove top cover by undoing 6 Torx slotted screws, then remove 4 M6 nuts to release motor / shredder assembly. Lift assembly to gain access to the end of the electric motor. Take off circlip from motor shaft and slide off old fan if necessary. Slide new fan on and secure with circlip. Lower motor / shredder assembly back into place, replacing all washers. Re-install top cover and secure with 6 Torx screws Easy to fit but hole required a little filing to remove burrs and slip over the motor shaft easily.
