1. Access suppressor

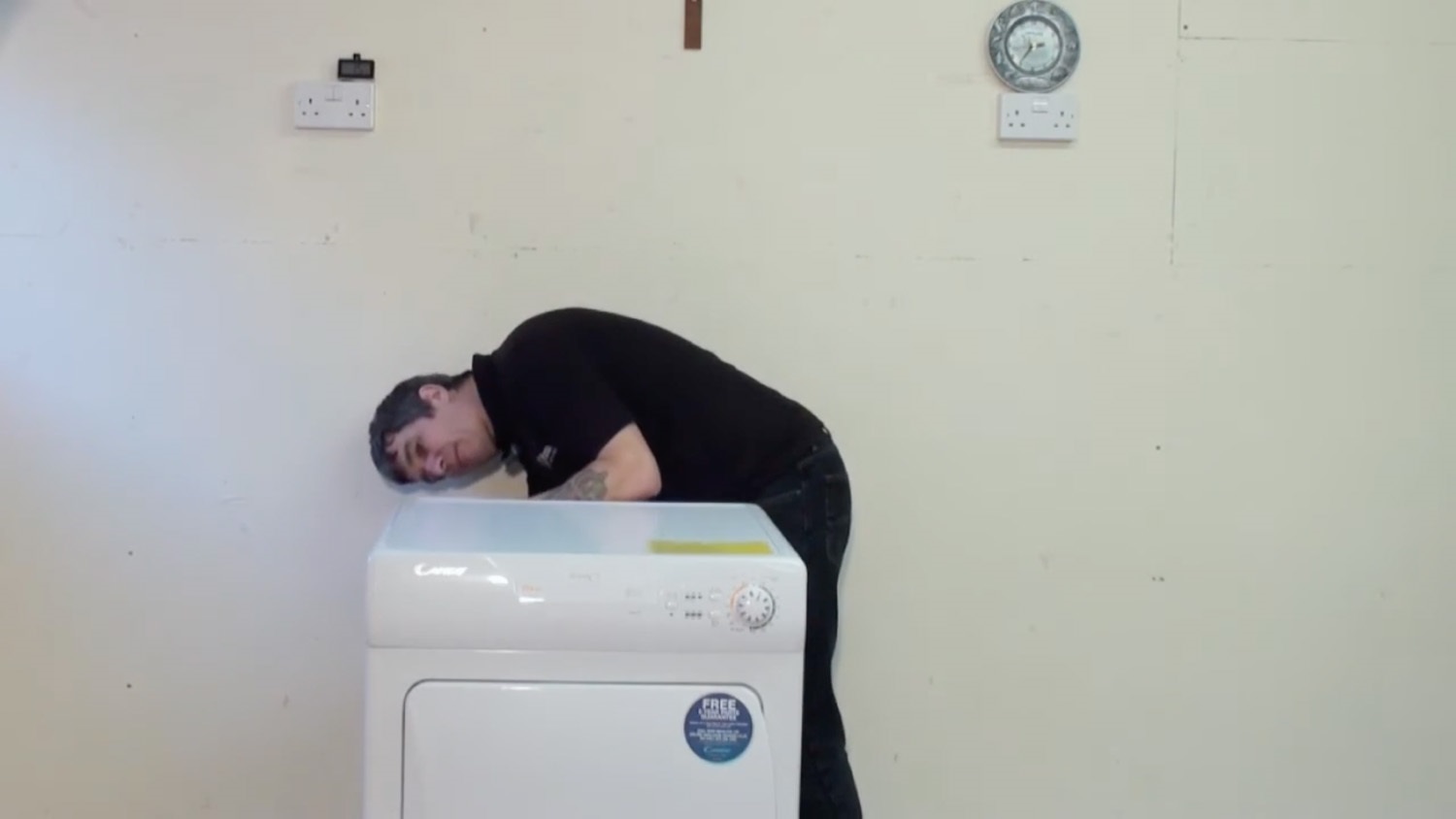

Firstly, using your Phillips screwdriver remove the three screws at the rear of the tumble dryer.

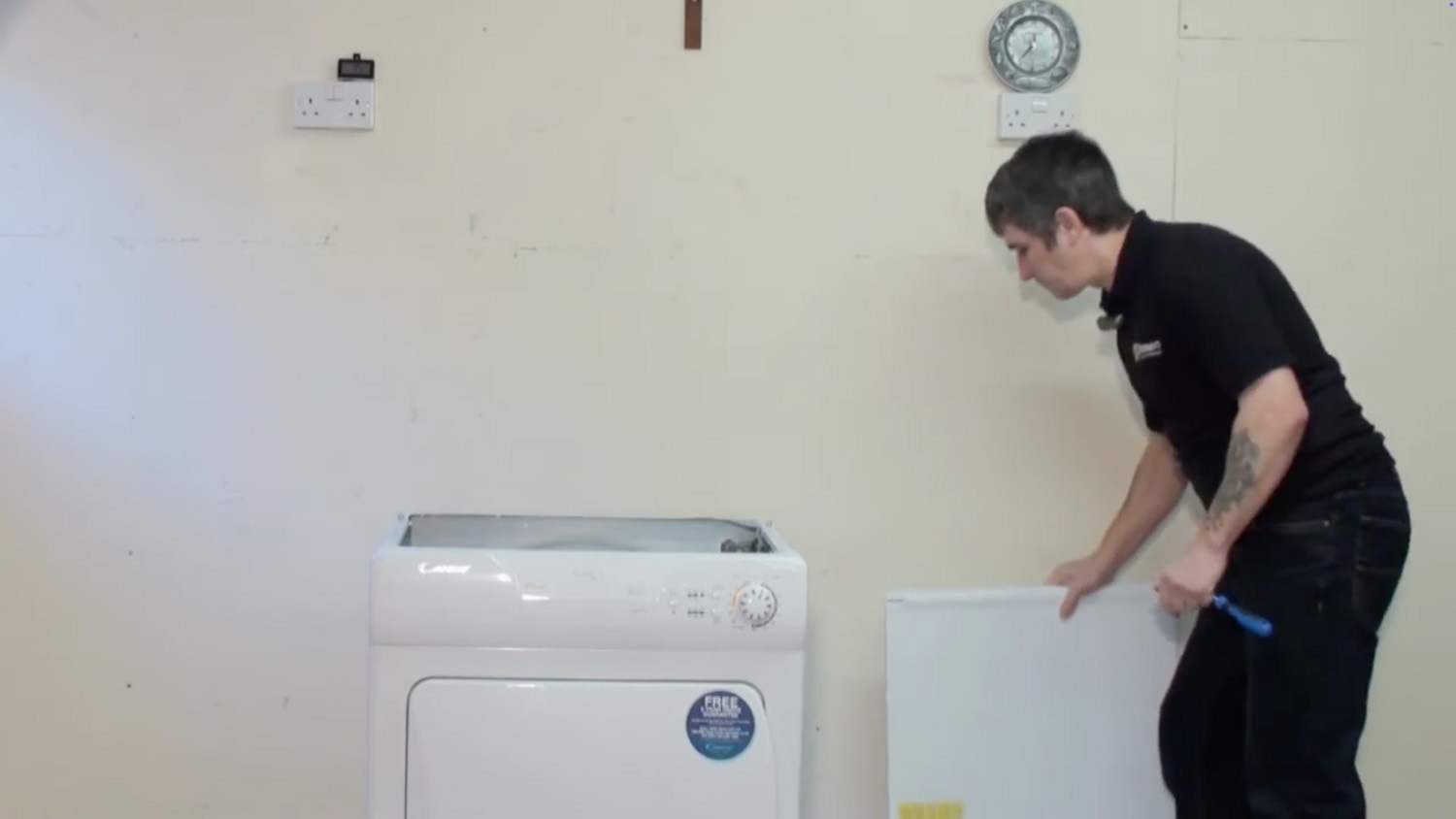

Remove the lid and place to one side.

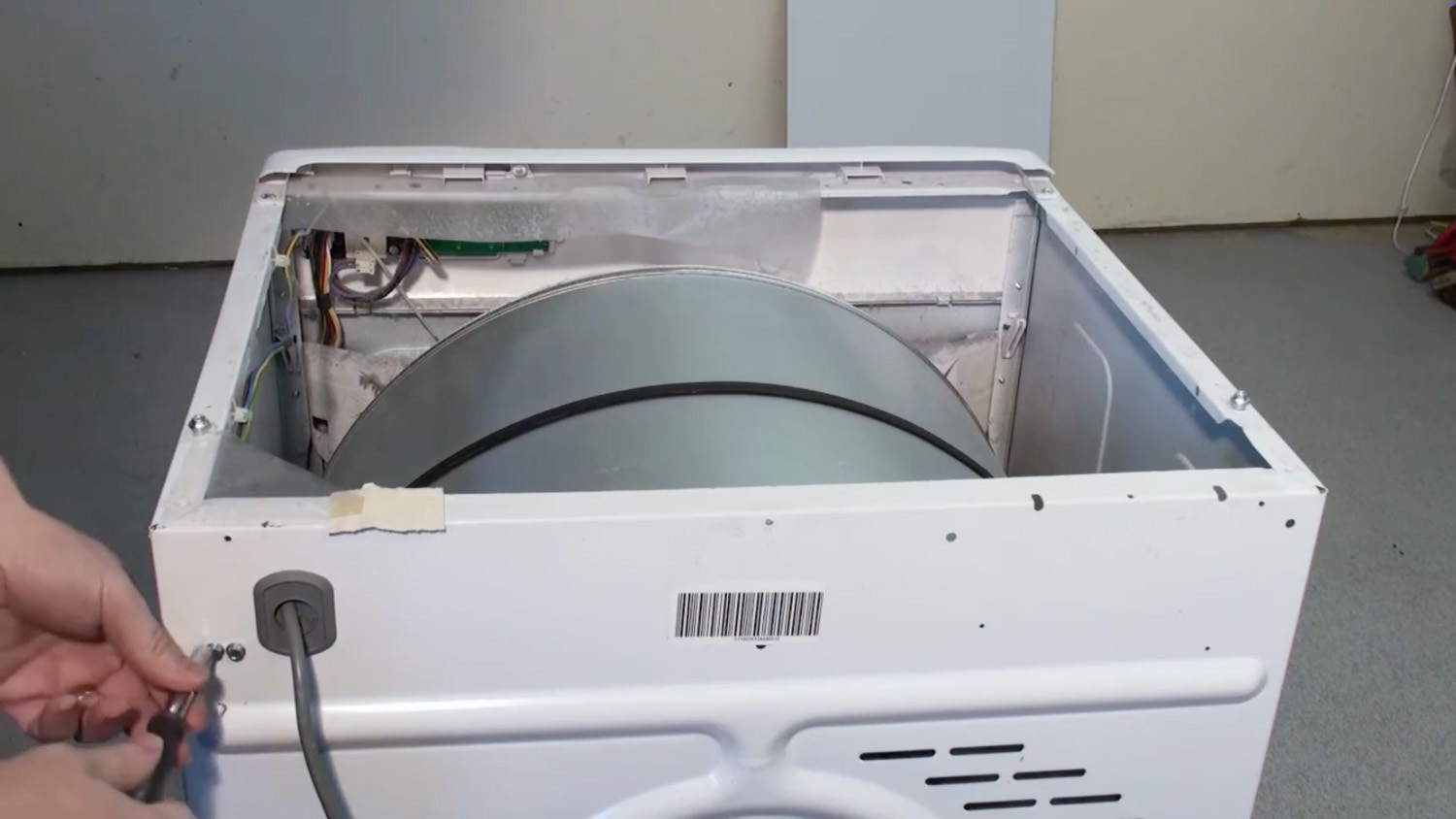

Unscrew and remove the two 7mm bolts at the rear of the tumble dryer to release the suppressor.
2. Remove old suppressor

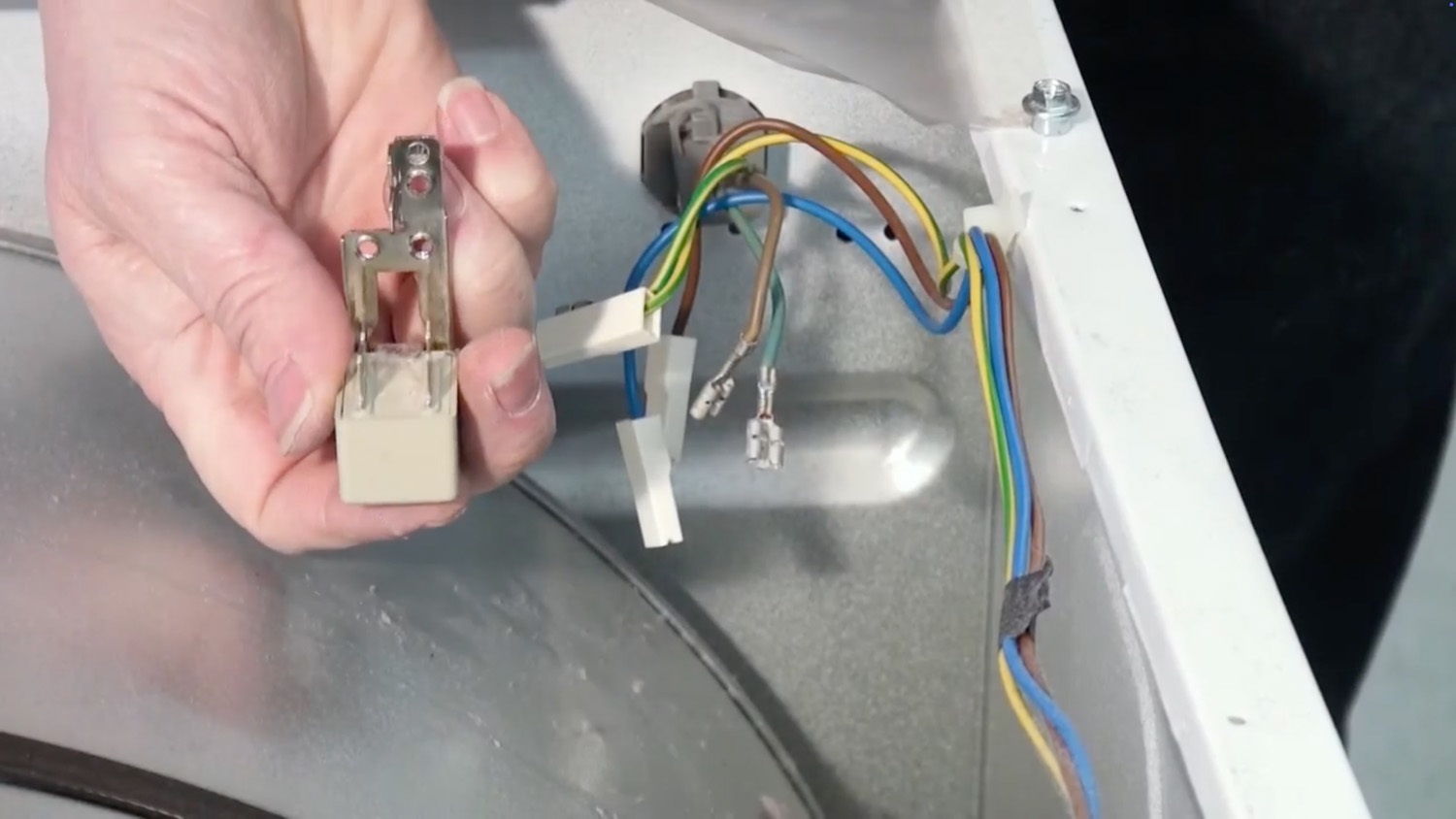

Before removing any electrical wires, take a photo to reference later. Then disconnect the electrical wires.
3. Install new suppressor

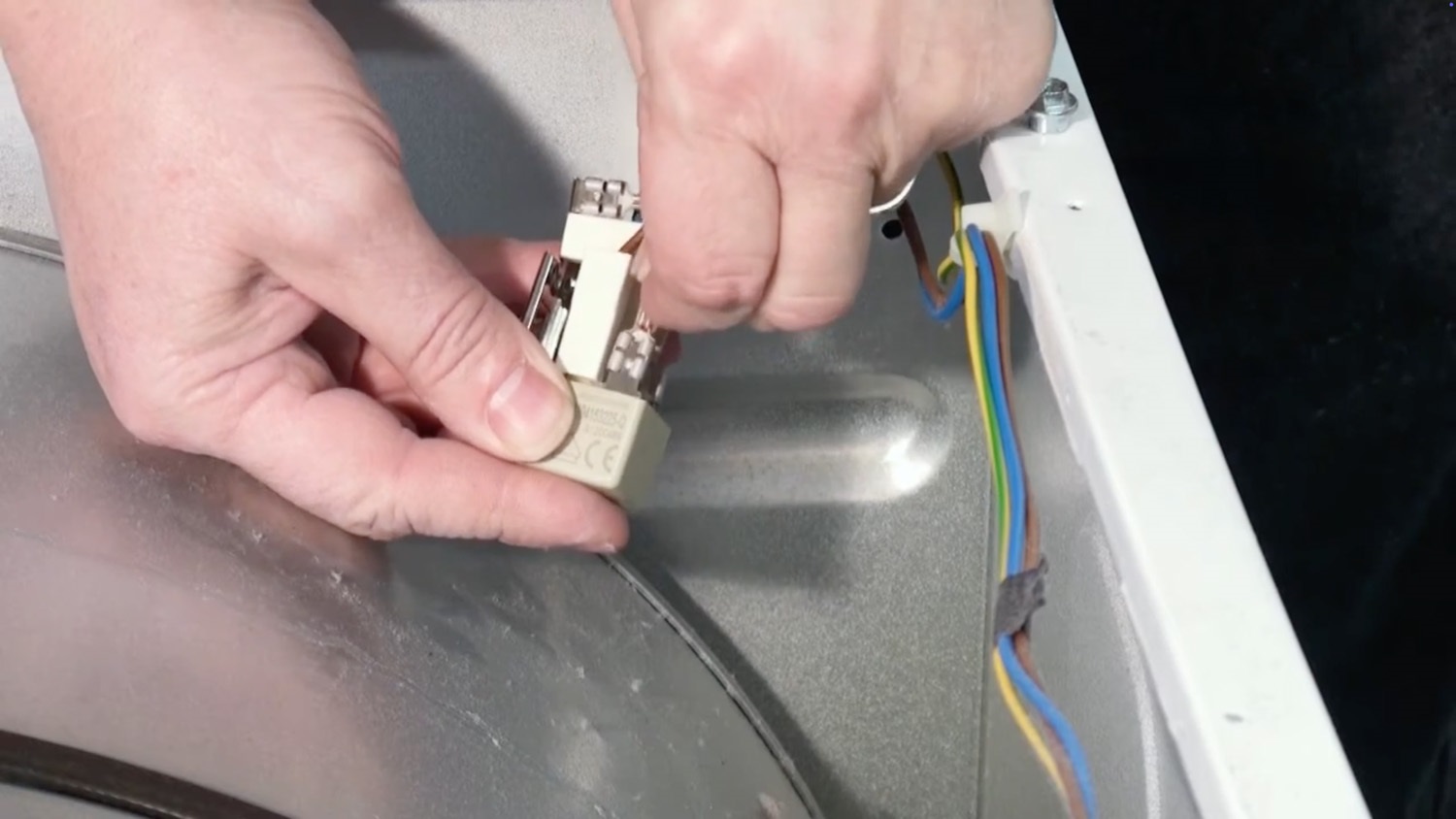

Re-connect the electrical wires to the new suppressor, referring to the photo taken earlier if required.

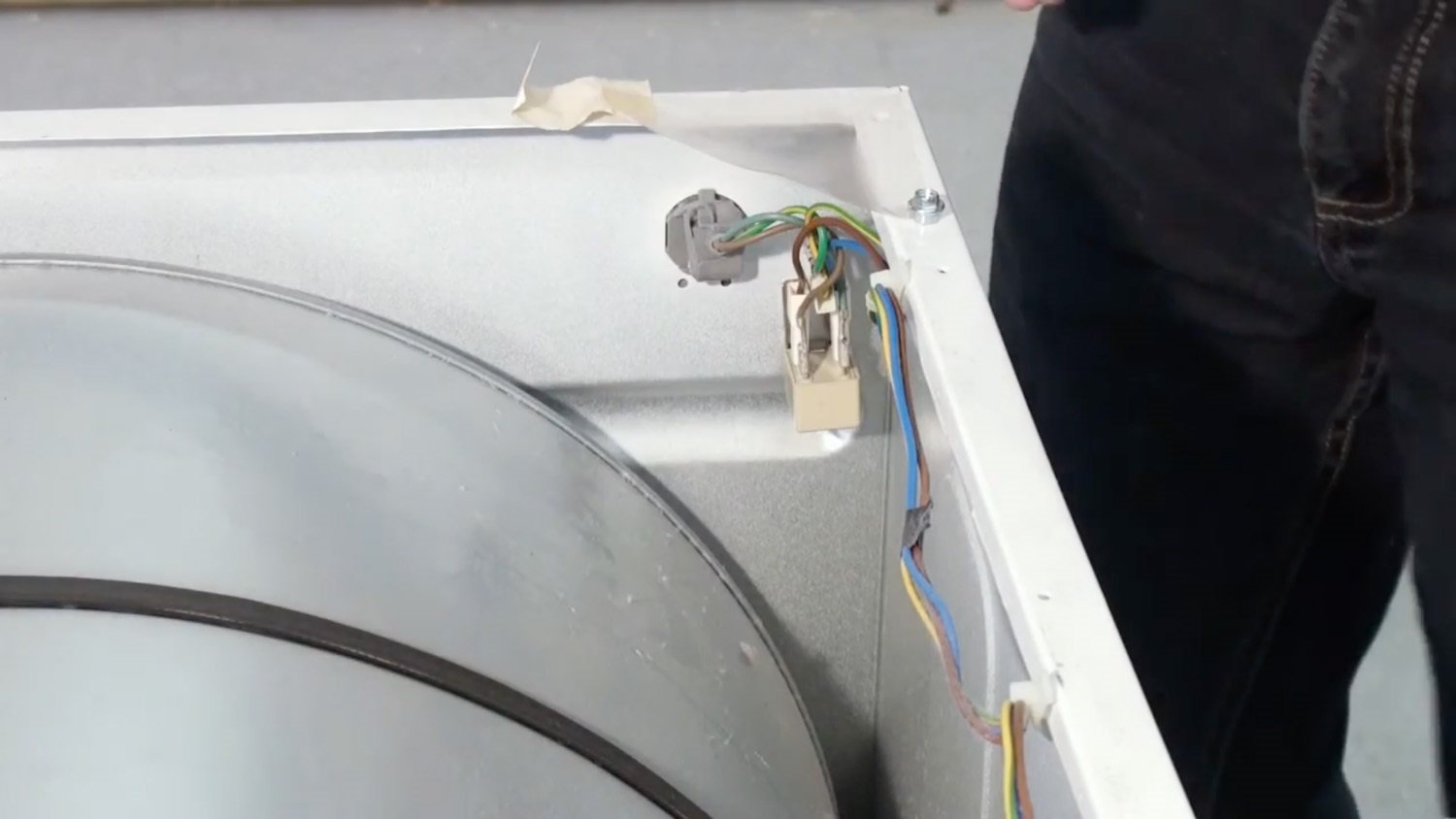

Attach the new suppressor to the rear of the tumble dryer and re-screw the screws back in place.
4. Re-attach tumble dryer lid

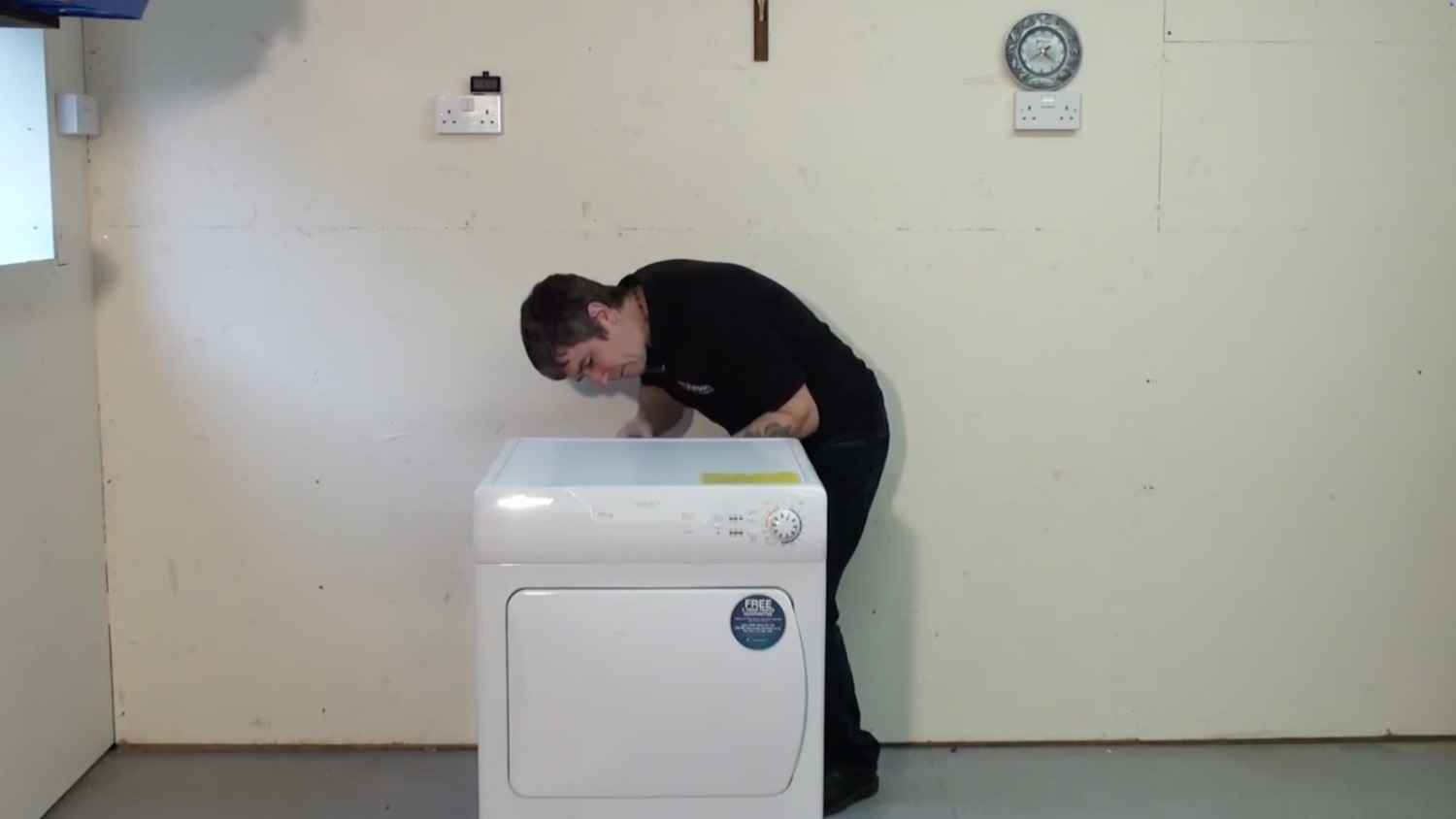

Re-attach the lid and re-screw the screws back in place.
And that’s it, your new Candy tumble dryer suppressor is all set to go!
