Make and Model of Fridge Freezer Used in This Video
Indesit IBD5515S1 (769991603461)
Indesit IBD5515S1 (869991603460)
Part Used in This Video

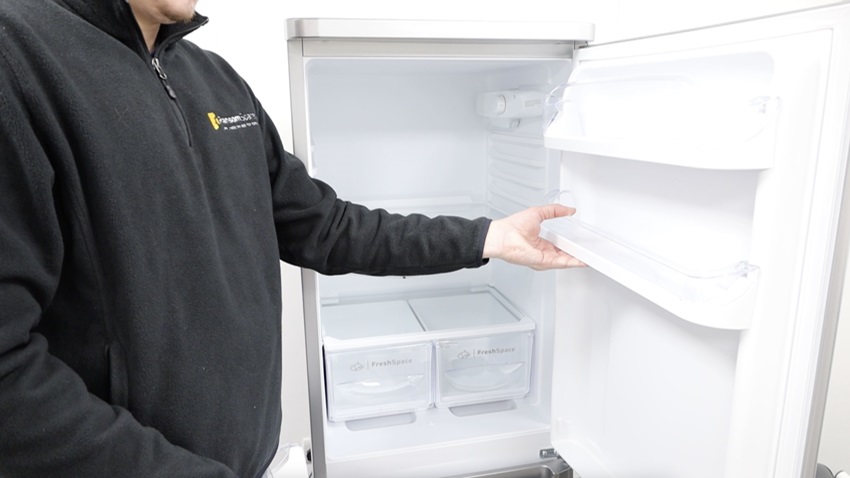

1. Remove shelves
Firstly, remove any items and then the shelves from your door.

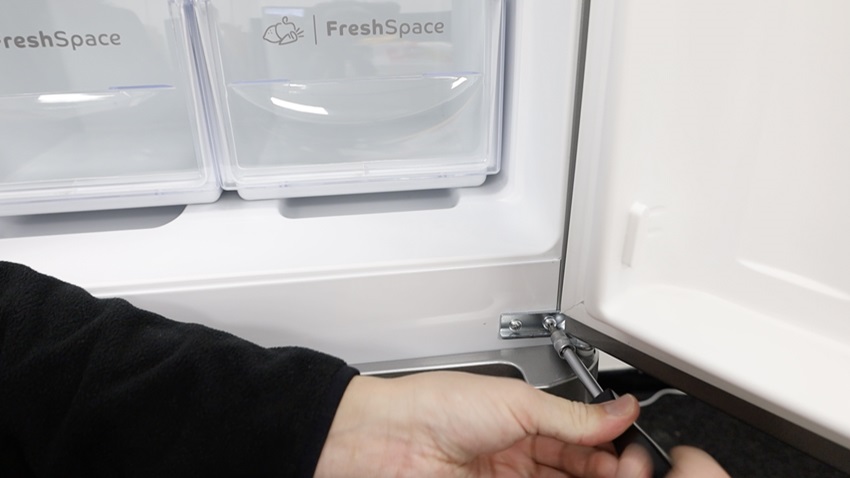

2. Remove door
Remove the two screws on the door bracket shown here. Once unscrewed, remove the door of the hinge bush you need to replace. Ask for help if the door is heavy.

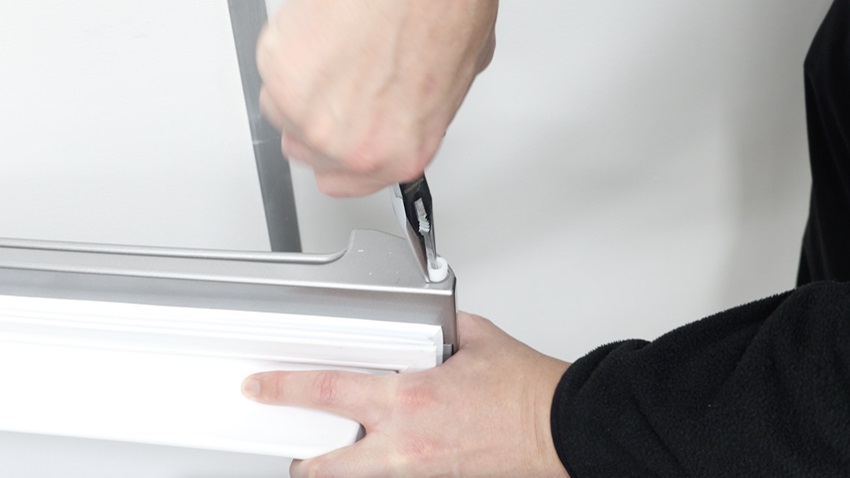

2. Remove old hinge bush
Remove the old hinge bush from your door with your long-nose pliers as shown.

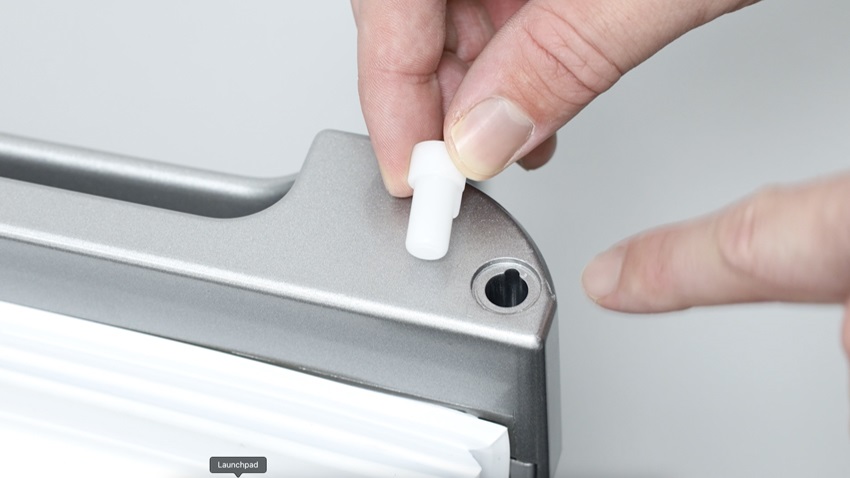

3. Install new hinge bush
For the new hinge bush to fit correctly, line up the notch on the hinge bush with the hole on the fridge door. Then give it a few taps to ensure it’s secured tightly.

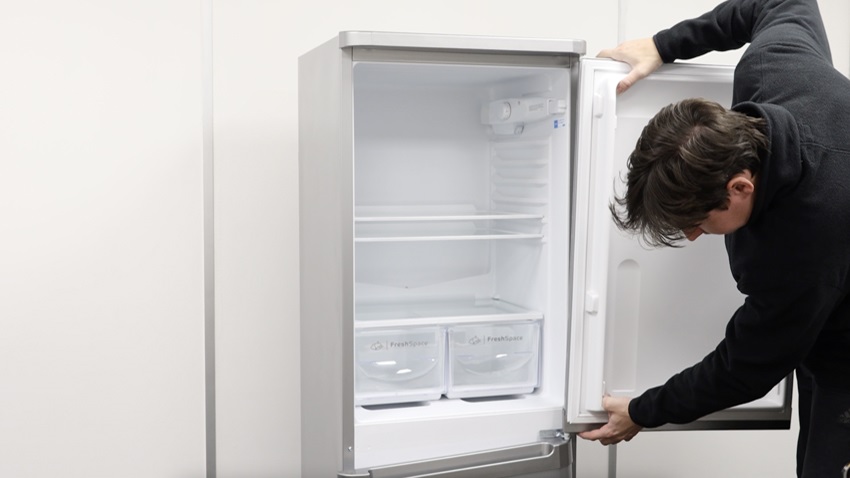

4. Re-attach fridge door
Now re-attach the fridge door. Again, asking for help if the door is heavy.

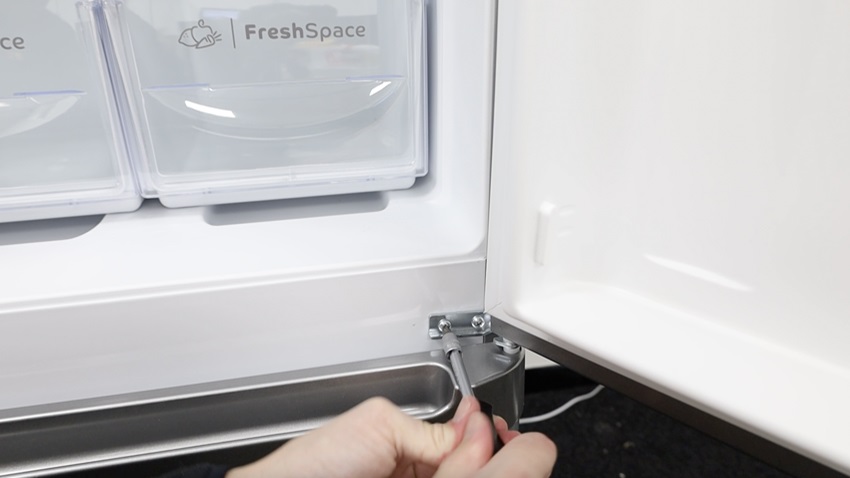

Re-screw the two screws on the metal bracket.

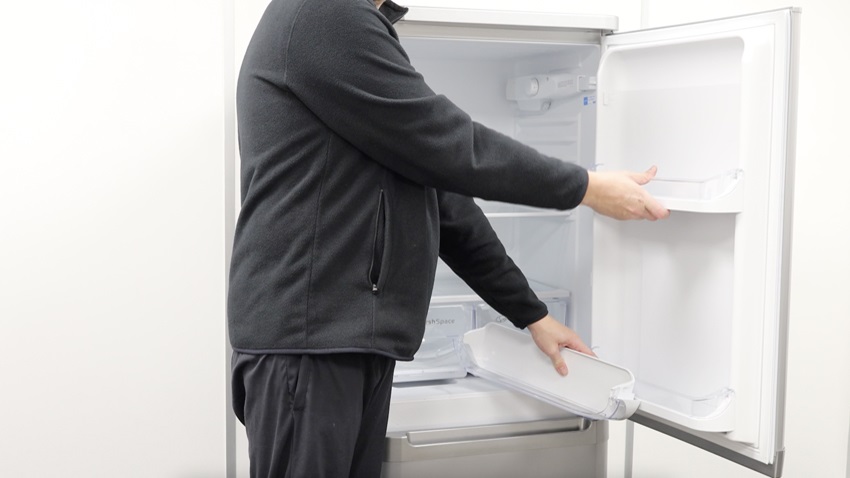

5. Re-attach shelves
Then, re-attach your shelves and place anything back in the fridge.
That’s it, your new hinge bush is all set to go!
