Make and Model of Fridge Freezer Used in This Video
Indesit IBD5515S1 (769991603461)
Indesit IBD5515S1 (869991603460)
Part Used in This Video
Fridge and Freezer Drawer Front Basket Handle
1. Remove hinge and drawer front

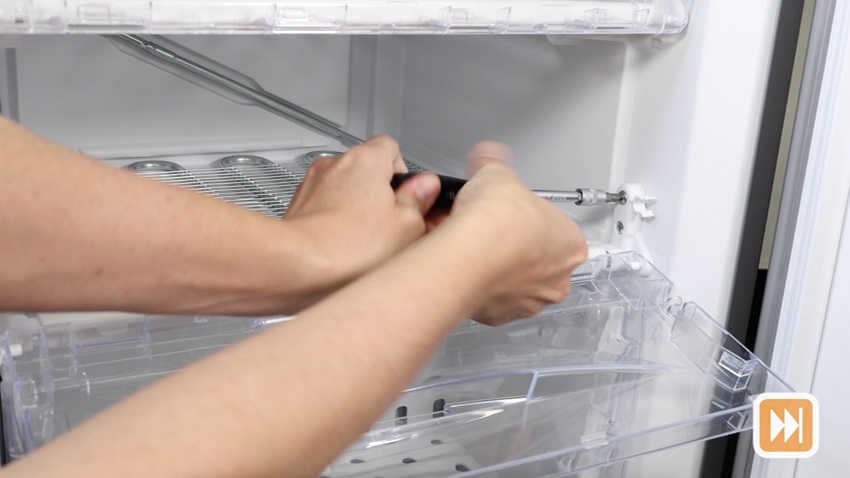

Firstly, pull the freezer drawer front down and remove the two screws on the right side hinge - pop these to one side for later on.

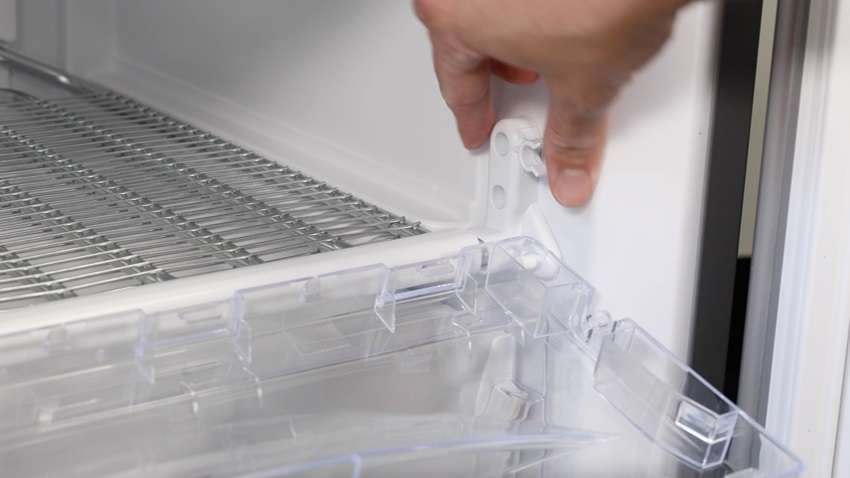

Then, gently remove the hinge from the two holes in the side of the freezer section and pull away. It might be a little bit tight to begin with, so remove it slowly.
2. Install new freezer drawer front

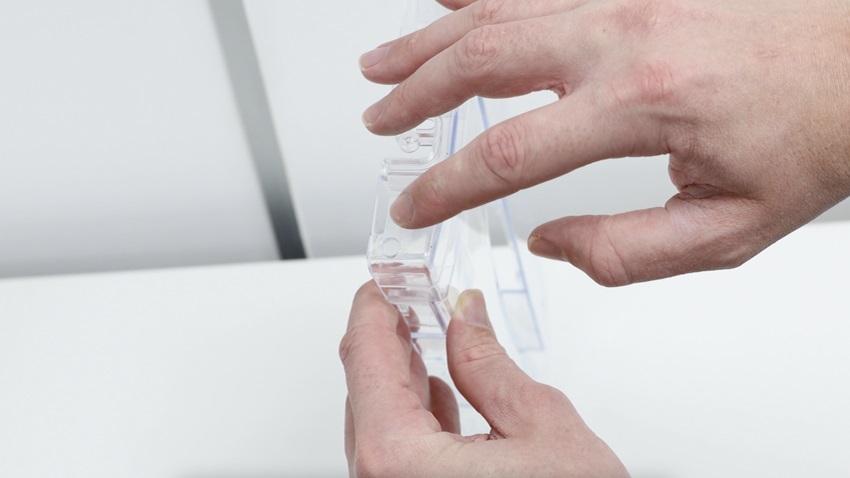

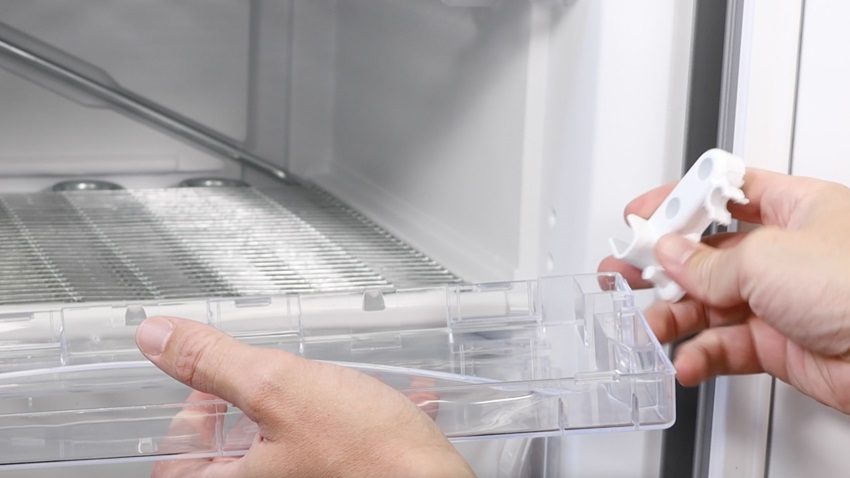

Using the small circular hole on the new freezer drawer front, connect the left side of the freezer drawer front to the existing hinge on the left side as shown.

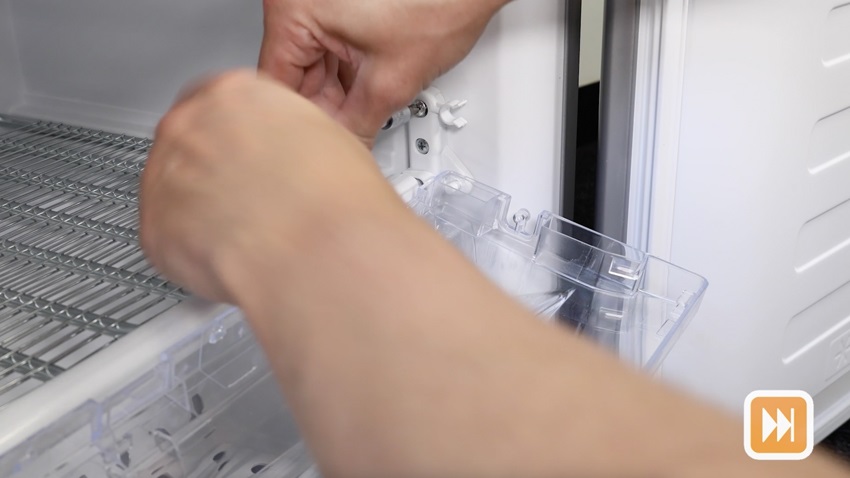

Then, connect the new freezer drawer front to the hinge for the right side. Using the two back connectors on the hinge, gently insert these into the side of the freezer and the lower connector into the freezer tray.
Screw the two screws into the hinge and then make sure your new freezer drawer front opens and closes correctly.
And that’s it, your new drawer front basket handle is all set to go.
