Make and Model of Fridge Freezer Used in This Video
Indesit IBD5515S1 (769991603461)
Indesit IBD5515S1 (869991603460)
Part Used in This Video
Fridge and Freezer Centre Hinge Chrome
1. Remove fridge door

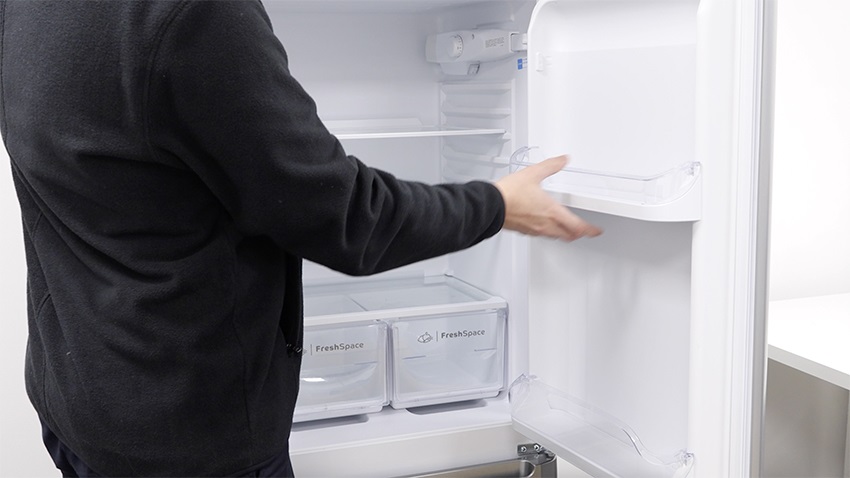

Firstly, remove any items and then the shelves from your door.

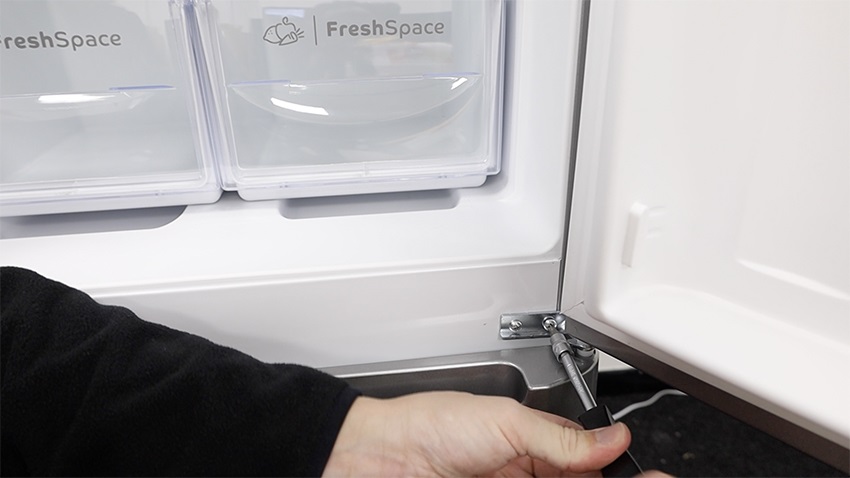

Next, unscrew the two screws on the existing centre hinge.

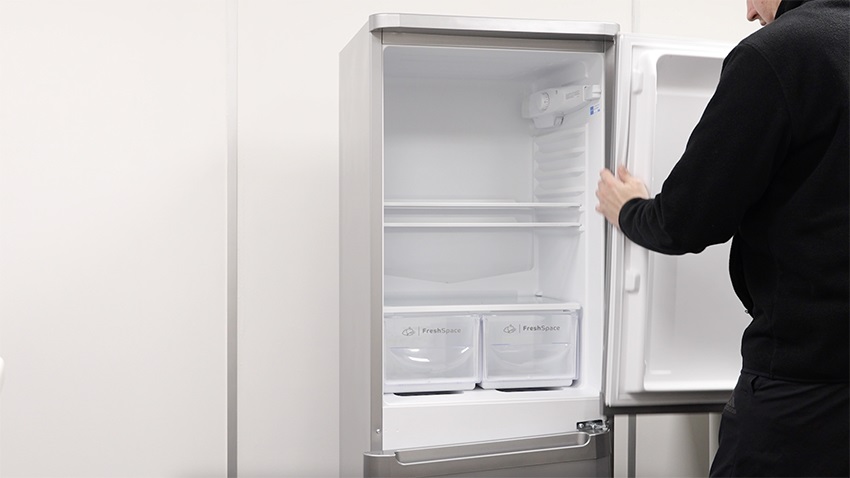

Once unscrewed, remove the top door and place it to one side. Ask for help if it’s heavy.
2. Remove the existing centre hinge

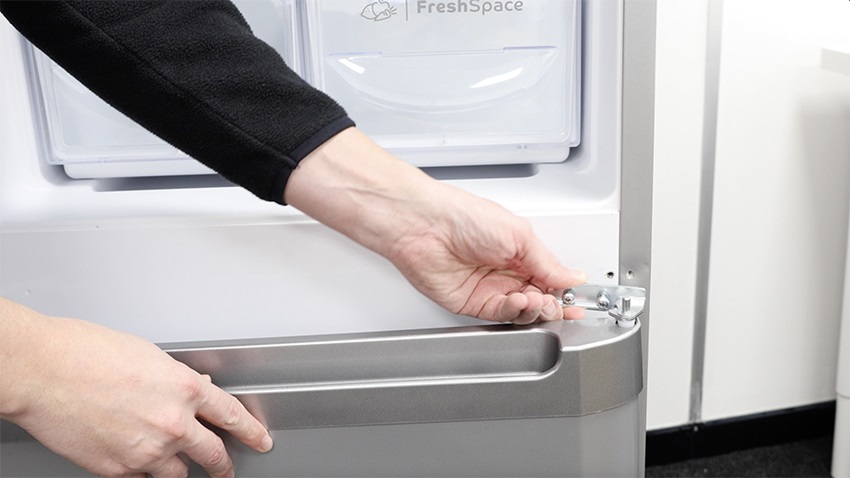

Remove the existing centre hinge and place the screws to one side.
3. Install new centre hinge

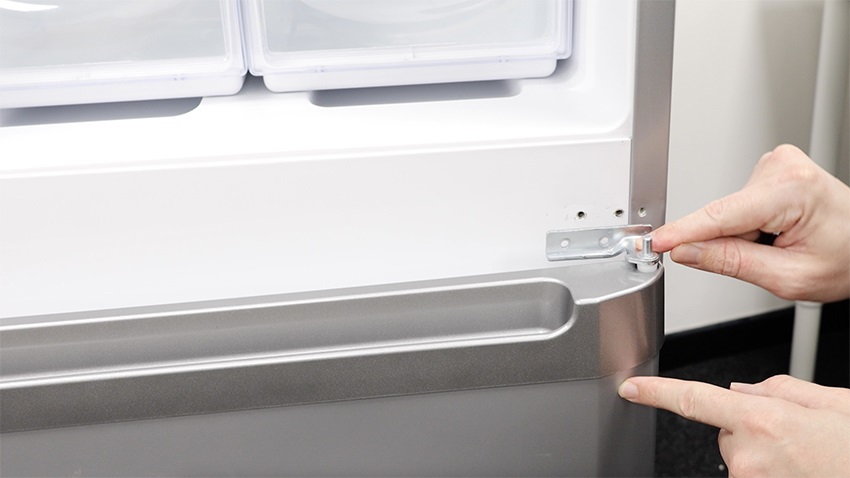

Now, with your new centre hinge, place it in the bottom door hinge bush.
4. Re-attach fridge door

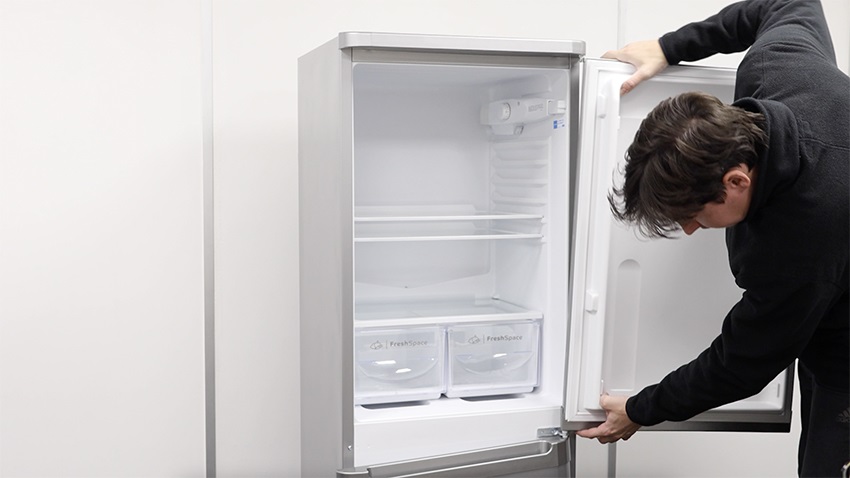

Then, re-attach the fridge door. A little tip - gently rest your foot against the bottom freezer door to hold it in place whilst putting the top fridge door back on. Again, ask for help if needed.

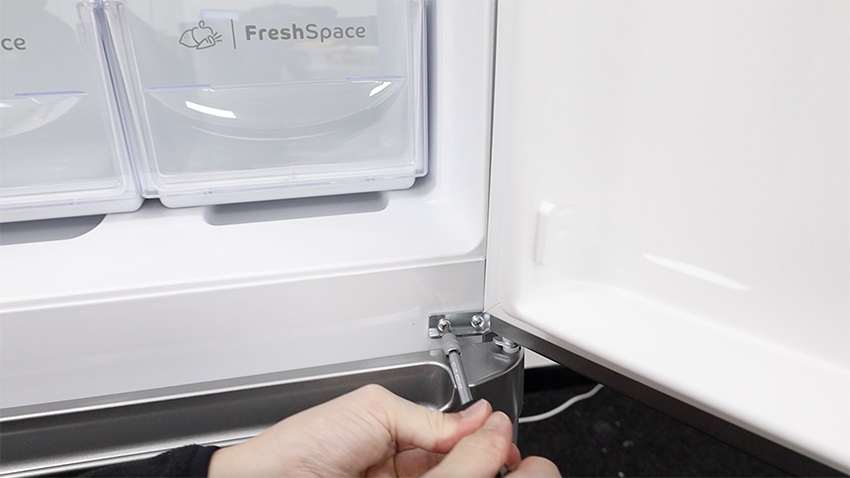

Re-screw the two screws on the new centre hinge.

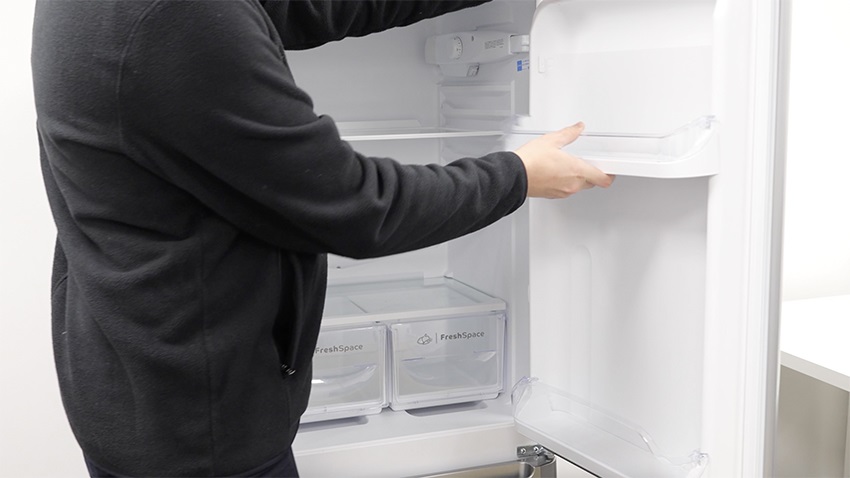

Then, re-attach your shelves and place anything back in the fridge.
That’s it, your new centre hinge is all set to go!
