How to Replace a Fridge Freezer Bottom Lower Door Hinge - Indesit

Make and Model of Fridge Freezer Used in This Video

Indesit IBD5515S1 (769991603461)
Indesit IBD5515S1 (869991603460)

Part Used in This Video

Bottom Lower Door Hinge

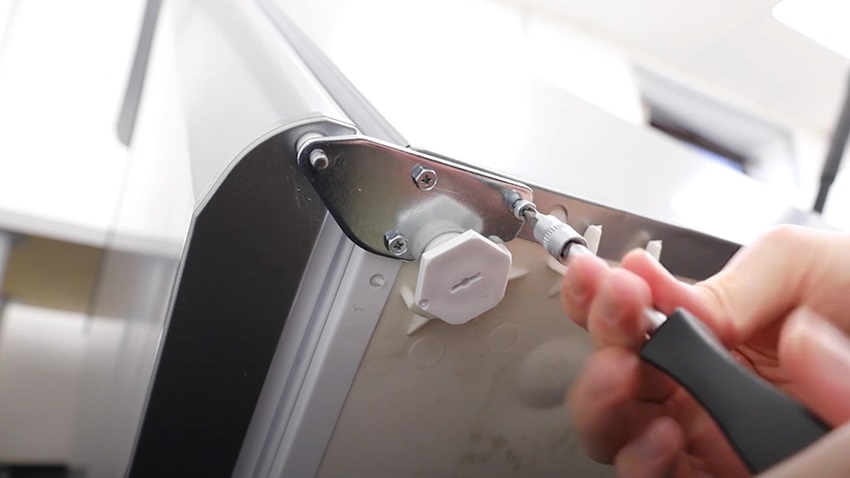

1. Remove existing lower door hinge

With your Phillips screwdriver unscrew the three screws as shown here. Then pop these to one side. Now remove the existing lower door hinge. Don’t worry if the hinge bush also comes out, simply place it back in the freezer door.

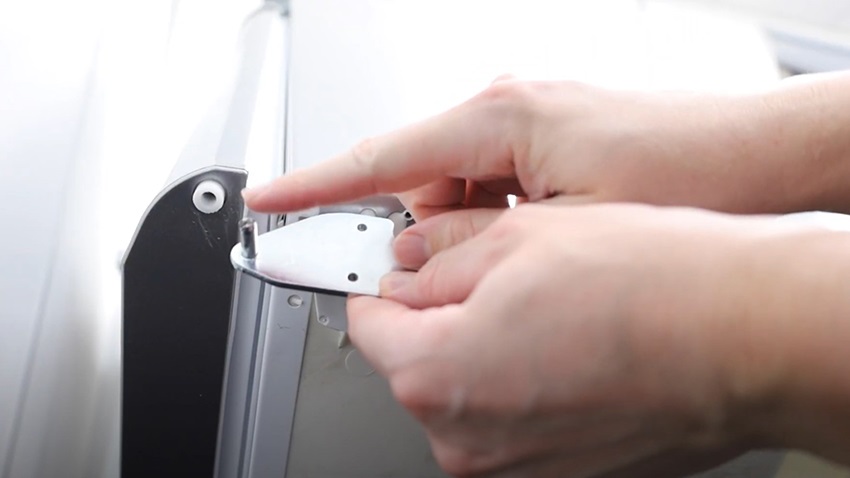

2. Install new lower door hinge

Attach your new lower door hinge to the freezer door. Ensuring the hinge pin is pushed all the way into the hinge bush. Re-screw the three screws back in and ensure they’re tightly secured.

Carefully tip the fridge freezer back into its standing position, asking for help if needed. Then reinstall the shelves and any items you’ve removed.

And that’s it, your new lower door hinge is all set to go.
